5 Setting a Tool and a Workpiece

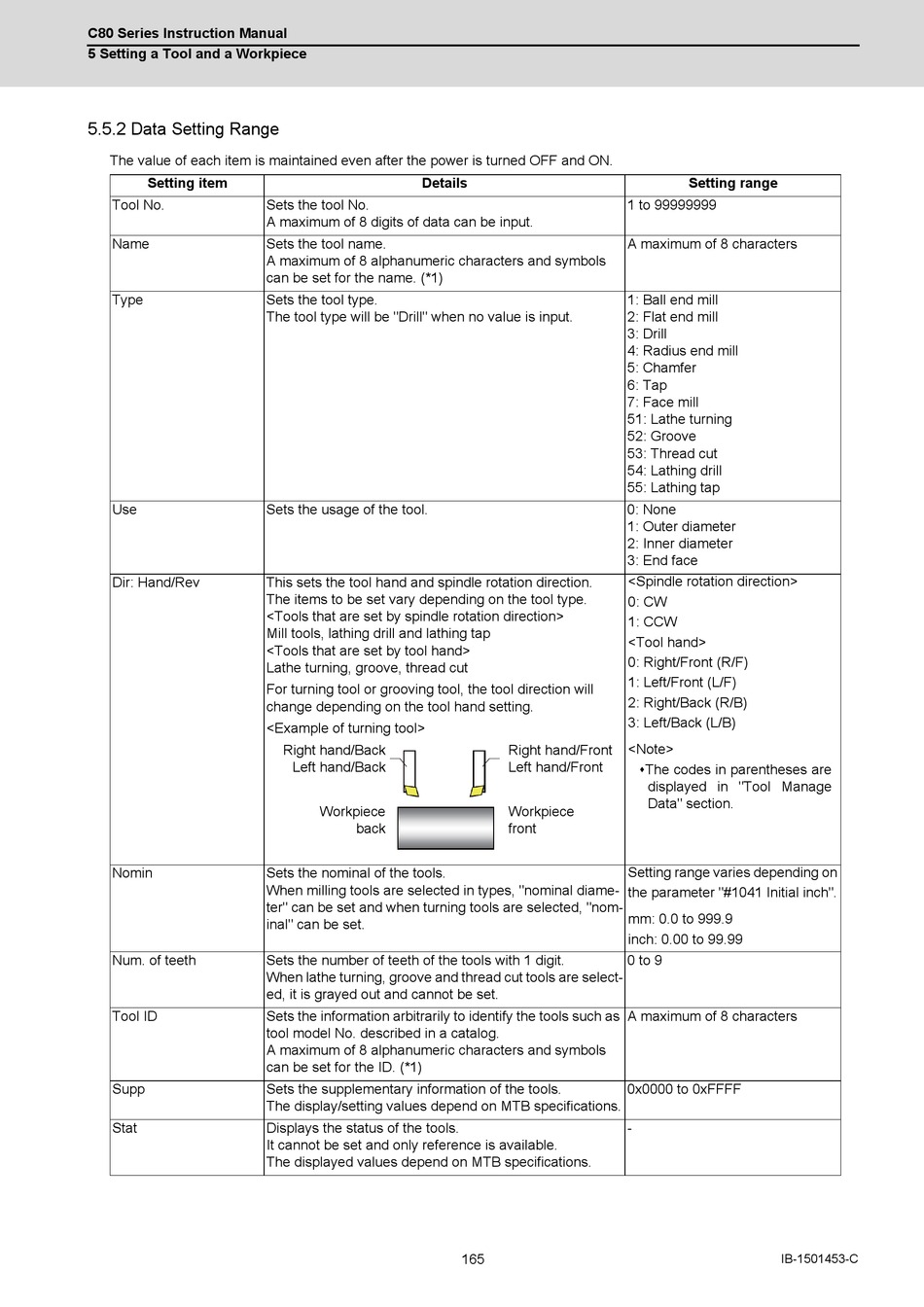

5.5.2 Data Setting Range

The value of each item is maintained even after the power is turned OFF and ON.
Setting item
Tool No.
Name
Type
Use
Dir: Hand/Rev
Nomin
Num. of teeth
Tool ID
Supp
Stat
Details
Sets the tool No.
A maximum of 8 digits of data can be input.
Sets the tool name.
A maximum of 8 alphanumeric characters and symbols
can be set for the name. (*1)
Sets the tool type.
The tool type will be "Drill" when no value is input.
Sets the usage of the tool.
This sets the tool hand and spindle rotation direction.
The items to be set vary depending on the tool type.
<Tools that are set by spindle rotation direction>
Mill tools, lathing drill and lathing tap
<Tools that are set by tool hand>
Lathe turning, groove, thread cut
For turning tool or grooving tool, the tool direction will
change depending on the tool hand setting.
<Example of turning tool>
Right hand/Back
Left hand/Back
Workpiece
back
Sets the nominal of the tools.
When milling tools are selected in types, "nominal diame-
ter" can be set and when turning tools are selected, "nom-
inal" can be set.
Sets the number of teeth of the tools with 1 digit.
When lathe turning, groove and thread cut tools are select-
ed, it is grayed out and cannot be set.
Sets the information arbitrarily to identify the tools such as
tool model No. described in a catalog.
A maximum of 8 alphanumeric characters and symbols
can be set for the ID. (*1)
Sets the supplementary information of the tools.
The display/setting values depend on MTB specifications.
Displays the status of the tools.
It cannot be set and only reference is available.
The displayed values depend on MTB specifications.
1 to 99999999
A maximum of 8 characters
1: Ball end mill
2: Flat end mill
3: Drill
4: Radius end mill
5: Chamfer
6: Tap
7: Face mill
51: Lathe turning
52: Groove
53: Thread cut
54: Lathing drill
55: Lathing tap
0: None
1: Outer diameter
2: Inner diameter
3: End face
<Spindle rotation direction>
0: CW
1: CCW
<Tool hand>
0: Right/Front (R/F)
1: Left/Front (L/F)
2: Right/Back (R/B)
3: Left/Back (L/B)
<Note>
Right hand/Front
Left hand/Front
Workpiece
front
Setting range varies depending on
the parameter "#1041 Initial inch".
mm: 0.0 to 999.9
inch: 0.00 to 99.99
0 to 9
A maximum of 8 characters
0x0000 to 0xFFFF
-
165
Setting range
The codes in parentheses are
displayed in "Tool Manage
Data" section.
IB-1501453-C
