C80 Series Instruction Manual
2 Screen Operations

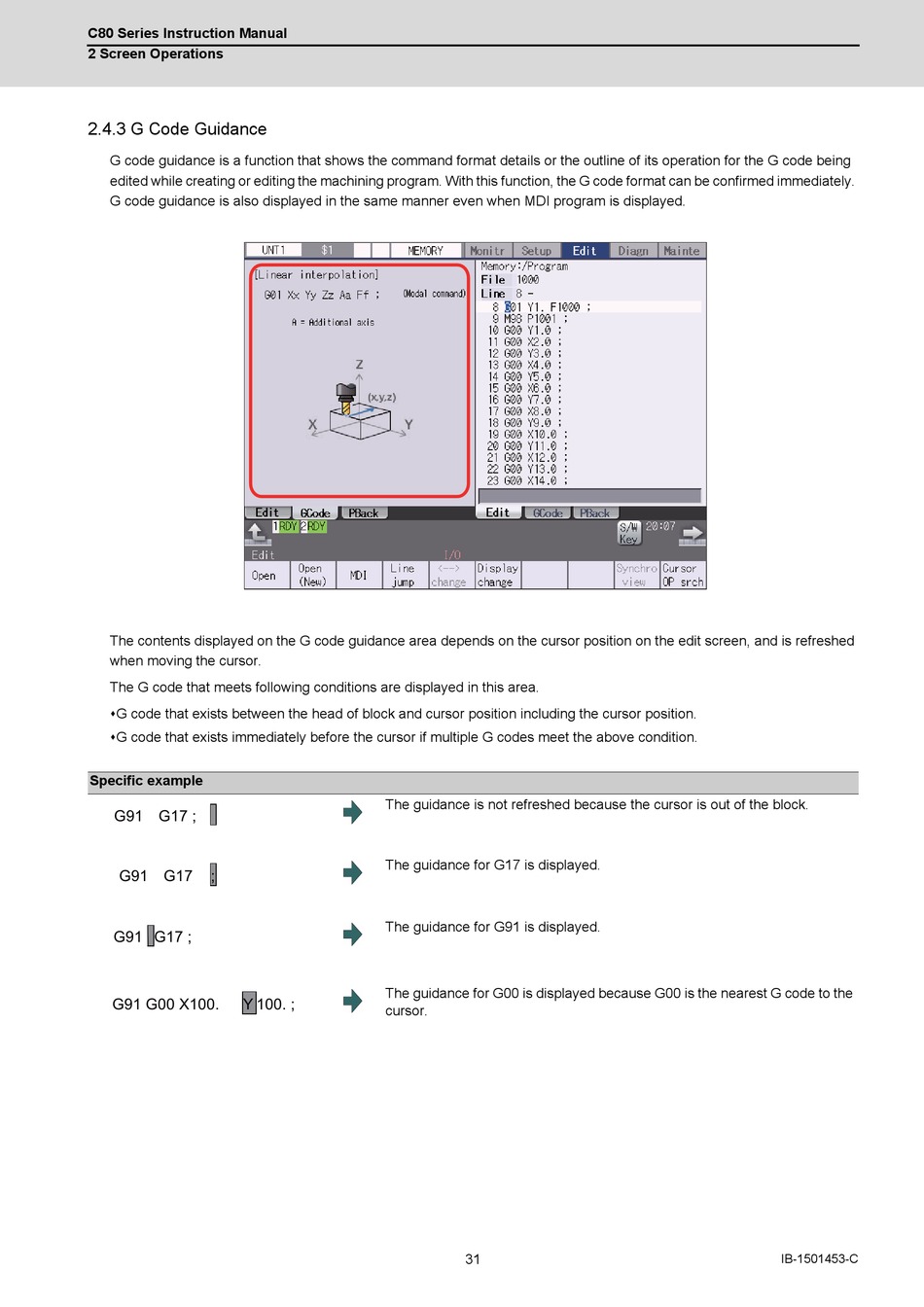

2.4.3 G Code Guidance

G code guidance is a function that shows the command format details or the outline of its operation for the G code being
edited while creating or editing the machining program. With this function, the G code format can be confirmed immediately.
G code guidance is also displayed in the same manner even when MDI program is displayed.
The contents displayed on the G code guidance area depends on the cursor position on the edit screen, and is refreshed
when moving the cursor.
The G code that meets following conditions are displayed in this area.
G code that exists between the head of block and cursor position including the cursor position.
G code that exists immediately before the cursor if multiple G codes meet the above condition.
Specific example
G91 G17 ;
G91 G17 ;
G91 G17 ;
G91 G00 X100. Y 100. ;
The guidance is not refreshed because the cursor is out of the block.
The guidance for G17 is displayed.
The guidance for G91 is displayed.
The guidance for G00 is displayed because G00 is the nearest G code to the
cursor.
31 IB-1501453-C
