B2.31 CPUPWRCTLR_EL1, Power Control Register, EL1
The CPUPWRCTLR_EL1 provides information about power control support for the core.
Bit field descriptions
CPUPWRCTLR_EL1 is a 32-bit register, and is part of the
group.
RES0, [31:10]
WFE_RET_CTRL, [9:7]
WFI_RET_CTRL, [6:4]
RES0, [3:1]
CORE_PWRDN_EN, [0]
c
The number of system counter ticks required before the core signals retention readiness on PACTIVE to the power controller. The core does not accept a retention
entry request until this time.
100798_0300_00_en
31
0
RES
Reserved.
RES0
CPU WFE retention control:
Disable the retention circuit. This is the default value, see
000
Retention Control Field on page B2-188
CPU WFI retention control:
Disable the retention circuit. This is the default value, see
000
Retention Control Field on page B2-188
Reserved.
RES0
Indicates to the power controller using PACTIVE if the core wants to power down when it
enters WFI state.
No power down requested.
0
A power down is requested.
1
Encoding Number of counter ticks
000
001
Copyright © 2016–2018 Arm Limited or its affiliates. All rights

B2.31 CPUPWRCTLR_EL1, Power Control Register, EL1

IMPLEMENTATION DEFINED
WFE_RET_CTRL

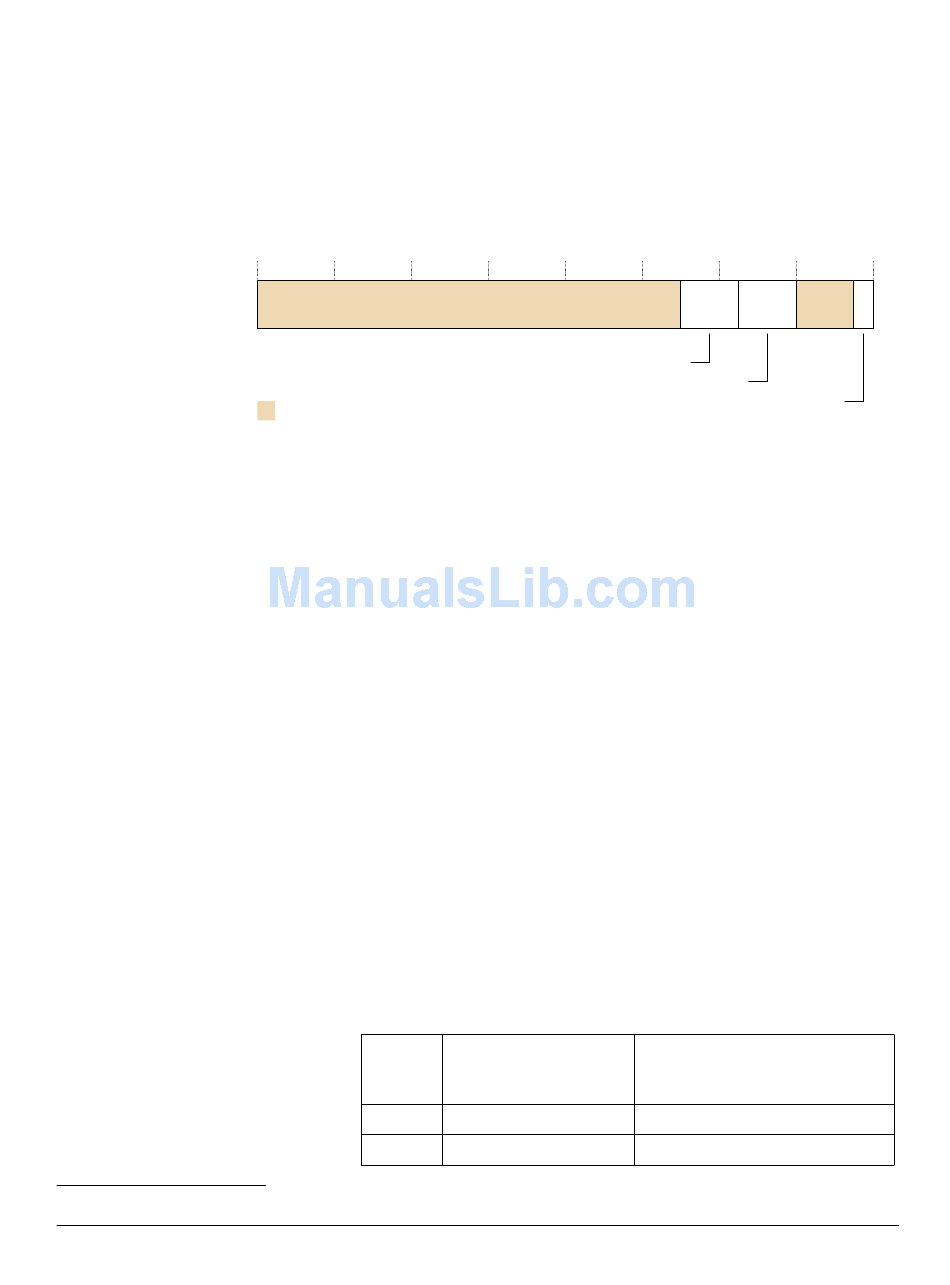

Figure B2-27 CPUPWRCTLR_EL1 bit assignments
