A4.6 Core power modes

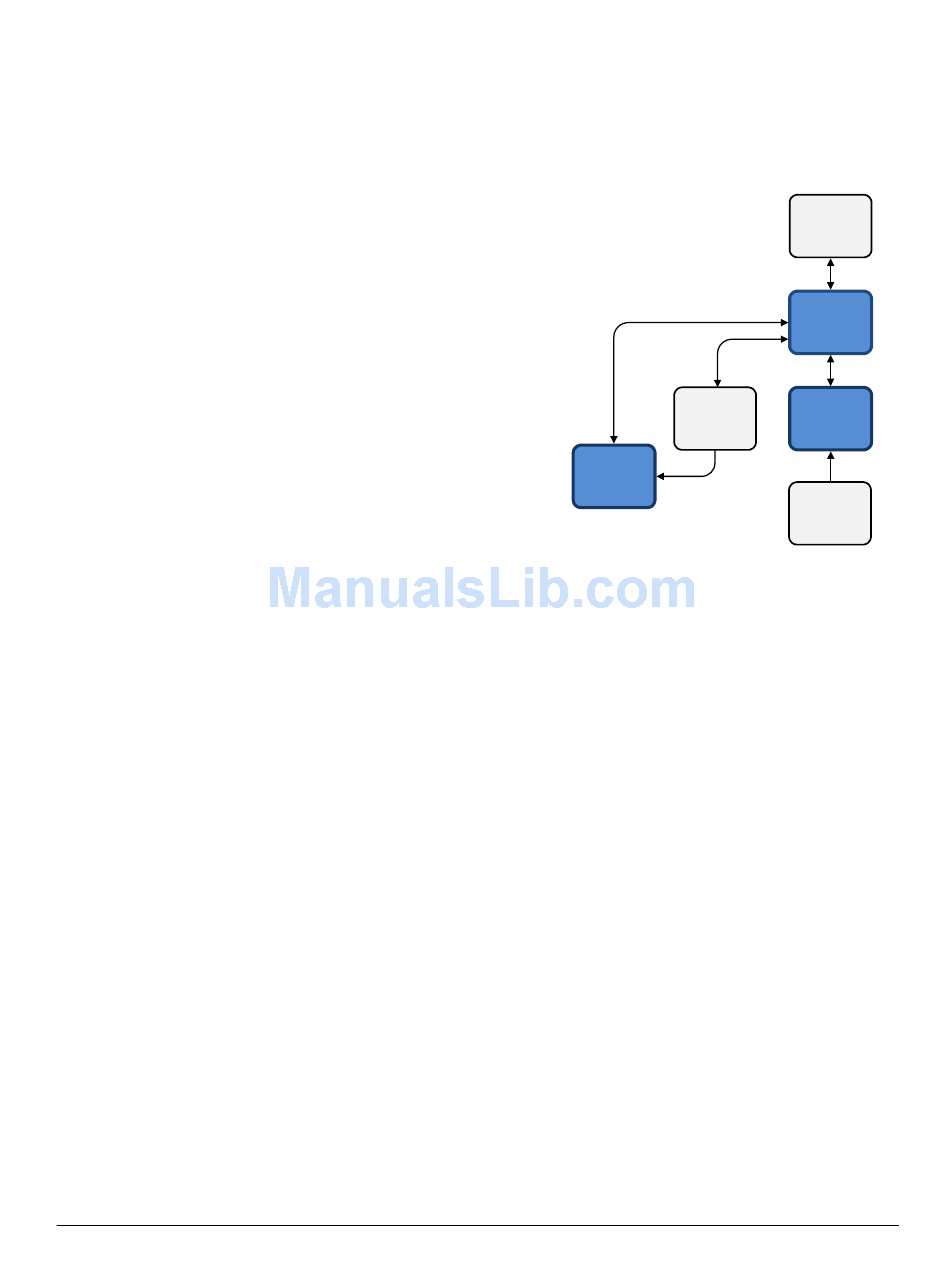

The following figure shows the supported modes for each core domain P-Channel, and the legal
transitions between them.
The blue modes indicate the modes the channel can be initialized into.
A4.6.1 On
In this mode, the core is on and fully operational.
The core can be initialized into the On mode. If the core does not use P-Channel, you can tie the core in
the On mode by tying PREQ LOW.
When a transition to the On mode completes, all caches are accessible and coherent. Other than the
normal architectural steps to enable caches, no additional software configuration is required.
When the core domain P-Channel is initialized into the On mode, either as a shortcut for entering that
mode or as a tie-off for an unused P-Channel, it is an assumed transition from the Off mode. This
includes an invalidation of any cache RAM within the core domain.
A4.6.2 Off
The Cortex-A76 core supports a full shutdown mode where power can be removed completely and no
state is retained.
The shutdown can be for either the whole cluster or just for an individual core, which allows other cores
in the cluster to continue operating.
In this mode, all core logic and RAMs are off. The domain is inoperable and all core state is lost. The L1
and L2 caches are disabled, flushed and the core is removed from coherency automatically on transition
to Off mode.
A Cold reset can reset the core in this mode.
The core P-Channel can be initialized into this mode.
An attempted debug access when the core domain is off returns an error response on the internal debug
interface indicating the core is not available.
100798_0300_00_en
Figure A4-4 Cortex-A76 core power domain mode transitions
Copyright © 2016–2018 Arm Limited or its affiliates. All rights
reserved.
Non-Confidential
A4 Power management

A4.6 Core power modes

Off
(Emulated)
Off
Dynamic
retention
On
Debug
Recovery
From any
power mode
