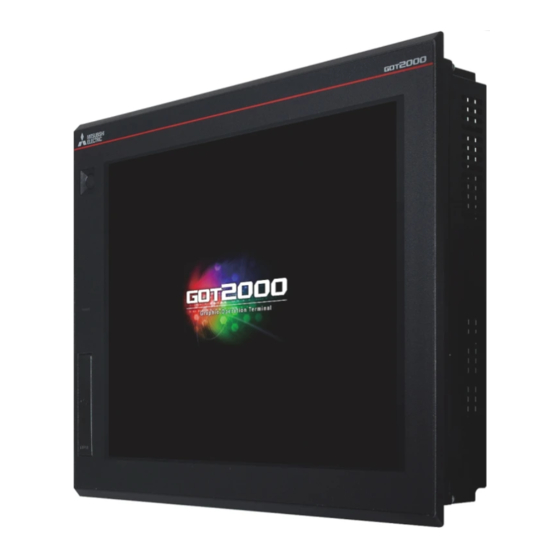

Mitsubishi Electric GOT2000 Series User Manual

Mitsubishi Electric GOT2000 Series User Manual

Graphic operation terminal
Hide thumbs Also See for GOT2000 Series:
Table of Contents

Advertisement

Quick Links

GRAPHIC OPERATION TERMINAL
GOT2000
Series
User's Manual (Monitor)

Advertisement

Table of Contents
loading

Summary of Contents for Mitsubishi Electric GOT2000 Series

  • Page 1 GRAPHIC OPERATION TERMINAL GOT2000 Series User's Manual (Monitor)
  • Page 3: Safety Precautions

    Thank you for choosing Mitsubishi Graphic Operation Terminal (Mitsubishi GOT). Read this manual and make sure you understand the functions and performance of the GOT thoroughly in advance to ensure correct use. SAFETY PRECAUTIONS (Always read these precautions before using this equipment.) Before using this product, please read this manual and the relevant manuals introduced in this manual carefully and pay full attention to safety to handle the product correctly.
  • Page 4 [DESIGN PRECAUTIONS] WARNING When the GOT backlight has a failure, the GOT status will be as follows.Failure to observe this instruction may result in an accident due to incorrect output or malfunction. • GT27,GT25,GT23 When the GOT backlight has a failure, the POWER LED blinks (orange/blue) and the display section dims.
  • Page 5 Doing so can result in a damage or failure of the display section. When a GOT2000 series model and a GOT1000 series model are on an Ethernet network, do not set the IP address 192.168.0.18 for the GOTs and the controllers on this network.
  • Page 6 [MOUNTING PRECAUTIONS] CAUTION Use the GOT in the environment that satisfies the general specifications described in this manual. Not doing so can cause an electric shock, fire, malfunction or product damage or deterioration. When mounting the GOT to the control panel, tighten the mounting screws in the specified torque range with a Phillips-head screwdriver No.2.
  • Page 7 [MOUNTING PRECAUTIONS] WARNING When installing the supplied fittings on GT2512F-S, GT2510F-V, or GT2508F-V, tighten screws in the specified torque range (0.8 N•m to 1.0 N•m). Meld studs on the control panel to fasten the fittings. The studs must have strength adequate to withstand a tightening torque of 0.9 Nom or more. Make sure that no foreign matter such as welding waste is at and around the bases of the studs.
  • Page 8 [WIRING PRECAUTIONS] CAUTION Make sure to ground the FG terminal and LG terminal of the GOT power supply section to the protective ground conductors dedicated to the GOT with a ground resistance of 100 Ω or less. (GT21 does not have the LG terminal.) When tightening the terminal screws, use a Phillips-head screwdriver No.2.
  • Page 9 [TEST OPERATION PRECAUTIONS] WARNING Before testing the operation of a user-created monitor screen (such as turning on or off a bit device, changing the current value of a word device, changing the set value or current value of a timer or counter, and changing the current value of a buffer memory), thoroughly read the manual to fully understand the operating procedures.
  • Page 10 Before touching the unit, always touch grounded metals, etc. to discharge static electricity from human body, etc. Not doing so can cause the unit to fail or malfunction. Use the battery manufactured by Mitsubishi Electric Corporation. Use of other batteries may cause a risk of fire or explosion. Dispose of used battery promptly.
  • Page 11 [PRECAUTIONS WHEN THE DATA STORAGE IS IN USE] WARNING If the SD card is removed from drive A of the GOT while being accessed by the GOT, the GOT may stop processing data for about 20 seconds. The GOT cannot be operated during this period. The functions that run in the background including a screen updating, alarm, logging, scripts, and others are also interrupted.
  • Page 12 When disposing of this product, treat it as industrial waste. When disposing of batteries, separate them from other wastes according to the local regulations. (Refer to GOT2000 Series User's Manual (Hardware) for details of the battery directive in the EU member states.)
  • Page 13 When transporting lithium batteries, make sure to treat them based on the transport regulations. (Refer to GOT2000 Series User's Manual (Hardware) for details of the regulated models.) Make sure to transport the GOT main unit and/or relevant unit(s) in the manner they will not be exposed to the impact exceeding the impact resistance described in the general specifications of this manual, as they are precision devices.
  • Page 14: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS .........................A - 1 CONTENTS ............................A - 12 List of Manuals for GT Works3 .......................A - 22 Abbreviations, Generic Terms, Meanings of Icons .................A - 23 1. FUNDAMENTALS OF MONITOR Each Function and Related Manuals ....................1 - 1 System Applications (Extended Functions) Required for Each Function ........
  • Page 15 4. SEQUENCE PROGRAM MONITOR (LADDER, R LADDER) Features............................4 - 1 Specifications........................... 4 - 4 4.2.1 System configuration ......................4 - 4 4.2.2 Devices and range that can be monitored ................4 - 6 4.2.3 Access range ........................4 - 8 4.2.4 Precautions...........................
  • Page 16 How to Operate PLC Read Screen....................5 - 13 5.4.1 Displayed contents ......................5 - 13 5.4.2 Key functions ........................5 - 16 How to Operate Block List Screen ....................5 - 19 5.5.1 Displayed contents ......................5 - 19 5.5.2 Key functions ........................
  • Page 17 7.4.7 Error List Designated-Axis screen ..................7 - 19 7.4.8 Positioning Monitor screen ....................7 - 21 7.4.9 Servo Monitor screen ......................7 - 23 7.4.10 Present Value History Monitor screen ................7 - 24 7.4.11 Parameter setting screen ....................7 - 26 7.4.12 Hard copy output ........................
  • Page 18 10. BACKUP/RESTORATION 10.1 Features............................10 - 1 10.2 Specifications..........................10 - 3 10.2.1 System configuration ......................10 - 3 10.2.2 Access range ........................10 - 16 10.2.3 Precautions........................10 - 16 10.3 Operations for Display ......................... 10 - 21 10.3.1 Setting storage location for backup data ................
  • Page 19 12.4.2 How to operate target selection screen ................12 - 11 12.4.3 How to operate Main Menu screen................... 12 - 15 12.4.4 How to operate file selection screen................. 12 - 16 12.5 How to Operate Data Log Viewer ....................12 - 19 12.5.1 Data log viewer screen .....................
  • Page 20 14.2.5 Displayable character codes....................14 - 4 14.2.6 Precautions......................... 14 - 4 14.3 Operations for Display ........................14 - 5 14.3.1 Setting motion SFC program storage location..............14 - 8 14.4 Operation Procedures........................14 - 9 14.4.1 SFC diagram monitor screen....................14 - 9 14.4.2 Detailed program window ....................
  • Page 21 16.4.5 Motion error history monitor screen .................. 16 - 13 16.4.6 Error list designated-axis screen ..................16 - 15 16.4.7 Positioning monitor screen ....................16 - 17 16.4.8 Servo monitor screen ....................... 16 - 19 16.4.9 Present value history monitor screen ................16 - 20 16.4.10 Parameter setting screen ....................
  • Page 22 20.4 Operating Procedure ........................20 - 7 20.4.1 CNC monitor 2 screen layout....................20 - 7 20.4.2 Key input..........................20 - 8 20.4.3 Authorization........................20 - 10 20.5 Error Messages and Corrective Actions ..................20 - 11 21. NETWORK STATUS DISPLAY 21.1 Features............................
  • Page 23 23.4.12 [Drive recorder arbitrary alarm trigger] window ..............23 - 16 23.5 [Graph waveform] screen ......................23 - 17 23.5.1 [Graph setting] window ..................... 23 - 19 23.5.2 Operating procedure......................23 - 23 23.6 [(At alarm occurrence)] screen ....................23 - 27 24.
  • Page 24: List Of Manuals For Gt Works3

    (Model code) SH-081197ENG GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 (1D7MJ8) GOT2000 Series Connection Manual (Non-Mitsubishi Products 1) For GT Works3 Version1 SH-081198ENG GOT2000 Series Connection Manual (Non-Mitsubishi Products 2) For GT Works3 Version1 SH-081199ENG GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products,...
  • Page 25: Abbreviations, Generic Terms, Meanings Of Icons

    Abbreviations, Generic Terms, Meanings of Icons The following shows the abbreviations, generic terms, and meanings of icons used in this manual. ■1. GOT Meaning of icon Abbreviations and generic terms Description Support support GT27-X GT2715-X GT2715-XTBA, GT2715-XTBD GT2712-S GT2712-STBA, GT2712-STWA, GT2712-STBD, GT2712-STWD GT27-S GT2710-S GT2710-STBA, GT2710-STBD...
  • Page 26 Meaning of icon Abbreviations and generic terms Description Support support GOT900 Series GOT-A900 Series, GOT-F900 Series GOT800 Series GOT-800 Series ■2. Communication unit Abbreviations and generic terms Description GT15-QBUS, GT15-QBUS2, GT15-ABUS, GT15-ABUS2, GT15-75QBUSL, Bus connection unit GT15-75QBUS2L, GT15-75ABUSL, GT15-75ABUS2L Serial communication unit GT15-RS2-9P, GT15-RS4-9S, GT15-RS4-TE MELSECNET/H communication unit GT15-J71LP23-25, GT15-J71BR13...
  • Page 27 SW1DND-GTWK3-J, SW1DND-GTWK3-E, SW1DND-GTWK3-C GT Designer3 Version1 Screen drawing software GT Designer3 for GOT2000/GOT1000 series GT Designer3 Screen drawing software for GOT2000 series included in GT Works3 GT Designer3 (GOT2000) GT Designer3 (GOT1000) Screen drawing software for GOT1000 series included in GT Works3...
  • Page 28 (3) Other software Abbreviations and generic terms Description SW□DND-GXW3-E (-EA) type programmable controller engineering software GX Works3 (□ indicates a version.) SW□DNC-GXW2-□ type programmable controller engineering software GX Works2 (□ indicates a version.) GX Simulator3 Simulation function of GX Works3 GX Simulator2 Simulation function of GX Works2 Controller simulator...
  • Page 29 Allen-Bradley products manufactured by Rockwell Automation, Inc. GE Intelligent Platforms, Inc. HMS Industrial Networks LS IS LS Industrial Systems Co., Ltd. MITSUBISHI INDIA Mitsubishi Electric India Pvt. Ltd. ODVA Open DeviceNet Vendor Association, Inc. SCHNEIDER Schneider Electric SA SICK SICK AG...
  • Page 30 A - 28...
  • Page 31: Fundamentals Of Monitor

    Function Related manual Description • How to start the system launcher from the utility GOT2000 Series User’s Manual (Utility) • Enabling or disabling the online module change System launcher • Setting a touch switch to start the system launcher GT Designer3 (GOT2000) Screen Design Manual •...
  • Page 32 Function Related manual Description GOT2000 Series User’s Manual (Utility) • How to start the R motion monitor from the utility • Setting a touch switch to start the R motion monitor R Motion monitor GT Designer3 (GOT2000) Screen Design Manual •...
  • Page 33: System Applications (Extended Functions) Required For Each Function

    System Applications (Extended Functions) Required for Each Function The following shows system applications (extended functions) required for each function. Function Required system application (extended function) System launcher [System Launcher] Device monitor [Device monitor] [Sequence Program Monitor(Ladder)] Sequence program moniotr (Ladder) [GOT Platform Library] [GOT Function Expansion Library] [Sequence Program Monitor(R Ladder)]...
  • Page 34: Languages Available For Each Function

    Languages Available for Each Function Languages available for each function are shown in the following table. ○:Displayed ×:Not displayed Eng.:Displayed in English Chinese Chinese Function Japanese English Korean (Simplified) (Traditinal) Utility function ○ ○ ○ ○ ○ System launcher ○ ○...
  • Page 35: System Launcher

    This section explains the system configuration of the system launcher. For connection type settings and precautions regarding the communication unit, cable, and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Controller QCPU (Q mode)
  • Page 36 ■2. Connection type This function can be used in the following connection types. ○: Available, ×: Unavailable Function Connection type between the GOT and controller Ethernet CC-Link IE CC-Link Ethernet connection MELSECNET/H Controller connection Direct CPU Serial connection (using connection, connection, Name Description...
  • Page 37: Precautions

    To enable the online module change, configure the setting in [System Launcher] of [Ext. func. set] in the utility. Set [Online module change] to [Effective]. ➠ GOT2000 Series User's Manual (Utility) 2.2.2 Precautions ■1. Display of the system configuration diagram The system configuration diagram has two types: the system configuration diagram for the system launcher and the one for the extended function.
  • Page 38: Operations For Display

    In the utility, touch [Monitor] → [System launcher] from the main menu. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 3. The [Select channel] window appears only at the first startup of the system launcher.
  • Page 39 ■1. Screen transition At the second and subsequent startups, Start or at a startup when a connection destination is specified on [×] key or [End] key the user-created Utility Main Menu monitor screen user-created monitor screen At the first startup (when no connection [Select channel] destination is specified on the user-created window...
  • Page 40: Operating Procedure

    Operating Procedure This section explains screen operations for the system launcher. The display screen of the system launcher differs depending on the GOT used. ➠ 2.4.1 System configuration screen 2.4.2 Online module change screen 2.4.1 System configuration screen This section explains the structure of the screen and the common operations when the system launcher is executed. ■1.
  • Page 41 (2) Key functions The following shows the functions of the keys that are used for the operations on the system configuration screen. Function list 1) Module status display Touch the display position of a target module to list the applicable functions. 2) Select channel key Displays the [Select channel] window.
  • Page 42: Online Module Change Screen

    2.4.2 Online module change screen This section explains the structure of the screen and the common operations when the online module change is executed. The following shows the procedure of the online module change. Step 1. Check the following items, and then touch the [Execute] key. •...
  • Page 43 5) [Status/guidance] Displays the procedure or precautions for [Operation]. 6) Touch key The keys used for [Operation] on the [Online module change] screen (2) Key functions 1) Return key, [Cancel] key Exits the [Online module change] screen and returns the screen to the system configuration screen. Cancels the operation during the module change and returns the screen to the system configuration screen.
  • Page 44 2 - 10 2.4 Operating Procedure...
  • Page 45: Device Monitor

    3. DEVICE MONITOR For using the device monitor function on GT21, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Features The device monitor function monitors and changes the devices of a PLC CPU or an intelligent module. Using this function, you can troubleshoot the system and streamline maintenance.
  • Page 46 (3) TC (timer, counter) monitor Monitors the current values, set values, contacts, and coils of timers, retentive timers, and counters of the PLC CPU in a batch. ➠ 3.6 TC Monitor (Monitoring Timers and Counters) (4) BM (buffer memory) monitor Monitors the buffer memories of the intelligent module in a batch.
  • Page 47 ■2. Switching between the full mode and quad mode The full mode and the quad mode can be switched using the screen switching button as needed. The GOT in the full mode displays one monitor screen to display many devices at once. The GOT in the quad mode divides one screen into four windows to display four monitor screens.
  • Page 48: Specifications

    This section describes the names of controllers and connection types that can be monitored using the device monitor function. For the details of the communication units cables used for each connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Controller Model...
  • Page 49 ■2. Connection type The device monitor function can be used for the following connection types. ○: Available, ×: Not available Serial CC-Link IE CC-Link Direct Ethernet CC-Link IE communicati Controller connection Function Controller connecti Field Network Network connection connection connection connection RCPU ×...
  • Page 50 ■4. Required hardware To display device comments on the device monitor, the data storage such as a SD card or USB memory is required. Storing comment files used for the sequence program monitor into the data storage enables displaying the device comments on monitor screens.
  • Page 51: Devices That Can Be Monitored

    3.2.2 Devices that can be monitored Devices that can be monitored differ depending on the monitor type and the controller used. ➠ ■1. Entry monitor ■2. Batch monitor ■3. TC monitor ■4. BM monitor ■5. Test operation ■1. Entry monitor The following lists the devices that can be monitored on the entry monitor.
  • Page 52 (2) Word device ○: Available, ×: Not available Safety Robot controller controller Motion QCPU Controller C70, module (MELS MELSEC controller Device RCPU module LCPU QSCPU MELD FXCPU CRnQ CRnD (MELSE EC iQ- iQ-F CPU (Q mode) AS C6/ -700 -700 C iQ-R series) Series)
  • Page 53: Batch Monitor

    ■2. Batch monitor The following lists the devices that can be monitored on the batch monitor. (1) Bit device ○: Available, ×: Not available Robot controller controll Safety Motion Control QCPU controll C70, module (MELS MELSE QSCP Device RCPU LCPU er CPU MELD FXCPU...
  • Page 54 (2) Word device ○: Available, ×: Not available Robot controller controll Safety Motion Control QCPU controll C70, module (MELS MELSE QSCP Device RCPU LCPU er CPU MELD FXCPU CRnQ- CRnD- (MELS EC iQ- C iQ-F module mode) AS C6/ EC iQ- series) Series) Series)
  • Page 55 ■3. TC monitor The following lists the devices that can be monitored on the TC monitor. (1) Bit device ○: Available, ×: Not available Robot controller controll Safety Motion Control QCPU controll C70, module (MELS MELSE QSCP Device RCPU LCPU er CPU MELD FXCPU...
  • Page 56: Test Operation

    ■5. Test operation The following lists the devices for which the test operation can be performed. (1) Bit device ○: Available, ×: Not available Robot controller controll Safety Motion Control QCPU controll C70, module (MELS MELSE QSCP Device RCPU LCPU er CPU MELD FXCPU...
  • Page 57 (2) Word device ○: Available, ×: Not available Robot controller controll Safety Motion Control QCPU controll C70, module (MELS MELSE QSCP Device RCPU LCPU er CPU MELD FXCPU CRnQ- CRnD- (MELS EC iQ- C iQ-F module mode) AS C6/ EC iQ- series) Series) Series)
  • Page 58: Access Range

    3.2.3 Access range When the GOT is connected to the remote I/O station in the MELSECNET/H network system, only the master station can be monitored. The access range other than the above is the same as the one for when the GOT is connected with a controller. For details of the access range, refer to the following.
  • Page 59: Displaying The Monitor Screen

    Display the utility screen and select the [Monitor] tab and [Device monitor]. For the display method of the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 2. The communication setting window appears. Select the connection destination and communication driver of the controller to be monitored.
  • Page 60 Display the utility screen and select the [Monitor] tab and [Device Monitor]. For the display method of the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) • Touching [Device monitor] on the [MELSEC-L troubleshooting screen When [MELSEC-L troubleshooting] is used, touch the [Device monitor] button.
  • Page 61: Names Of Each Section Of Monitor Screen

    3.3.2 Names of each section of monitor screen 1) Monitor category display Displays a monitor category of the monitor screen that is currently displayed. 2) Monitor category change key Use this button to select a monitor category. Select from [Selected], [Series], [TC monitor], and [BM monitor]. 3) Screen switch key Switches the screen display between the full screen display and the quad screen display.
  • Page 62: Display Format Of The Monitor Screen ([One Large Screen], [4 Screens])

    3.3.3 Display format of the monitor screen ([One large screen], [4 screens]) In the device monitor, the screen display format can be switched between the full mode and the quad mode. ■1. How to switch the display format To switch the display format from the full mode to the quad mode, touch the [4 screens] key. [4 screens] button To switch the display format from the quad mode to the full mode, touch the [One large screen] key.
  • Page 63: Destination Path Setting ([Connect])

    3.3.4 Destination path setting ([Connect]) ■1. Setting procedure for the destination path Step 1. Touch the [Connect] key on a device monitor screen. [Connect] key Step 2. The communication setting dialog appears. Set the destination path with referring to the following. ➠...
  • Page 64 ■2. Communication setting dialog Configure the communication setting with the monitor target when starting monitor in this dialog. (1) Screen display When the network No., station No., When the CH No. is input and CPU No. are input 1) CH No. input area Set the CH No.
  • Page 65 (2) Key functions 1) CH No. selection key Select the CH No. for connecting the monitor target. 2) [×] key Closes the communication setting window. When any of the CH No., network No., station No., and CPU No. is not input and the monitor target is not set, the communication setting window does not close.
  • Page 66: Entering Devices ([Register])

    3.3.5 Entering devices ([Register]) Enter devices to be monitored for all monitor categories. ■1. Entering procedure for the monitor device The entry monitor is taken here as an example to describe the entry procedure for the monitor device. Step 1. Display the window for entering the device by either of following operations in each monitor.
  • Page 67 Step 4. When using the entry monitor, the window for entering the device is displayed successively. After entering the device, close the dialog with the [×] key. Entry device [x] key ■2. Window for entering the device The display contents of the window for entering the device differ depending on the monitor category. Entry monitor, batch monitor, and TC monitor BM monitor 1) Device display area...
  • Page 68: Deleting A Device ([Delete])

    3.3.6 Deleting a device ([Delete]) Delete a device entered in the entry monitor. ■1. How to delete a device Step 1. Touch a device to be deleted in the entry monitor. Step 2. Touch the [Delete] key. Touch a device to be deleted.
  • Page 69: Deleting Devices At A Time ([Delete All])

    3.3.7 Deleting devices at a time ([Delete all]) Delete all the registered devices entered in the entry monitor at a time. ■1. How to delete devices at a time Step 1. Touch the [Delete all] key in the entry monitor. Touch the [Delete all] key.
  • Page 70: Test Operation For The Monitor Device ([Test])

    3.3.8 Test operation for the monitor device ([Test]) Test devices. WARNING Before performing the quick test operations of the system monitor function (such as turning ON or OFF bit device, changing the word device current value, changing the settings or current values of the timer or counter, and changing the buffer memory current value), read through the manual carefully and make yourself familiar with the operation method.
  • Page 71 Step 4. Touch a device targeted to the test operation. The device to be tested Step 5. A dialog for setting the device value according to the device display format appears. Set the device value with referring to the following. After setting the device value, touch the [ENTER] key.
  • Page 72 ■2. Ending the test mode To end the test mode, touch the [Test] key. [Test] key ■3. Dialogs for setting the device value The display contents of the dialogs for setting the device value differ depending on the device display format. For decimal number For real number For binary or hexadecimal number...
  • Page 73 ■4. Display format dialog 1) [Data size] Represents the data formats of the device. The following shows the selectable items. • [16bit(W)] • [32bit(D)] • [64bit(L)] 2) [Data type] Represents the displayable display formats for the device value. The following shows the selectable items. •...
  • Page 74: Switching The Display (Number Or Columns, Comment Display) ([Layout])

    3.3.9 Switching the display (number or columns, comment display) ([Layout]) Switch the displayed number of device columns and display or non-display of the comments. ■1. Procedure for switching the display The entry monitor is taken here as an example to describe the switch procedure for the display. Step 1.
  • Page 75: Monitoring Local Devices ([Local Monitor])

    3.3.10 Monitoring local devices ([Local monitor]) Monitor local devices. POINT POINT POINT Scan time while the GOT is using the local device monitor When the GOT is using the local device monitor, the scan time for the PLC increases. ■1. Monitoring procedure of local devices The entry monitor is taken here as an example to describe the switch procedure for the display.
  • Page 76 ■2. Ending the local device monitor To end the local device monitor, touch the [Local monitor] key. [Local monitor] key 3 - 32 3.3 Operations Common to the Monitor Screens...
  • Page 77: File Switching For Comment Display ([Change Comment])

    3.3.11 File switching for comment display ([Change comment]) The comment file to be displayed can be switched. This function cannot be used with the BM monitor. ■1. Comment files that can be displayed with the device monitor With the device monitor, comment files used for the sequence program monitor (ladder) can be displayed. The following lists the types of comment file that can be displayed.
  • Page 78: Screen Transition (Common Operation)

    3.3.12 Screen transition (common operation) Starting the device monitor Starting the device monitor from the utility from the special function switch Starting the device monitor (system monitor) from the MELSEC-L troubleshooting Display the utility. Touch the special function Touch the [Device monitor] switch (system monitor) on the MELSEC-L on the monitor screen.
  • Page 79 ■1. Starting the function by using the special function switch (System launcher) You can start the device monitor from a user-created screen by selecting the connection destination with a special function switch (System launcher). User-created screen having a special function switch The device monitor is started.
  • Page 80: Entry Monitor

    Entry Monitor The entry monitor is a function that registers the devices to monitor beforehand and monitors only the registered devices. ■1. Screen display and the key function 1) Monitor category display Displays a monitor category of the monitor screen that is currently displayed. 2) Monitor category change key Use this button to select a monitor category.
  • Page 81 Item Description Represents the display format of the device value. The character on the left represents the data range of the device. • [W]: Word (16 bits) • [D]: Double-word (32 bits) • [L]: Longword (64 bits) The character string on the right represents the display format of the device value. Display format •...
  • Page 82: Batch Monitor

    Batch Monitor The device monitor is a function that specifies the start device in a range of devices and monitors the start and the following successive devices in a batch. ■1. Screen display and the key function 1) Monitor category display Displays a monitor category of the monitor screen that is currently displayed.
  • Page 83 Item Description Device number Displays the device number of the monitor device. Device comment Displays the device comment set for the monitor device. Device value Displays the device value of the monitor device. Represents the display format of the device value. The display format can be changed when touched.
  • Page 84: Tc Monitor (Monitoring Timers And Counters)

    TC Monitor (Monitoring Timers and Counters) The TC monitor is a function that monitors only timers (T) and counters (C). At the start of the TC monitor, the program list dialog appears. Select the target program for monitoring and start monitoring. 1) Program file list Lists program files that can be the targets for the TC monitor.
  • Page 85 6) Monitor device display area Displays the monitor device display area. Device value (current value) Device value (set value) Display format Device number Device name Contact, coil display Device comment Item Description Device name Displays the device name of the monitor device. Device number Displays the device number of the monitor device.
  • Page 86: Bm Monitor (Monitoring Buffer Memory)

    BM Monitor (Monitoring Buffer Memory) The BM monitor is a function that monitors the buffer memory of special function modules. ■1. Screen display and the key function 1) Monitor category display Displays a monitor category of the monitor screen that is currently displayed. 2) Monitor category change key Use this button to select a monitor category.
  • Page 87 Item Description Represents the display format of the device value. The character on the left represents the data range of the device. • [W]: Word (16 bits) • [D]: Double-word (32 bits) • [L]: 64 bits The character string on the right represents the display format of the device value. Display format •...
  • Page 88: Error Messages And Corrective Actions

    • Refer to the following to check if a network error has occurred. ➠ GOT2000 Series User's Manual (Monitor) Because the data range was changed to A device has exceeded a specified device one with a larger number of bits, a device Change the data rage back in the previous number of bits.
  • Page 89: Sequence Program Monitor (Ladder, R Ladder)

    4. SEQUENCE PROGRAM MONITOR (LADDER, R LADDER) The sequence program monitor has two types: the sequence program monitor (Ladder) for QCPU and LCPU, and the sequence program monitor (R ladder) for RCPU. The sequence program monitor (R ladder) supports the RCPU ladder monitor only. Features With the sequence program monitor (ladder), the GOT can monitor and edit a sequence program in the ladder diagram format of a controller, and changing current device values of the program is available.
  • Page 90 ■3. Displaying registered ladder blocks is available On the Ladder registration monitor window, displaying registered ladder blocks is available. ➠ 4.6.3 ■3. Display menu (1) Ladder registration monitor window Ladder registration monitor window M112 M110 M111 M112 4 - 2 4.1 Features...
  • Page 91 ■4. Enhanced interaction with objects (one-touch ladder jump function) (1) Interaction with the special function switch The automatic PLC read or the device automatic search can be executed at startup of the sequence program monitor (Ladder) or sequence program monitor (R ladder) by the following method. Place a special function switch on a user- created screen, specify the search file and search device in the special function switch setting, and then touch the special function switch.
  • Page 92: Specifications

    This section explains the system configuration of the sequence program monitor (Ladder) and the sequence program monitor (R ladder). For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Controller Model RCPU...
  • Page 93 ■2. Connection type This function can be used in the following connection types. (○: Available, ×: Unavailable) Function Connection form between GOT and controller CC-Link IE CC-Link MELSECNET/H Direct controller connection Ethernet Serial connection *1*4 connection connection Name Description communication connection connection MELSECNET/10...
  • Page 94: Devices And Range That Can Be Monitored

    4.2.2 Devices and range that can be monitored The device range varies depending on the CPU to be used. ■1. When RCPU is connected (○: Possible, ×: Impossible) Device range Program display Device monitor display Search operation Device Input X0 to 1FFF, DX0 to FFF ○...
  • Page 95 For applicable devices and device ranges, refer to manual of the PLC CPU. Device cannot be replaced. ■2. When QCPU or LCPU is connected (○: Possible, ×: Impossible) Device range Program display Device monitor display Search operation Device Input X0 to 1FFF, DX0 to FFF ○...
  • Page 96: Access Range

    The access range is the same as the access range when the GOT is connected to a controller. For details of the access range, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 4.2.4 Precautions ■1.
  • Page 97 ■2. Precautions for sequence program monitor (R Ladder) (1) Operation while the sequence program monitor (R ladder) is running Do not perform the following operations on the GOT while the sequence program monitor (R ladder) is running. Doing so may cause the stored data to be deleted, or the sequence program monitor (R ladder) to run improperly. •...
  • Page 98: Display Operation

    To start the sequence program monitor (R ladder), touch [Monitor] → [Seq. program monitor (R Ladder)] from the main menu. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 3. Set the channel No., network No., station number, and CPU number in the communication setting dialog. ➠...
  • Page 99 For the setting of automatic PLC read, refer to the following. ➠ GT Designer3 (GOT2000) Screen Design Manual GOT2000 Series User’s Manual (Utility) Specifying an automatic PLC read file With the special function switch or alarm display (user), the target sequence program of automatic PLC read can be specified.
  • Page 100 (2) Starting from the special function switch To start the sequence program monitor (Ladder), touch a special function switch that has the following settings: [Sequence Program Monitor (Ladder)] is selected for [Switch Action], and [Use One-touch Ladder Jump] is selected. To start the sequence program monitor (R ladder), touch a special function switch that has the following settings: [Sequence Program Monitor (R ladder)] is selected for [Switch Action], and [Use One-touch Ladder Jump] is selected.
  • Page 101 (3) Starting from the alarm display (user) The sequence program monitor (Ladder) or (R ladder) can be started and a device having an alarm can be searched for by selecting an alarm in an alarm display (User) and touching a key code switch (to which a key code for [Display Ladder (Ladder Editor)]) is set).
  • Page 102 ■2. Changing screens The following describes how to change the screen. Start Utility Main Menu user-created monitor screen At the first startup Ladder registration Device test window monitor window Communication setting window Factor search window Password input window Jump window Device search window PLC read screen Comment file list window...
  • Page 103: Setting Ladder Data Storage Location

    Only the A drive (standard SD card) or B drive (USB drive) is available for storing ladder data. For the ladder data storage destination setting, refer to the following. When setting with GOT utility ➠ GOT2000 Series User’s Manual (Utility) When setting with GT Designer3 (GOT2000) ➠ GT Designer3 (GOT2000) Screen Design Manual 4.3.2...
  • Page 104 (2) When displaying comments in any language regardless of language set for language switching of GOT utility Step 1. Create a SEQCMNT folder in a data storage. When the SEQCMNT folder already exists, creating a new SEQCMNT folder is not required. Step 2.
  • Page 105 Step 4. Copy a comment file (.wcd) in the saved project. When the GX Works2 project is used, the creation method of a comment file (.wcd) differs depending on whether the project used can be or cannot be saved in the GX Developer format. •...
  • Page 106: Program Update Check

    4.3.3 Program update check The GOT checks if there is any difference between sequence program files read in the GOT and sequence programs stored in controllers, while the Ladder monitor screen or Ladder Editor screen is displayed. Only the sequence program monitor (Ladder) supports the program update check. ■1.
  • Page 107: Setting The Security

    4.3.4 Setting the security The device test window and Ladder editor screen displays can be limited by passwords. ■1. Specification of the security setting (1) Security types Type Description The changing screens is restricted by the Authorization Device. Restriction by bit devices The changing screens is authorized when the Authorization Device is ON.
  • Page 108 ■3. perations for the security password input dialog box (1) Displayed screen The following table shows the displayed contents. Item Description Displays the type of the password to be input. (Device test password/Ladder editor Password type password) Password input area Set the password.
  • Page 109: Setting Display Format

    Setting Display Format On the screen of the sequence program monitor (Ladder) or (R ladder), the display format of word device values or display language can be switched and the display mode of sequence programs can be changed. 4.4.1 Switching languages of sequence programs (Supported by the sequence program monitor (ladder) only) The display languages (Japanese, Simplified Chinese, Traditional Chinese, or Korean) can be switched for the Sequence program monitor (Ladder or R ladder) at monitoring.
  • Page 110: How To Operate Plc Read Screen

    How to Operate PLC Read Screen On the PLC read screen, the GOT reads sequence programs and comment files used for the sequence program monitor (Ladder) or (R ladder). The following describes how to operate the PLC read screen. 4.5.1 Displayed contents This section explains the structure of the PLC read screen and the functions of the keys displayed on the screen after the sequence program monitor (Ladder) or (R ladder) is started.
  • Page 111 Item Description Number of selected files Displays the total number of files selected in the file list (target controller) and file list (GOT). Message display area Displays error messages and others. ■1. Password input window (1) Displayed screen (For alphabet input) (For numerical input) The following table shows the displayed contents.
  • Page 112: Key Functions

    4.5.2 Key functions The following shows the functions of the keys used for operating the PLC read screen. Function Returns the screen to the last screen that is displayed right before the PLC read screen appears. [←Back] The key is disabled when the last screen is the GOT utility screen or user-created monitor screen. Displays the communication setting window.
  • Page 113 ■1. Communication setting window (1) Displayed screen 1) 3) 1) 3) The following table shows the displayed contents. Item Description CH No. input area Set the CH No. for the target controller. Network No. input area Set the network No. for the target controller. Set the station No.
  • Page 114: How To Operate Ladder Monitor Screen

    ■2. Program list window Displaying the read sequence programs in a list is available. (1) Displayed screen The following table shows the displayed contents. Item Description Displays the file names and execution statuses of the read sequence programs. Sequence program file list The execution statuses show execution types set for the programs.
  • Page 115: Displayed Contents

    How to Operate Ladder Monitor Screen On the Ladder monitor screen, the GOT displays the read sequence program. The following describes how to operate the Ladder monitor screen. 4.6.1 Displayed contents The following describes the configuration of the Ladder monitor screen, menus and key functions on the screen. 4) 5) Item Description...
  • Page 116: Key Functions

    The following shows the numbers of rows and contacts that are displayable in the ladder display area. When comments are When comments are not displayed displayed Maximum Maximum Maximum Maximum number of number of number of number of displayed displayed displayed displayed lines...
  • Page 117: Menus

    4.6.3 Menus The following shows operations for the menus displayed on the Ladder monitor screen. ■1. Edit menu Function Reference section Switches to the Ladder editor screen. [Start editing] This key is not available in the sequence program monitor (R ladder). ■2.
  • Page 118 ■3. Display menu Function Reference section [Hide comments] Hides the comments, statements or notes in the ladder display area. 4.4.2 [Show comments] Displays the comments, statements or notes in the ladder display area. 4.7.3 ■4. Display menu Displays the comment file list window. [Comment change] [Device Monitor] Displays the window for the device monitor.
  • Page 119 (1) Ladder registration monitor window Displaying or deleting the registered ladder blocks is available. Displayed screen The following table shows the displayed contents. Item Description A ladder block selected on the Ladder monitor screen is added as the last registered ladder block on the Ladder registration monitor window. Ladder display area Touching the first step number displays the dialog box to delete the ladder block.
  • Page 120 How to Operate Ladder Editor Screen On the Ladder editor screen, editing sequence programs, finding devices, and displaying comments are available. The ladder editor is supported only by the sequence program monitor (Ladder). The following describes how to operate the Ladder editor screen. 4.7.1 Displayed contents ■1.
  • Page 121 POINT POINT POINT (1) Restrictions on ladder blocks that can be edited with the sequence program monitor (ladder) In the sequence program monitor (ladder), ladder blocks exceeding 25 lines cannot be edited. Even ladder blocks displayed within 24 lines with GX Works2/GX Developer may be displayed exceeding 25 lines on the GOT.
  • Page 122: How To Operate Ladder Editor Screen

    Key functions Function Closes the Enter ladder program window. The displayed contents are not reflected. Touch the key to input a normally open contact. Touch the key to input a normally closed contact. Touch the key to input a leading edge pulse. Touch the key to input a trailing edge pulse.
  • Page 123 Inputting or deleting ladders • Inputting contacts or instructions (Operation example: Inputting a contact (X0)) Step 1. Touch a position to input a contact (X0). Step 2. The Enter ladder program window appears. Step 3. Touch the key. The ladder symbol corresponding to the touched key is displayed on the ladder symbol display area. Input X0 in the text display area, and touch the [ENT] key.
  • Page 124 • Deleting contacts or instructions (Operation example: Deleting a contact (X0)) Step 1. Touch a contact (X0) to be deleted. Step 2. The Enter ladder program window appears. Step 3. Touch the [X] key. Touch the end position of the contact (X0). Touch an end position.
  • Page 125 • Inputting vertical lines or horizontal lines (Operation example: Inputting a vertical line) Step 1. Touch a position to input a vertical line. Step 2. The Enter ladder program window appears. Step 3. Touch the key. Touch the end position to input the vertical line. Touch an end position.
  • Page 126 • Deleting vertical lines or horizontal lines (Operation example: Deleting a vertical line) Step 1. Touch a position to delete a vertical line. Step 2. The Enter ladder program window appears. Step 3. Touch key. Touch the end position to delete the vertical line. Touch an end position.
  • Page 127 • Inputting rows and columns (Operation example: Inputting a row) Step 1. Touch a position to insert a row. Step 2. The Enter ladder program window appears. Step 3. Touch the [Insert row] key. The Enter ladder program window is closed, and the row is inserted. •...
  • Page 128: Key Functions

    4.7.2 Key functions The following shows the functions of keys used for operating the Ladder editor screen. Function Returns the screen to the last screen that is displayed right before the Ladder editor screen appears. [←Back] The key is disabled when the last screen is the GOT utility screen or user-created monitor screen. Displays the Edit menu.
  • Page 129 POINT POINT POINT Deleting ladders which are not converted When deleting ladders which are not converted, a dialog box is displayed. When touching the [OK] button in the dialog box, the ladders which are not converted are deleted, as well as the operation history. Therefore, the [Undo] and [Redo] keys do not operate. Also, touch the [Cancel] button to return to the previous screen.
  • Page 130 (1) Jump window Displayed contents Item Description Jump destination step Displays the input step number. number input area Keys Keys for operations in the jump window shown in (b). (Touch input) Key functions Function Closes the jump window. [Enter] Displays a row that includes the input step number on the center of the ladder display area. [Del] Deletes an input value or character.
  • Page 131 ■4. Display menu Function Reference section [Hide comments] Hides the comments, statements or notes in the ladder display area. 4.2.4 [Show comments] Displays the comments, statements or notes in the ladder display area. [Comment change] Displays the comment file list window. [Program list] Displays the program list window 4.5.2 ■2.
  • Page 132 Key functions Function Closes the Comment file list window. Scrolls the display area up and down by one line. Closes the Comment file list window and displays the ladder display area with the comments [Apply changes] of the file selected from the comment file list. ■5.
  • Page 133 (1) Verify result window Displaying the result of the program verification with the PLC is available. Displayed screen The following table shows the displayed contents. Item Description Displays the unmatched items. Verification result display Up to 100 items are displayed. The program verification is stopped when area unmatched items are more than 100.
  • Page 134 (2) PLC diagnosis window Displays the PLC diagnosis screen. Displayed screen The following table shows the displayed contents. Item Description Displays the error number of the destination PLC found by PLC diagnosis. Error No. Displays [No errors exist.] when no error occurs. Error contents Displays the message corresponding to the error number of the destination PLC.
  • Page 135 (3) Remote operation window Changing the operation status of the PLC CPU by using the remote operation is available. Displayed screen The following table shows the displayed contents. Item Description Select an operation (RUN or STOP key), and touch the [Execute] key. Operation •...
  • Page 136: Find/Replace Operation

    (4) Copy program memory data into ROM window Writing data in the program memory into a ROM is available. Displayed screen The following table shows the displayed contents. Item Description Touch the target ROM. • Standard ROM: Set the standard ROM in the PLC CPU as the target. Target •...
  • Page 137 • Key functions Function Closes the device search window. [AC] Deletes all the input values and characters. [Del] Deletes an input value or character. [0-9] Switches the key type to the value. [A-Z] Switches the key type to the alphabet. Searches the input device in descending order of the step number.
  • Page 138: Factor Search

    4.8.2 Factor search The contact point that affected the set device status (ON/OFF) is searched backwards in ladder blocks. Step 1. Touch the [Find] → [Factor] menu from the Ladder monitor screen to display the factor search window. Step 2. Set a device to be searched, and touch the [Enter] key •...
  • Page 139 Step 3. The Factor search window is closed and the Ladder registration monitor window is displayed. The sequence programs displayed on the ladder monitor screen are searched. Then, the factor ladder blocks for the set device are registered in order. The ladder blocks newly registered are always displayed in the Ladder monitor window during the factor search.
  • Page 140: Replace Device (Supported By The Sequence Program Monitor (Ladder) Only)

    4.8.3 Replace device (Supported by the sequence program monitor (ladder) only) The device replacement is available only in the sequence program monitor (Ladder). Step 1. Touch the [Find/Replace] → [Replace device] menu on the Ladder editor screen to display the Replace device window.
  • Page 141: Change Open/Close Cantact (Supported By The Sequence Program Monitor (Ladder) Only)

    4.8.4 Change open/close cantact (Supported by the sequence program monitor (ladder) only) The normally open/close contact switching is supported by the sequence program monitor (Ladder). Step 1. Touch the [Find/Replace] → [Change open/close cantact] menu on the Ladder editor screen to display the Change open/close cantact window.
  • Page 142: Test Operation

    Test Operation In the device test mode, device values can be changed on the screen. For setting the device test mode, refer to the following. ➠ 4.6.2 Key functions The test operation of devices is available by touching devices on the following screens in the device test mode. Screen applicable to device test mode Reference section Ladder monitor screen...
  • Page 143 ■2. Word devices (1) Displayed screen (Monitoring mode : 16-bit integer (DEC)) (Monitoring mode : 32-bit integer (HEX)) The following table shows the displayed contents. Item Description Device Displays the selected device. Device value input area Set the value to be written into the selected device. Input mode Displays the current input mode.
  • Page 144: Error Messages And Corrective Action

    4.10 Error Messages and Corrective Action This section explains the error messages displayed when the sequence program monitor (Ladder) or the sequence program monitor (R ladder) is executed, and the corrective actions. ■1. Error messages for data-storing destination access Error message Description Corrective action •...
  • Page 145 Error message Description Corrective action • Insert a data storage without a format error in the GOT. • Close the SD card cover. The GOT cannot access the Failed to verify with PLC. Please • Delete files in the data storage. temporary file in the data storage check the [drive name] drive.
  • Page 146 Error message Description Corrective action The data cannot be written to the specified CPU because the total The specified drive of the PLC CPU Reduce the capacity of the file to be written. data size may exceed the drive runs out of space. capacity.
  • Page 147 Error message Description Corrective action The specified CPU drive cannot be The specified drive of the PLC CPU Read data from the PLC, and check if the specified used. Please check the drive. does not exist. drive exists. PLC types of the program (file The PLC CPU type of the program file name) and the connected PLC are stored in the data storage differs from...
  • Page 148 Error message Description Corrective action The specified file is too large to A program file exceeding 260k steps Split the program to sections within 260k steps. read. was read. The parameter file cannot be read. Write the parameter file using the peripheral software The ladder editor function cannot No parameter file exists.
  • Page 149 Error message Description Corrective action • Edit the ladder block in 24 rows or less by using • On a ladder block, 25 or more rows GX Works2/GX Developer, and then write the There is a ladder block which are edited. program into the PLC CPU.
  • Page 150 4 - 62 4.10 Error Messages and Corrective Action...
  • Page 151: Sequence Program Monitor (Sfc)

    5. SEQUENCE PROGRAM MONITOR (SFC) Features With the sequence program monitor (SFC), the GOT can monitor SFC programs of controllers, and changing device values of the programs is available. The function improves the efficiency in troubleshooting and maintenance of PLC systems with SFC programs. The following shows features of the sequence program monitor (SFC).
  • Page 152 Touching a step or transition condition on the SFC diagram monitor screen displays an enlarged operation output/ transition condition sequence program. ■2. Switching display formats, device comment display, and languages The following are available. • Switching the display formats of device values •...
  • Page 153 ■3. Interaction with ladder monitor function By only selecting a device on the SFC diagram monitor screen and starting the ladder monitor, the GOT can search and display the device in a ladder program. ➠ 5.6.3 ■2. [Display] menu The function is useful for searching for a device used within both a SFC program and a ladder program in the ladder program.
  • Page 154: Specifications

    This section describes the system configuration for the sequence program monitor (SFC). For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Controller QCPU (Q mode)
  • Page 155: Devices And Range That Can Be Monitored

    The access range is the same as the access range when the GOT is connected to a controller. For details of the access range, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 5 - 5 5.2 Specifications...
  • Page 156: Precautions

    For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) • Using the special function switch (Sequence program monitor (SFC)) set in the project For how to set the special function switch, refer to the following.
  • Page 157 Step 3. Read data from the PLC and display the program list window. ➠ 5.4 How to Operate PLC Read Screen Reading data from the PLC is not required when the GOT is restarted, because SFC programs and comment files are stored in an SD card with the sequence program monitor (SFC). Step 4.
  • Page 158 ■2. Changing screens The following describes how to change the screen. Start Utility Main Menu user-created monitor screen At the first startup Active block Comment file list window list window Communication setting window Active step Step list window list window Password input window PLC Read Screen Step No./transition...
  • Page 159: Setting Sfc Data Storage Location

    Only drive A (standard SD card) or drive B (USB drive) is usable for storing SFC data. For the ladder data storage destination setting, refer to the following. When setting with GOT utility ➠ GOT2000 Series User’s Manual (Utility) When setting with GT Designer3 (GOT2000) ➠ GT Designer3 (GOT2000) Screen Design Manual 5.3.2...
  • Page 160 Step 2. In the SEQCMNT folder, create folders for CH No., network No., station No., and CPU No. of the monitored controller with a hierarchy as shown below. Item Folder name CH No. CH** Network No. NET*** Station No. ST*** CPU No.
  • Page 161: Setting Display Format

    Step 5. Store the copied comment files in the folders for each character code in the SD card. Comment character code Storage folder name SJIS code SJIS KS code GB code ASCII code ASCII (Example: Storing comment files with ASCII code in the ASCII folder.) Step 6.
  • Page 162 ■2. Setting display mode of SFC programs The display mode of SFC programs on the SFC diagram monitor screen can be set. ➠ 5.6.3 ■2. [Display] menu The MELSAP-L program display mode is available regardless of the read SFC program format (MELSAP3, MELSAP- In the MELSAP-L program display mode, operation output/transition condition sequence programs are displayed as [?????] when the GOT displays a SFC program with the MELSAP3 format.
  • Page 163: How To Operate Plc Read Screen

    How to Operate PLC Read Screen On the PLC read screen, the GOT reads SFC programs and comment files used for the sequence program monitor (SFC) from the PLC. The following describes how to operate the PLC read screen. 5.4.1 Displayed contents ■1.
  • Page 164 7) File list (GOT) Displays the program types, file names/titles, sizes, dates, and times of all the files within the drive selected in the target drive list (GOT). (The date and time show those of updated files.) A file to be read can be selected from the file list. (The selected file is highlighted.) For selecting the file name selected in the file list (target controller), the file selection in the file list (target controller) is canceled.
  • Page 165 ■3. Communication setting window (When the CH No. is input) (When the network No., station No., and CPU No. are input) 1) CH No. input area Set the CH No. for the target controller. 2) Network No. input area Set the network No. for the target controller. 3) Station No.
  • Page 166: Key Functions

    5.4.2 Key functions The following shows the functions of the keys used for operating the PLC read screen. ■1. PLC read screen The following shows the functions of the operation keys on the PLC read screen. 1) [←Back] Returns the screen to the last screen that is displayed right before the PLC read screen appears. The key is disabled when the last screen is the GOT utility screen or user-created monitor screen.
  • Page 167 ■2. Password input window The following shows the functions of the operation keys on the password input dialog. (Alphabet input) (Numeric input) 1) Cancel key Closes the password input window and cancels the password input operation. 2) Numeric key Switches the key type to the value. 3) Symbol key Switches the keys to symbol keys.
  • Page 168: How To Operate Block List Screen

    ■3. Communication setting window The following shows the functions of the operation keys on the communication setting dialog. 1) Close key Closes the communication setting window. When any of the CH No., network No., station No., and CPU No. is not input and the monitor target is not set, the communication setting window does not close.
  • Page 169: Displayed Contents

    How to Operate Block List Screen On the block list screen, the GOT displays blocks within the read SFC program in a list. The following describes how to operate the block list screen. 5.5.1 Displayed contents The following describes the configuration of the block list screen, menus and key functions on the screen. 1) PLC name Displays the label set in the PLC name setting for the target PLC CPU.
  • Page 170: Key Functions

    5.5.2 Key functions The following shows the functions of the keys used for operating the block list screen. 1) [←Back] key Returns the screen to the last screen that is displayed right before the block list screen appears. The key is disabled when the last screen is the GOT utility screen or user-created monitor screen. 2) [Device Test] key Sets the device test mode.
  • Page 171: How To Operate Sfc Diagram Monitor Screen

    How to Operate SFC Diagram Monitor Screen On the SFC diagram monitor screen, the GOT monitors and displays data of the block selected on the block list screen in the SFC diagram. The following describes how to operate the SFC diagram monitor screen. 5.6.1 Displayed contents ■1.
  • Page 172 10) SFC diagram display area Displays a SFC program in the SFC diagram format. • Step display Step No. Step Operation output sequence program Comment Jump destination block No. An operation output sequence program is displayed only in the MELSAP-L program display mode. ➠...
  • Page 173 (2) Comment display at first display of SFC diagram monitor screen The following shows the order of comment files to be used at the first display of the SFC diagram monitor screen after reading data from the PLC. (When the SD card has no comment file, no comment is displayed.) Priority order Comment files used for SFC diagram monitor screen Comment files by program within the SEQCMNT folder in the SD card...
  • Page 174: Key Functions

    5.6.2 Key functions The following shows the functions of keys used for operating the SFC diagram monitor screen. ■1. SFC diagram monitor screen 1) [←Back] key Returns the screen to the last screen that is displayed right before the SFC diagram monitor screen appears. The key is disabled when the last screen is the GOT utility screen or user-created monitor screen.
  • Page 175: Menus

    5.6.3 Menus The following shows operations for the menus displayed on the SFC diagram monitor screen. ■1. [Search] menu 1) [Device Search] Displays the device search dialog. ➠ 5.6.3 ■1. (1) Device/contact/coil search window 2) [Step No. Search] Displays the step No. search dialog. ➠...
  • Page 176 (1) Device/contact/coil search window The GOT can search for devices in a SFC program. (For alphabet input ) (For numerical input) 1) Device input area Set a device to be searched. 2) Delete all key Deletes all the input values and characters. 3) Delete key Deletes an input value or character.
  • Page 177 (2) Step No./transition condition No. search window The GOT can search for steps and transition conditions in a block. (Step No. search window) (Transition condition No. search window) 1) Block No. input area Set the block No. of the block to be searched. The GOT searches for a step or transition condition in the set block.
  • Page 178 (3) Step list window The GOT displays steps in a block. 1) Block No. Displays the block No. of the displayed block. 2) [Active Step List] key Displays the active step list window. ➠ 5.6.3 ■2. (2) Active step list window 3) Step list Displays the step numbers and step comments of the steps in the displayed block.
  • Page 179 For settings for automatically reading sequence programs, refer to the following. • When setting with GOT utility ➠ GOT2000 Series User's Manual (Utility) • When setting with GT Designer3 (GOT2000) ➠ GT Designer3 (GOT2000) Screen Design Manual 5 - 29 5.6 How to Operate SFC Diagram Monitor Screen...
  • Page 180 (1) Comment file list window The GOT displays the comment file list. 1) Comment file list Among comment files stored in the SD card, the file names and titles of the comment files and common comment files used for the displayed SFC program are displayed. For switching comments, select a comment file to be used.
  • Page 181 (2) Active step list window The GOT displays active steps in the displayed block. 1) Block No. Displays the block No. of the displayed block. 2) [Step List] key Displays the step list window. 3) Active step list Displays the step numbers and step comments of the active steps in the displayed block. Selecting a step searches for the step, and the GOT displays the step data on the SFC diagram monitor screen.
  • Page 182 (3) Active block list window The GOT displays active blocks in the read SFC program. 1) [Block List] key Displays the block list screen. ➠ 5.5 How to Operate Block List Screen 2) Active block list Displays the block numbers and block titles of active blocks in the read SFC program. Selecting a block displays the block data on the SFC diagram monitor screen.
  • Page 183 ■3. Monitoring Mode menu 1) [16-bit integer (DEC)] Displays the device values in the device current value display area as 16-bit decimal numbers. ➠ 5.3.3 ■4. Switching display formats between decimal and hexadecimal numbers 2) [16-bit integer (HEX)] Displays the device values in the device current value display area as 16-bit hexadecimal numbers. ➠...
  • Page 184: Test Operation

    Test Operation In the device test mode of the sequence program monitor (SFC), device values can be changed on the screen. For setting the device test mode, refer to the following. ➠ 5.5.2 Key functions 5.6.2 Key functions The test operation of devices is available by touching devices on the following screens in the device test mode. Screen applicable to device test mode Reference section Block information list on the block list screen...
  • Page 185 (2) Word devices (Monitoring mode : 16-bit integer (DEC)) (Monitoring mode : 32-bit integer (HEX)) 1) Device Displays the selected device. 2) Device value input area Set the value to be written into the selected device. 3) Input mode Displays the current input mode. (DEC: decimal number, HEX: hexadecimal number) 4) Input mode switching key Switches the input modes.
  • Page 186: Error Messages And Corrective Action

    Error Messages and Corrective Action The following shows the error messages for the sequence program monitor (SFC) and the corrective actions. Error message Description Corrective action (1) Check the communications between the GOT and In the device test mode, the GOT fails to PLC CPU, and make sure that the GOT communicates Failed to write the value to the write the value into the device of the...
  • Page 187 Error message Description Corrective action The GOT cannot read the target device values of the sequence program monitor The device range has been (SFC) because the device range is Operate the GOT for reading the file from the PLC. changed. Please read the file again. changed in the PLC parameter setting during the sequence program monitor (SFC).
  • Page 188 5 - 38 5.8 Error Messages and Corrective Action...
  • Page 189: Network Monitor

    6. NETWORK MONITOR Features The network monitor function enables the GOT to monitor and display the status of the MELSECNET/H network, MELSECNET/10 network, MELSECNET(II) network, CC-Link IE Controller Network, and CC-Link IE Field Network. The features of the network monitor are described below. ■1.
  • Page 190 ■3. Monitoring available for other stations status with the other station monitor You can monitor the following status of other stations connected to the network. • Communication status of each station • Data link status of each station • Parameter status of each station •...
  • Page 191: Specifications

    This section describes the system configuration of the network monitor. For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Controller RCPU...
  • Page 192 (2) When the GOT is connected to a QCPU (Q mode), motion controller (Q series), QnACPU, or motion controller (A series) ○: Available, ×: Unavailable Function Connection type between GOT and controller MELSEC CC-Link CC-Link IE NET/H connection controller Serial Ethernet connection, Direct CPU...
  • Page 193: Network Information That Can Be Monitored

    6.2.2 Network information that can be monitored The network information that can be monitored with the network monitor and the link types are as follows. ○: Can be monitored, ×: Cannot be monitored MELSEC MELSEC MELSEC CC-Link CC-Link NET/10, CC-Link CC-Link MELSEC MELSEC...
  • Page 194 MELSEC MELSEC MELSEC CC-Link CC-Link NET/10, CC-Link CC-Link MELSEC MELSEC NET/10, NET/10, MELSEC IE field IE field Network NET(II) NET(II) MELSEC MELSEC controller controller Function NET/H network network Information master local NET/H NET/H network network remote master local station station control normal control...
  • Page 195 MELSEC MELSEC MELSEC CC-Link CC-Link NET/10, CC-Link CC-Link MELSEC MELSEC NET/10, NET/10, MELSEC IE field IE field Network NET(II) NET(II) MELSEC MELSEC controller controller Function NET/H network network Information master local NET/H NET/H network network remote master local station station control normal control...
  • Page 196: Access Range

    The access range other than above is the same as the access range when the GOT is connected to a controller. For details of the access range, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 6.2.4 Precautions ■1.
  • Page 197 ■4. When monitoring MELSECNET(II) When connected to a QnACPU and the master station of the MELSECNET(II), monitoring cannot be done with the keyword being defined. ■5. When the CPU type of the connection target of the GOT is AnNCPU or AnACPU Even when using the network module of the MELSECNET/10, the network information that can be monitored is the content of the MELSECNET(II).
  • Page 198: Operations For Display

    In the utility, touch [Monitor] → [Network monitor] from the Main Menu. For information on how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 3. Set the channel number. Set the channel number of thecontroller targeted to the network.
  • Page 199 ■1. Changing screens Utility Main Menu user-created monitor screen Communication setting window [End] key Touch the [Ch: ] Other station monitor menu screen Line monitor [End] Touch a module. ] key Touch a box. (Select a box) (Select a ] key ] key menu item) Detailed monitor...
  • Page 200 (1) Starting the function by using the special function switch (System launcher) You can start the network monitor from a user-created screen by selecting the connection destination with a special function switch to which [System Launcher] is set. User-created screen having a special function switch (System Launcher) placed System configuration screen...
  • Page 201: Operation Procedures

    Operation Procedures This section describes the information and key functions displayed on the network monitor screen. The display screen of the network monitor varies depending on the GOT used. ➠ 6.4.1 Line monitor 6.4.2 Detailed monitor 6.4.3 Other station monitor 6.4.4 Other station communication status monitor 6.4.5 Other station data link status monitor 6.4.6 Other station parameter status monitor...
  • Page 202 2) [F-loop] This shows the status of the F-loop (Forward loop). The following shows the display items. • [OK] • [NG] The loop names vary depending on the network system to be monitored as shown below. MELSECNET/H, MELSECNET/10, CC-Link IE controller network CC-Link IE field network MELSECNET(II) network systems Forward loop...
  • Page 203 8) Loop status For the MELSECNET/H and MELSECNET/10 network systems, the loop status is displayed as shown below. F indicates the forward loop and R indicates the reverse loop. Forward loop: OK Forward loop: OK Forward loop: NG Reverse loop: OK Reverse loop: NG Reverse loop: OK Loopback in execution...
  • Page 204: Other Station Monitor

    When the GOT target is AnACPU or AnNCPU "MELSECNET(II)" is displayed even if a MELSECNET/10 network module is installed. In addition, if there is a master station and local station, module 1 of the line monitor is displayed as "Master station"...
  • Page 205 6.4.2 Detailed monitor This section describes the detailed monitor and the common operations used when executing the line monitor. ■1. Display contents and keys functions: acting as a MELSECNET/H or MELSECNET/10 Control station/normal station This section describes the contents of the detailed monitor and the function of on-screen keys. All these are displayed and used when the host acts as the control station/normal station on the MELSECNET/H, MELSECNET/10.
  • Page 206 Item Description Shows the current communications status of the host. • [D-Link in prog] • [D-Link Stop (A)] • [D-Link Stop (H)] • [B-Pass excut] • [Disconnection] [Com Status] • [Loop test] • [Set Conf. test] • [Sta Odr. Conf.] •...
  • Page 207 (2) Key functions The following shows the functions of the keys that are used for the operations on the detailed monitor screen. 1) [RET] key Returns to the line monitor. 2) [END] key Exits the detailed monitor and returns to the screen where the network monitor function was executed. 6 - 19 6.4 Operation Procedures...
  • Page 208 ■2. Display contents and keys functions: acting as a MELSECNET/H, MELSECNET/10 remote master station This section describes the screen configuration of the detailed monitor and the function of on-screen keys when the host acts as the remote master station on the MELSECNET/H, MELSECNET/10. (1) Displayed contents 1) [TsSt' Info] The following shows the display items.
  • Page 209 4) [Constant LS] The following shows the display items. Item Description [Constant LS] Indicates the predetermined time of constant link scans. 5) [LoopBK Info] The following shows the display items. Item Description Shows the status of the forward loop lines of the host. •...
  • Page 210 ■3. Display contents and keys functions: acting as a MELSECNET(II) master station This section describes the screen configuration of the detailed monitor and the function of on-screen keys when the host acts as the master station on the MELSECNET(II). (1) Displayed contents 1) [TsSt' Info] The following shows the display items.
  • Page 211 (2) Key functions The following shows the functions of the keys that are used for the operations on the detailed monitor screen. 1) [RET] key Returns to the line monitor. 2) [END] key Exits the detailed monitor and returns to the screen where the network monitor function was started. 6 - 23 6.4 Operation Procedures...
  • Page 212 ■4. Display contents and keys functions: acting as a MELSECNET(II) local station This section describes the screen configuration of the detailed monitor and the function of on-screen keys when the host acts as the local station on the MELSECNET(II). (1) Displayed contents 1) [TsSt' Info] The following shows the display items.
  • Page 213 6) [LoopBK Info] The following shows the display items. Item Description Shows the status of the forward loop lines of the host. [FLoop] • [Normal] • [NG] Shows the status of the forward loop lines of the host. [RLoop] • [Normal] •...
  • Page 214 ■5. Display contents and keys functions when monitoring CC-Link IE controller network This section describes the screen configuration of the detailed monitor and the functions of on-screen keys when the GOT monitors a control station or normal station on the CC-Link IE controller network set as the host station. (1) Displayed contents 1) [TsSt' Info] The following shows the display items.
  • Page 215 Item Description Displays the reason for the interrupted communication. [Normal Comm] is displayed with normal communications. • [Cable disconnct] • [Wrong cable] • [Checking cables] [Cause of Ssp] • [Disconnct/retrn] • [Offline mode] • [Offline test] • [Self-check mode] When the station is in the hardware test mode, self-loopback test mode, circuit test mode, or station-to-station test mode, [Offline test] is displayed.
  • Page 216 (2) Key functions The following shows the functions of the keys that are used for the operations on the detailed monitor screen. 1) [RET] key Returns to the line monitor. 2) [END] key Exits the detailed monitor and returns to the screen where the network monitor function was started. ■6.
  • Page 217 2) [CtrlSt Info] The following shows the display items. Item Description [Spc Ctrl Sta] [---] is displayed. [Curr Ctrl Sta] [---] is displayed. [Com Info] [---] is displayed. [SubCtrl Sta Com] [---] is displayed. 3) [D-Link Info] The following shows the display items. Item Description [Total of L-Sta]...
  • Page 218 5) [LoopBK Info] The following shows the display items.s Item Description Shows the status of the PORT1-side loop. • [Normal] [PORT1 Loop] • [LoopBK Trans] • [D-Link Impo] Shows the status of the PORT2-side loop. • [Normal] [PORT2 Loop] • [LoopBK Trans] •...
  • Page 219 6.4.3 Other station monitor This section describes the structure of the monitor screen and the common operations used when executing the other station monitor. ■1. Display contents and keys functions: other station monitor menu This section describes the other station monitor menu screen and the function of on-screen keys. The menu screen for the other station monitor is displayed by touching a module number displayed on the host monitor screen.
  • Page 220: Other Station Communication Status Monitor

    (2) Key functions The following shows the functions of the keys that are used for the operations on the other station monitor screen. 1) [RET] key Returns to the line monitor. 2) [END] key Exits the other station monitor screen and returns to the screen where the network monitor function was started.
  • Page 221 2) Communication error station Any station in an abnormal condition is highlighted. 3) Reserved station Reserved stations are displayed as normal stations. (2) Key functions The following shows the functions of the keys that are used for the operations on the other station communication status monitor screen.
  • Page 222: Other Station Data Link Status Monitor

    6.4.5 Other station data link status monitor This section describes the structure of the screen and the common operations when the other station data link status monitor is executed. ■1. Display contents and key functions This section describes the screen configuration of the other station data link status monitor and the function of on- screen keys.
  • Page 223 (2) Key functions The following shows the functions of the keys that are used for the operations on the other station data link status monitor screen. 1) [RET] key Returns to the other station monitor. 2) [END] key Exits the other station data link status monitor screen and returns to the screen where the network monitor was started.
  • Page 224: Other Station Parameter Status Monitor

    6.4.6 Other station parameter status monitor This section describes the structure of the screen and the common operations when the other station data link status monitor is executed. ■1. Display contents and key functions This section describes the screen configuration of the other station parameter status monitor and the function of on- screen keys.
  • Page 225 (2) Key functions The following shows the functions of the keys that are used for the operations on the other station parameter status monitor screen. 1) [RET] key Returns to the other station monitor. 2) [END] key Exits the other station parameter status monitor screen and returns to the screen where the network monitor was started.
  • Page 226: Other Station Cpu Operation Status Monitor

    6.4.7 Other station CPU operation status monitor This section describes the structure of the screen and the common operations when the other station CPU operation status monitor is executed. ■1. Display contents and key functions This section describes the screen configuration of the other station CPU operation status monitor and the function of on-screen keys.
  • Page 227 (2) Key functions The following shows the functions of the keys that are used for the operations on the other station CPU operation status monitor screen. 1) [RET] key Returns to the other station monitor. 2) [END] key Exits the other station CPU operation status monitor screen and returns to the screen where the network monitor was started.
  • Page 228: Other Station Cpu Run Status Monitor

    6.4.8 Other station CPU RUN status monitor This section describes the structure of the screen and the common operations when the other station CPU RUN status monitor is executed. ■1. Display contents and key functions This section describes the other station CPU RUN status monitor and the function of on-screen keys. This screen cannot be displayed for a remote I/O network system.
  • Page 229 (2) Key functions The following shows the functions of the keys that are used for the operations on the other station CPU RUN status monitor screen. 1) [RET] key Returns to the other station monitor. 2) [END] key Exits the other station CPU RUN status monitor screen and returns to the screen where the network monitor was started.
  • Page 230: Other Station Loop Status Monitor

    6.4.9 Other station loop status monitor This section describes the structure of the screen and the common operations when the other station loop status monitor is executed. ■1. Display contents and key functions This section describes the screen configuration of the other station loop status monitor and the function of on-screen keys.
  • Page 231 (2) Key functions The following shows the functions of the keys that are used for the operations on the other station loop status monitor screen. 1) [RET] key Returns to the other station monitor. 2) [END] key Exits the other station loop status monitor screen and returns to the screen where the network monitor was started.
  • Page 232: Error Message And Corrective Action

    Error Message and Corrective Action The following shows the error messages that are displayed during the network monitor operation and how to handle them. Error message Contents of error Action to take Set the channel number in the Communication Communication channel setup error There is no channel for communication.
  • Page 233: Q Motion Monitor

    7. Q MOTION MONITOR Features The Q motion monitor enables the servo monitoring and parameter setting of the motion controller CPU. The following are the features of the Q motion monitor. ■1. Various servo monitoring on multiple monitor screens The Q motion monitor function has multiple monitor screens, on which you can monitor servo data in a variety of patterns.
  • Page 234 • Positioning Monitor Monitors the details of the positioning data set to any axis. ➠ 7.4.8 Positioning Monitor screen • Error List Designated-Axis Displays the latest errors that occurred on the specified axis. ➠ 7.4.7 Error List Designated-Axis screen ■2. Servo parameter setting by writing operation Write example: Changing the setting of the auto tuning function Parameter setting screen Parameter setting window appears...
  • Page 235: Specifications

    This section describes the system configuration of the Q motion monitor. For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Controller *1*2 Motion controller CPU (Q series) To use Q172CPU or Q173CPU, its serial number must be as shown below.
  • Page 236: Access Range

    The access range is the same as the access range when the GOT is connected to a controller. For details of the access range, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 7.2.3 Precautions ■1.
  • Page 237: Operations For Display

    In the utility, touch [Monitor] → [Motion monitor] from the main menu. For information on to display the utility, refer to the following. ➠ GOT2000 Series User’s Manual (Utility) Step 3. Set the channel number. Set the channel number of the controller monitoring the Q motion.
  • Page 238 Step 5. Touch the [Parameter Set.] key to display the parameter setting screen. When you have set a password in [Motion Parameter Display] on GT Designer3 (GOT2000), enter the password. ➠ 7.4.11 Parameter setting screen Select the servo parameter to be set. Change the servo parameter setting and write the new servo parameter to the motion controller CPU.
  • Page 239 ■1. Changing screens Start Utility Main Menu user-created monitor screen Communication setting window [END] key [Ch:] key [Sys. Conf] [Parameter Set.] System Configuration screen (Select the motion controller CPU to be monitored.) [Motion Monitor] key [END] key [END] key Password input key window Monitor menu screen [Sys.
  • Page 240 (1) Starting the function by using the special function switch (System launcher) You can start the Q motion monitor from a user-created screen by selecting the connection destination with a special function switch to which [System Launcher] is set. User-created screen having a special function switch System configuration The Q motion monitor is started.
  • Page 241: Operation Procedures

    Operation Procedures This section explains screen operations to be performed when using the Q motion monitor. The display screen of the Q motion monitor varies depending on the GOT used. ➠ 7.4.1 System configuration screen layout 7.4.2 Setting method for other station monitoring 7.4.3 Monitor Menu screen 7.4.4 Present Value Monitor screen 7.4.5 SFC Error History screen...
  • Page 242: Setting Method For Other Station Monitoring

    (2) Key functions The following shows the functions of the keys that are used for the operations on the system configuration screen. 1) Motion controller CPU status display Selects the motion controller CPU where servo monitor/servo parameter setting is performed. 2) [ch:2] key Displays the communication setting window.
  • Page 243 Step 2. The following window appears after the channel No. is selected. Set the network number of the target controller and the CPU station number. Step 3. After selecting the station number, touch the [Enter] key. The communication setting window closes and the system configuration of the set monitor destination is displayed.
  • Page 244: Monitor Menu Screen

    (2) Key functions 1) [×] key Closes the communication setting window. When any of the CH No., network No., station No., and CPU No. is not input and the monitor target is not set, the communication setting window does not close. 2) Input area movement key Moves the cursor among the input areas.
  • Page 245: Present Value Monitor Screen

    3) [Error List] key Displays the history of errors that occurred on and after the leading edge of PLC ready (M2000). ➠ 7.4.6 Error List screen 4) [Error List Axis] key Displays the latest errors that occurred on the specified axis. ➠...
  • Page 246 4) Bit device screen The common bit devices are always monitored and displayed. • Bit devices for error detection: marked with a red circle • Bit devices for general status display: marked with a green circle (2) Key functions The following shows the functions of the keys that are used for the operations on the present value monitor screen. 1) [Feed PV] key, [Actual PV] key The key is displayed in the real mode or the advanced synchronous control mode.
  • Page 247: Sfc Error History Screen

    7.4.5 SFC Error History screen This section describes the structure of the screen and the common operations on the SFC error history screen. ■1. SFC Error History screen The following describes the display data of the SFC error history screen and the functions of the keys displayed on the screen.
  • Page 248 (2) Key functions The following shows the functions of the keys that are used for the operations on the SFC error history screen. 1) [Mon. Menu] key Returns to the monitor menu screen. 2) [END] key Exits the SFC Error History screen and returns to the screen where the Q motion monitor was started. 3) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format.
  • Page 249: Error List Screen

    7.4.6 Error List screen This section describes the structure of the screen and the common operations on the error list screen. ■1. Display contents and key functions This section describes the display data of the Error List screen and the key functions displayed on the screen. (1) Displayed contents The error list screen displays the error which occurs in the motion controller CPU.
  • Page 250 (2) Key functions The following shows the functions of the keys that are used for the operations on the error list screen. 1) [Mon. Menu] key Returns to the monitor menu screen. 2) [END] key Exits the Error List screen and returns to the screen where the Q motion monitor was started. 3) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format.
  • Page 251: Error List Designated-Axis Screen

    7.4.7 Error List Designated-Axis screen This section describes the structure of the screen and the common operations when the error list designated-axis is executed. ■1. Display contents and key functions This section describes the display data of the Error List Designated-Axis screen and the key functions displayed on the screen.
  • Page 252 (2) Key functions The following shows the functions of the keys that are used for the operations on the error list designated-axis screen. In the real mode or the advanced synchronous control mode In virtual mode 1) [1Ax] key Switches the axes to be monitored. This item is available only in the real mode.
  • Page 253: Positioning Monitor Screen

    7.4.8 Positioning Monitor screen This section describes the structure of the screen and the common operations when the positioning monitor is executed. ■1. Display contents and key functions This section describes the display data of the Positioning Monitor screen and the key functions displayed on the screen.
  • Page 254 (2) Key functions The following shows the functions of the keys that are used for the operations on the positioning monitor screen. In the real mode or the advanced synchronous control mode In virtual mode 1) [Data Item 1Ax] Changes the axes to be monitored. 2) [RET] key Returns to the previous screen.
  • Page 255: Servo Monitor Screen

    7.4.9 Servo Monitor screen This section describes the structure of the screen and the common operations when the servo monitor is executed. ■1. Display contents and key functions This section describes the display data of the Servo Monitor screen and the key functions displayed on the screen. (1) Displayed contents 1) Ax Displays the axis number currently being monitored.
  • Page 256: Present Value History Monitor Screen

    4) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format. For further information about hard copies, refer to the following: ➠ 7.4.12 Hard copy output 5) [Cancel Print] The operation of this key is invalid. 7.4.10 Present Value History Monitor screen This section describes the structure of the screen and the common operations when the present value history monitor is...
  • Page 257 4) PWR ON, PWR OFF Displays the four past present values of the ABS axis at servo amplifier power-on/off. At power-on • Power-on time • Encoder present value Multi-revolution data of initial encoder Single-revolution data of initial encoder • Servo command value after recovery •...
  • Page 258: Parameter Setting Screen

    7.4.11 Parameter setting screen This section describes the structure of the screen and the common operations when you configure the parameter setting. ■1. Display contents and key functions You can set the servo parameters (basic parameters/adjustment parameters) of the connected motion controller CPU. This section describes the display data of the parameter setting screen and the key functions displayed on the screen.
  • Page 259 6) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format. For further information about hard copies, refer to the following: ➠ 7.4.12 Hard copy output 7) [Cancel Print] The touch operation of this key is invalid. ■2.
  • Page 260 ■3. Parameter setting operation As an example of the parameter setting operation, the following describes how to change the setting of [Auto tuning]. Step 1. Select the item whose parameter is to be set with the item selection keys, and touch the [CHG] key. Step 2.
  • Page 261: Hard Copy Output

    7.4.12 Hard copy output This section describes how to store a screen to the SD card in the BMP or JPEG format when the Q motion monitor is executed. Hard copy output operations are performed by touching the [Print Screen] or [Cancel Print] key displayed on the screen. The output target of hard copy can be set in [Hard Copy] of GT Designer3 (GOT2000).
  • Page 262: Error Messages And Corrective Action

    Error Messages and Corrective Action This section describes the error messages that may be displayed during Q motion monitor operation and their corrective action. Error message Error definition Corrective action • Check the status of the connection between the controller and the Communication cannot be established with the No.
  • Page 263: Intelligent Module Monitor

    8. INTELLIGENT MODULE MONITOR Features With the intelligent module monitor, you can use dedicated screens to monitor the buffer memory of the intelligent function module and make changes to the data. In addition, you can monitor the signal statuses of the I/O modules. The features of the intelligent module monitor are described below.
  • Page 264: Specifications

    For connection type settings and precautions regarding the communication unit, cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Targeted equipments for the intelligent module monitor (1) PLC CPU...
  • Page 265 (2) Intelligent function module and I/O module PLC CPU and motion controller CPU Intelligent function module I/O module R60AD4, R60ADV8, R60ADI8, R60DA4, R60DAV8, R60DAI8, RD62P2, RD62P2E, RD62D2, RD75P2, RX10, RX40C7, RX41C4, RX42C4, RY40NT5P, RCPU RD75P4, RD75D2, RD75D4, RD77MS2, RD77MS4, RY41NT2P, RY42NT2P, RY10R2, RD77MS8, RD77MS16, RD77GF4, RD77GF8, RH42C4NT2P RD77GF16...
  • Page 266: Access Range

    LCPU LJ71C24, LJ71C24-R2 For details of module names, refer to the GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1. • The following restrictions apply when monitoring other stations of MELSECNET/II data link systems. Only the host and master stations can be monitored when the connected station is a local station.
  • Page 267: Precautions

    For the routing parameter setting, refer to the following. Routing parameter setting for the GOT ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 Routing parameter setting for PLC CPU ➠ Q Corresponding MELSECNET/H Network System Reference Manual (PLC to PLC network) ■6.
  • Page 268 After the utility is displayed, touch [Monitor] → [Intelligent module monitor] from the Main Menu. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 3. Set the channel number, network number, station number.
  • Page 269: Operations For Display

    Step 7. Select from the menu. The Intelligent Module Monitor Screen is displayed by selecting it from the menu. ➠ 8.4.6 Specifying a module to monitor and selecting monitor menu Step 8. Display the monitor screen for the intelligent module. Check the data for the module with the displayed contents.
  • Page 270 ■1. Changing screens The following describes how to change the screen. (1) When using RCPU, QCPU (Q mode), Q series motion controller CPU, QSCPU, or LCPU Utility Main Menu At the first startup user-created monitor screen Communication setting window [ChNETPCNo] key Error details screen Error cause/ [Basic mode]...
  • Page 271 (2) Starting the function by using the special function switch (System launcher) You can start the intelligent module monitor from a user-created screen by selecting the connection destination with a special function switch to which [System Launcher] is set. User-created screen having The intelligent module monitor a special function switch System configuration...
  • Page 272: Operation Of Each Intelligent Module Monitor Screen

    Operation of Each Intelligent Module Monitor Screen This section describes the operations of the screens when using the intelligent module monitor. ➠ 8.4.1 Composition of the system configuration screen and key functions 8.4.2 Setting method for other station monitoring 8.4.3 Composition of PC Information monitor screen and key functions 8.4.4 Composition of the unit detail info screen and key functions 8.4.5 Composition of the intelligent module monitor screen and key functions 8.4.6 Specifying a module to monitor and selecting monitor menu...
  • Page 273 (2) Key functions The following shows the functions of the keys that are used for the operations on the entry monitor screen. 1) [ChNETPCNo.] key Displays the communication setting window. 2) [END] key Closes the monitoring and returns the screen to the one for starting the intelligent module monitor. 3) Icon of PLC CPU, Icon of intelligent function module If the icon of a PLC CPU is touched, the screen switches to the PC information monitor screen.
  • Page 274: Setting Method For Other Station Monitoring

    8.4.2 Setting method for other station monitoring The following shows the setting methods for monitoring other stations with intelligent module monitor. Step 1. When the intelligent module monitor is started for the first time, the communication setting window is automatically opened by displaying the system configuration screen. Otherwise, touch the [ChNETPLCNo.] key in the System Configuration screen to display the communication setting window.
  • Page 275 ■1. Communication setting window (1) Displayed screen 1) 3) (When the CH No. is input) (When the network No., station No., and CPU No. are input) 1) CH No. input area Set the CH No. for the target controller. The setting range is [1] to [4]. 2) Network No.
  • Page 276: Composition Of Pc Information Monitor Screen And Key Functions

    3) [Enter] key Moves the cursor when the cursor is in the CH No. input area, network No. input area, or station No. input area. When the cursor is in the CPU No. input area and settings for the CH No., network No., and station No. are completed, the communication setting window closes and the PLC read screen appears.
  • Page 277 5) [Error Record] Displays the error record. The number of error events to be displayed varies depending on the monitored PLC CPU. • When monitoring the RCPU Up to 16 error events can be displayed. • When monitoring the QCPU (Q mode) or LCPU Up to 100 error events can be displayed.
  • Page 278 (2) Error details screen Displayed contents 1) Monitored station display Displays the channel number, network number and station number of the monitored station. 2) Touch key Displays the keys that are used for the operation on the error details screen. 3) [Error details] Displays the common error information and individual error information based on the information stored in SD4 and SD5 of the LCPU.
  • Page 279 (3) Continuation error clear screen Displayed contents 1) Monitored station display Displays the channel number, network number and station number of the monitored station. 2) Touch key Displays the keys that are used for the operation on the Continuation error clear screen. 3) Continuation error list Displays the status of removable continuation errors , and error messages.
  • Page 280 Key functions The following shows the functions of the keys that are used for the operations on the continuation error clear screen. 1) [RET] key Returns the screen to the PC Information monitor screen. ➠ 8.4.3 Composition of PC Information monitor screen and key functions 2) [END] key Closes the monitoring and returns the screen to the one for starting the intelligent module monitor.
  • Page 281 ■2. When using the QSCPU (1) PC Information monitor screen Displayed contents 1) Monitored station display Displays the channel number, network number, and station number of the monitored station. 2) Touch key The keys used for the operations on the system configuration screen. 3) [CPU working state] Displays the QSCPU operation status.
  • Page 282 7) Log list Displays the operation status, error information, and others of the monitored PLC CPU. Item Description Displays the log types. The following items are displayed. • [Ope] [Type] Operation log • [Err] Error log [No.] Displays the operation codes or error codes. Displays the 4-digit detail codes of the operation logs or the error logs for the errors occurred [Detail] in the CC-Link Safety system remote I/O module.
  • Page 283 4) [Order display] key Sorts the log list in ascending or descending order. 5) [Log] key Switches the number of events displayed in the log list. The number of events to be displayed is changeable by switching between the following items. •...
  • Page 284 Key functions 1) [RET] key Returns the screen to the PC Information monitor screen. ➠ 8.4.3 Composition of PC Information monitor screen and key functions 2) [END] key Closes the monitoring and returns the screen to the one for starting the intelligent module monitor. (3) Error details screen Displayed contents (Example) Error details screen for safety CPU error...
  • Page 285 4) [Common error information], [Indvidual error information] Displays the common error information and the individual error information according to the information stored in SD4 and subsequent devices of the QSCPU. For the common error information and the individual error information, refer to the following. ➠...
  • Page 286: Composition Of The Unit Detail Info Screen And Key Functions

    8.4.4 Composition of the unit detail info screen and key functions This section describes the structure of the Unit Detail Info screen that is displayed by specifying a module on the System Configuration screen at Info. mode, and the key functions displayed on the screen. The GOT displays the Unit Detail Info screen only when using the following controllers.
  • Page 287 3) [Positioning] key Displayed only when displaying information of the LCPU built-in I/O module. This button is available when [Positioning axis 1] or [Positioning axis 2] is set to [Use] in the parameter. Shifts to the positioning monitor screen. ➠ (1) Positioning monitor screen 4) [HS Counter] key Displayed only when displaying information of the LCPU built-in I/O module.
  • Page 288 Key functions 1) [RET] key Return to the unit detail info screen. ➠ 8.4.4 Composition of the unit detail info screen and key functions 2) [END] key Closes the monitoring and returns the screen to the one for starting the intelligent module monitor. 3) [Axis1] key, [Axis2] key ([Error Reset]) Resets the error of the [Axis1] or [Axis2].
  • Page 289 3) [High-speed counter monitor] Displays the operation status of the high-speed counter function. The operation status is displayed or hidden according to the parameter settings of built-in functions. 4) [Preset value set] Displays the current value of the CH1 and CH2. Touch the current value and the data change window is displayed.
  • Page 290 (3) Data change window Displayed contents 1) Entered value display area Displays the entered value. 2) Touch key Displays the keys used in the operation of the data change window. Key functions The following shows the functions of the keys that are used for the operations on the data change window. 1) [×] key Closes the data change window.
  • Page 291 (4) I/O monitor screen. Displayed contents 1) Monitored station display Displays the channel number, network number and station number of the monitored station. 2) Touch key Displays the keys used for the operations in the I/O monitor screen. 3) [Input signal], [Details] Displays the status and values of functions assigned to the input signal.
  • Page 292: Composition Of The Intelligent Module Monitor Screen And Key Functions

    8.4.5 Composition of the intelligent module monitor screen and key functions This section describes the structure of the monitor screen and the functions of the keys displayed on the screen. The monitor screen is displayed by specifying a module on the system configuration screen in basic mode when the RCPU, QCPU (Q mode), QSCPU, or LCPU is used.
  • Page 293 ■2. Key functions The following shows the functions of the keys that are used for the operations on the monitor screen. 1) [SET/RESET] key Starts testing (SET/RST) of the I/O signal between the PLC CPU and the intelligent function module. 2) [Data Chg.] key Starts changing (writing) the current values of the buffer memory of the intelligent function module displayed on the screen.
  • Page 294: Specifying A Module To Monitor And Selecting Monitor Menu

    8.4.6 Specifying a module to monitor and selecting monitor menu This section uses the positioning module as an example to describe the operations when starting the intelligent module monitor to monitor a desired module. Step 1. Display System Configuration screen. ➠...
  • Page 295: Testing Of The Intelligent Function Module

    8.4.7 Testing of the intelligent function module WARNING • When testing the operation (changing a current buffer memory value) of the intelligent module monitor, read this manual carefully to fully understand the operation. For devices that perform significant operations for the system, never perform test operation to change data. Doing so can cause accidents due to false outputs or malfunctions.
  • Page 296 Move the cursor to the position where the data to be tested is displayed. Use the numeric keys to specify the value to be changed. The [DEL] key can be used to clear individual characters among those input. • When [SET/RESET] key is touched (tests the I/O signal) All of the following operations can be carried out by touching the keys in the displayed key window.
  • Page 297: Intelligent Module Monitor Screens

    Intelligent Module Monitor Screens To display the intelligent module monitor screen on the GOT, write special data (intelligent module monitor data) to be monitored. For the capacity of the special data to be written to the GOT and the writing procedure, refer to the following. ➠...
  • Page 298: Monitor Screen Configuration And Key Functions

    Step 3. Display the monitor screen for the specified module. For information on how to check the display contents and the rest of the procedure, refer to the following. ➠ 8.6.2 Monitor screen configuration and key functions Tests cannot be conducted on input or output modules. 8.6.2 Monitor screen configuration and key functions This section describes the structure of the monitor screen and the functions of the keys displayed on the screen.
  • Page 299: Error Messages And Corrective Action

    ■2. Key functions The following shows the functions of the keys that are used for the operations on the monitor screen. 1) [Sys. Conf.] key Closes the current monitor and returns to the System Configuration screen. 2) [END] key Closes the monitoring and returns the screen to the one for starting the intelligent module monitor. 3) [X/Y] key Switches between the display contents (for an input module and for an output module) when an I/O combined module is used.
  • Page 300 8 - 38 8.7 Error Messages and Corrective Action...
  • Page 301: Servo Amplifier Monitor

    9. SERVO AMPLIFIER MONITOR Features Various monitor functions, changes to the parameter settings and test operations can be performed on the servo amplifier connected to the GOT. The features of the servo amplifier monitor are described below. ■1. Real-time display of the servo amplifier status ➠...
  • Page 302 ■2. Various diagnostics of the servo amplifier can be performed ➠ 9.4.5 Diagnostics function There are multiple diagnostics functions to enable various diagnostics of the servo amplifier to be performed. • Display example of DI/DO signal status Displays a list of the ON/OFF status of the external I/O signals of the servo amplifier. •...
  • Page 303 ■4. Various test operations can be performed ➠ 9.4.7 Test operations Various test operations can be performed on the connected servo amplifier. • JOG operation The servo amplifier rotates while the Forward or Reverse key is touched. • Motor less operation Simulates motion of the servo motor within the servo amplifier even when the servo motor is not connected.
  • Page 304: Specifications

    This section describes the system configuration of the servo amplifier monitor. For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Servo amplifier Model MELSERVO-J2-Super series MR-J2S-□A, MR-J2S-□CP...
  • Page 305 Servo amplifier Function MELSERVO-J2-Super series MELSERVO-J2M series MR-J2S-□A MR-J2S-□CP MR-J2M-P8A MR-J2M-□DU Display all ○ ○ High speed monitor × × × × Monitor Multi-axis listing × × Trend graph × × × I/O Input/Output display Display ○ ○ ○ ○ Alarm History ○...
  • Page 306 (2) MELSERVO-J3 series and MELSERVO-J4 series (○: Monitoring is possible with the servo amplifier monitor ×: Monitoring is not possible with the servo amplifier monitor - : Function unavailable) Servo amplifier Function MELSERVO-J3 series MELSERVO-J4 series MR-J3-□A MR-J4-□A Model selection ○...
  • Page 307: Access Range

    The access range is the same as the access range when the GOT is connected to a controller. For details of the access range, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 9.2.3 Precautions ■1.
  • Page 308: Operations Of Display

    In the utility, touch [Monitor] → [Servo amplifier monitor] from the main menu. For information on how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 3. Set the channel number. Set the channel number of the servo amplifier connected to the GOT.
  • Page 309 ■1. Changing screens The following describes how to change the screen. Start At the second or later startup Utility usear-created monitor screen At the first startup Communication setting window [Ch: ] key Setup Setup MENU Touch any Setup of the Monitor functions.
  • Page 310: Operations Of Servo Amplifier Monitor Screens

    Operations of Servo Amplifier Monitor Screens This section describes the operations of the screens when using the servo amplifier monitor. The display screen of the servo amplifier monitor varies depending on the GOT used. ➠ 9.4.1 Servo amplifier monitor 9.4.2 Setup 9.4.3 Monitor functions 9.4.4 Alarm function 9.4.5 Diagnostics function...
  • Page 311: Setup

    5) [Parameters] key Displays the parameter data and changes the parameter settings. ➠ 9.4.6 Parameter setting 6) [Test ] Performs various test operations (JOG operation, positioning operation, motor-less operation and DO forced output). ➠ 9.4.7 Test operations 9.4.2 Setup This is used to set the communication with the servo amplifier. Before making the settings on the setup screen, also make the same settings on the servo amplifier side.
  • Page 312 (2) Key functions The table below shows the functions of the keys that are used for the operations of the setup screen. 1) [Ch:2] key Displays the communication setting window. 2) [End] key Exits the servo amplifier monitor. 3) [Model] key Sets the model of the servo amplifier to be connected.
  • Page 313: Monitor Functions

    9.4.3 Monitor functions Displays all monitor data of the servo amplifier in real-time. ■1. Monitor screen The following describes the display data of the monitor screen and the key functions displayed on the screen. (1) Displayed contents 1) [Cumulative feedback pulses] Counts the feedback pulses from the servo motor encoder and displays the result.
  • Page 314 8) [Regenerative load ratio] Displays the ratio of the regenerative power to the permissible regenerative power in %. The permissible regenerative power differs depending on the presence/absence of the regenerative brake option. Set parameter No. 0 correctly according to the regenerative brake option. Set to 80% or lower as a guide.
  • Page 315: Alarm Function

    4) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format. For further information about hard copies, refer to the following: ➠ 9.4.8 Hard copy output 5) [Cancel Print] key The touch operation of this key is invalid. 9.4.4 Alarm function The following alarms are displayed.
  • Page 316 ■1. Alarm display screen The following describes the display data of the alarm display screen and the key functions displayed on the screen. (1) Displayed contents 1) [Alarm Number] Displays the number of the alarm that occurred. 2) [Alarm Name] Displays the name of the alarm that occurred.
  • Page 317 4) [AlarmHist] key Changes to the alarm history screen. ➠ ■2. Alarm history screen 5) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format. For further information about hard copies, refer to the following: ➠...
  • Page 318: Diagnostics Function

    (2) Key functions The table below shows the functions of the keys that are used for operations of the alarm history screen. 1) [Menu] key Returns to the function selection menu screen. 2) [End] key Exits the servo amplifier monitor. 3) [Clear] key Clears the alarm history stored in the servo amplifier.
  • Page 319 ■1. Changing screens The screen changes as follows after [Diagnostics] is selected on the function selection menu screen. Depending on the model of the connected servo amplifier, some screens may not be displayed. Refer to the following for the screens that cannot be displayed. ➠...
  • Page 320 ■2. DI/DO display screen The following describes the display data of the DI/DO display screen and the key functions displayed on the screen. (1) Displayed contents 1) [Input Signal], [Output Signal] Displays whether the DI/DO signal is ON (lit) or OFF (not lit). (2) Key functions The table below shows the functions of the keys that are used for the operations of the DI/DO display screen.
  • Page 321 4) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format. For further information about hard copies, refer to the following: ➠ 9.4.8 Hard copy output 5) [Cancel Print] key The touch operation of this key is invalid. ■3.
  • Page 322 3) Key to call a screen Item Description Changes to the DI/DO display screen. [DI/DO] key ➠ ■2. DI/DO display screen Changes to the amplifier information screen. [Amp.Inf] key ➠ ■4. Amplifier information display screen Changes to the ABS data screen. [ABSdata] key ➠...
  • Page 323 Item Description Displays the encoder resolution of the servo motor connected to the servo amplifier. [Encoder resolution] This is not displayed when monitoring the MR-J2M-P8A. (2) Key functions 1) [Menu] key Returns to the function selection menu screen. 2) [End] key Exits the servo amplifier monitor.
  • Page 324 ■5. ABS data display screen The following describes the display data of the ABS data display screen and the key functions displayed on the screen. (1) Displayed contents 1) [Absolute position data] Displays the absolute position data in the absolute position detection system with the following items. •...
  • Page 325 3) Key to call a screen Item Description Changes to the DI/DO display screen. [DI/DO] key ➠ ■2. DI/DO display screen Changes to the amplifier information screen. [Amp.Inf] key ➠ ■4. Amplifier information display screen Changes to the ABS data screen. [ABSdata] key ➠...
  • Page 326 (2) Key functions The table below shows the functions of the keys that are used for the operations of the unit composition list screen. 1) [Menu] key Returns to the function selection menu screen. 2) [End] key Exits the servo amplifier monitor. 3) Key to call a screen Item Description...
  • Page 327: Parameter Setting

    9.4.6 Parameter setting You can use the parameter setting function to set the servo parameters (basic parameters/expansion parameter 1, 2) of the connected servo amplifier. If you have set a password in [Servo Parameter Display] on GT Designer3 (GOT2000), the password input key window appears when you try to access the parameter setting screen of the servo amplifier monitor.
  • Page 328 ■1. Password input operation procedure The following describes the procedure for inputting the password for changing the servo parameters. (1) Functions If the input password matches, the parameter setting screen is displayed. If the input password does not match, an error message is displayed. Touching the [×] key returns to the function selection menu screen.
  • Page 329 4) [Unit] Displays the setting unit for each parameter. (2) Key functions The table below shows the functions of the keys that are used with the operations on the parameter setting screen. 1) [Menu] key Returns to the function selection menu screen. 2) [End] key Exits the servo amplifier monitor.
  • Page 330 5) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format. For further information about hard copies, refer to the following: ➠ 9.4.8 Hard copy output 6) [Cancel Print] key The touch operation of this key is invalid. POINT POINT POINT...
  • Page 331 Step 3. The read parameter values within the servo amplifier are displayed on the screen. Parameters that cannot be written or read are not displayed on the parameter setting screen. Step 4. Select a parameter setting item to be set by using the cursor keys, and touch the [Change] key. Step 5.
  • Page 332 Step 6. The parameter setting is changed on the parameter setting screen. Select the changed parameter item, and touch the [Write] key. If there are multiple parameter items with changed settings, touch the [Write All] key to write all parameter items with changed settings.
  • Page 333: Test Operations

    9.4.7 Test operations This function performs the following test operations on the connected servo amplifier. • JOG operation The servo motor rotates while the Forward or Reverse key is touched. ➠ ■4. JOG operation screen • Positioning operation This operation starts when the Forward or Reverse key is touched, and the servo motor rotates by the preset distance. ➠...
  • Page 334 ■2. Precautions for test operations The following describes the precautions when performing a test operation of the servo amplifier monitor. WARNING Do not operate the servo amplifier switches with wet hands. Doing so can cause an electric shock. Do not perform operations with the front cover of the servo amplifier removed. Doing so can cause an electric shock since the high-voltage terminals and live parts are exposed.
  • Page 335 ■4. JOG operation screen This section describes the display data of the JOG operation screen and the key functions displayed on the screen. (1) Displayed contents 1) [Motor speed] Displays the set speed of the servo motor. 2) [Acc/dec time] Displays the set acceleration/deceleration time constant.
  • Page 336 6) [Acc/dec time] key Changes the acceleration/deceleration time constant. 7) [Momentary Switch Operation: Selecting Momentary] key, [Momentary Switch Operation: Not Selecting Momentary] key Touching this changes the operation mode (momentary operation/no momentary operation). • [Momentary Switch Operation: Selecting Momentary] The servo motor rotates while the [Forward] key or [Reverse] key is touched. Releasing your finger from these keys stops the operation.
  • Page 337 (2) Key functions The table below shows the functions of the keys that are used for the operations of the positioning operation screen. 1) [Menu] key Returns to the function selection menu screen. 2) [End] key Exits the servo amplifier monitor. 3) [Forward] key Runs the servo motor in the forward rotation (CCW) direction.
  • Page 338 12) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format. For further information about hard copies, refer to the following: ➠ 9.4.8 Hard copy output 13) [Cancel Print] key The touch operation of this key is invalid. (3) Operation MELSERVO-J2-Super series and MELSERVO-J2 series •...
  • Page 339 (2) Key functions The table below shows the functions of the keys that are used for the operations of the motor-less operation screen. 1) [Menu] key Returns to the function selection menu screen. 2) [End] key Exits the servo amplifier monitor. 3) [Start] key Starts motor-less operation.
  • Page 340 ■7. DO forced output screen The following describes the display data of the DO forced output screen and the key functions displayed on the screen. (1) Displayed contents 1) ON/OFF status of output signals Displays the ON/OFF status of the servo amplifier output signals. After this screen has been switched to another screen, all external I/O signals are turned off.
  • Page 341: Hard Copy Output

    5) [Positioning] key Changes to the positioning operation screen. ➠ ■5. Positioning operation screen 6) [Without Motor] key Changes to the motor-less operation screen. ➠ ■6. Motor-less operation screen 7) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format. For further information about hard copies, refer to the following: ➠...
  • Page 342: Error Messages And Corrective Action

    Error Messages and Corrective Action This section describes the error messages that may be displayed during servo amplifier monitor operation and their corrective action. Error message Error definition Corrective action The monitor data have not installed or have been Monitor data not found Download the monitor data of the servo amplifier monitor.
  • Page 343: Backup/Restoration

    10. BACKUP/RESTORATION For using the backup/restoration function on GT21, refer to the following. ➠ GOT2000 Series User's Manual (Utility) 10.1 Features Setting data, including a sequence program, parameters, and setting values, for a controller connected to the GOT can be saved (backed up) in a memory card or USB memory in the GOT.
  • Page 344 ■4. Automatically backing up data with trigger By setting the trigger device or the days and time, the GOT can automatically back up setting data for controllers. By controlling the backup with the set trigger device, the GOT can automatically back up setting data for controllers after the data are changed.
  • Page 345: Specifications

    This section describes the system configuration for the backup/restoration function. For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Model Controller...
  • Page 346 ■2. Connection type This function can be used in the following connection types. (1) PLC CPU, motion controller CPU, CNC, and robot controller Target controller Ethernet connection Direct CPU connection Serial communication connection Bus connection (○: Applicable, ×: Inapplicable) Connection type between the GOT and controller Target controller Serial communication Direct CPU connection...
  • Page 347 (2) Inverter and servo amplifier The backup/restoration is usable for an inverter or servo amplifier that is connected to the GOT through an RCPU (master station). The inverter or servo amplifier must be connected to the RCPU on the CC-Link IE Field Network. The RCPU must be connected to the GOT by Ethernet.
  • Page 348 ■6. Data to be backed up and restored The following shows data to be backed up and restored. Data other than the the following data cannot be backed up and restored. (1) Basic model RCPU Item Description File name CPU parameter CPU.PRM System parameter SYSTEM.PRM...
  • Page 349 (3) High Performance model QCPU Item Description File name Parameter Parameter for operating a programmable controller PARAM.QPA Intelligent function module Parameter for intelligent function modules IPARAM.QPA parameter Program Program that the CPU operates (Including SFC program) ***.QPG Device comment Device comment to be stored in a programmable controller ***.QCD Boot operation specification file Batch file for starting programs stored in ROM and others...
  • Page 350 (5) LCPU Item Description File name Parameter Parameter for operating a programmable controller PARAM.QPA Intelligent function module Parameter for intelligent function modules IPARAM.QPA parameter Program Program that the CPU operates (Including SFC program) ***.QPG Device comment Device comment to be stored in a programmable controller ***.QCD Boot operation specification file Batch file for starting programs stored in ROM and others...
  • Page 351 (7) Motion controller CPU(MELSEC iQ-R Series) Item Description File name CPU parameter CPU.PRM System parameter SYSTEM.PRM Common parameter Unit parameter UNIT.PRM Unit expansion parameter UNIT***.UDT Basic setting mot_sys.csv motnet01.csv to Servo network setting motnet02.csv High-speed input request signal setting fsinput.csv Mark detection setting markdt.csv Motion CPU common parameter...
  • Page 352 (8) Q series motion controller CPU Item Description File name File where SFC code, G-code and F/FS code files are Motion SFC program conversion combined and converted into CPU's Motion SFC program sfcprog.cod file (control code) code memory storage format File where G list and F/FS list files are combined and Motion SFC program conversion converted into CPU's Motion SFC program text memory...
  • Page 353 (9) FREQROL-A800 series and FREQROL-A800 Plus series Item Description File name Parameter Parameter for operating an inverter ***.CP1 Parameter file PLC function parameter ***.QPA Program file Sequence program ***.QPG Function block source information Function block source information ***.C32 Global text comment information Global text comment information ***.QCD (10) FX CPU...
  • Page 354 (12) CNC C80 Item Description File name System file File used for the system SYSPRM.BIN Parameter Parameter for operating the CNC ALL.PRM Machining program Program for running the CNC ALL.PRG Machine manufacturer macro Machine manufacturer macro program file MACROALL.BIN MDI program MDI program file MDIALL.PRG Offset of the tool length compensation and tool radius...
  • Page 355 (14) Data for software Item Description File name Label program Data for GX Developer PROJINFO.CAB Symbolic data Symbolic data for PX Developer #FBDQINF.BIN SRCINFOM.CAB Simple project (with label) GX Works2 data SRCINFOM.C32 Source information SRCINFOI.CAB Structured project GX Works2 data SRCINFOI.C32 SRCINF1M.CAB SRCINF2M.CAB...
  • Page 356 ■7. Backup setting Backup settings are created when executing the backup, and are stored in a data strage with the following folder structure. Data strage in the drive set as the storage location for the backup setting Data strage BKUPLIST SYS1BKUP.G2B Backup setting file for CH No.1 SYS2BKUP.G2B...
  • Page 357 ■9. Log files for backing up or restoring When backing up or restoring, the controllers and files to be baked up or restored are recorded in log files (When backing up or restoring, they are overwritten.) Log files are created in the folder where each backup data is stored. ➠...
  • Page 358: Access Range

    10.2.2 Access range ■1. Access range with connection types The following shows a target controller of the backup/restoration execution with each connection type. (1) PLC CPU, motion controller CPU, CNC, and robot controller Connection type Target controller Bus connection, direct CPU connection, serial communication connection Host station Ethernet connection Host station, Other station...
  • Page 359 (2) STOP status during restoration CPUs for the programmable controller and motion controller are in the STOP status with the remote STOP before the restoration. For the CNC C70, the CNC ladder is in the STOP status. The CPUs and CNC ladder remain in the STOP status after the restoration is completed. Restart the controllers.
  • Page 360 ■4. Precautions for QCPU The restoration to QCPU with the factory-settings or whose memory is formatted is available only in the following cases. • For a single CPU system: When the connection type is the bus connection or direct CPU connection •...
  • Page 361 (4) Restoration For restoring data to controllers including the motion controller CPU, do not set the motion controller CPU to the installation mode or test mode. Doing so stops the restoration operation of the GOT. When the restoration is stopped, be sure to execute the restoration again. Failure to do so causes the GOT not to write all the data into the controllers, resulting in incorrect operations of the controllers.
  • Page 362 When data are restored to a target FXCPU, a keyword in the FXCPU is held. For setting or disabling a keyword for the FXCPU, refer to the following manual. ➠ GOT2000 Series User’s Manual (Utility) Programming manual for the FXCPU used (4) Backup data which contains source information When the target FXCPU of the restoration does not support source information, the backup data which contains source information cannot be restored.
  • Page 363: Operations For Display

    Main Menu. Backup/restoration For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) For how to set special function switches, refer to the following. ➠ GT Designer3 (GOT2000) Screen Design Manual For the details, refer to the following.
  • Page 364 ■1. Changing screens Utility Main Menu user-created monitor screen GOT data package acquisition Controller list screen GOT data package Restoration function (with controller list file) Backup function Main menu Progress screen (backup) Controller selection screen (Restoration) Input the password Restoration function Restoration function (Without controller...
  • Page 365 (1) Starting from the special function switch of the system launcher functio You can start the backup/restoration from a user-created screen by selecting the connection destination with a special function switch to which [System Launcher] is set. User-created screen having a special function switch System configuration The backup/restoration...
  • Page 366 ■2. Background processing stop By the background processing stop signal (GS522.b0), background processing by other functions (alarm, logging, device monitoring) can be stopped during the backup/restoration. When background processing is performed, the backup/restoration and other functions are alternately performed. Therefore, backup/restoration takes much time, but the monitoring of the controller continues. When background processing is not performed, processing of other functions stop until the backup/restoration is completed.
  • Page 367: Setting Storage Location For Backup Data

    10.3.1 Setting storage location for backup data Set the storage location that backup data are stored. Set the storage location for backup data in the backup/restoration setting of the utility. ■1. Display procedure Select [Utility] → [Ext. func. set] → [Backup restoration]. ■2.
  • Page 368: Security And Password

    10.3.2 Security and password By setting the passwords, the password authentication is available when the backup/restoration is executed. The password authentication uses the password for the backup/restoration and passwords for controllers. Authentication of the password for the backup/restore Automatic authentication of passwords for the controller Backup Data strage Authentication of the password for the backup/restore...
  • Page 369 ■1. Setting password for backup/restoration The password for the backup/restoration can be set only when the following condition is satisfied at the first backup. • When passwords are set for the files for the backup target controller At the first backup, the password authentication for the controller is required. The following shows the operating procedure at the first backup.
  • Page 370 POINT POINT POINT (1) Setting password For ensuring the security, setting a password of 8 or more characters that cannot be easily guessed is recommended. When the password is leaked, the same system can be created. Pay enough attention to managing the password.
  • Page 371 ■2. How to use password for backup/restoration (1) Backup The following shows the operating procedure for the backup after setting the password for the backup/restoration. Start Touch [Backup function] in the main menu on the GOT. (The second or later backup) Input the password for the backup/restore.
  • Page 372 (2) Restoration The following shows the operating procedure for the restoration after setting the password for the backup/restoration. Start Touch [Execute] in the data list (restoration). Input the password for the backup/restore. When a keyword is set, disable the keyword. Yes(FXCPU) Is the password correct? When a programmable controller is...
  • Page 373 POINT POINT POINT When passwords for controllers are changed When the password input is cancelled and the restoration is stopped, the restored files until the restoration is stopped remain in the controller. When only any of the files are restored, the data can be inconsistent in the entire system. When the password input is cancelled The restoration is stopped, and the restored file remains in the controller.
  • Page 374: Trigger Backup

    10.3.3 Trigger backup The GOT can automatically back up setting data for controllers with the trigger device or the days and time set. Setting the trigger type selects whether to execute the backup with the trigger device or with the days and time. ■1.
  • Page 375 Input the password for the backup/restoration in the trigger backup setting of the GOT utility. For setting the trigger backup with the GOT utility, refer to the following. ➠ GOT2000 Series User’s Manual (Utility) (2) Setting items for trigger backup Set the trigger backup with GT Designer3 (GOT2000) and the GOT utility.
  • Page 376 ■6. Controlling backup with devices The GOT controls the trigger backup with devices. The following shows the devices to be used for the trigger backup. • Trigger device • Process notification device • Backup error notification device • Trigger backup processing setting No. notification (GS657) •...
  • Page 377 (2) Error handling When an error occurs during the trigger backup, the backup error notification device stores the trigger ID corresponding to the trigger setting set for the backup with the error, and a system alarm occurs. Check the system alarm, and then remove error causes. For system alarms and corrective actions, refer to the following manual.
  • Page 378 ■7. Precautions for trigger backup The following shows precautions for the trigger backup. (1) GOT operations during trigger backup The GOT may take a long time to monitor devices and to operate during the trigger backup. Execute the trigger backup when the operator does not operate the GOT. Updating data with the functions that collect device values, including the logging function, may also take a long time.
  • Page 379 (9) When another trigger condition is met during backup The GOT cannot detect that another trigger condition is met. Trigger device (Trigger ID: 1) Trigger device (Trigger ID: 2) detected Backup processing (Trigger ID: 1) Backup processing (Trigger ID: 2) Process notification device (Trigger ID: 1)
  • Page 380 (10) When multiple trigger conditions are simultaneously met The GOT executes the backup with the smallest trigger ID first. (11) When trigger device is on at GOT startup The GOT recognizes that the trigger condition is met, and then the GOT executes the backup. Create a sequence program so that the trigger device turns off after the GOT checks that the process notification device turns on.
  • Page 381: Network Batch Backup/Restoration

    If the controller cannot communicate with the GOT, the backup/restoration cannot be performed. For how to connect controllers with the GOT, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Flow to perform the network batch backup/restoration Create a controller list file with a personal computer.
  • Page 382 ■2. Creating a controller list file For the controller list file, set the network No. and the station number of the controller to be backed up or restored. The controller list file can be set to each backup setting file. (1) Controller list file specification Specification Item...
  • Page 383 (2) Controller list file creation The controller list file must be created by the user. The following shows how to create it with Microsoft Excel Step 1. Start Microsoft Excel and set the controllers to be backed up or restored, according to the format. For the format of the file, refer to the following.
  • Page 384 ■3. Operation after executing the network batch backup or restoration When the network batch backup/restoration is executed, the following operations are performed. Start backing up or restoring after preparing a controller list file The controller list file of the channel selected from the Main Menu is read.
  • Page 385: Operation Procedures

    Switches the screen to the setting screen of the GOT data package acquisition. [GOT data package] ➠ GOT2000 Series User’s Manual (Utility) Deletes the oldest data among backup data already stored in a SD card or USB memory in [Delete backup data] the GOT.
  • Page 386: Progress Screen (Backup)

    10.4.2 Progress screen (backup) This following describes the display details and the key functions on the Backup function: Progress screen. ■1. Display details Display details Displays the setting name for the backup/restoration (Fixed). Displays the backup data name. Displays the channel No., network No., station No., CPU No., and module name for the target controller in a list. When the CPU No.
  • Page 387: Data List (Restoration)

    10.4.3 Data list (restoration) The following describes the display details and the key functions on the Restoration function: Data list screen. ■1. Display detail Display details Displays the setting name for the backup/restoration (Fixed). Displays backup data stored in a SD card or USB memory. Select a backup data to be restored with touching the data.
  • Page 388: Progress Screen (Restoration)

    10.4.4 Progress screen (restoration) This following describes the display details and the key functions on the Restoration function: Progress screen. ■1. Display details Display details Displays the setting name for the backup/restoration (Fixed). Displays the backup data name. Displays the channel No., network No., station No., module No., and unit name for the target controller of the restoration.
  • Page 389: Controller List Screen

    10.4.5 Controller list screen The following describes the display details and the key functions on the Controller list screen. ■1. Display details Display details Displays the target channel No. of the backup/restoration and the setting name for the backup/restoration (Fixed). Switches execution/non-execution of all settings.
  • Page 390: Controller Selection Screen (Restoration)

    10.4.6 Controller selection screen (Restoration) The following describes the display and the key functions on the Restoration function: Controller selection screen. ■1. Display details Display details Displays the target channel No. of the backup/restoration and the setting name for the backup/restoration (Fixed). Displays all settings in the controller list file.
  • Page 391: Individual Restoration Screen (Restoration)

    10.4.7 Individual restoration screen (Restoration) This section describes the display data of the individual restoration screen (Restoration) and the key functions displayed on the screen. ■1. Display details Display details Displays the setting name for the backup/restoration (Fixed). Displays the backup data name. Select files to be restored.
  • Page 392: Backup Data Conversion Tool

    10.5 Backup Data Conversion Tool The backup/restoration function backs up the data of a controller to a data storage in the GOT. With Backup Data Conversion Tool, you can convert the backup data to and from the file format editable with GX Works2 or GX Developer. For performing edits on GX Works2, use ver.1.73B or later of GX Works2.
  • Page 393: Operating Environment

    10.5.1 Operating environment Use Backup Data Conversion Tool in the following operating environment. Item Description Personal computer Personal computer that Windows runs on. *1*2*3 • Microsoft Windows 10 Enterprise (32 bit, 64 bit) *1*2*3 • Microsoft Windows 10 Pro (32 bit, 64 bit) *1*2 •...
  • Page 394: How To Use Backup Data Conversion Tool

    10.5.3 How to use Backup Data Conversion Tool ■1. Setting items The following shows the setting items of Backup Data Conversion Tool. Item Description Conversion Target Specify data to be converted. Specify the storage location of the backup data (setting data: UNITINFO.G2B) created Backup Data Folder with the backup/restoration function by clicking the [Browse] button.
  • Page 395: Precautions

    ■2. Operation flow The following shows the operation flow for Backup Data Conversion Tool. (1) Editing the backup data with GX Works2 or GX Developer Back up setting data with the backup/restoration function on the GOT. ↓ Copy the backup data to the personal computer. ↓...
  • Page 396: Errors And Corrective Actions

    10.6 Errors and Corrective Actions ■1. Common to backup and restoration Error Cause Corrective action The system application (Extended function) The backup/restoration function cannot be Install the system application (Extended of the backup/restoration is not installed on used. function) on the GOT. the GOT.
  • Page 397 Error Cause Corrective action Check the following. • Check if the cable is correctly connected to the GOT. • Check if the correct communication driver is installed Setting data (files and data) on the GOT. The GOT cannot communicate with the cannot be obtained from the •...
  • Page 398 10 - 56 10.6 Errors and Corrective Actions...
  • Page 399: Melsec-L Troubleshooting

    11. MELSEC-L TROUBLESHOOTING 11.1 Features MELSEC-L troubleshooting enables you to display the status and errors of the LCPU connected to the GOT and the errors of the GOT. In addition, you can start the sequence program monitor or others from the MELSEC-L troubleshooting screen. 11 - 1 11.1 Features...
  • Page 400: Specifications

    This section describes the system configuration of the MELSEC-L troubleshooting. For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Controller LCPU ■2.
  • Page 401: Operation For Display

    Communication setting window The MELSEC-L troubleshooting starts. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) For the details, refer to the following. ➠ 11.2.2 ■2. (1) Communication setting window For the details, refer to the following.
  • Page 402 (3) If the project data has not been downloaded The MELSEC-L troubleshooting can be started from the utility even if the project data has not been downloaded to the GOT. ■1. Changing screens This section describes how to change the screen. Start At the second or later startup...
  • Page 403: Operation Procedures

    11.4 Operation Procedures This section describes the display details for the MELSEC-L troubleshooting and the functions of the keys displayed on the screen. ■1. Displayed contents Item Display contents Displays the LCPU status. (Only LED of BAT, RUN, and ERR is lit.) CPU status The LED on the screen and the LED display on the PLC body may not match depending on the error status.
  • Page 404: Error Messages And Corrective Action

    Function Closes the MELSEC-L troubleshooting and returns the screen to the one for starting the [Back] MELSEC-L troubleshooting. (1) Communication setting window Display monitor The information shown in the table below is displayed. Item Display contents CH No. input area Set the CH No.
  • Page 405: Log Viewer

    12. LOG VIEWER 12.1 Features With the log viewer function, the GOT displays the logging data acquired from the high speed data logger module, the PLC CPU, and the BOX data logger, and controls the files. The features of the log viewer are shown below. ■1.
  • Page 406: Specifications

    12.2 Specifications 12.2.1 System configuration This section describes the system configuration of the log viewer. ■1. Target controller Type Model High Speed Data Logger Module QD81DL96 BOX Data Logger NZ2DL R04CPU , R08CPU , R16CPU , R32CPU , R120CPU RCPU R04ENCPU , R08ENCPU , R16ENCPU...
  • Page 407 WLAN GT25 • 100BASE-TX ➠ List of Valid Devices Shielded twisted pair QD81DL96 Applicable for cable (STP) or NZ2DL GOT2000 Series unshielded twisted pair (GOT-A-0064) RCPU cable (UTP) of Ethernet category 5 or higher QnUDVCPU Use a wireless LAN 100m...
  • Page 408: Got Side Settings

    Reference GT Designer3 (GOT2000) Screen Design Set [Destination I/F] of [Ethernet Download] in the [PC (Data Transfer)] dialog. Manual GOT2000 Series Connection Manual Set an Ethernet driver in [Driver] in the [Controller Setting] dialog. (Mitsubishi Products) For GT Works3 Version1...
  • Page 409: Access Range

    12.2.3 Access range The high speed data logger module, the PLC CPU module, or the BOX data logger which is connected to the GOT via the HUB using the Ethernet cable, can be monitored. Monitoring via the Internet cannot be performed. For details of the high speed data logger module, refer to the following.
  • Page 410: Precautions

    12.2.4 Precautions ■1. Handling data strage during the access Do not remove the data strage and do not open the SD card slot during the access. Doing so may damage files in the GOT or in the data strage. ■2. Connection to the PLC CPU To use the log viewer function using the PLC CPU, the FTP setting is required on the PLC CPU.
  • Page 411: Operations For Display

    [Log viewer] screen is displayed. [Select files] screen is displayed. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) For how to set special function switches, refer to the following. ➠ GT Designer3 (GOT2000) Screen Design Manual For the details, refer to the following.
  • Page 412: Screen Transition When [View Logged Device] Is Selected

    (1) How to display the utility For how to display the utility, refer to the following. ➠ GOT2000 Series User’s Manual (Utility) (2) Displaying target setting window For displaying the target setting window, touch the [Change CPU] button on the Main Menu screen of log viewer.
  • Page 413 12.3.2 Screen transition when [Manage log file] is selected Start Utility Main Menu user-created monitor screen Main menu screen File selection screen Data selection screen Data log viewer screen Recently opened files screen 12 - 9 12.3 Operations for Display...
  • Page 414: How To Operate Various Selection Screens

    12.4 How to Operate Various Selection Screens This section describes each screen contents displayed in log viewer and the functions of the keys displayed on the screen. 12.4.1 How to operate target setting window Touch the [Change CPU] button in [Main Menu] to display the following screen. Function [×] / [Return] Closes the target setting window and returns to the Main Menu screen.
  • Page 415: How To Operate Target Selection Screen

    12.4.2 How to operate target selection screen When [High speed data logger/BOX data logger], [RCPU], or [QnUDVCPU / LCPU] is selected in the target setting window, the following screen appears. ■1. Target selection screen (1) Displayed contents When [High speed data logger module / BOX data logger] When [RCPU] or [QnUDVCPU/LCPU] is selected is selected Item...
  • Page 416 ■2. IP Address input window Touch the IP address input display area to display the following window. (1) Displayed contents Item Display contents IP address input area Set the IP address. Input keys Keys for operations in the IP address input window. (2) Key functions Function [×] / [Cancel]...
  • Page 417 ■3. Timeout time input window Touch the Timeout time display area to display the following window. (1) Displayed contents Item Display contents Timeout time input area Set the Timeout time. Input keys Keys for operations in the Timeout time input window. (2) Key functions Function [×] / [Cancel]...
  • Page 418 (2) Key functions Function Closes the Access authentication window and cancels the user name and password [×] input operation. [Sign] Switches the key type to the symbol. [0-9] Switches the key type to the value. [A-Z] Switches the key type to the alphabet (uppercase). [a-z] Switches the key type to the alphabet (lowercase).
  • Page 419: How To Operate Main Menu Screen

    12.4.3 How to operate Main Menu screen After the target is selected, the following screen appears. ■1. Displayed contents The following screen appears when [High speed data logger module / BOX data logger] is selected. A similar screen also appears when [RCPU] or [QnUDVCPU/LCPU] is selected. Item Display contents Displays the target device name and IP address.
  • Page 420: How To Operate File Selection Screen

    12.4.4 How to operate file selection screen Select in the following procedure to display the file selection screen. • Touch [View logged device] in the Main Menu screen • Touch the folder icon on the data log viewer screen. ■1. File selection screen (1) Displayed contents Item Display contents...
  • Page 421 Deletes the selected file. For how to operate, refer to the following. ➠ GOT2000 Series User’s Manual (Utility) If [Z:Target device] is selected in select drive, the key functions are disabled. 12 - 17 12.4 How to Operate Various Selection Screens...
  • Page 422 ■2. Recently opened files screen Touch the [Recently opened files] button in the file selection screen to display the following screen. (1) Displayed contents Item Display contents Displays a list of recently opened files. From the recently opened files, the latest one is displayed in the first line, and the File list oldest one is displayed in the last line.
  • Page 423: How To Operate Data Log Viewer

    12.5 How to Operate Data Log Viewer On the data log viewer screen, the logging data stored in the high speed data logger module/PLC CPU/BOX data logger or CF card/USB memory is displayed as a graph. The following describes how to operate the data log viewer screen. 12.5.1 Data log viewer screen ■1.
  • Page 424 For the details, refer to the following. Name Resolution (dots) With legend display Without legend display GT27**-X 1024 × 768 GT27**-S 800 × 600 GT27**-V 640 × 480 POINT POINT POINT Graph display area (1) Graph display when missing some logging data When some logging data is missing, the corresponding part in the graph line is displayed with an interruption.
  • Page 425: Legend Display

    Function Scrolls the display area to the beginning or end of the selected graph. Enlarges/reduces the display area horizontally. Moves the selected cursor right and left. Switches the selected graph up or down. 12.5.2 Legend display The following explains the legend display. ■1.
  • Page 426: Upper And Lower Limit Values Setting

    12.5.3 Upper and lower limit values setting The following explains the upper and lower limit values setting. Touch the scale display area to display the following window. The scale can be changed by changing the upper and lower limit values. ■1.
  • Page 427: Cursor Position Information

    12.5.4 Cursor position information The display screen shows the status that the red cursor is selected. Time and value of the blue cursor/red cursor whose graph is selected are displayed in the graph area. ■1. Displayed contents Item Display contents Displays the color of the selected cursor.
  • Page 428: Selecting Data

    12.5.5 Selecting data Data selection screen displays the data list of the files stored in the selected high speed data logger module/PLC CPU/BOX data logger or CF card/USB memory. Up to 16 pieces of data can be selected in the data selection screen. The following explains the data selection screen.
  • Page 429: Searching Data

    12.5.6 Searching data On the data search screen, input the time/index to search the data in the graph which is displayed in the data log viewer screen and shows the data of the files stored in the high speed data logger module/PLC CPU/BOX data logger or CF card/ USB memory.
  • Page 430: Help

    12.5.7 Help The following explains the help window. Help window displays the contents of icons. Item Display contents Displays functions of the icons in the window. Help window closes by touching any place in the help window display area. Help window display area While the help window is displayed, touching other than the help window display area is invalid.
  • Page 431: Error Messages And Corrective Actions

    12.6 Error Messages and Corrective Actions This section describes the error messages for the log viewer and the corresponding corrective actions. Error message Error Corrective action (1) Check the communications between the GOT and the high speed data logger module or Failed to communicate with the specified the PLC CPU, and make sure that the GOT The GOT cannot communicate with the...
  • Page 432 12 - 28 12.6 Error Messages and Corrective Actions...
  • Page 433: Fx Ladder Monitor

    13. FX LADDER MONITOR 13.1 Features The FX ladder monitor enables you to monitor the sequence program within the target controller and change device values. It is intended to troubleshoot and maintain the PLC system efficiently. The features of the FX ladder monitor are shown below. ■1.
  • Page 434: Specifications

    This section describes the system configuration of the FX ladder monitor. For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Controller FXCPU FX3U and FX3UC are connectable.
  • Page 435: Devices And Range That Can Be Monitored

    13.2.2 Devices and range that can be monitored (○: Possible, ×: Impossible) Device monitor Device Device range Ladder display Search operation display Input X000 to X337 (octadecimal) ○ ○ ○ Output Y000 to Y337 (octadecimal) ○ ○ ○ Auxiliary relay M0 to M8511 ○...
  • Page 436 ■4. Notes on reading the contents • An STL (step ladder) command, a dedicated command for the FXCPU, is displayed as shown below. Ladder monitoring by GOT Display example of STL command STL S0 Y0000 X0000 SET S20 X0000 SET S21 •...
  • Page 437: Operation For Display

    Read the PLC and display the sequence program. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) For how to set special function switches, refer to the following. ➠ GT Designer3 (GOT2000) Screen Design Manual For the details, refer to the following.
  • Page 438 ■2. Screen transition The following shows the screen transition for normal operation. Start the Start the ladder monitor. When performing the FX ladder Display format change/ When ladder data has already been read monitor first after starting the GOT search/Menu window after the GOT was started screen display Menu...
  • Page 439: Display

    Touch the [Keyword] key to enter the keyword registered in the target PLC CPU. For the FX CPU keyword, refer to the following. ➠ GOT2000 Series User’s Manual (Utility) When no keyword is registered in the target controller When a keyword is...
  • Page 440 Step 3. The sequence program is read. • The message "EXECUTING" is displayed. • The entire size of the program and the portion already read are displayed. Portion already read/entire program size • The reading of the PLC stops by touching the [Break] key. Step 4.
  • Page 441: Searching From The Monitor Screen

    POINT POINT POINT Reading the PLC in the following operations Once the PLC is read, you do not have to read it in the following operations. However, it must be re-read after you read it and then downloaded project data and when the power to the GOT is turned on again.
  • Page 442 ■2. Searching operation The following explains the procedure from touching the Key Code Switch for advanced alarm display or Special Function Switch and performing coil-search or defect search to display of a ladder block. Step 1. Touch a key in monitor screen. Step 2.
  • Page 443: Common Operation

    13.4 Common Operation This section describes the information and key functions displayed on the FX ladder monitor screen. 13.4.1 Information and key functions displayed on the screen POINT POINT POINT After executing PLC reading, if the controller comment or comment capacity is changed, the comment may not be correctly displayed on the FX ladder monitor screen.
  • Page 444 (2) Key functions Function [Exit] Returns the screen to the one displayed when the FX ladder monitor was activated. Switches the screen to the PLC reading screen to read from the controller the sequence program to be monitored. [PLCRD.] For further information about PLC reading, see the following: ➠...
  • Page 445 ■2. Menu window for the FX ladder monitor (1) Display screen (2) Key functions Function Displays the ladder block containing the specified device. [Dev.Sea.] ➠ 13.6.1 Device search Displays the ladder block containing the specified device. [Cont.Sea.] ➠ 13.6.2 Contact point search Displays the ladder block containing the specified coil.
  • Page 446: Hard Copy Output

    13.4.2 Hard copy output This section describes how to store an FX ladder monitor screen to the data strage in BMP/JPEG file format or print it with a printer. Touch [Print Screen] A BMP/JPEG file will be stored on the standard CF card inserted in the GOT.
  • Page 447: Switching The Display Format

    13.5 Switching the Display Format You can switch the display format (16-bit (one-word) module/32-bit (two word) module or decimal number/hexadecimal number) of word device and timer/counter values displayed on the FX ladder monitor screen, and whether to display the comments to the target devices. 13.5.1 Display switching of 16-bit (one-word)/32-bit (two-word) modules During monitoring, the present values of word devices (except timers and counters) are displayed in the 16-bit or 32-bit...
  • Page 448: Display Switching Of Decimal Numbers/Hexadecimal Numbers

    13.5.2 Display switching of decimal numbers/hexadecimal numbers During monitoring, the present values of word devices and the present values (upper values) and set values (lower values) of timers/counters are displayed in decimal or hexadecimal numbers. The display formats switch alternately each time you press the [Dec.Hex.] key.
  • Page 449: Switching Comment/No-Comment Display

    13.5.3 Switching comment/no-comment display Comments written in the target controller are displayed. Comment display and no-comment display switch alternately each time you press the [Cmnt.] key. Step 1. Touch [Menu]. Touch "Menu" Step 2. Touch [Cmnt.]. Touch "Cmnt." Step 3. Comments are displayed.
  • Page 450: Search Operation

    13.6 Search Operation This section describes device search, contact point search, coil search, step search, ladder end search, defect search, and touch search. 13.6.1 Device search Device search displays the ladder block that contains a specified device. <Operation procedure> Step 1. Touch [Menu].
  • Page 451 POINT POINT POINT (1) Continuous read based on the same device After a search, a continuous search can be performed based on the same device by touching on the screen. If you touch another key, the continuous read function will be canceled. (2) FX ladder monitor display after a search The ladder block containing the searched device is displayed.
  • Page 452: Contact Point Search

    13.6.2 Contact point search Contact search displays the ladder block that contains a specified contact point. <Operation procedure> Step 1. Touch [Menu]. Touch "MENU" Step 2. Touch [Cont.Sea.]. Menu window Touch "Cont. Sea." Step 3. Using the keys, switch the input area, and enter a device name and its number. Example: Specify X1.
  • Page 453 POINT POINT POINT (1) Continuous read based on the same contact point After a search, a continuous search can be performed based on the same contact point by touching on the screen. If you touch another key, the continuous read function will be canceled. (2) FX ladder monitor display after a search The ladder block containing the searched contact point is displayed.
  • Page 454: Coil Search

    13.6.3 Coil search Coil search displays the ladder block that contains a specified coil. <Operation procedure> Step 1. Touch [Menu]. Touch "MENU" Step 2. Touch [Coil.Sea.]. Menu window Touch "Coil Sea." Step 3. Using the keys, switch the input area, and Enter a device name and its number. Example: Specify T0.
  • Page 455 POINT POINT POINT (1) Continuous read based on the same coil After a search, a continuous search can be performed based on the same coil by touching on the screen. If you touch another key, the continuous read function will be canceled. (2) FX ladder monitor display after a search The ladder block containing the searched coil is displayed.
  • Page 456: Step Search

    13.6.4 Step search Step search displays the ladder block that contains a specified step number. <Operation procedure> Step 1. Touch [Menu]. Touch "MENU" Step 2. Touch [Step.Sea.]. Menu window Touch "Step.Sea." Step 3. Enter a step number. Example: Specify step No. 40. After the step number is entered, touch the [Enter] key.
  • Page 457: Ladder End Search

    13.6.5 Ladder end search Ladder end search displays the last ladder block of the sequence program. <Operation procedure> Step 1. Touch [Menu]. Touch "MENU" Step 2. Touch [End.Sea.]. Menu window Touch "End.Sea." Step 3. The last ladder block is displayed (the end command is not displayed). The message "CIRCUIT_END"...
  • Page 458: Defect Search

    13.6.6 Defect search Defect search searches the ladder block for the status of conductive/non-conductive of the contact point that turned on or off the coil on the sequence program. ■1. <Operation procedure> Step 1. Touch [Mon.]. Touch "Mon." Step 2. Touch [Menu].
  • Page 459 Step 5. A search for the device begins, and the research result is displayed. To cancel a defect search, touch [ESC]. During a defect search, all key operations except [ESC] and [Exit] are invalid. POINT POINT POINT Operation before a defect search In the case of the FX ladder monitor, touch [Mon.] before starting a defect search.
  • Page 460 (2) When two occurrences of the search device are found. If there are two or more devices that caused a failure, the "the defect search is interrupted" message appears and the defect search is terminated. Example: After searching for Device M120 that is in the OFF state, "M669" and "M23" will be displayed as devices that caused a failure.
  • Page 461: Test Operation

    13.7 Test Operation You can change device values and turn on and off bit devices on the screen when the FX ladder monitor is executed. This section describes how to display the test menu screen. For the procedure for changing device values and turning on and off bit devices, see the following. ➠...
  • Page 462: Error Messages And Corrective Action

    13.8 Error Messages and Corrective Action This section describes the error messages displayed when the FX ladder monitor function is executed, and corrective action. Error message Description Corrective action The specified keyword is different from Check the keyword that is registered in the object PLC ENTRY CODE MISMATCH the keyword that is registered in the CPU and specify again.
  • Page 463: Motion Sfc Monitor

    14. MOTION SFC MONITOR 14.1 Features With Motion SFC Monitor, the GOT can monitor motion SFC programs in the motion controller CPU (Q series) connected to GOT and device values. The following describes the features of the motion SFC monitor. ■1.
  • Page 464: Specifications

    For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Error messages, error codes, and number of steps for errors that occur in the FX PLC can be checked.
  • Page 465: Devices And Range That Can Be Monitored

    For the setting methods of the [Controller Setting] dialog box and the types compatible to motion controller CPUs, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 14.2.3 Access range The access range is the same as the access range when the GOT is connected to a controller.
  • Page 466: Displayable Character Codes

    Chinese (Simplified) Korean For switching the language of the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) 14.2.6 Precautions ■1. Operations when using motion SFC monitoring Do not execute the following operations to GOT while using motion SFC monitor.
  • Page 467: Operations For Display

    Select a motion SFC program to display the SFC diagram. Program batch monitor window The SFC diagram monitor screen is displayed. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) 14 - 5 14.3 Operations for Display...
  • Page 468 (1) How to display the utility For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) (2) Reading data from PLC when reclosing GOT Save the motion SFC program in the SD card for the motion SFC monitor.
  • Page 469 ■2. Changing screens The following describes how to change the screen. Start Utility Main Menu user-created monitor screen At the first startup Communication setting window Password for reading or writing is set for the motion SFC program. Active step list window Password input window Step list window The program is locked.
  • Page 470: Setting Motion Sfc Program Storage Location

    Only drive A (standard SD card) or drive B (USB drive) is usable for storing motion SFC programs. For the ladder data storage destination setting, refer to the following. • When setting with GOT utility ➠ GOT2000 Series User's Manual (Utility) • When setting with GT Designer3(GOT2000) ➠ GT Designer3 (GOT2000) Screen Design Manual 14 - 8 14.3 Operations for Display...
  • Page 471: Operation Procedures

    14.4 Operation Procedures This section describes the display contents of the SFC diagram monitor screen and the functions of the keys displayed on the screen. 14.4.1 SFC diagram monitor screen ■1. When the SFC diagram monitor is executed (1) Display screen Item Display contents Displays CH No., network No., station No., and CPU No.
  • Page 472 Item Display contents Displays the number of active steps. Number of active steps Active step list window is displayed by touching this area. display area ➠ 14.4.4 Active step list window (2) Motion SFC diagram symbol The following describes the motion SFC diagram symbols displayed in the SFC diagram display area. Classification Name Symbol...
  • Page 473 ■2. Motion SFC diagram monitor screen (1) Key functions The following describes key functions for operations on the SFC diagram monitor screen. Function Displays the Find menu. ➠ (2) Menus Displays the Display menu. ➠ (2) Menus Closes the motion SFC monitor and returns to the screen for starting the motion SFC monitor.
  • Page 474: Detailed Program Window

    Function Switches the automatic scroll to valid/invalid. When the automatic scroll is valid and all the following conditions are satisfied, the active steps are displayed on the SFC diagram monitor screen by automatically scrolling the screen. • No active step is displayed on the SFC diagram monitor screen. •...
  • Page 475 Item Display contents Displays the arithmetic control program/transition program. When the automatic scroll is valid and the active step is changed, the arithmetic control program/ transition program of the active step is displayed. When the locked step becomes active, the displayed contents do not change in the detailed program window.
  • Page 476 Item Display contents Displays the display format of the word device which is used in the arithmetic control program/ transition program displayed in the program display area. (Not displayed when using bit device.) The following shows the display format types. •...
  • Page 477: Step List Window

    14.4.3 Step list window Step list window displays the steps and transitions. ■1. Displayed contents Item Display contents Keys Keys for operations on the step list window. Displays the step/transition numbers and comments set in the step/transition. Active steps are displayed in yellow, and waiting steps are displayed in red. The locked step or transition is shown as below.
  • Page 478: Active Step List Window

    14.4.4 Active step list window The active step list window displays active steps. ■1. Displayed contents Item Display contents Keys Keys for operations on the active step list window. Displays the active step numbers and comments set in the active step. The step or transition is displayed as below.
  • Page 479: Program Batch Monitor Window

    14.4.5 Program batch monitor window The following shows the operation for selecting the motion SFC program to display on the SFC diagram monitor screen. ■1. Displayed contents Item Display contents Displays the program No., program name and program status of the motion SFC program read from the motion controller CPU.
  • Page 480: Communication Setting Window

    14.4.6 Communication setting window Set the motion controller CPU to be monitored. ■1. Displayed contents 1) 3) 4) 2) 1) 3) 4) 2) (When the CH No. is input) (When the network No., station No., and CPU No. are input) Item Display contents CH No.
  • Page 481: Password Input Window

    14.4.7 Password input window Execute the password authentication of the motion SFC program. After the password authentication has succeeded, the password is authenticated automatically with the same password for the following time. (The password input window is not displayed.) ■1. Displayed contents (For numerical input) (For alphabet input ) Item...
  • Page 482 14 - 20 14.4 Operation Procedures...
  • Page 483: Fx List Editor

    15. FX LIST EDITOR To use the FX list editor on GT21, refer to the following. ➠ GOT2000 Series User's Manual (Utility) 15.1 Features The MELSEC-FX list editor enables you to change the sequence program in the FX PLC. This function is intended to troubleshoot the PLC system and to streamline maintenance operations.
  • Page 484 ■3. Errors that occur during list editing can be checked easily. Error messages, error codes, and number of steps for errors that occur in the FX PLC can be checked. Details can be checked immediately even for errors that occur during list editing. ■4.
  • Page 485: Specifications

    This section describes the system configuration of the MELSEC-FX list editor. For connection type settings and precautions regarding the communication unit/cable and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller Controller FXCPU ■2.
  • Page 486 ■4. Functions list and monitor conditions The following shows the memory that can be monitored by the MELSEC-FX list editor and the FX PLC status conditions. (○: Can be monitored : Can be monitored under certain conditions ×: Cannot be monitored) Memory that can be monitored EEPROM FX PLC...
  • Page 487: Access Range

    The access range other than the above is the same as the access range when the GOT is connected to a controller. For details of the access range, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 15.2.3 Precautions ■1.
  • Page 488: Operations For Display

    The MELSEC-FX list editor is started. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) For how to set special function switches, refer to the following. ➠ GT Designer3 (GOT2000) Screen Design Manual Refer to the following for the FX ladder monitor.
  • Page 489 (1) How to display the utility For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) (2) Displaying communication setting window After turning on the GOT, the communication setting window is displayed at the first startup of the MELSEC-FX list editor only.
  • Page 490 ■1. Change screens This section describes how to change the screen. Start Utility Main Menu user-created monitor screen Communication setting window [ChNo.] MORE MORE [PLC diagnostics] [Parameter setting] [Keyword setup] [List Monitor] With setting special function switches (FX list monitor), the list monitor can be started on the monitor screen. When the list monitor is started on the monitor screen, the list editor cannot be used.
  • Page 491: Operation Procedures

    15.4 Operation Procedures This section describes the contents of the MELSEC-FX list editor and the key functions displayed on the screen. 15.4.1 Key arrangement and a list of key functions The arrangement and functions of the keys displayed on the MELSEC-FX List Editor window are described below. ■1.
  • Page 492 ■2. Key functions The table below shows the functions of the keys that are used for the operation on the MELSEC-FX list editor screen. Function Displays the communication setting window. [ChNo.[1]] The communication setting window is not displayed if the MELSEC-FX list editor is started from the FX ladder monitor.
  • Page 493: Selection And Operation Of Modes

    15.4.2 Selection and operation of modes The MELSEC-FX list editor has four modes: READ, WRITE, INSERT, and DELETE. Select an appropriate mode for the intended operation. For more information on the mode to select, refer to the function operations from subsection 5.4.3 onward. ■1.
  • Page 494 ■2. Display specifying the step number (1) Operation Input the step number. STEP (2) Example Displaying step number 123. X 000 Y 000 M 100 STEP Step number Input the step number K 200 D 58 POINT POINT POINT When the specified step number is the operand of an applied instruction If the specified step number is a timer (T) or counter (C) set value or the operand of an applied instruction, that command section is displayed at the head.
  • Page 495: Searching Commands And Devices

    15.4.4 Searching commands and devices Displays a command or device by searching it in sequence program from Step 0. ■1. Command search (1) Operation Select the command Input the device name and MODE to search for. device number. (Read mode) If the command you want to search for is not on the keyboard, touch the [MORE] key to switch to the other keyboard.
  • Page 496 ■2. Device search (1) Operation Input the device name and MODE device number. (Read mode) After the search results are displayed, you can continue searching with the same conditions by touching the [GO] key. Touching any key other than the [GO] key ends the search. (2) Example Searching for LD M8000 Search device...
  • Page 497: Writing Commands

    15.4.5 Writing commands Writes a sequence program to the FX PLC. (Overwrite/Insert) ■1. Writing basic commands (1) Operations Inputting command only (Ex.: ANB, ORB command etc.) Input the command Stop the FX PLC MODE For overwriting: (WRITE mode) For insertion: (INSERT mode) Inputting command and device (LD, AND commands etc.) Input the command Stop the FX PLC...
  • Page 498 Inputting LD X000 Stop the FX PLC 0 NOP 1 NOP < WRITE > ChNo.[1] 2 NOP 3 NOP MODE Set the WRITE or ChNo.[1] < READ > 0 LD INSERT 1 NOP mode. 2 NOP 3 NOP With , move the cursor to the position to overwrite/insert the command.
  • Page 499 POINT POINT POINT (1) Moving the cursor to the position to write the command When starting to write a command, place the cursor on the command line (the line on which the step number is displayed). You cannot write a command with the cursor on any other line. 2 LDI Command line (Place the cursor on this line.) 3 MOV...
  • Page 500: Changing Operands, Set Values

    15.4.6 Changing operands, set values Changes the operand section of an applied instruction and OUT (T, C) command set value. ■1. Operation MODE Input the device name and device number Stop the FX PLC Read mode For decimal numbers, input K, then the number. For hexadecimal numbers, input H, then the number.
  • Page 501: Deleting Commands

    15.4.7 Deleting commands Deletes one command at a time from a sequence program. ■1. Operation Stop the FX PLC MODE Move the cursor to the command to be deleted. (DELETE mode) POINT POINT POINT When moving the cursor to the position where the command is to be deleted. Place the cursor on the command line (the line on which the step number is displayed).
  • Page 502: Sequence Program All Clear

    15.4.8 Sequence program all clear Clears all the sequence programs. ■1. Operation Stop the FX PLC MODE (WRITE mode) ■2. Example Clears all the sequence programs. Stop the FX PLC ! Caution The program will be erased. ChNo.[1] < WRITE > Press "OK"...
  • Page 503: Plc Diagnostics

    15.4.9 PLC diagnostics Displays the FX PLC error message, error code, and step at which the error occurred. ■1. Operation [PLC diagnostics] Select [PLC diagnostics] with 15 - 21 15.4 Operation Procedures...
  • Page 504 ■2. PLC diagnostics screen The following describes the contents displayed on the PLC diagnostics screen and the function of on-screen key. (1) Displayed contents Item Display contents Displays the error message. (I/O configuration error/PLC hardware error/PC/HPP Error message communication error/Serial communication error/Parameter error/Syntax error/Circuit error/Operation error) Detail Displays the error code.
  • Page 505: Parameter Setting

    15.4.10 Parameter setting Sets FX PLC parameters. ■1. Parameters that can be changed and change targets (1) Parameters that can be changed The parameters that can be changed with the MELSEC-FX list editor and the target FX PLCs are as follows. (○: Can be set/changed ×: Cannot be set/changed) Target CPU Item...
  • Page 506 ■3. Parameter setting screen The following describes the contents displayed on the PLC diagnostics screen and the function of on-screen keys. (1) Displayed contents Item Display contents Sets the memory space (number of steps). Memory capacity If you touch the [*K] section, you can change the memory space. Sets the memory space (number of blocks) allocated to the file register.
  • Page 507: Keywords

    15.4.11 Keywords Registers, deletes, releases protection for, and sets protection for the FX PLC keywords. ■1. Function usability of the MELSEC-FX list editor for keyword protection levels The functions that can be used with the MELSEC-FX list editor depend on the keyword protection level. (○: Available, ×: Unavailable) Keyword protection level Keyword not...
  • Page 508: List Monitor

    ■3. Keyword screen and protection level When [Keyword setup] is selected with the MELSEC-FX list editor, the keyword screen is displayed. For the keyword operation, refer to the following. ➠ GOT2000 Series User's Manual (Utility) POINT POINT POINT Keywords For details of the keyword, refer to the following.
  • Page 509: Hard Copy Output

    ■2. Displays and key functions The following describes the displays for the list monitor. Item Display contents The status of contacts and coils is displayed on the left of device displays. List display area The same operations as in the READ mode of the FX list editor can be executed. Keys ➠...
  • Page 510: Action For An Incorrect Key Input

    15.4.14 Action for an incorrect key input If an incorrect key is input, cancel the input contents. ■1. Operation (1) Before touching the [GO] key (before reading/writing the input contents) Before touching the [GO] key, touch the [CLR] key. After touching the [GO] key (after reading/writing the input contents) Write the command again.
  • Page 511: R Motion Monitor

    16. R MOTION MONITOR 16.1 Features The R motion monitor enables the servo monitoring and parameter setting of the motion controller CPU (MELSEC iQ-R series). The following are the features of the R motion monitor. ■1. Various servo monitoring on multiple monitor screens The R motion monitor function has multiple monitor screens, on which you can monitor servo data in a variety of patterns.
  • Page 512: Specifications

    For connection type settings and precautions regarding the communication unit, cable, and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target motion controller CPU of the R motion monitor Motion controller CPU...
  • Page 513: Access Range

    The access range is the same as the access range when the GOT is connected to a controller. For details of the access range, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 16.2.3 Precautions ■1.
  • Page 514: Operations For Display

    After the utility is displayed, touch [Monitor] → [R Motion monitor] from the Main Menu. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 3. Set the channel number. Set the channel number of the controller for which the R motion monitor is performed.
  • Page 515 Step 5. Touch the [Parameter Set.] key to display the parameter setting screen. When you have set a password in [Motion Parameter Display] on GT Designer3 (GOT2000), enter the password. ➠ 16.4.10 Parameter setting screen Select the servo parameter to be set. Change the servo parameter setting and write the new servo parameter setting to the motion.
  • Page 516 ■1. Changing screens Start Utility Main Menu user-created monitor screen Communication setting window System Configuration screen (Select the motion controller CPU to be monitored.) Sys. Conf Sys. Conf Parameter Set. Motion Monitor Password input key window Monitor menu screen Sys. Conf Mon.
  • Page 517: Operation Procedures

    16.4 Operation Procedures This section describes the operations of the screens when using the R motion monitor. The display screen of the R motion monitor varies depending on the GOT used. ➠ 16.4.1 System configuration screen 16.4.2 Setting procedure for monitoring other stations 16.4.3 Monitor menu screen 16.4.4 Present value monitor screen 16.4.5 Motion error history monitor screen...
  • Page 518: Setting Procedure For Monitoring Other Stations

    (2) Key functions The following shows the functions of the keys that are used for the operations on the system configuration screen. 1) Motion controller CPU status display Select the motion controller CPU (MELSEC iQ-R series) where servo monitor/servo parameter setting is performed.
  • Page 519 Step 2. When the channel No. is selected, the screen below is displayed. Set the network number and the station number of the target controller. Step 3. After selecting the station number, touch the [Enter] key. The communication setting window closes and the system configuration of the set monitor destination is displayed.
  • Page 520: Monitor Menu Screen

    (2) Key functions 1) [×] key Closes the communication setting window. When any of the CH No., network No., station No., and CPU No. is not input and the monitor target is not set, the communication setting window does not close. 2) Input area move key Moves the cursor among the input areas.
  • Page 521: Present Value Monitor Screen

    3) [Error List Axis] key Displays the latest errors that occurred on the specified axis. ➠ 16.4.6 Error list designated-axis screen 4) [Positioning Monitor] key Monitors the details of the positioning data set to any axis. ➠ 16.4.7 Positioning monitor screen 5) [Servo Monitor] key Monitors the servo monitor/servo amplifier.
  • Page 522 (2) Key functions The following describes the functions of the keys that are used for the operations on the present value monitor screen. 1) [Feed PV] key, [Actual PV] key Touching the key alternates the monitor item between the "feed present value" and "actual present value". 2) [Mon.
  • Page 523: Motion Error History Monitor Screen

    16.4.5 Motion error history monitor screen This section describes the structure of the screen and the common operations when the motion error history monitor is executed. ■1. Motion error history monitor screen The following describes the display data of the motion error history monitor screen and the functions of the keys displayed on the screen.
  • Page 524 (2) Key functions The following shows the functions of the keys that are used for the operations on the motion error history monitor screen. 1) 2) 6) 6) 1) [Mon. Menu] key Returns to the monitor menu screen. 2) [END] key Exits the motion error history monitor and returns to the screen where the R motion monitor was started.
  • Page 525: Error List Designated-Axis Screen

    16.4.6 Error list designated-axis screen This section describes the structure of the screen and the common operations used when executing the error list designated-axis. ■1. Display contents and keys functions This section describes the display data of the error list designated-axis screen and the key functions displayed on the screen.
  • Page 526 (2) Key functions The following shows the functions of the keys that are used for the operations on the error list designated-axis screen. 1) [Ax] key Switches the axes to be monitored. 2) [RET] key Returns to the previous screen. 3) [Mon.
  • Page 527: Positioning Monitor Screen

    16.4.7 Positioning monitor screen This section describes the structure of the screen and the common operations when the positioning monitor is executed. ■1. Display contents and key functions The following describes the display data of the positioning monitor screen and the functions of the keys displayed on the screen.
  • Page 528 (2) Key functions The following shows the functions of the keys that are used for the operations on the positioning monitor screen. 1) [Data Item Ax] Switches the axes to be monitored. 2) [RET] key Returns to the previous screen. 3) [Mon.
  • Page 529: Servo Monitor Screen

    16.4.8 Servo monitor screen This section describes the structure of the screen and the common operations when the servo monitor is executed. ■1. Display contents and key functions The following describes the display data of the servo monitor screen and the functions of the keys displayed on the screen.
  • Page 530: Present Value History Monitor Screen

    4) [Print Screen] key Stores the displayed screen to the SD card in the BMP or JPEG format. For the details of the hard copy, refer to the following. ➠ 16.4.11 Hard copy output 5) [Cancel Print] key The touch operation of the key is disabled. 16.4.9 Present value history monitor screen This section describes the structure of the screen and the common operations when the present value history monitor is...
  • Page 531 4) PWR ON/PWR OFF Displays the four past present values of the ABS axis at servo amplifier power-on/off. At power-on • Power-on time • Encoder present value Multi-revolution data of initial encoder One-revolution data of initial encoder • Servo command value after recovery •...
  • Page 532: Parameter Setting Screen

    16.4.10 Parameter setting screen This section describes the structure of the screen and the common operations used when executing the parameter setting. ■1. Display contents and keys functions You can set the servo parameters (basic parameters/adjustment parameters) of the connected motion controller CPU (MELSEC iQ-R series).
  • Page 533 6) [Print Screen] key Stores the displayed screen to the memory card in BMP/JPEG file format. For further information about hard copies, refer to the following: ➠ 16.4.11 Hard copy output 7) [Cancel Print] key The operation of this key is invalid. ■2.
  • Page 534 ■3. Parameter setting operation The following describes the procedure of changing the setting of the [Auto tuning] item as an example of the parameter setting operation. Step 1. Select the item whose parameter is to be set with the item selection keys, and touch the [CHG] key. Step 2.
  • Page 535: Hard Copy Output

    16.4.11 Hard copy output This section describes how to store a screen to the SD card in the BMP/JPEG file format when executing the R motion monitor. Hard copy output operations are performed by touching the [Print Screen] key or [Cancel Print] key displayed on the screen. The output target (data storage) of hard copy can be set in [Hard Copy] of GT Designer3 (GOT2000).
  • Page 536 16.5 Error Messages and Corrective Action This section describes the error messages that may be displayed during R motion monitor operation and their corrective action. Error message Description Corrective action • Check the communication setting. • Check the status of the connection between the controller and the Communication cannot be established with the Communication error GOT (disconnected or cut cables).
  • Page 537: Features

    17. CNC MONITOR 17.1 Features For the MELDAS and other CNCs connected to the GOT, the CNC monitor enables the functions equivalent to the MELDAS dedicated display as follows: the position display monitor, alarm diagnosis monitor, tool compensation parameter monitor, program monitor, and the APLC release screen display.
  • Page 538: Specifications

    For connection type settings, precautions regarding the communication unit/cable, and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. GOT The CNC monitor is available on GT27-X, GT27-S, and GT25-S. ■2. Target controller...
  • Page 539: Access Range

    Item Description CNC C70 MELDAS C6/C64 Alarm message ○ ○ Servo monitor ○ ○ Spindle monitor ○ ○ PLC interface diagnosis ○ ○ Absolute position monitor ○ ○ Adjustment × ○ NC data sampling ○ × Operation history ○ ○ Alarm diagnosis Configuration ○...
  • Page 540 After the utility is displayed, touch [Monitor] → [CNC monitor] from the Main Menu. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 3. Set the channel number. Set the channel number of the controller to be monitored with the CNC monitor.
  • Page 541 Step 4. Start the CNC monitor. The CNC monitor screen is displayed after the channel number is selected. ■1. Start operation using the special function switch The CNC monitor can be launched using special function switches. If a special function switch with the following settings is touched, the CNC monitor screen of the set controller can be displayed.
  • Page 542 17.4 Operation Procedures This section describes the display data of the CNC monitor screen and the functions of the keys displayed on the screen. 6) 7) 8) Alphanumeric/symbol key Cursor moving key 1) [MONITOR] key Switches the monitor screen to the position display monitor screen. 2) [DIAGN IN/OUT] key Switches the monitor screen to the alarm diagnosis monitor screen.
  • Page 543 9) Monitor screen The position display, alarm diagnosis, tool compensation parameter, and program functions, which are equivalent to the MELDAS dedicated display, are available. The graphic trace function and ladder edit function are not available. The [Menu1] to [Menu5] keys switch the monitor screens that correspond to each item in the menu. When the above screen is displayed, touching each key displays the following contents.
  • Page 544 17.5 Error Messages and Corrective Action This section describes the error messages displayed when the CNC monitor is executed, and corrective action. When multiple errors described below occur, a higher-priority error is displayed. Priority Error message Description Corrective action Install the compatible communication driver in the GOT. Higher •...
  • Page 545 For connection type settings and precautions regarding the communication unit, cable, and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. GOT The CNC data I/O is available on GT27-X, GT27-S, and GT25-S.
  • Page 546: Precautions

    ■6. CNC data which can be handled The following data can be input, output, or compared with the CNC data I/O. For details of each function, refer to the manual of the CNC to be used. File unit Target data Description File name Input...
  • Page 547 (2) Number of characters set for folder and file names The GOT recognizes the file location with a path as shown below. Set the folder and file names so that the total number of characters in the path is within 78 characters. The user can set the folder name and file name only.
  • Page 548: Operations For Display

    After the utility is displayed, touch [Monitor] → [CNC data I/O] from the Main Menu. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 3. Set the channel number. Set the channel number of the CNC connected to the GOT.
  • Page 549 Step 4. The CNC data I/O starts after the channel number is selected. ■2. Start operation using the special function switch The CNC data I/O can be started using special function switches. If a special function switch with the following settings is touched, the CNC data I/O screen of the set controller can be displayed.
  • Page 550: Operation Procedures

    18.4 Operation Procedures ■1. Displayed contents This section describes the display data of the CNC data I/O list screen and the key functions displayed on the screen. 1) 2) 3) 1) Channel key Displays the communication setting window. 2) [CNC Chg] key This key switches CNCs for monitoring when multiple CNCs are connected.
  • Page 551 6) [Device] key Displays the device selection window. Select the target to which the function selected with the [Function] key is executed. The following shows the items to be selected. • [CNC] • [A:Standard SD card] • [B:USB drive] • [E:USB drive] •...
  • Page 552 14) [Disp Filename] key Changes the display contents in the list each time the key is touched. The display contents depend on the item selected with the [Device] key. • When [CNC] is selected The contents can be switched only when [Machine program] is selected with the [Directory] key. The following shows the contents to be switched.
  • Page 553 Step 3. Touch the [Area chg] key to switch the frame to the copy source target. 3. 3. Step 4. Touch the [Device] key of the copy source target to display the device selection window. Step 5. Select [CNC] in the device selection window. 4.
  • Page 554 Step 9. Select [A:Standard SD card] in the device selection window. 9. 9. 8. 8. Step 10. Touch the [Exec] key to display the copy confirmation window. Step 11. Touching the [OK] key copies [1.PRG] to [A:Standard SD card]. When the copy is completed, a completion message is displayed. ■3.
  • Page 555 Step 3. Touch the [Device] key to display the device selection window. Step 4. Touch [A:Standard SD card] on the device selection window. 3. 3. 4. 4. Step 5. Select the file to be compared from the list. Step 6. Touch the [Exec] key to start the comparison.
  • Page 556 (1) Comparison error detail window The line number of the mismatched data is displayed. The method for displaying line numbers differs between the GOT side and CNC side. • GOT side A head line (0 number) is displayed as the first line. •...
  • Page 557 ■4. Delete Files stored in [CNC] of the monitoring target or the data storage can be deleted. The following describes the deletion procedure. Example) Deleting the machining program files [1.PRG], [2.PRG], and [3.PRG] of [CNC] Step 1. Touch the [Function] key to display the function selection window. Step 2.
  • Page 558 Step 6. Select the file [3.PRG] in the list to delete. Then, the files [1.PRG], [2.PRG], and [3.PRG] are all selected. In addition, when [ALL.PRG] is selected, only [ALL.PRG] is selected. Step 7. Touch the [Exec] key to display the deletion confirmation window. Step 8.
  • Page 559 Step 3. Touch [A:Standard SD card] on the device selection window. Step 4. Touch the [Function] key to display the function selection window. Step 5. Touch the [Create a directory] key on the function selection window to display the key window. 4 4 .
  • Page 560 For how to set the USB keyboard, refer to the following. ➠ GOT2000 Series User's Manual (Utility) ■6. Changing a file name when outputting the file When a file is copied to the data storage, the file name in the copy destination can be changed.
  • Page 561 Step 2. Touch the [Device] key to display the device selection window. Select the following items using the [Device] key and [Directory] key of the copy source. • [Device] key: [CNC] • [Directory] key: [Machine program] 2. 2. 2. 2. 1.
  • Page 562 Step 5. Input "SAMPLE.PRG". Touch the [ENTER] key. The key window closes and the copy confirmation window appears. Touching the [OK] key starts copying the file with the new file name. When the copy is completed, a completion message is displayed. ■7.
  • Page 563 18.5 Error Messages and Corrective Actions This section describes the error messages displayed when the CNC data I/O is executed, and the corrective actions. Error message Description Corrective action • The CNC is powered OFF, the cable is disconnected, or the connected controller is not a CNC. •...
  • Page 564: Cnc Data I/O

    Error message Description Corrective action Can not write file The file cannot be written because of invalid parameter Check the parameter values. Range Over values. Can not write file The file cannot be written to the CNC because sampling Write the file to the CNC after sampling is completed. In sampling is in execution.
  • Page 565: Features

    For connection type settings and precautions regarding the communication unit, cable, and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. GOT The CNC machining program edit is available on GT27-X, GT27-S, and GT25-S.
  • Page 566: Access Range

    • Starting from the utility After the utility is displayed, touch [Monitor] → [CNC machining program edit] from the Main Menu. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) 19 - 2 19.3 Operations for Display...
  • Page 567 Step 3. Set the channel number. Set the channel number of the CNC connected to the GOT. If [×] is touched to close the communication setting window without setting a channel number, the channel number is set to [1]. After the GOT is powered on, the communication setting window is displayed only at the first startup of the CNC machining program edit.
  • Page 568: Operation Procedures

    ■3. Changing screens Start At the second Utility or later startup user-created monitor screen At the first startup Communication setting window When exiting CNC machining program edit by touching Rtn, the last exited screen will be displayed at the next startup of CNC machining program edit.
  • Page 569 2) [CNC Chg] key Switches the CNCs for monitoring when multiple CNCs are connected. The switching order differs depending on the connection type used. • For bus connection The monitoring target is switched in order of the module number. • For Ethernet connection The monitoring target is switched in the order set in the Ethernet setting of GT Designer3.
  • Page 570 Item Description Deletes an existing machining program. When a machining program is selected or a machining program name is input in the input [Delete] key section and the [INPUT] key is touched, the confirmation dialog box is displayed. Touch the [OK] key to delete an existing machining program. Opens an MDI program.
  • Page 571 8) MDI status Displays the status of the MDI when the MDI program is opened. • No MDI setting Indicates that the MDI program cannot be operated. To complete the setting, move the cursor to any position of the program, and then touch the [INPUT] key. •...
  • Page 572 Item Description Registers the MDI program as the CNC machining program. To perform the MDI registration, enter a machining program number in the input area, and then [MDI Register] key touch the [INPUT] key. An MDI program can be registered only when the program is opened. Switches between the insert mode (ON) and the overwrite mode (OFF).
  • Page 573 F1: Program comment, F2: Line No. jump, F3: NB jump, F4: String search, F5: MDI registration, F7: System switching, F8: INSERT, F9: Move to the list No corresponding key For how to set the USB keyboard, refer to the following. ➠ GOT2000 Series User's Manual (Utility) 19 - 9 19.4 Operation Procedures...
  • Page 574: Cnc Machining Program Edit

    19.5 Error Messages and Corrective actions This section describes the error messages displayed when the CNC machining program edit is executed, and the corrective actions. Error message Description Corrective action The CNC version does not support the CNC machining CNC version not compatible Update the CNC version.
  • Page 575: Features

    20. CNC MONITOR 2 20.1 Features The CNC monitor 2 function enables you to monitor the information required for the operation, setup, diagnosis, and maintenance of the CNC C80 connected to the GOT. You can also use this function to set and input or output the data of the CNC C80.
  • Page 576: Specifications

    For connection type settings, precautions regarding the communication unit/cable, and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. GOT The CNC monitor 2 is available on GT27-X, GT27-S, and GT25-S.
  • Page 577 ■6. CNC C80 screens that can be monitored With the CNC monitor 2, you can view screens and perform operations as shown below. For the details of the following screens, refer to the manual of the CNC C80. Type Screen No. Screen name Description Display operation information such as the axis counter, speed display, and M, S,...
  • Page 578: Access Range

    Type Screen No. Screen name Description Set and display NC diagnosis data. Diagnosis screen (System The configuration screen is selected. Configuration) Display the configurations of hardware and software (software No. and version). Option display Display the details of the options registered to the CNC. I/F diagnosis Set and display the input and output signals of a ladder program.
  • Page 579: Operations For Display

    In the utility, touch [Monitor] → [CNC monitor2] from the main menu. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) Step 3. Set the channel number of the controller for which the CNC monitor 2 is performed.
  • Page 580 ■1. Start operation using the special function switch The CNC monitor 2 can be started by using a special function switch. To display the CNC monitor 2 screen for the set controller by touching the special function switch, configure the following settings for the switch.
  • Page 581: Operating Procedure

    20.4 Operating Procedure This section describes the CNC monitor 2 screen layout, data input, authorization acquisition, and CNC C80 parameters. 20.4.1 CNC monitor 2 screen layout The following describes the display data of the CNC monitor 2 screen and the functions of the keys displayed on the screen. 3) 4) 5) 1) Connected CNC C80 Displays the network No., PLC No., and module name of the connected CNC C80.
  • Page 582: Key Input

    20.4.2 Key input ■1. Using the software keyboard The following describes the software keyboard displayed on the CNC monitor 2 screen. 3) 4) 8) 9) 10) 1) Data setting keys Input alphabets, numbers, spaces, and symbols. Touching each key inputs the character on the upper half of the key. To input a character on the lower half of a key, touch the [SHIFT] key.
  • Page 583 You can input data using a USB keyboard. For how to set the USB keyboard, refer to the following. ➠ GOT2000 Series User's Manual (Utility) The following table lists the function of each key on a USB keyboard. Description Characters, numbers, symbols Input characters, numbers, and symbols.
  • Page 584: Authorization

    20.4.3 Authorization To operate the CNC monitor 2 screen, the authorization of CNC C80 is required. When a CNC C80 module is connected to multiple GOTs, the CNC monitor 2 screen is operable on the authorized GOT only. On an unauthorized GOT, the CNC monitor 2 screen is viewable. ■1.
  • Page 585: Error Messages And Corrective Actions

    20.5 Error Messages and Corrective Actions This section describes the error messages displayed when the CNC monitor 2 is executed, and the corrective actions. Message Description The screen was not switched to the specified screen. The CNC C80 does not have the specified screen, or the specified screen No. may be incorrect. Correct the settings of the special function switch.
  • Page 586 20 - 12 20.5 Error Messages and Corrective Actions...
  • Page 587: Network Status Display

    21. NETWORK STATUS DISPLAY 21.1 Features The network status display function monitors the network status using a communication unit mounted on the GOT. You can check the LED status, error status, and others of the network module. 21.2 Specifications ■1. Target communication units The network status display function monitors the network status using the following communication units.
  • Page 588: Operations For Display

    • Starting from the utility In the utility, touch [Monitor] → [Network status display] from the Main Menu. For how to display the utility, refer to the following. ➠ GOT2000 Series User's Manual (Utility) ■2. Changing screens Start Utility Main Menu user-created monitor screen [×] key...
  • Page 589: Display Contents

    21.4 Display Contents The following describes the display data of the network status display screen. ■1. CC-Link IE Controller Network communication unit For the corrective actions for errors, refer to the following. ➠ CC-Link IE Controller Network Reference Manual 1) LED status Displays the operation status of the CC-Link IE Controller Network communication unit.
  • Page 590 (1) LED status Item Not lit Blink color Hardware failure or WDT [RUN] Operating normally error Communication error in a CC-Link IE Controller CC-Link IE Controller [PC] station, or station numbers Network established Network not established Green duplicated [ONLINE] Online mode Other than online mode [TEST] Test mode...
  • Page 591 Item Description Displays the loopback factor on the OUT side. • [No LoopBK Sta.] [OUT: LoopBK factor] • [IN: cable disconnection] • [IN: connecting a line] • [IN: wrong cable connection] (3) Data link information Item Description Displays the communication (Data link) status of the host station. •...
  • Page 592 (6) Host station line status Item Description Displays the connection status of the host station. • [Normal] • [IN: Loop Back (OUT: cable disconnection)] • [IN: Loop Back (OUT: connecting a line)] • [IN: Loop Back (OUT: wrong cable connection)] •...
  • Page 593 3) Data link information Displays the data link information of the CC-Link IE Field Network communication unit, including the communication status, cause of a communication suspension, and cause of a communication stop. ➠ (3) Data link information 4) Unit error information Displays the number of unit errors and the error codes.
  • Page 594 (3) Data link information Item Description Displays the communication (Data link) status of the host station. • [D-Link in prog.] • [D-Link stopped] [Com Status] • [B-Pass exec] • [B-Pass stopped] • [Testing Offline] • [Offline] Displays the cause for which the communication (Transient transmission) of the host station is disabled. •...
  • Page 595 ■3. CC-Link communication unit For the corrective actions for errors, refer to the following. ➠ Displays the cause for which the data link (Cyclic transmission) of the host station is disabled. 1) LED status Displays the operation status of the CC-Link communication unit (GT15-J61BT13). ➠...
  • Page 596 (2) Data link information Item Description Displays the data link startup status. • [D-Link in prog.]: Data link being executed • [D-Link Offline]: Data link stopped • [Initialize]: Set to the initial status • [Parameter wait]: Parameter not received • [Disconnect (No Polling)]: In cut-off status with no inquiry from master station [D-Link Boot Status] •...
  • Page 597 ■4. MELSECNET/H communication unit For the corrective actions for errors, refer to the following. ➠ Reference manual of the MELSECNET/H network system (PLC to PLC network) used GT15-J71LP23-25 GT15-J71BR13 1) LED status Displays the operation status of the MELSECNET/H communication unit. ➠...
  • Page 598 4) Transient status Displays the number of transient transmission errors and the error codes. ➠ (4) Transient status (1) LED status Item Not lit color [RUN] Data link normal Data link error Operating as a station other than control [MNG] Operating as control station station Operating as a station other than sub-control...
  • Page 599 (3) Data link information Item Description Displays the communication (Data link) status of the host station. • [D-Link in prog.]: Data link in progress • [D-Link Stop(A)ss]: Cyclic transmission stopped from other station • [D-Link Stop (H)]: Cyclic transmission stopped by host station •...
  • Page 600 21 - 14 21.4 Display Contents...
  • Page 601: Iqss Utility

    For connection type settings and precautions regarding the communication unit, cable, and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 For the connection between iQSS-compatible devices and a PLC, refer to the following. ➠...
  • Page 602 ■2. Connection type This function can be used in the following connection types. ○: Available, ×: Unavailable Function Connection type between the GOT and controller CC-Link IE CC-Link MELSECNET/H Controller connection Direct Ethernet Serial *1*5 connection connection connection connection Name Description communication connection...
  • Page 603 ■5. Applicable non-Mitsubishi equipment The iQSS utility supports the following devices. For the details of each device, refer to the manual of the device used. (1) AnyWireASLINK The AnyWireASLINK equipment manufactured by Anywire Corporation is applicable to the iQSS untility. The following lists the supported devices and functions.
  • Page 604: Access Range

    The access range is the same as when the GOT is connected to a controller. For the details of the access range, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 22.2.3 Precautions ■1. Precautions for the device list information screen and parameter information screen While the following operations are in progress, do not perform operations that use the control signal (Y signal).
  • Page 605 Step 5. The iQSS utility screen appears. To change the connection destination, touch the select channel key on the iQSS utility screen. ➠ 22.5 Operating Procedure 22 - 5 22.4 Operations for Display...
  • Page 606: Screen Transition

    22.4.1 Screen transition Start [×] key [×] key At the second Utility Main Menu and subsequent startups user-created monitor screen At the first startup Select channel key Select channel key Select channel key [Select channel] window Select channel key [×] key [N/W mod.
  • Page 607: Operating Procedure

    22.5 Operating Procedure This section explains screen operations for the iQSS utility. The display screen of the iQSS utility differs depending on the GOT used. ➠ 22.5.1 iQSS utility screen 22.5.2 Device list information screen 22.5.3 Monitoring information screen 22.5.4 Parameter information screen 22.5.1 iQSS utility screen This section explains the structure of the screen and the common operations when the iQSS utility is executed.
  • Page 608 (2) Key functions The following shows the functions of the operation keys on the iQSS utility screen. Knob 1) Select channel key Displays the [Select channel] window. 2) [×] key Exits the iQSS utility. 3) Scroll key Scrolls the contents in the list up or down by one item. 4) Scroll bar Touch an area above or below the knob to scroll one page up or down.
  • Page 609: Device List Information Screen

    22.5.2 Device list information screen This section explains the structure of the screen and the common operations on the device list information screen. ■1. Display contents and key functions The following explains the display data of the device list information screen and the functions of the keys displayed on the screen.
  • Page 610 (2) Key functions Knob 1) Select channel key Displays the [Select channel] window. 2) [×] key Exits the iQSS utility. 3) [Update list] key Updates the information in the device list display area. 4) Scroll key Scrolls the contents in the list up or down by one item. 5) Scroll bar Touch an area above or below the knob to scroll one page up or down.
  • Page 611: Monitoring Information Screen

    22.5.3 Monitoring information screen This section explains the structure of the screen and the common operations on the monitoring information screen. ■1. Display contents and key functions The following explains the display data of the monitoring information screen and the functions of the keys displayed on the screen.
  • Page 612 Monitored device status display area The following explains the display data of the monitored device status display area and the functions of the keys displayed in the area. 1) [Model name] Displays the model of the device being monitored. 2) [Status] Displays the status of the device being monitored.
  • Page 613 (2) Key functions The following shows the functions of the operation keys on the monitoring information screen. Knob 1) Select channel key Displays the [Select channel] window. 2) [×] key Exits the iQSS utility. 3) Scroll key Scrolls the contents in the list up or down by one item. 4) Scroll bar Touch an area above or below the knob to scroll one page up or down.
  • Page 614: Parameter Information Screen

    22.5.4 Parameter information screen This section explains the structure of the screen and the common operations on the parameter information screen. ■1. Display contents and key functions The following explains the display data of the parameter information screen and the functions of the keys displayed on the screen.
  • Page 615 (2) Key functions The following shows the functions of the operation keys on the parameter information screen. Knob 1) Select channel key Displays the [Select channel] window. 2) [×] key Exits the iQSS utility. 3) Scroll key Scrolls the contents in the list up or down by one item. 4) Scroll bar Touch an area above or below the knob to scroll one page up or down.
  • Page 616: Error Messages And Corrective Actions

    22.6 Error Messages and Corrective Actions For the error messages displayed in the iQSS utility and the corrective actions, refer to the following. ➠ MELSEC-Q/L AnyWireASLINK Master Module User's Manual 22 - 16 22.6 Error Messages and Corrective Actions...
  • Page 617: Drive Recorder

    23. DRIVE RECORDER 23.1 Features The drive recorder function reads the data prior to and subsequent to an alarm from a connected servo amplifier, and displays the data (including motor current values and position commands) in waveform or list form on the GOT. •...
  • Page 618: Specifications

    For connection type settings and precautions regarding the communication unit, cable, and connection type, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 ■1. Target controller The drive recorder supports the following servo amplifiers.
  • Page 619: Access Range

    The access range is the same as when the GOT is connected to a controller. For the details of the access range, refer to the following. ➠ GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 23.2.3 Precautions ■1. Sending commands from pieces of equipment Do not send commands from pieces of equipment to one servo amplifier simultaneously.
  • Page 620: Operations For Display

    23.3 Operations for Display The following explains how to display the drive recorder screen after the GOT is turned on. Step 1. Turn on the GOT. Step 2. Perform one of the following operations. • In the utility, touch [Monitor] → [Drive recorder] from the main menu. •...
  • Page 621 ■1. Displaying the drive recorder screen with a special function switch To use a special function switch, place the switch on a user-created screen. For the setting method, refer to the following. ➠ GT Designer3 (GOT2000) Screen Design Manual (1) Settings of the special function switch Set the following items for the special function switch.
  • Page 622: Screen Transition

    23.3.1 Screen transition Start First-time startup Utility or user-created screen [Select channel] window From the second-time startup [Select station] window [Drive recorder arbitrary alarm trigger] window [Select connection destination (servo)] window [Drive recorder information list] screen [File storage [Open] window destination] window [Graph waveform] screen [(At alarm occurrence)]...
  • Page 623: Drive Recorder Information List] Screen

    23.4 [Drive recorder information list] screen This screen displays drive recorder information that is read from a target servo amplifier or file. 1) [Open] key Displays the [Open] window. Open a drive recorder information file. ➠ 23.4.1 [Open] window 2) [Save] key Displays the [File storage destination] window.
  • Page 624 8) Alarm history list Displays the list of read alarms. Touch the row of an alarm to select the alarm. History No. Item Description History No. Numbers assigned to the alarms that are listed in reverse chronological order [No.] Alarm number [Name] Alarm name Time between the instant when the monitored servo amplifier starts operating and the instant when an...
  • Page 625: Open] Window

    23.4.1 [Open] window Open a drive recorder information file. 1) [DRV] key Switches the window to the [Select drive] window. Change the GOT drive from which files are read. ➠ 23.4.2 [Select drive] window 2) File path Displays the path to the files displayed in the list. 3) File list Lists the files in the selected drive.
  • Page 626: Select Drive] Window

    23.4.2 [Select drive] window Change the target drive from which files are read or to which files are stored. 1) Drives Select a GOT drive from which files are read or to which files are stored. 2) [OK] key Changes the target drive to the selected drive. 23.4.3 [File storage destination] window Select the file save destination.
  • Page 627: Folder Name] Window

    5) Scroll bar Touch an empty area of the scroll bar above or below the knob to scroll the folder list up or down one page. Alternatively, touch and slide the knob to scroll through the list. 6) [New folder] key Switches the window to the [Folder name] window.
  • Page 628: File Name] Window

    23.4.5 [File name] window Name a file and save it in the specified format. 1) File name Set the name of the file to be created. Make sure that the path (including the file extension) consists of 78 characters or less. For the restrictions on the folder and file names used with the GOT, refer to the following.
  • Page 629: Select Channel] Window

    23.4.6 [Select channel] window Select a channel. 1) Channel key Confirms the channel selection, and switches the window to the [Select station] window. 23.4.7 [Select station] window Select a network number and station number from the connection history. 1) History key Confirms the selection of the network number and station number, and establishes communication with the target servo amplifier.
  • Page 630: Input N/W No.] Window

    23.4.9 [Input N/W No.] window Set a network number. 1) Network number Network number to be set 2) Input keys Input keys for entering a network number. Touch the [Enter] key to confirm the entry of the network number and switch the window to the [Input station No.] window.
  • Page 631: Select Connection Destination (Servo)] Window

    23.4.11 [Select connection destination (servo)] window Set a servo amplifier from which data is read. When connecting a servo amplifier When connecting a servo amplifier through a motion controller CPU through a simple motion module 1) [Via] Select the type of a controller through which a target servo amplifier is connected to the GOT. The following shows the items to be selected.
  • Page 632: Drive Recorder Arbitrary Alarm Trigger] Window

    23.4.12 [Drive recorder arbitrary alarm trigger] window Set the drive recorder arbitrary alarm trigger and write the settings to a target servo amplifier. 1) [Alarm number setting] Specify an alarm number so that the drive recorder function saves data only when the relevant alarms occur on a target servo amplifier.
  • Page 633: Graph Waveform] Screen

    23.5 [Graph waveform] screen This screen displays the drive recorder information in waveform. 1) Alarm information Information on the alarm being displayed When data is read from a servo amplifier, an alarm number is displayed. When data is read from a file, the name of the file is displayed. 2) [Open] key Displays the [Open] window.
  • Page 634: Graph Setting] Window

    8) [Tools] key Displays the [Graph setting] window. Select the items to be displayed, and set the positions of scales. ➠ 23.5.1 [Graph setting] window 9) [Onset data] key Switches the screen to the [(At alarm occurrence)] screen. ➠ 23.6 [(At alarm occurrence)] screen This key is disabled when data is read from a file.
  • Page 635 23.5.1 [Graph setting] window Set the display contents of the [Graph waveform] screen. Switch between tabs and set each item. Item Description Set the graph line type, and set whether to display an item. [Item setting] tab ➠ ■1. [Item setting] tab Set the display position of a scale.
  • Page 636 2) Target item Displays the item to be set. To switch between the items, touch the item switching key. • [Graph line: analog item] • [Graph line: digital item] • [Graph V-axis: analog item] • [Graph V-axis: digital item] 3) Item switching keys Switch between target items.
  • Page 637 ■3. [Scale setting] tab Set the scale increment (interval between scale marks). 1) Item switching keys Switch between the contents in the item list. 2) Item list Lists the scale increments and units of all items. Each item has a different setting range. You can set a value with up to two decimal places.
  • Page 638 5) Display target Displays the display target of the cursor value list. To switch between the targets, touch the item switching key. The display target is fixed to [V-axis] for horizontal cursors. • [V-axis] • [H-axis] • [Interval A-B] 6) Item switching keys Switch between the display targets of the cursor value list.
  • Page 639: Operating Procedure

    23.5.2 Operating procedure This section describes the operations on the graph display area. ➠ ■1. Zoom in mode ■2. Move mode ■3. Cursor display ■1. Zoom in mode Enlarge a part of the graph display area by the following procedure. Step 1.
  • Page 640 Step 4. To enlarge the area, touch inside the square. To cancel the enlarging and dismiss the square, touch outside the square. To return to the original state, touch the scale optimization key. 23 - 24 23.5 [Graph waveform] screen...
  • Page 641 ■2. Move mode Move the waveform on the graph display area by the following procedure. Step 1. Touch the move mode key. Two lines crossing at right angles appear on the graph display area. Step 2. Touch the start point of a movement. Step 3.
  • Page 642 ■3. Cursor display Display the maximum and minimum values within a range defined by cursors. To display cursors on the graph display area, touch the cursor key. To switch between the vertical and horizontal cursors, touch the [Tools] key. Vertical cursors Horizontal cursors 1) Cursor Define a range by cursor A and cursor B.
  • Page 643: At Alarm Occurrence)] Screen

    4) Cursor movement keys Move the cursors with the distance between cursor A and cursor B unchanged. To continue moving the cursors, touch and hold a cursor movement key. The cursor movement keys do not appear when the zoom in mode or the move mode is enabled. To change the distance between cursor A and cursor B, touch the [Tools] key.
  • Page 644 7) List of data at occurrence of an alarm Item Description [No.] Data numbers by servo amplifier Items corresponding to each data number [Item] When data is read from a file, the data is displayed in the same language as the file. [Unit] Unit of each item [Value]...
  • Page 645: Motion Program Editor

    24. MOTION PROGRAM EDITOR This function is available for a motion controller OS special model. For details of this function, please contact us. 24 - 1...
  • Page 646 24 - 2...
  • Page 647: Motion Program I/O

    25. MOTION PROGRAM I/O This function is available for a motion controller OS special model. For details of this function, please contact us. 25 - 1...
  • Page 648 25 - 2...
  • Page 649: Revisions

    REVISIONS * The manual number is given on the bottom left of the back cover. Print Date * Manual Number Revision Sep. 2013 SH(NA)-081196ENG-A First printing : GT Works3 Version1.100E Nov. 2013 SH(NA)-081196ENG-B Compatible with GT Works3 Version1.104J • Description of SAFETY PRECAUTIONS changed •...
  • Page 650 • The drive recorder supports MELSERVO-JE. This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.
  • Page 651: Warranty

    If requested by the customer, Mitsubishi Electric Corporation or its representative firm may carry out the primary failure diagnosis at the customer’s expense. The primary failure diagnosis will, however, be free of charge should the cause of failure be attributable to Mitsubishi Electric Corporation.
  • Page 652 MELDAS, MELSEC, iQ Platform, MELSOFT, GOT, CC-Link, CC-Link/LT, and CC-Link IE are trademarks or registered trademarks of Mitsubishi Electric Corporation in Japan and other countries. Microsoft, Windows, Windows Vista, Windows NT, Windows Server, SQL Server, Visual C++, Visual C#, Visual Basic, Excel, and Access are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.
  • Page 654 GOT2000 Series User's Manual (Monitor) GOT2000-U-MONITOR-E MODEL MODEL 1D7MJ7 CODE When exported from Japan, this manual does not require application to the Ministry of Economy, SH(NA)-081196ENG-O(1608)MEE Trade and Industry for service transaction permission. HEAD OFFICE : TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN NAGOYA WORKS : 1-14 , YADA-MINAMI 5-CHOME , HIGASHI-KU, NAGOYA , JAPAN Specifications subject to change without notice.

Table of Contents
