4.1.3 Top right cover
(1) Remove 1 screw and open the RADF.
(2) Slide the cover to the rear side to release the
hook, and then take off the top right cover [1].
4.1.4 FAN cover
(1) Remove 1 screw and open the RADF.
(2) Slide the cover to the rear side to release the
hook, and then take off the FAN cover [1].
4.1.5 Top left cover
(1) Take off the top FAN cover.
( P.4-2 "4.1.4 FAN cover")
(2) Remove 1 screw and open the RADF.
(3) Slide the cover to the rear side to release the
hook, and then take off the top left cover [1].
e-STUDIO556/656/756/856/557/657/757/857
DISASSEMBLY AND REPLACEMENT
[1]
[1]
© 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved
4 - 2
[1]

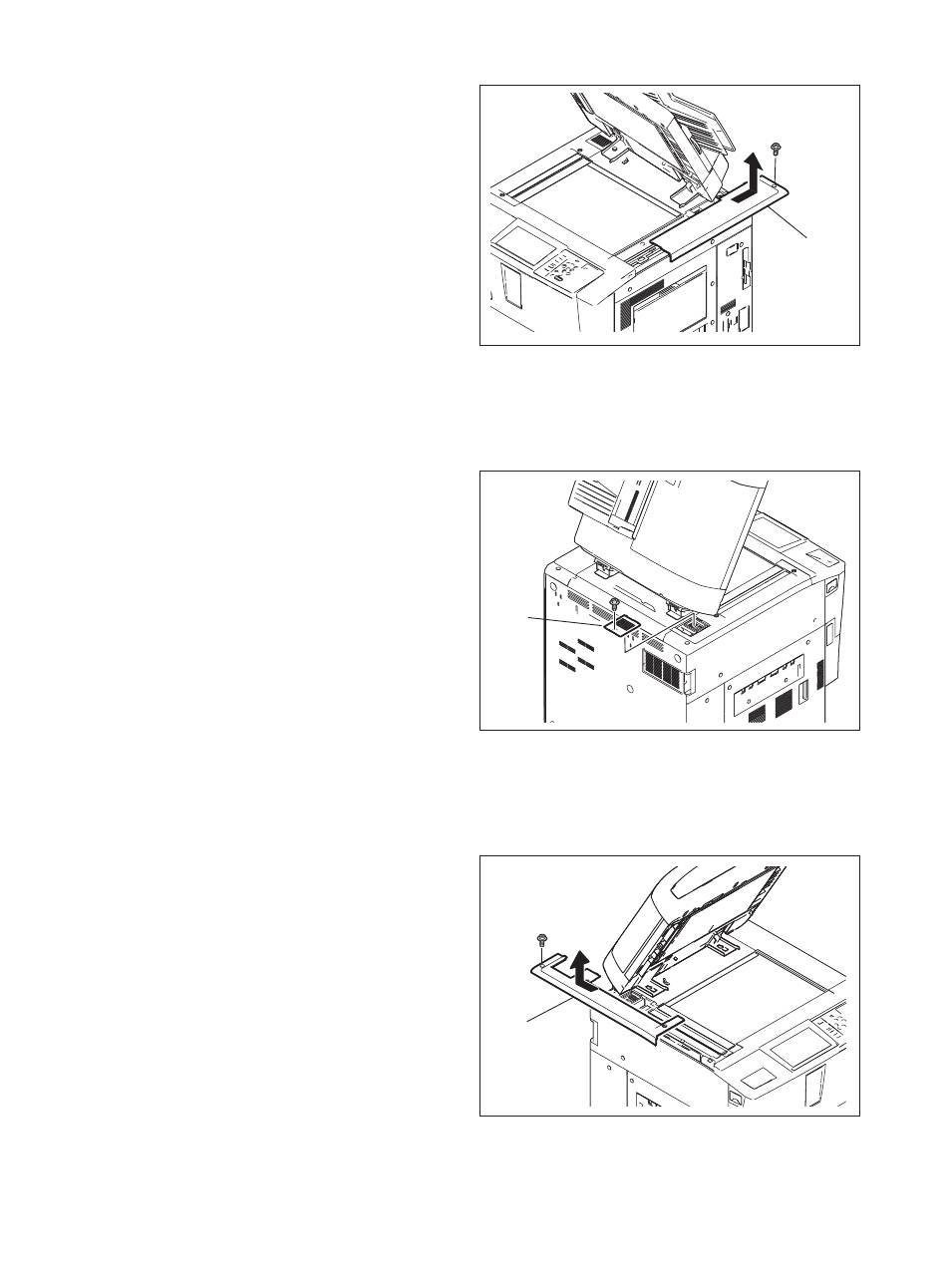

Fig. 4-4
Fig. 4-5
Fig. 4-6
