1D-90 Engine Mechanical:

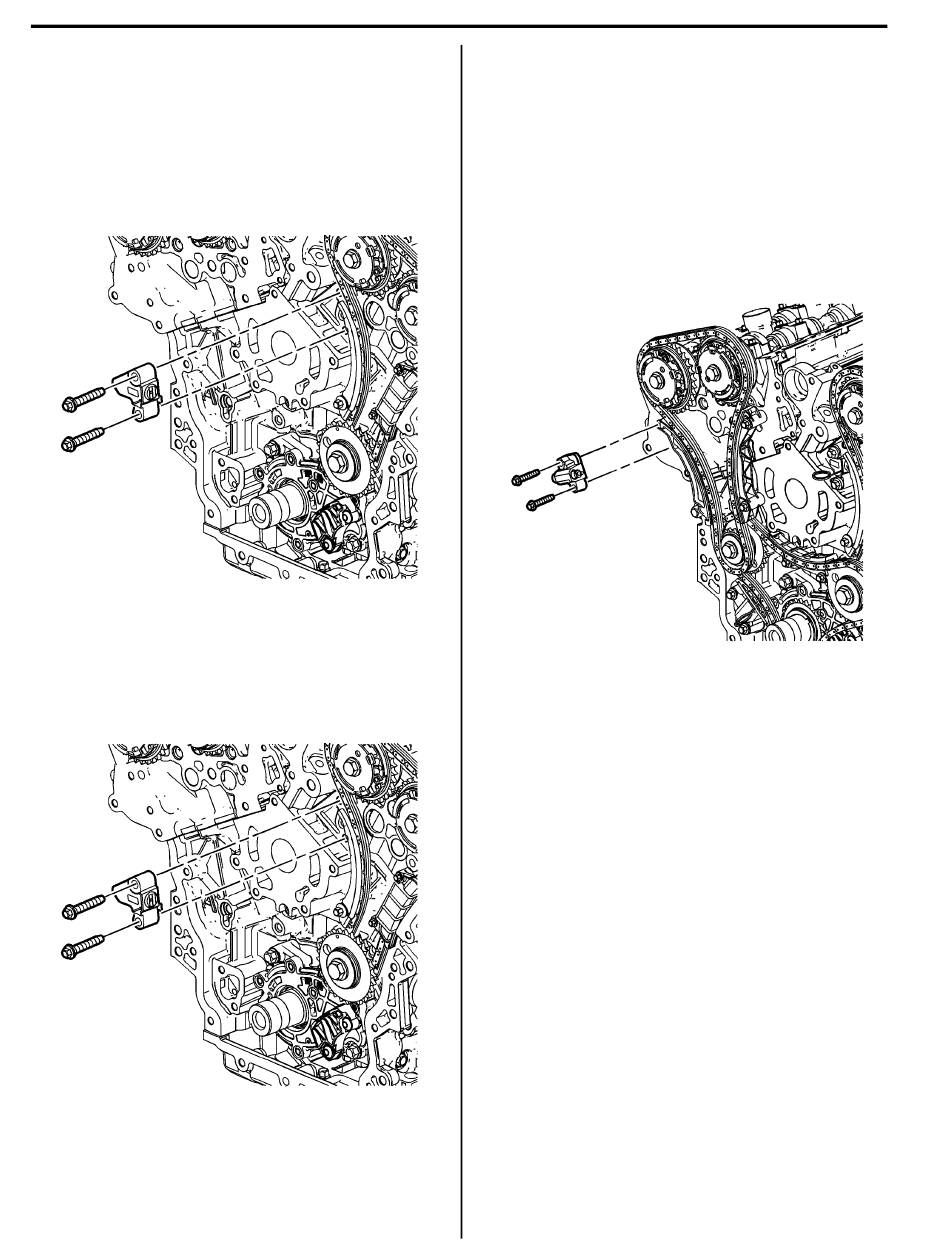

Secondary Camshaft Drive Chain Tensioner
Replacement - Left Side
Removal Procedure
1. Remove the spark plugs in order to ease crankshaft/
engine rotation. Refer to "Spark Plug Replacement:
".
2. Remove the engine front cover. Refer to "Engine
Front Cover Replacement".
3. Remove the left bank secondary camshaft drive
chain tensioner. Refer to "Secondary Camshaft Drive
Chain Tensioner Removal - Left Side (Third Design)"
"Secondary Camshaft Drive Chain Tensioner
Removal - Left Side (Fourth Design)".
Installation Procedure
1. Install the left bank secondary camshaft drive chain
tensioner. Refer to "Secondary Camshaft Drive
Chain Tensioner Installation - Left Side (Third
Design)" "Secondary Camshaft Drive Chain
Tensioner Installation - Left Side (Fourth Design)".
2. Install the spark plugs. Refer to "Spark Plug
Replacement: ".
3. Install the engine front cover. Refer to "Engine Front
Cover Replacement".
Secondary Camshaft Drive Chain Tensioner
Replacement - Right Side
Removal Procedure
1. Remove the spark plugs in order to ease crankshaft/
engine rotation. Refer to "Spark Plug Replacement:
".
2. Remove the engine front cover. Refer to "Engine
Front Cover Replacement".
3. Remove the right bank secondary camshaft drive
chain tensioner. Refer to "Secondary Camshaft Drive
Chain Tensioner Removal - Right Side (Third
Design)" "Secondary Camshaft Drive Chain
Tensioner Removal - Right Side (Fourth Design)".
