PWM input mode

This mode is a particular case of input capture mode. The procedure is the same except:
•
Two ICx signals are mapped on the same TIx input.
•
These 2 ICx signals are active on edges with opposite polarity.
•
One of the two TIxFP signals is selected as trigger input and the slave mode controller
is configured in reset mode.
For example, the user can measure the period (in TIMx_CCR1 register) and the duty cycle
(in TIMx_CCR2 register) of the PWM applied on TI1 using the following procedure
(depending on CK_INT frequency and prescaler value):
• Select the active input for TIMx_CCR1: write the CC1S bits to 01 in the TIMx_CCMR1
register (TI1 selected).
•
Select the active polarity for TI1FP1 (used both for capture in TIMx_CCR1 and counter
clear): write the CC1P to '0' and the CC1NP bit to '0' (active on rising edge).
•
Select the active input for TIMx_CCR2: write the CC2S bits to 10 in the TIMx_CCMR1
register (TI1 selected).
•
Select the active polarity for TI1FP2 (used for capture in TIMx_CCR2): write the CC2P
bit to '1' and the CC2NP bit to '0'(active on falling edge).
•
Select the valid trigger input: write the TS bits to 101 in the TIMx_SMCR register
(TI1FP1 selected).
•
Configure the slave mode controller in reset mode: write the SMS bits to 100 in the
TIMx_SMCR register.
•
Enable the captures: write the CC1E and CC2E bits to '1 in the TIMx_CCER register.
TIMx_CNT
TIMx_CCR1
TIMx_CCR2

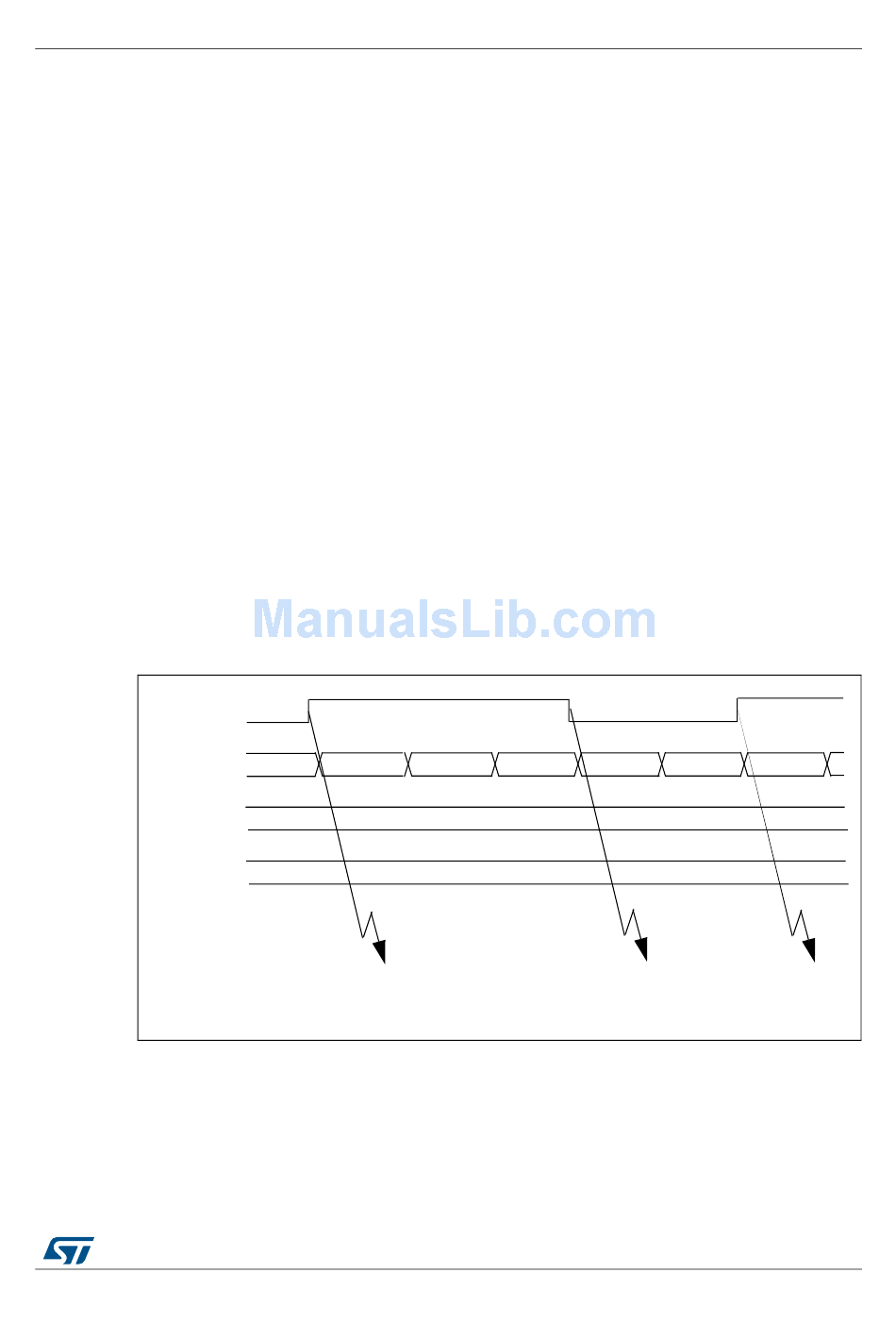

Figure 141. PWM input mode timing

TI1
0004 0000
IC1 capture
IC2 capture
reset counter
General-purpose timers (TIM2 to TIM5)
0001 0002
0004
0002
RM0033 Rev 8
0003 0004 0000
IC2 capture
pu l s e wid th
measurement
IC1 capture
period
measurement
ai15413
395/1378
