General-purpose timers (TIM9 to TIM14)
TIMx_CH1
TIMx_CH2
Notes:
Reg
15.2.2

TIM10/TIM11 and TIM13/TIM14 main features

The features of general-purpose timers TIM10/TIM11 and TIM13/TIM14 include:
•
16-bit auto-reload upcounter
• 16-bit programmable prescaler used to divide the counter clock frequency by any factor
between 1 and 65536 (can be changed "on the fly")
•
independent channel for:
–
–
–
–
•
Interrupt generation on the following events:
–
–
–
438/1378

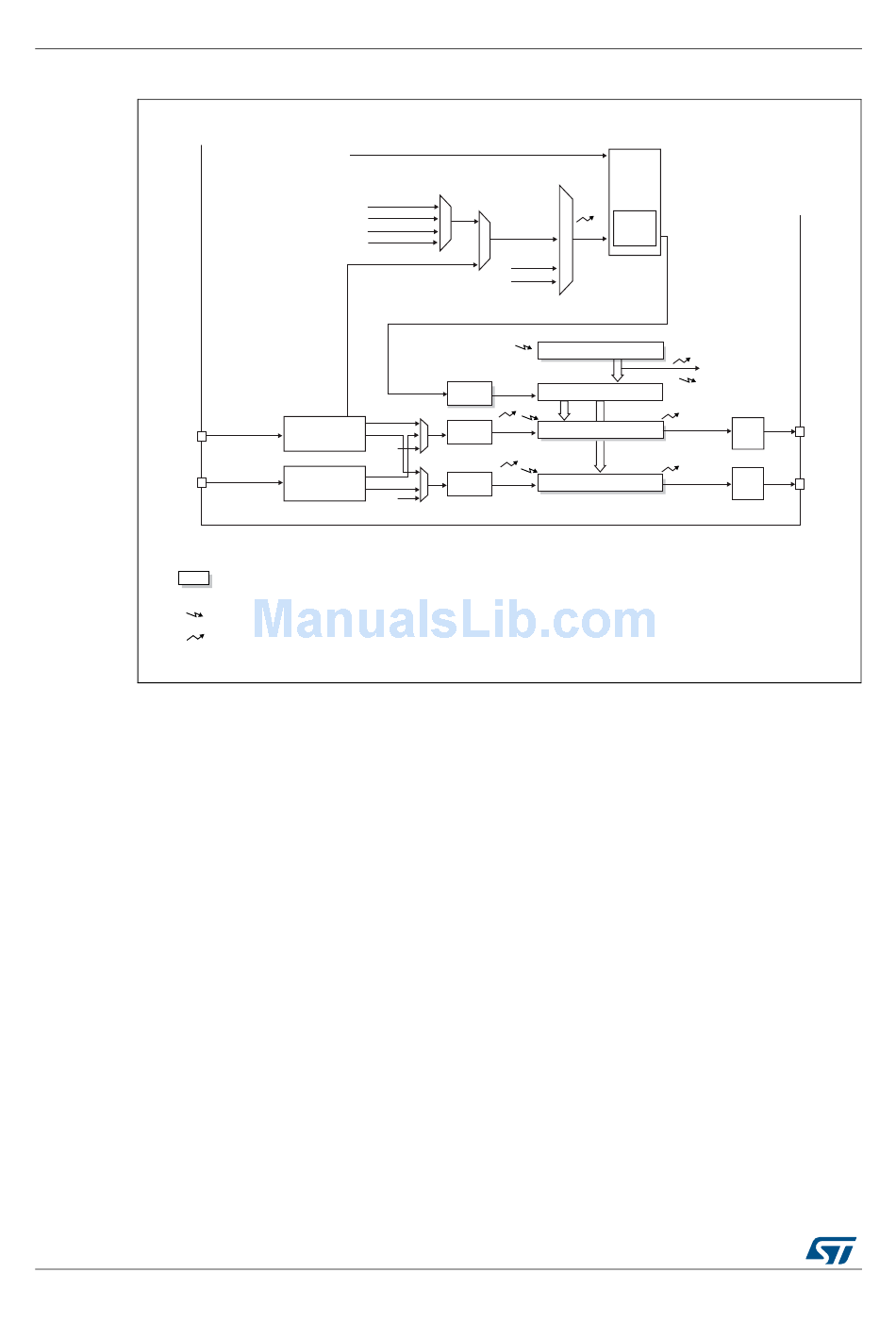

Figure 159. General-purpose timer block diagram (TIM9 and TIM12)

Internal clock (CK_INT)
ITR0
ITR1
ITR2
ITR3
TI1FP1
Input filter &
TI1
TI1FP2
edge detector
TRC
TI2FP1
TI2
Input filter &
TI2FP2
edge detector
TRC
Preload registers transferred
to active registers on U event
according to control bit
Event
Interrupt
Input capture
Output compare
PWM generation (edge-aligned mode)
One-pulse mode output
Update: counter overflow, counter initialization (by software)
Input capture
Output compare
ITR
TRC
TI1F_ED
TI1FP1
TI2FP2
U
Auto-reload register
Stop, Clear
CK_PSC PSC CK_CNT
+/-
prescaler
CC1I
U
IC1
IC1PS
Capture/Compare 1 register
Prescaler
CC2I
U
IC2
IC2PS
Capture/Compare 2 register
Prescaler
RM0033 Rev 8
Trigger
controller
TGI
Slave
Reset, enable, up, count
controller
TRGI
mode
UI
U
CNT counter
CC1I
OC1REF
Output
control
CC2I
Output
OC2REF
control
RM0033
OC1
TIMx_CH1
OC2
TIMx_CH2
ai17190b
