Table; System Operation And Limitations That Reduce The Risk Of Collision With The Patient - GE Revolution CT User Manual

4 Table

The table has a weight limit of 500 pounds (227 kg) with an incremental accuracy of ±0.25 mm.
The vertical range of the table is 49 to 103 cm. The scannable range is 2,000 mm with cradle
extender.
Scannable range by scan type:
•
Scout — 2,000 mm
•
Helical — 1,850 mm
• Axial — 2,000 mm
When interruption of Supply Mains occurs, the maximum stopping distance of the moving cradle
is 220 mm.
To safely remove the patient in an emergency egress situation, grab and squeeze the Cradle
Handle release switch. Continue to squeeze the Cradle Handle release switch while pulling the
cradle to its out position.

4.1 System operation and limitations that reduce the risk of collision with the patient

• The range of table motion is limited to prevent a collision between the table cradle and the
gantry. The system will maintain a 25 mm clearance between the table cradle and the
gantry.
•
The system design minimizes gaps between moving covers and structures so that fingers
cannot get into the gap.
•
Operator controlled table motion requires continuous activation of gantry controls.
• Emergency stop controls are readily available that stop motion within 10 mm.
178

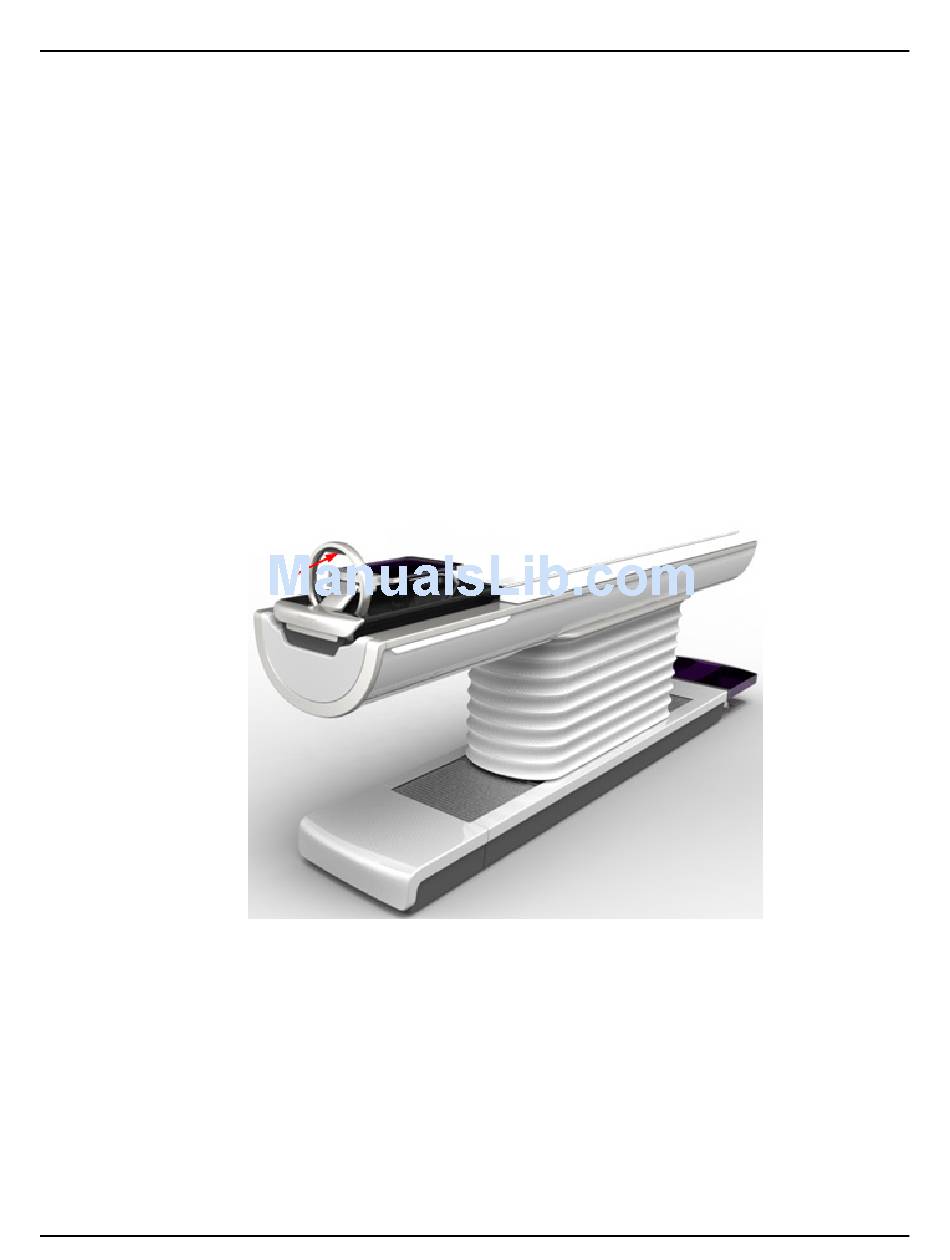

Illustration 15: Patient Table Cradle Release Handle Switch
