Monitor Phase Window - GE Revolution CT User Manual

Dynamic Transition ROI
Retake Baseline
Begin Monitoring

3.2.3 Monitor Phase window

This window displays during the Monitor Phase.
Element
Baseline Image
Monitor Image
Chapter 12 Scan Applications
Select the ROI to be used as the dynamic transition ROI. This can be Off or any one.
Selecting the Retake Baseline will return to the
Select to begin the monitor scanning phase of the exam

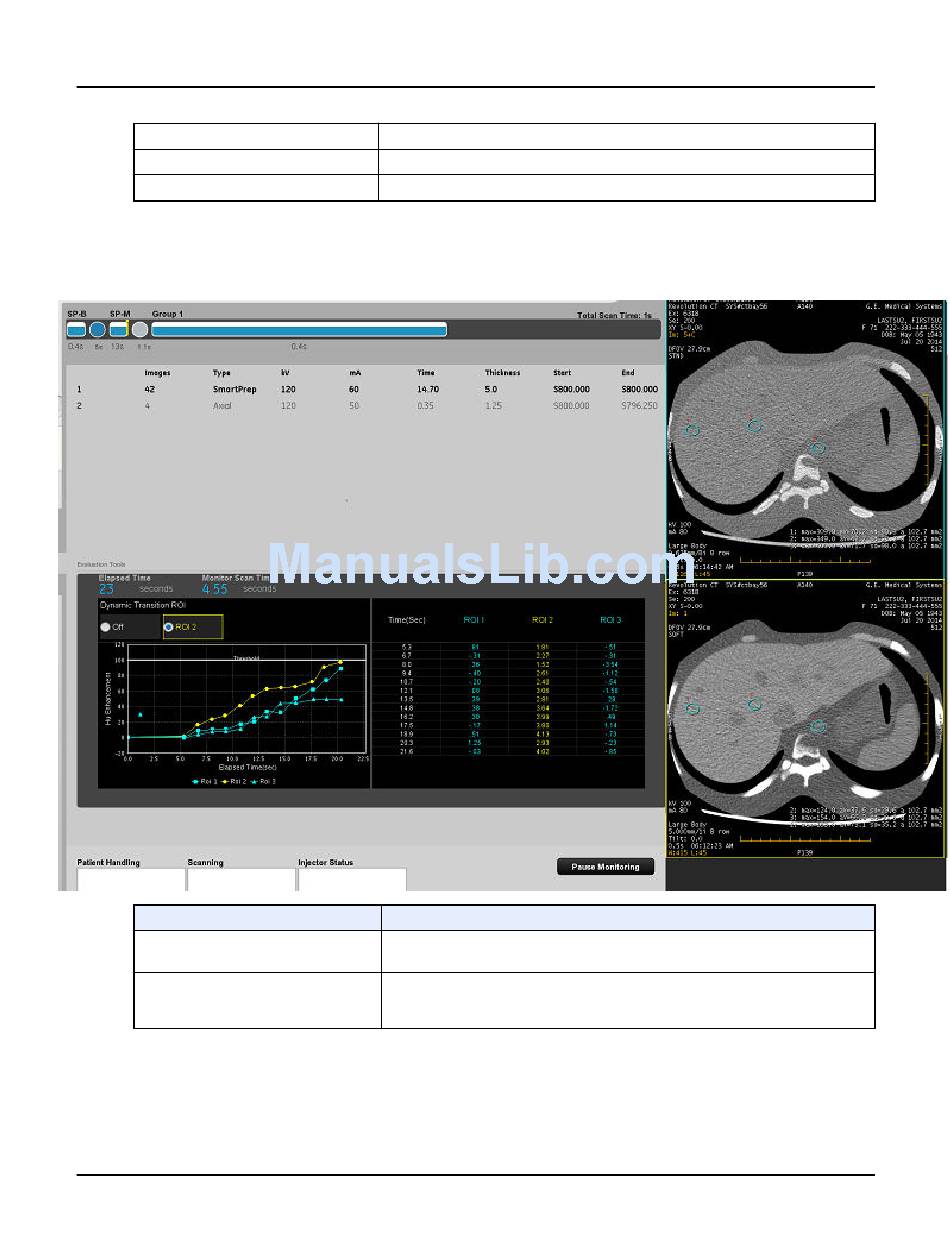

Illustration 7: Monitor Phase scan
The baseline image with the ROIs that have been set will display on the lower right
side of the window.
The latest image from the monitor phase that corresponds to the image used to calcu‐
late the HU level on the Enhancement Chart and Enhancement Graph is shown in the
upper right viewport. The ROIs that were set are shown on this image.
Revolution CT User Manual
Direction 5480385-1EN, Revision 1
SmartPrep Setup window.
