Quick Settings area.
Contains other functional tools related to the scan type selected.
Auto View viewport.
Displays scouts and non-clinical QC images. [Show Localizer] viewport for graphic scan prescription.
Navigation viewport.
Displays scouts and QC images. [Show Localizer] viewport for graphic scan prescription.
Total Accumulated Dose area.
The total accumulated dose for the exam.
Dose Display area.
Displays projected dose information based on current scan settings. It also displays other real-time in‐
formation when the active application requires it.

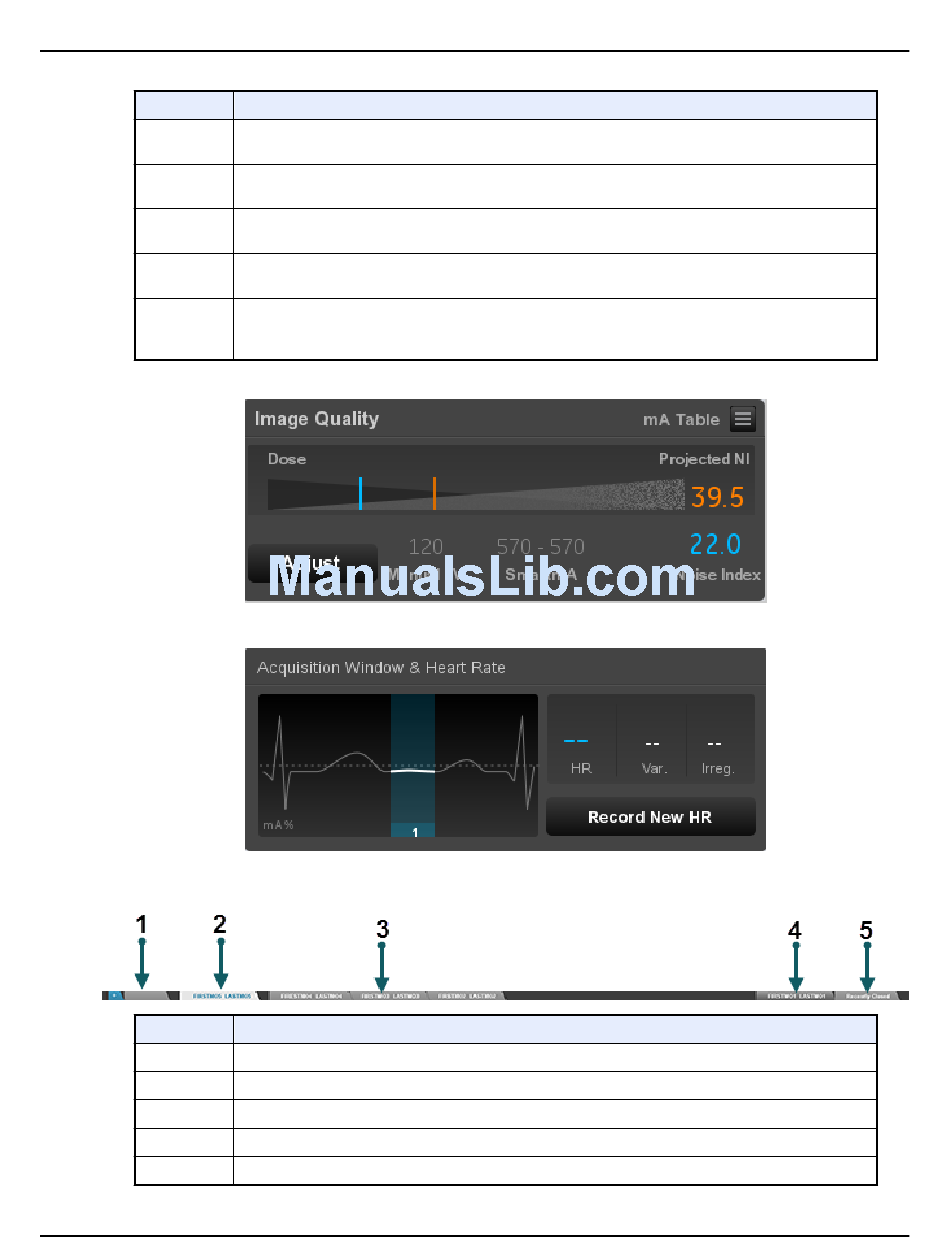

Illustration 7: Image Quality widget
Illustration 8: Acquisition Window and Heart Rate widget
Illustration 9: Patient Tab Status
Patient waiting to be scanned.
Patient on the table.
Open patient exam sessions.
Oldest open patient exam session.
List of recently closed patient exam sessions.
