Table 4: Active annotation
No. Annotation
1 Plane or View Type
Scan Location
2
Image Location
DFOV
3
450

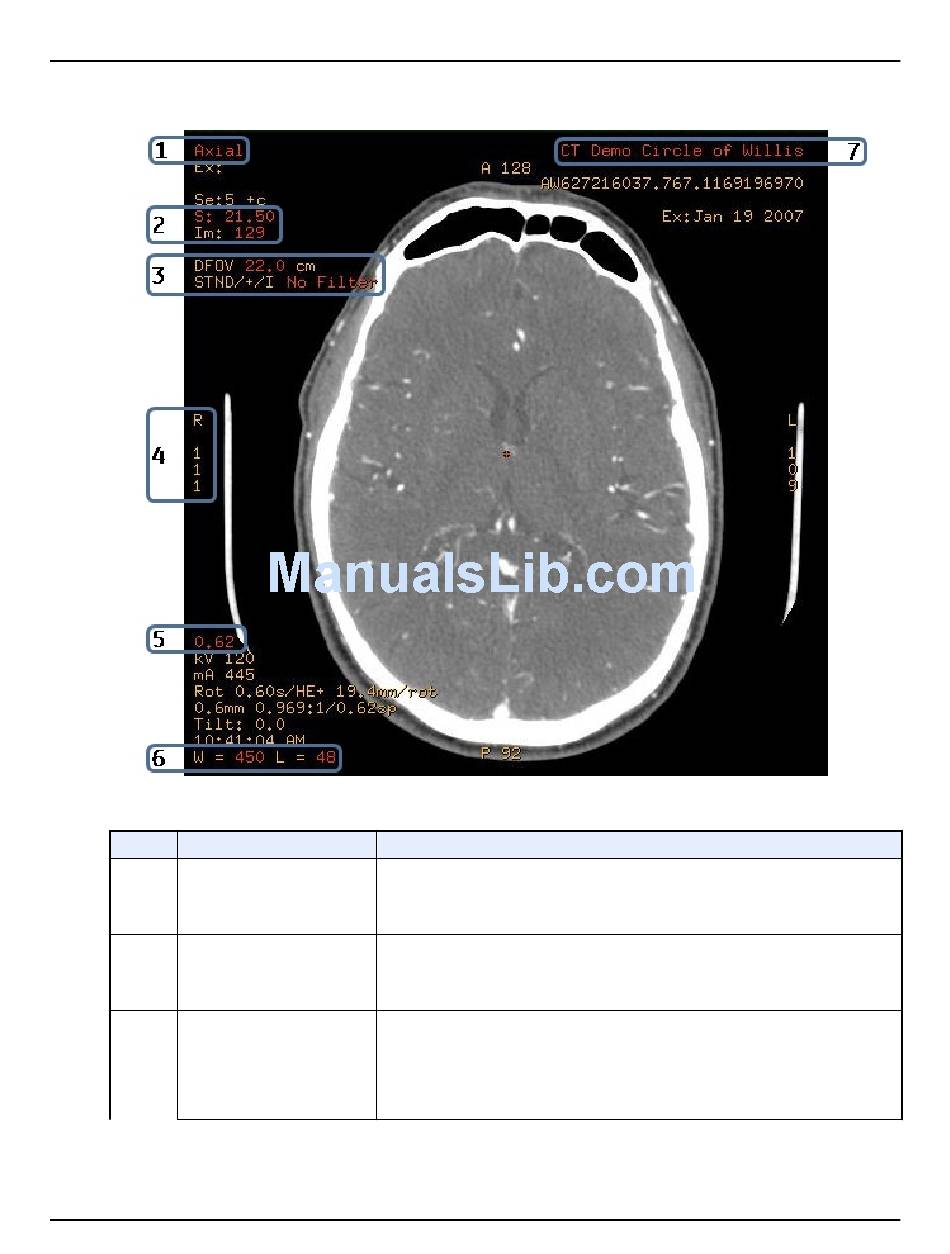

Illustration 3: Active annotation
Description
Right-click and select a view type from the menu to change the plane or select a 3D
model. The type of view displayed in each of the four views of the viewing area is de‐
termined by the selected protocol. During image processing, you can change the view
at any time using the active annotations.
Middle-click and drag horizontally to scroll through the images or click to increment
and right-click to decrement an image at a time. Alternatively, you can use the left and
right arrow keys on the keyboard to move through the image set. Scan location is not
available on 3D views.
Middle-click the drag horizontally to real-time magnify the image or click to increment
and right-click to decrement the mag factor. The maximum zoom factor (ratio between
acquisition DFOV and actual DFOV) is 8.0. You cannot increase the DFOV beyond
the original value, unless the height of the stack of images (number of images × slice
thickness) is larger than the DFOV. In that case, you can zoom up to the height of the
stack of images (zoom factor < 1.0).
