3.5 Cardiac trigger monitor

3.5.1 Integrated cardiac trigger monitor

For cardiac gated exams that require the cardiac trigger monitor, use the Integrated Cardiac
Module that is connected to the cradle.
Chapter 8 Equipment

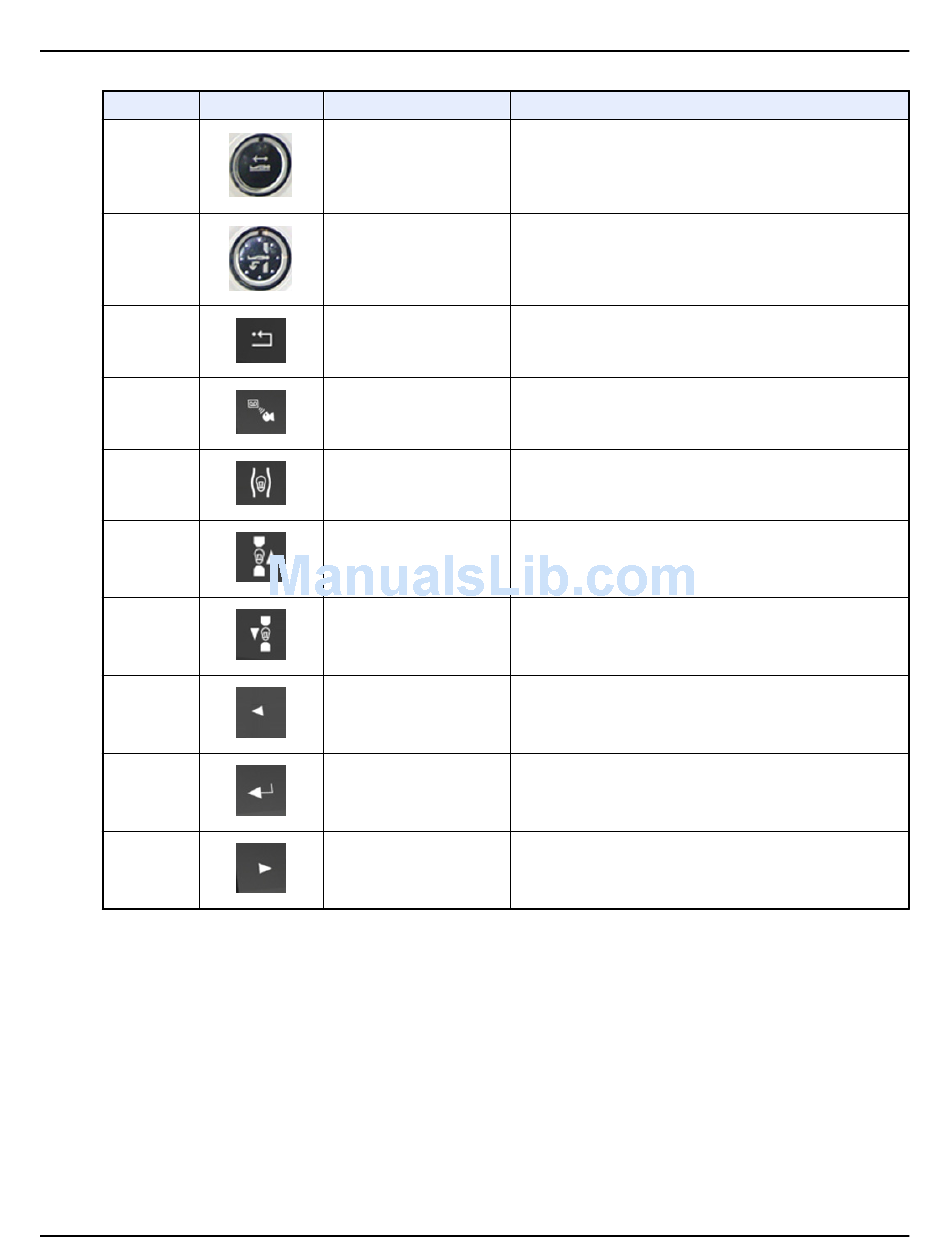

Icon Function
Cradle Lock/Release
Table Home
E-Stop Reset
Breathing Lights Demo
Accent Lights On/Off
Bore Lighting Intensity Up
Bore Lighting Intensity Down Decreases the bore lighting intensity.
Back
Enter
Forward
Direction 5480385-1EN, Revision 1
Description
Press once to unlock the table cradle, to freely move the cradle
with your hands. Use it to move the patient out of the gantry in
an emergency.
Press a second time returns the cradle to the locked position
and the landmark is maintained.
Press and hold to simultaneously move the cradle out of the
gantry. Once the cradle has been removed from the gantry, the
table begins to lower to its lowest limit.
Flashes white about once every two seconds when E-stop has
been activated. Restores power to the gantry and table.
Press to demonstrate the breathing light and countdown time to
the patient. Refer to Table 6 for breathing lights description.
Toggles accent lights on/off.
Increases the bore lighting intensity.
Moves to next (left) selectable area on the Gantry Primary Dis‐
play. If more than one row, moves left and then up and left.
Selects highlighted menu item on the Gantry Primary Display.
Moves to next (right) selectable area on the Gantry Primary
Display. If more than one row, moves right and then down and
right.
