3.3.2 Console AC power box

Table 9: Console Rear Plug in Panel Components
Number
Chapter 8 Equipment

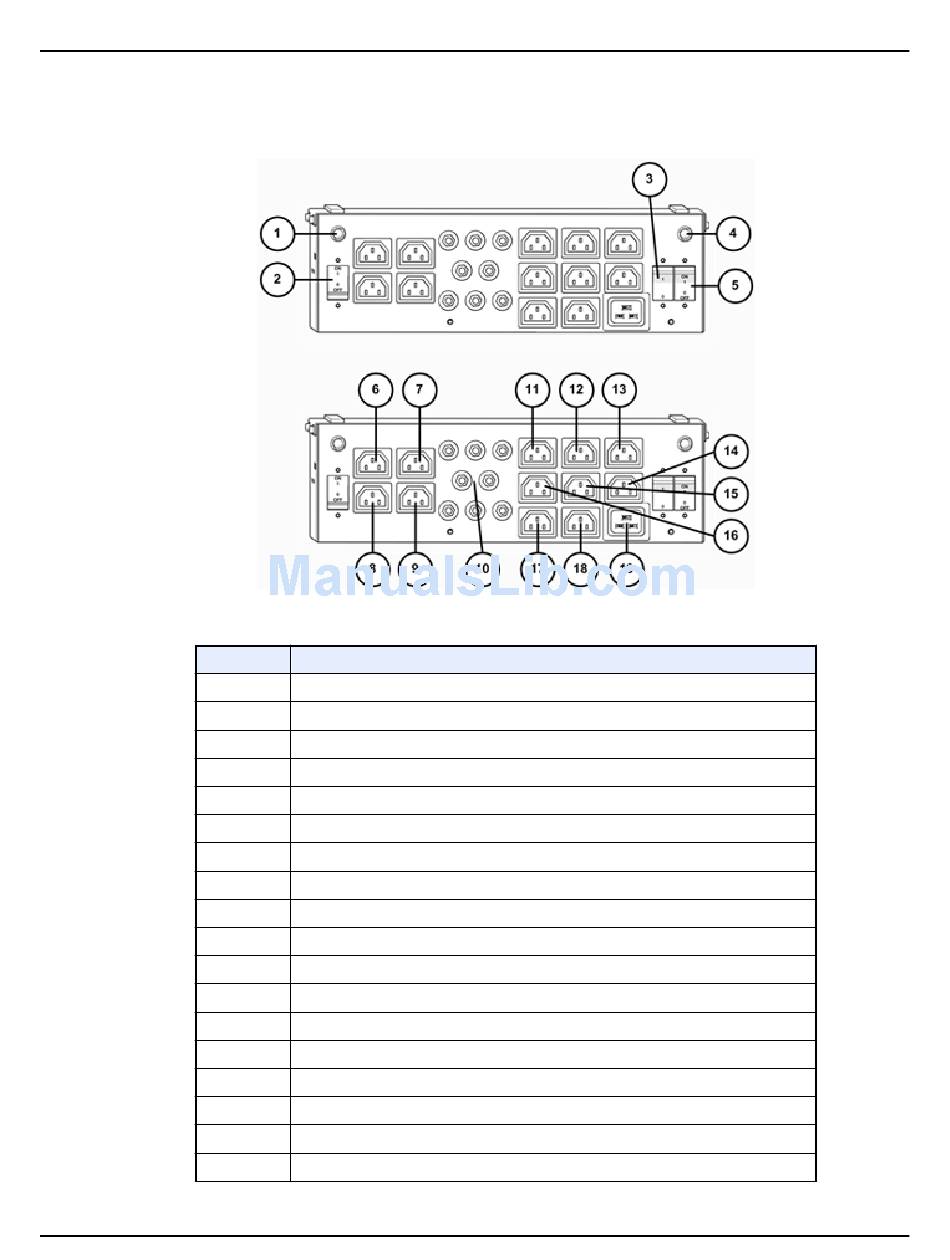

Illustration 11: Console AC Power Box
1 Power Indicator - Scanner Desktop internal components
2 Circuit Breaker / Switch - Scanner Desktop internal components
3 Circuit Breaker / Switch - Optional GEHC supplied motorized Scanner Desktop table
4 Power Indicator - Accessories
5 Circuit Breaker / Switch – Accessories
6 AC Power Outlet – Peripheral Media Tower
7 AC Power Outlet – Monitor (Prescription)
8 AC Power Outlet – Monitor (Display)
9 AC Power Outlet – Scan Room Monitor (Optional)
10 Accessory Grounds
11 AC Power Outlet – RPM_1
12 AC Power Outlet – RPM_2
13 AC Power Outlet – Injector_1 (see Note)
14 AC Power Outlet – Injector_2 (see Note)
15 AC Power Outlet – Injector_3 (see Note)
16 AC Power Outlet – Injector_4 (see Note)
17 AC Power Outlet – Spare
18 AC Power Outlet – Spare
