Click an image orientation icon to change the plane or a 3D or oblique reformat image.
Table 1: Orientation controls
2.2.7 Activate the Oblique mode
The [Multi Oblique Mode] button (left) displays three oblique planes defined by three adjustable
color axis (orange, green, blue).
1. Adjust any axis to update the two other oblique planes.
2. Click again to deactivate the
oblique viewports.
The [Single Oblique Mode] button (right) displays a line cursor in
define a new plane.
1. Set the function of one viewport to
2. Make another viewport primary and then click the [Single Oblique Mode] button.
A solid yellow line appears, which represents the plane of the Oblique reformat.
3. Place the cursor on the solid yellow line and click and drag it to tilt the yellow line to the
desired plane.
2.3 Use the keyboard shortcuts
Chapter 16 Reformat
Button
Description
S
Superior
I
Inferior
A
Anterior
P
Posterior
L
Left
R
Right
Multi Oblique mode, which keeps the orientations defined in
Oblique .

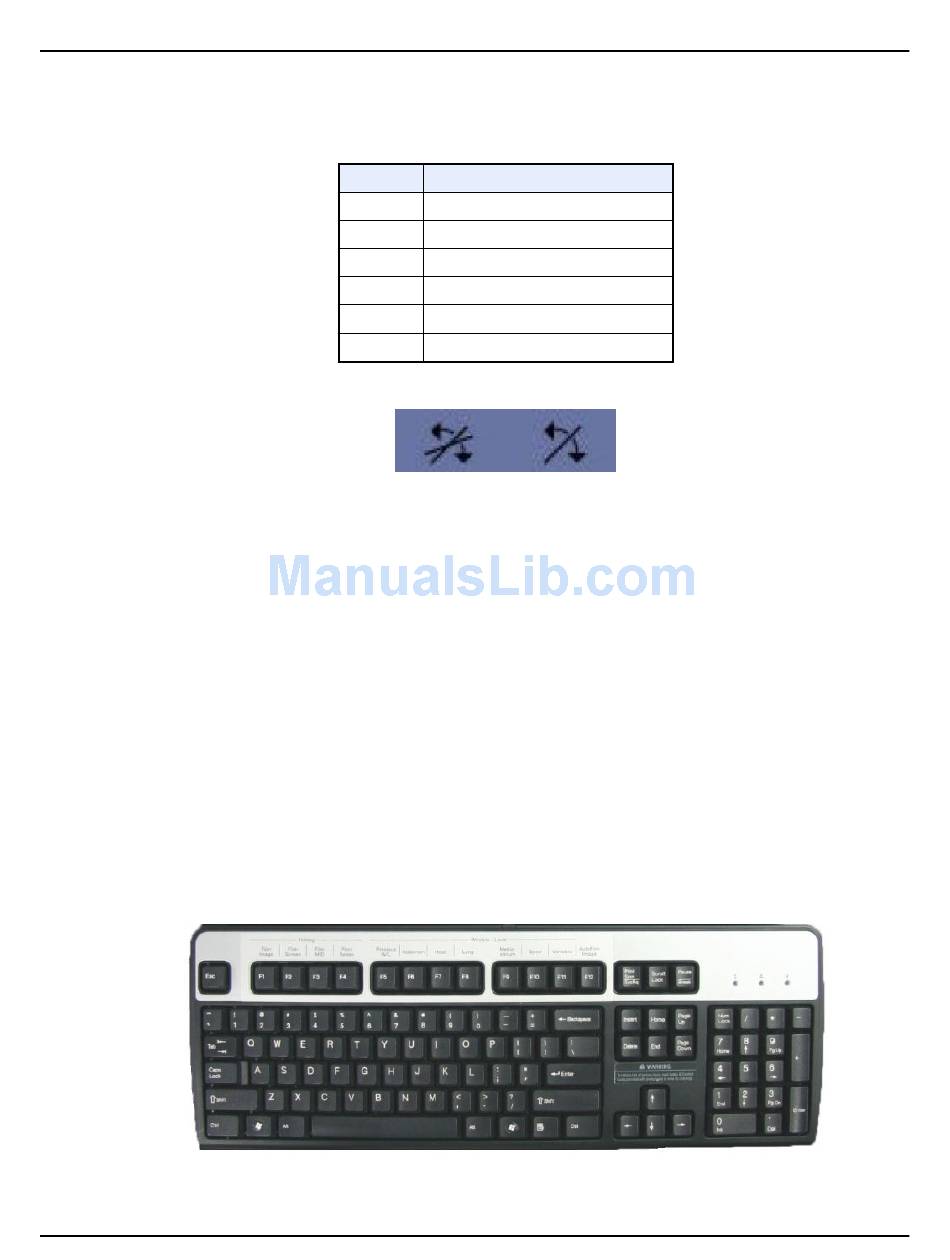

Illustration 2: Keyboard
Revolution CT User Manual
Direction 5480385-1EN, Revision 1
Reformat , which is used to
445
