2. Plug the power connection for the cardiac trigger monitor into the electrical connection port
(4).
3. Connect the coaxial cable to the connection port above the heart (5).
NOTE: Do not loop the cable. This could introduce noise into the ECG trace.
4. Connect the Ethernet cable from the cardiac trigger monitor to the port labeled
5. On the Gantry Display
ECG as the primary cardiac device. The External ECG can also be selected from the
Console user interface.
Chapter 8 Equipment

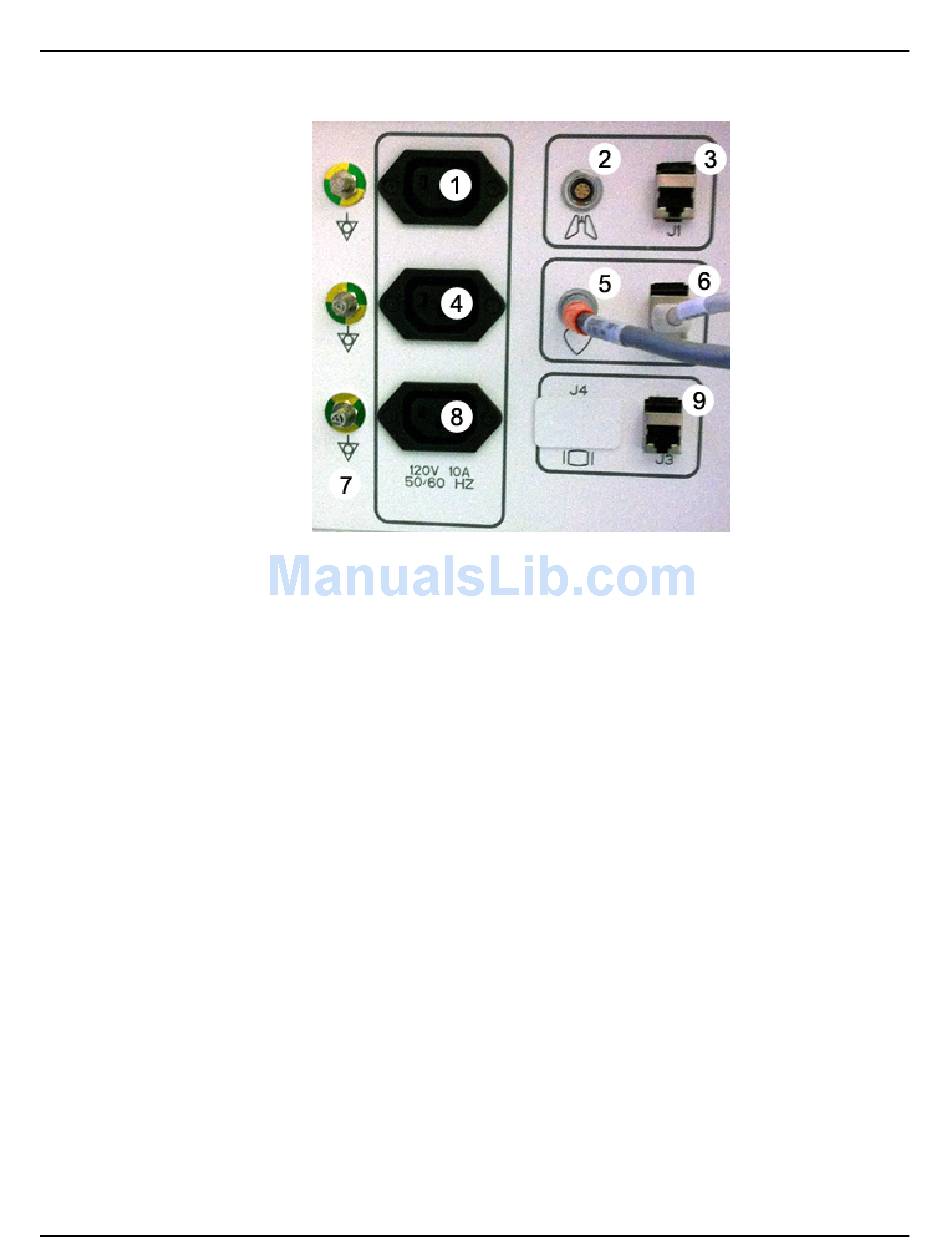

Illustration 14: Left Rear Plug-in Panel
Menu Area , select Settings → ECG Settings to select the External
Revolution CT User Manual
Direction 5480385-1EN, Revision 1
Monitor (6).
