12. Complete these activities to improve the ECG trace, if needed.
○ Check the cable connections.
○
If the external ECG trigger device is selected, position it away from the table and gantry
to minimize sensitivity to noise.
○
Consider an alternative electrode placement: remove electrodes, prep the patient again,
apply fresh electrodes, and repeat the impedance check.
○
Check default electrode selection on the active ECG trigger device.
336

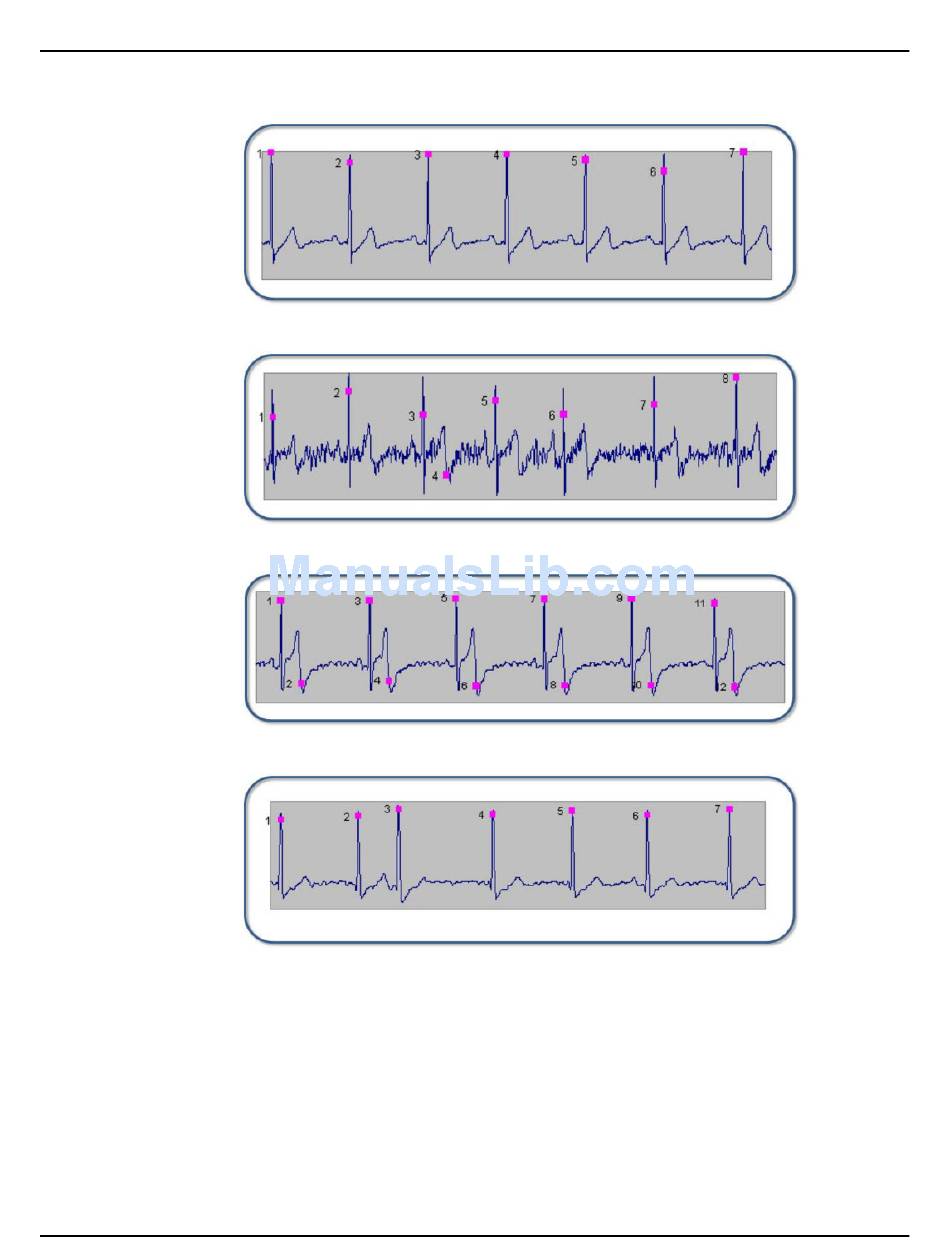

Illustration 2: Normal Waveform
Illustration 3: Noisy ECG Trace (extra trigger at #4)
Illustration 4: Elevated T-wave (causing double trigger)
Illustration 5: ECG Trace (premature beat arrhythmia at trigger #3)
