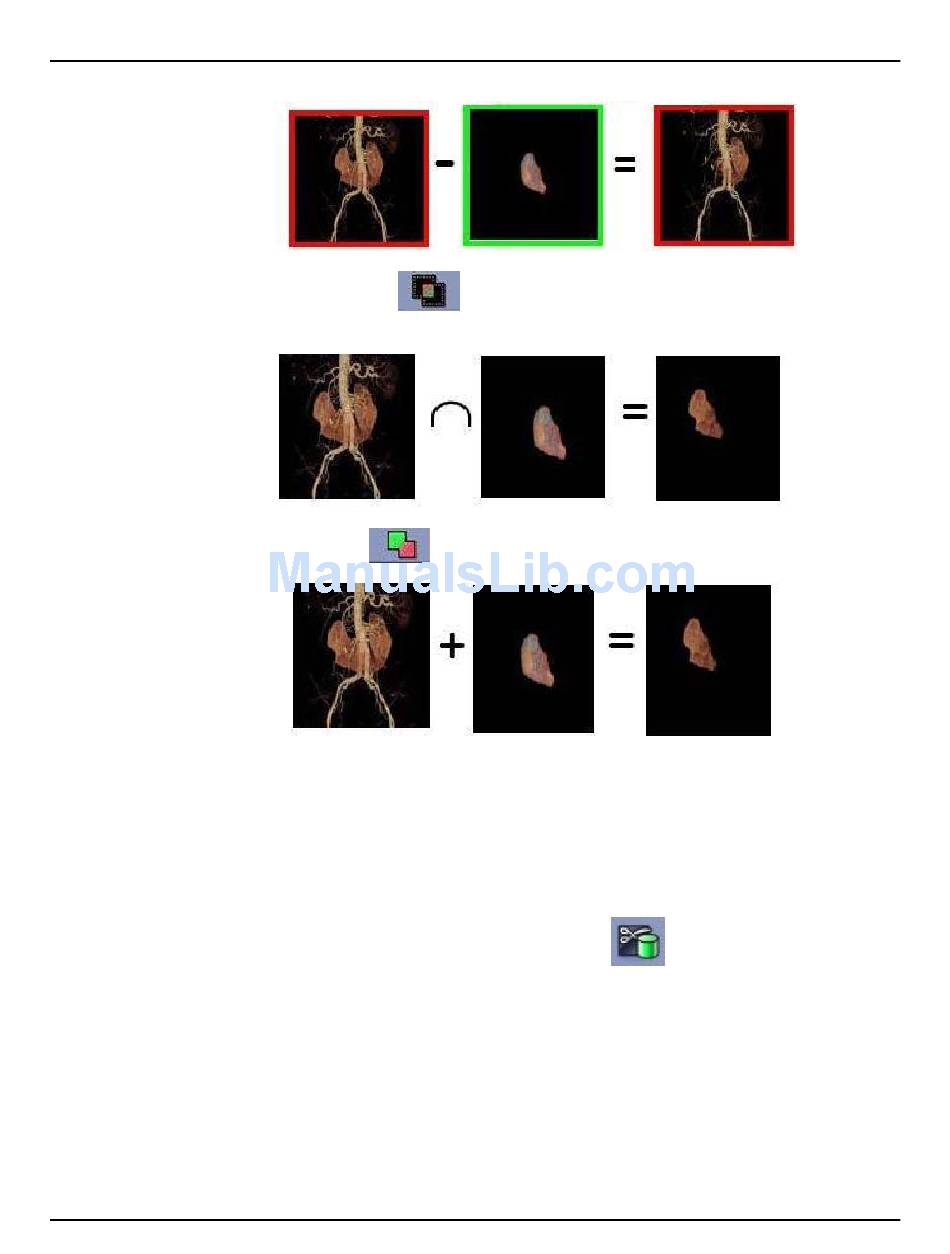

Click the [Intersection] icon
location in both objects.
○
Click the [Addition] icon

6.5 Paint On Slices

Use this procedure to draw contours of the structure of interest on different slices. The volume
to keep will be interpolated based of the defined contours.
Reformat .
1. Open
2. From the Tools section, click the
3.
From the Segment panel, click the [Paint On Slices] icon
4. Move the 3D cursor to the edge of the feature of interest.
5. Optional: Click [Edge Attraction] to automatically refine the drawn contours, adjusting them
to nearby structure edges.
6. Press <Shift> and click to deposit the cursor.
7. Click and drag the 3D cursor to define the area.
When the mouse button is released, the first and last points connect.
488
to keep only the voxels that exist in the same
to keep all the voxels that exist in either of the objects.
Segment tab.
