Refer to the Chapter 17, File Manager
sorting the Exam list and on setting which columns display on the list.

2.1.1 Selecting images in File Manager

1. From the display monitor, open the File Manager drawer.
2. From the Exam list, select the patient name.
3. The Series list shows the series for the selected patient. Select the series you want to view.
4. The series loads into the Image viewport on the bottom right side of the right monitor.
5. Hover your cursor over the right of the viewport to reveal the scroll bar at the right of the
viewport.
By default, the first image in the series is displayed. To scroll through the images in the
series, click and drag the slider on the scroll bar.
Chapter 14 View Images

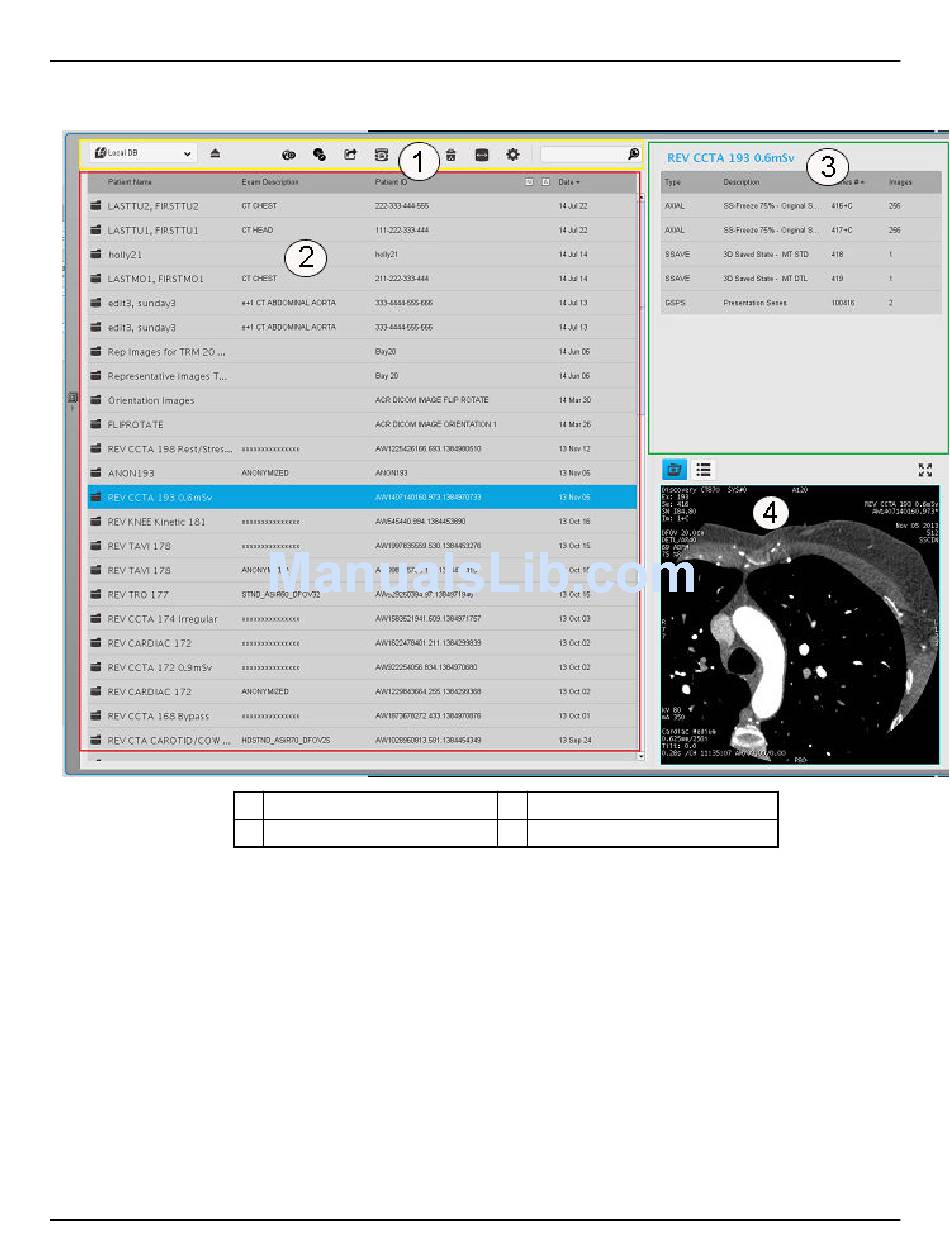

Illustration 2: Sections of the File Manager Drawer
1 Controls area
2 Exam list
3 Series list
4 Image display/Image list
section of the Data Management chapter for information
Revolution CT User Manual
Direction 5480385-1EN, Revision 1
375
