1 Handle to extend coverage in any plane
2 Handle to rotate the reformat angle

3.2.5 Graphic object for rotate reformats

The graphic object used for planning a rotate reformat allows you to move the entire plan in the
recon scan area, change where the rotation will take place and where the start and end of the
reformat will be.
430

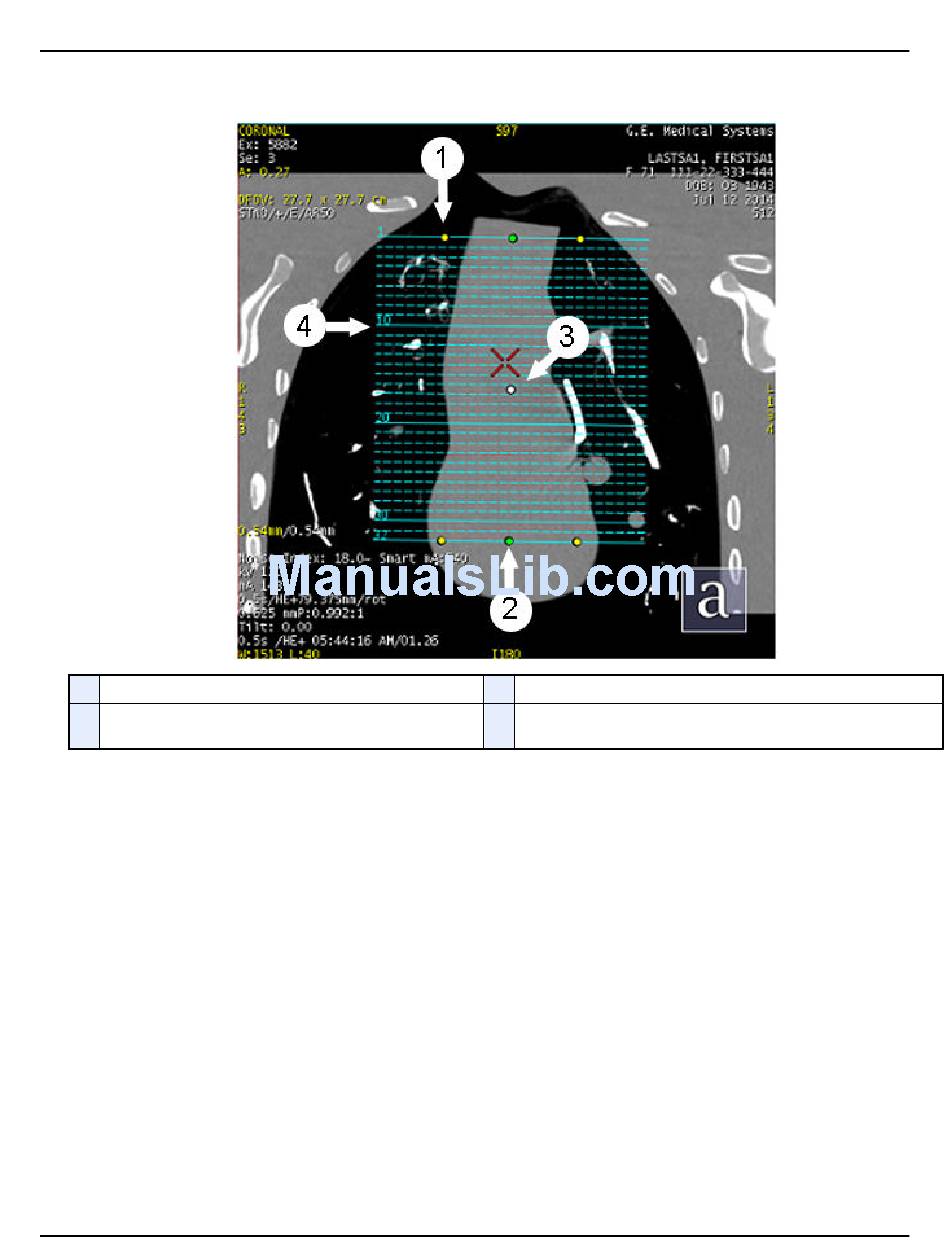

Illustration 15: Graphic object – oblique reformats
Direction 5480385-1EN, Revision 1
3 Handle to move the entire reformat plan
4 Numbers showing start and end of reformat
1 represents the starting point. "N" is the ending point
