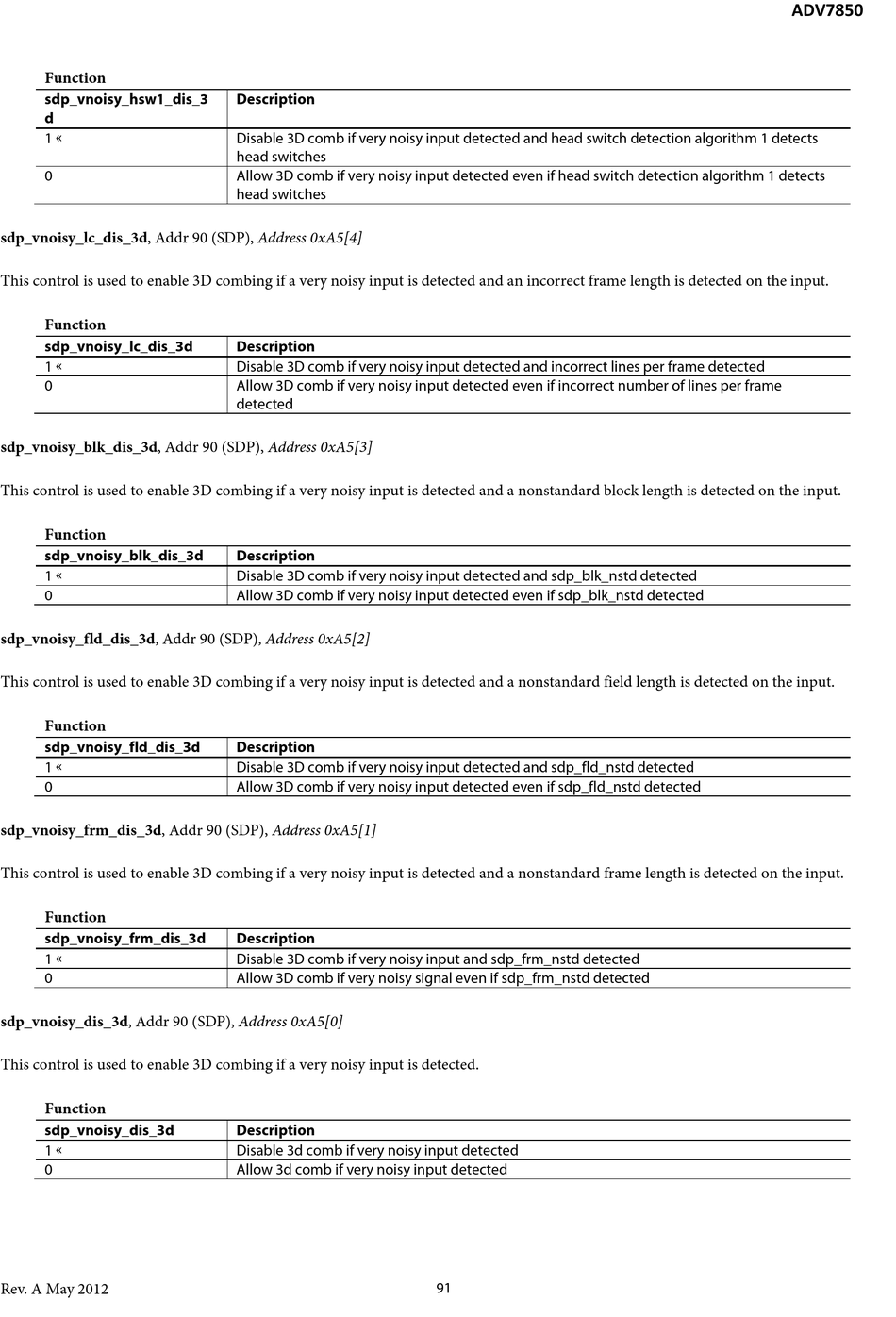

Analog Devices ADV7850 Hardware Manual page 91

Function
sdp_vnoisy_hsw1_dis_3
d
1 
0
sdp_vnoisy_lc_dis_3d, Addr 90 (SDP), Address 0xA5[4]
This control is used to enable 3D combing if a very noisy input is detected and an incorrect frame length is detected on the input.
Function
sdp_vnoisy_lc_dis_3d
1 
0
sdp_vnoisy_blk_dis_3d, Addr 90 (SDP), Address 0xA5[3]
This control is used to enable 3D combing if a very noisy input is detected and a nonstandard block length is detected on the input.
Function
sdp_vnoisy_blk_dis_3d
1 
0
sdp_vnoisy_fld_dis_3d, Addr 90 (SDP), Address 0xA5[2]
This control is used to enable 3D combing if a very noisy input is detected and a nonstandard field length is detected on the input.
Function
sdp_vnoisy_fld_dis_3d
1 
0
sdp_vnoisy_frm_dis_3d, Addr 90 (SDP), Address 0xA5[1]
This control is used to enable 3D combing if a very noisy input is detected and a nonstandard frame length is detected on the input.
Function
sdp_vnoisy_frm_dis_3d
1 
0
sdp_vnoisy_dis_3d, Addr 90 (SDP), Address 0xA5[0]
This control is used to enable 3D combing if a very noisy input is detected.
Function
sdp_vnoisy_dis_3d
1 
0
Rev. A May 2012
Description
Disable 3D comb if very noisy input detected and head switch detection algorithm 1 detects
head switches
Allow 3D comb if very noisy input detected even if head switch detection algorithm 1 detects
head switches
Description
Disable 3D comb if very noisy input detected and incorrect lines per frame detected
Allow 3D comb if very noisy input detected even if incorrect number of lines per frame
detected
Description
Disable 3D comb if very noisy input detected and sdp_blk_nstd detected
Allow 3D comb if very noisy input detected even if sdp_blk_nstd detected
Description
Disable 3D comb if very noisy input detected and sdp_fld_nstd detected
Allow 3D comb if very noisy input detected even if sdp_fld_nstd detected
Description
Disable 3D comb if very noisy input and sdp_frm_nstd detected
Allow 3D comb if very noisy signal even if sdp_frm_nstd detected
Description
Disable 3d comb if very noisy input detected
Allow 3d comb if very noisy input detected
