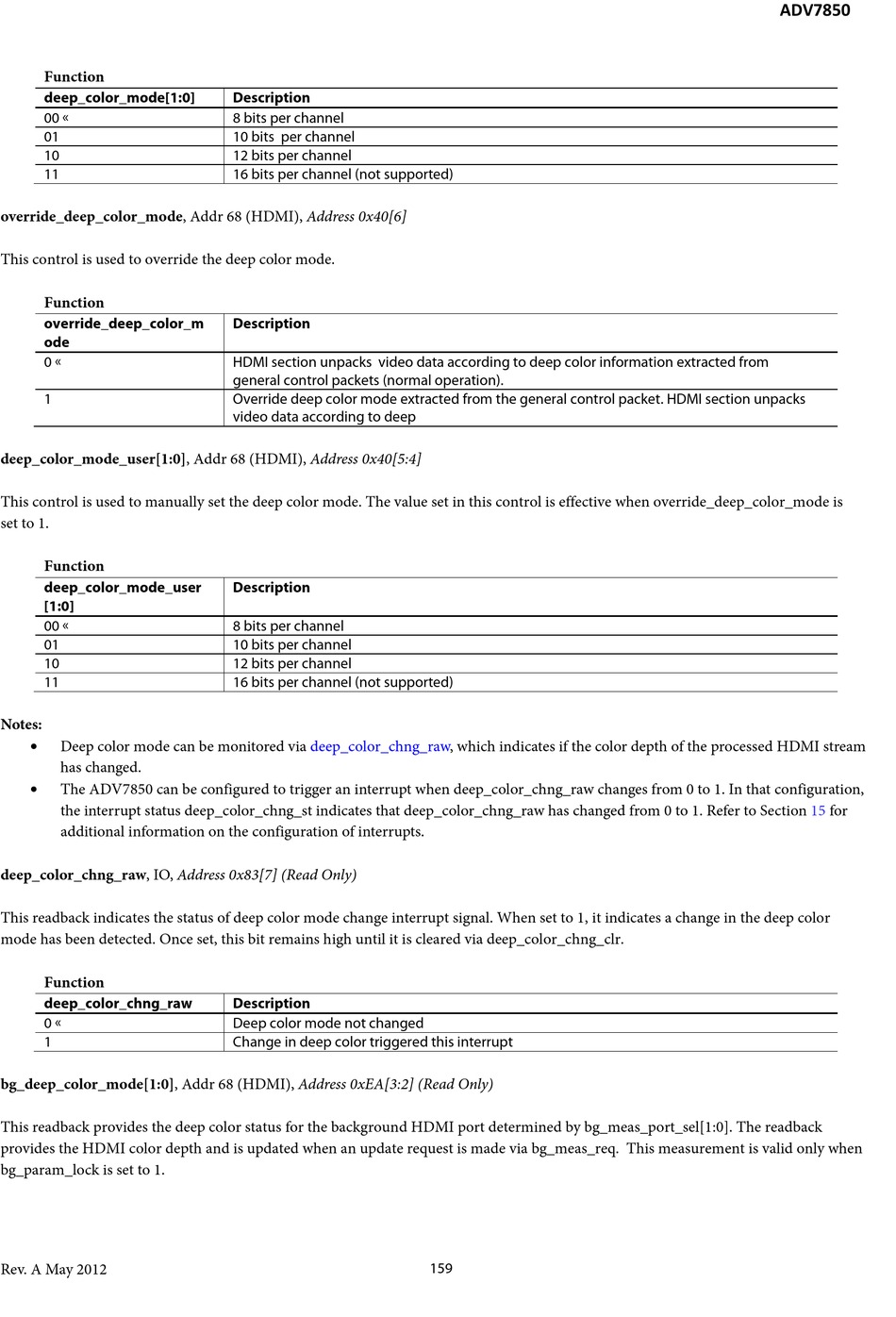

Analog Devices ADV7850 Hardware Manual page 159

Function
deep_color_mode[1:0]
00 
01
10
11
override_deep_color_mode, Addr 68 (HDMI), Address 0x40[6]
This control is used to override the deep color mode.
Function
override_deep_color_m
ode
0 
1
deep_color_mode_user[1:0], Addr 68 (HDMI), Address 0x40[5:4]
This control is used to manually set the deep color mode. The value set in this control is effective when override_deep_color_mode is
set to 1.
Function
deep_color_mode_user
[1:0]
00 
01
10
11
Notes:
• Deep color mode can be monitored via deep_color_chng_raw, which indicates if the color depth of the processed HDMI stream
has changed.
• The ADV7850 can be configured to trigger an interrupt when deep_color_chng_raw changes from 0 to 1. In that configuration,
the interrupt status deep_color_chng_st indicates that deep_color_chng_raw has changed from 0 to 1. Refer to Section
additional information on the configuration of interrupts.
deep_color_chng_raw, IO, Address 0x83[7] (Read Only)
This readback indicates the status of deep color mode change interrupt signal. When set to 1, it indicates a change in the deep color
mode has been detected. Once set, this bit remains high until it is cleared via deep_color_chng_clr.
Function
deep_color_chng_raw
0 
1
bg_deep_color_mode[1:0], Addr 68 (HDMI), Address 0xEA[3:2] (Read Only)
This readback provides the deep color status for the background HDMI port determined by bg_meas_port_sel[1:0]. The readback
provides the HDMI color depth and is updated when an update request is made via bg_meas_req. This measurement is valid only when
bg_param_lock is set to 1.
Rev. A May 2012
Description
8 bits per channel
10 bits per channel
12 bits per channel
16 bits per channel (not supported)
Description
HDMI section unpacks video data according to deep color information extracted from
general control packets (normal operation).
Override deep color mode extracted from the general control packet. HDMI section unpacks
video data according to deep
Description
8 bits per channel
10 bits per channel
12 bits per channel
16 bits per channel (not supported)
Description
Deep color mode not changed
Change in deep color triggered this interrupt
159
ADV7850
15 for
