Figure 33: Lti/Cti Operation Diagram - Analog Devices ADV7850 Hardware Manual

sdp_lti_en, Addr 90 (SDP), Address 0x0E[1]
This control is used to enable Luma Transient Improvement (LTI).
Function
sdp_lti_en
1
0 
sdp_cti_en, Addr 90 (SDP), Address 0x0E[0]
This control is used to enable Chroma Transient Improvement (CTI).
Function
sdp_cti_en
1 
0
sdp_scm_cti_en, Addr 90 (SDP), Address 0x0E[5]
This control is used to enable CTI in SECAM modes.
Function
sdp_scm_cti_en
1 
0
The sdp_scm_cti_en bit enables an independent CTI block for SECAM modes. The SECAM signal is often clipped because of the LF-
emphasis filter that is used on the transmitter side. Once a signal is restored on the receiver side, its chroma transitions are slower.
Rev. A May 2012

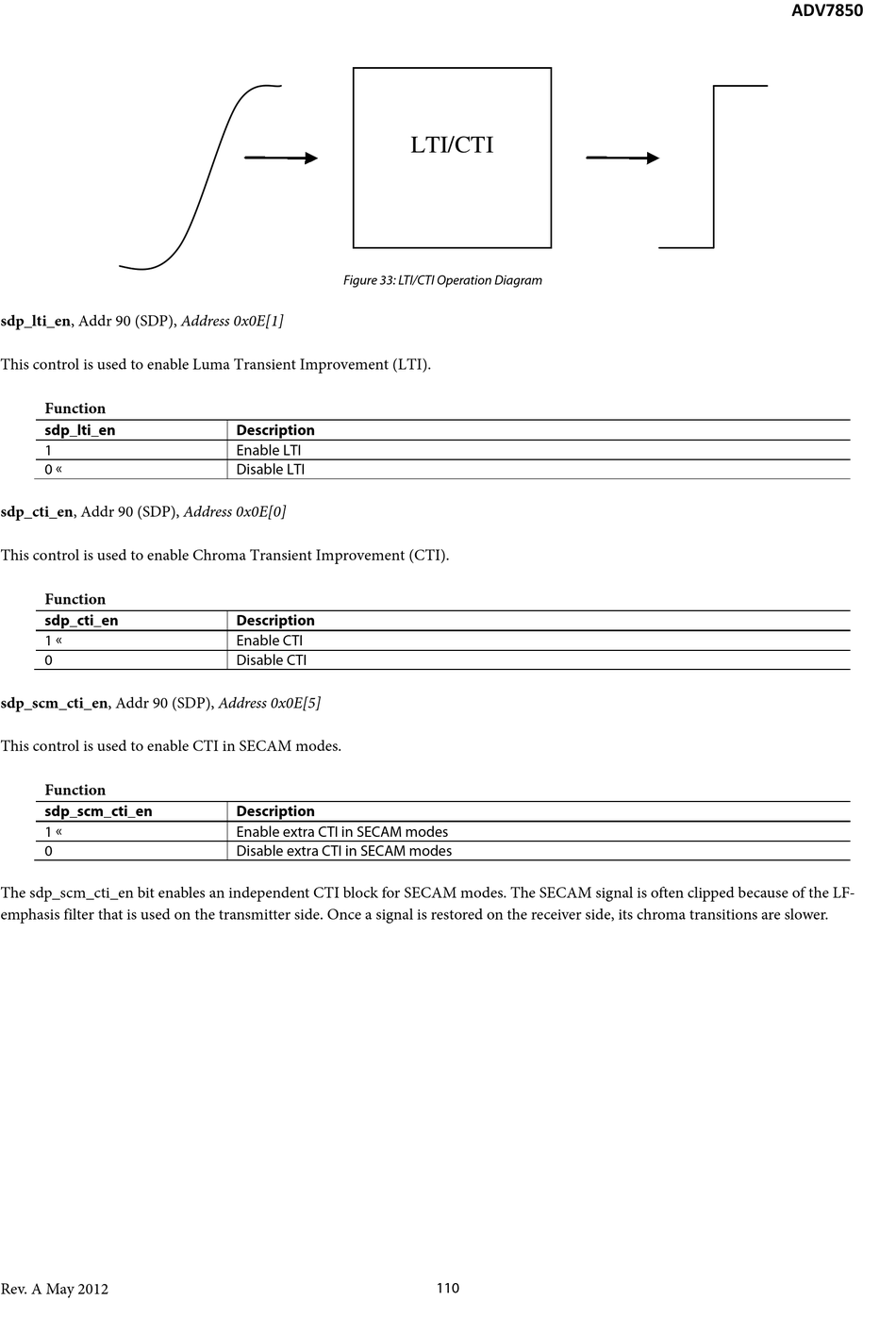

Figure 33: LTI/CTI Operation Diagram

Description
Enable LTI
Disable LTI
Description
Enable CTI
Disable CTI
Description
Enable extra CTI in SECAM modes
Disable extra CTI in SECAM modes
