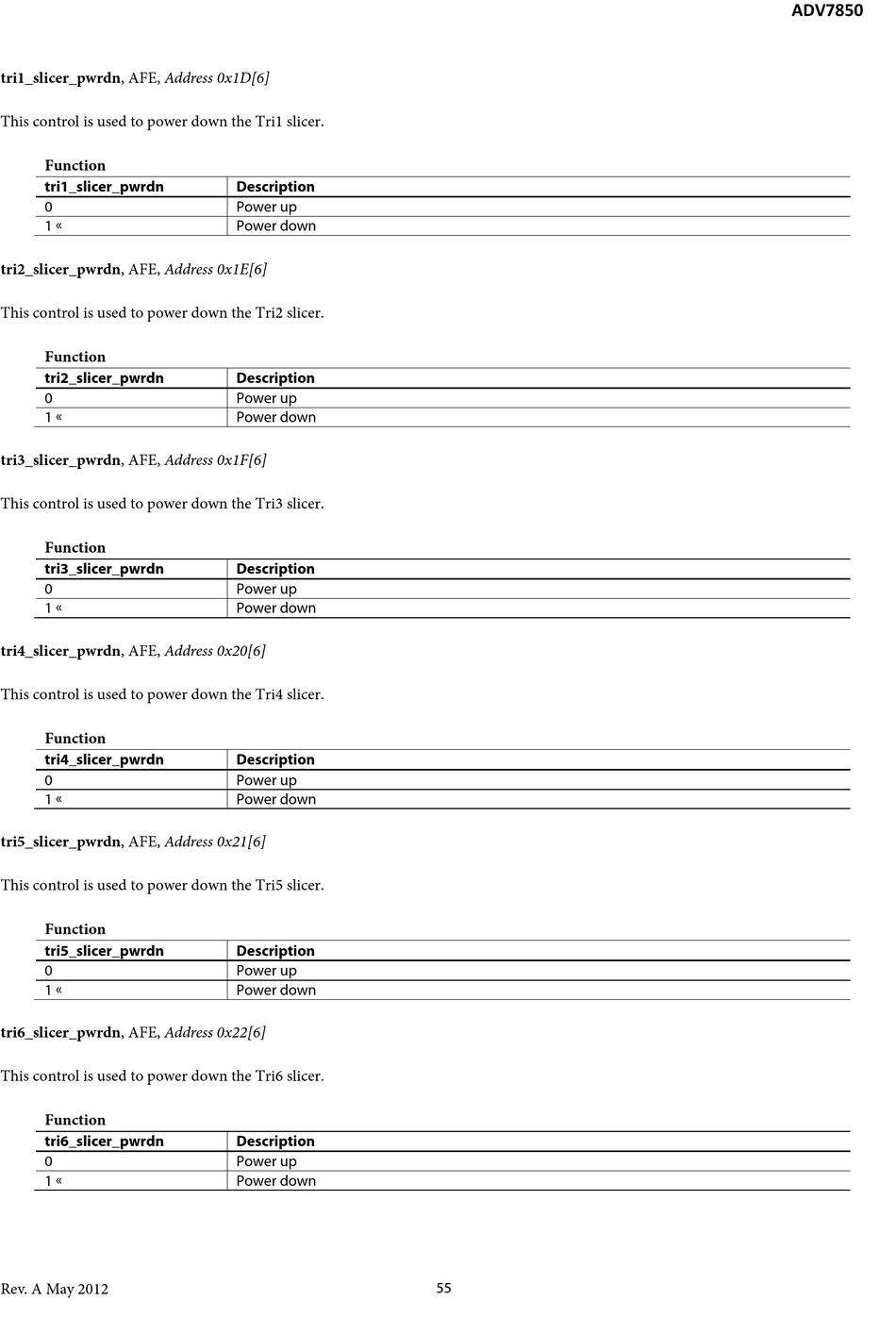

tri1_slicer_pwrdn, AFE, Address 0x1D[6]
This control is used to power down the Tri1 slicer.
Function
tri1_slicer_pwrdn
0
1 
tri2_slicer_pwrdn, AFE, Address 0x1E[6]
This control is used to power down the Tri2 slicer.
Function
tri2_slicer_pwrdn
0
1 
tri3_slicer_pwrdn, AFE, Address 0x1F[6]
This control is used to power down the Tri3 slicer.
Function
tri3_slicer_pwrdn
0
1 
tri4_slicer_pwrdn, AFE, Address 0x20[6]
This control is used to power down the Tri4 slicer.
Function
tri4_slicer_pwrdn
0
1 
tri5_slicer_pwrdn, AFE, Address 0x21[6]
This control is used to power down the Tri5 slicer.
Function
tri5_slicer_pwrdn
0
1 
tri6_slicer_pwrdn, AFE, Address 0x22[6]
This control is used to power down the Tri6 slicer.
Function
tri6_slicer_pwrdn
0
1 
Rev. A May 2012
Description
Power up
Power down
Description
Power up
Power down
Description
Power up
Power down
Description
Power up
Power down
Description
Power up
Power down
Description
Power up
Power down
