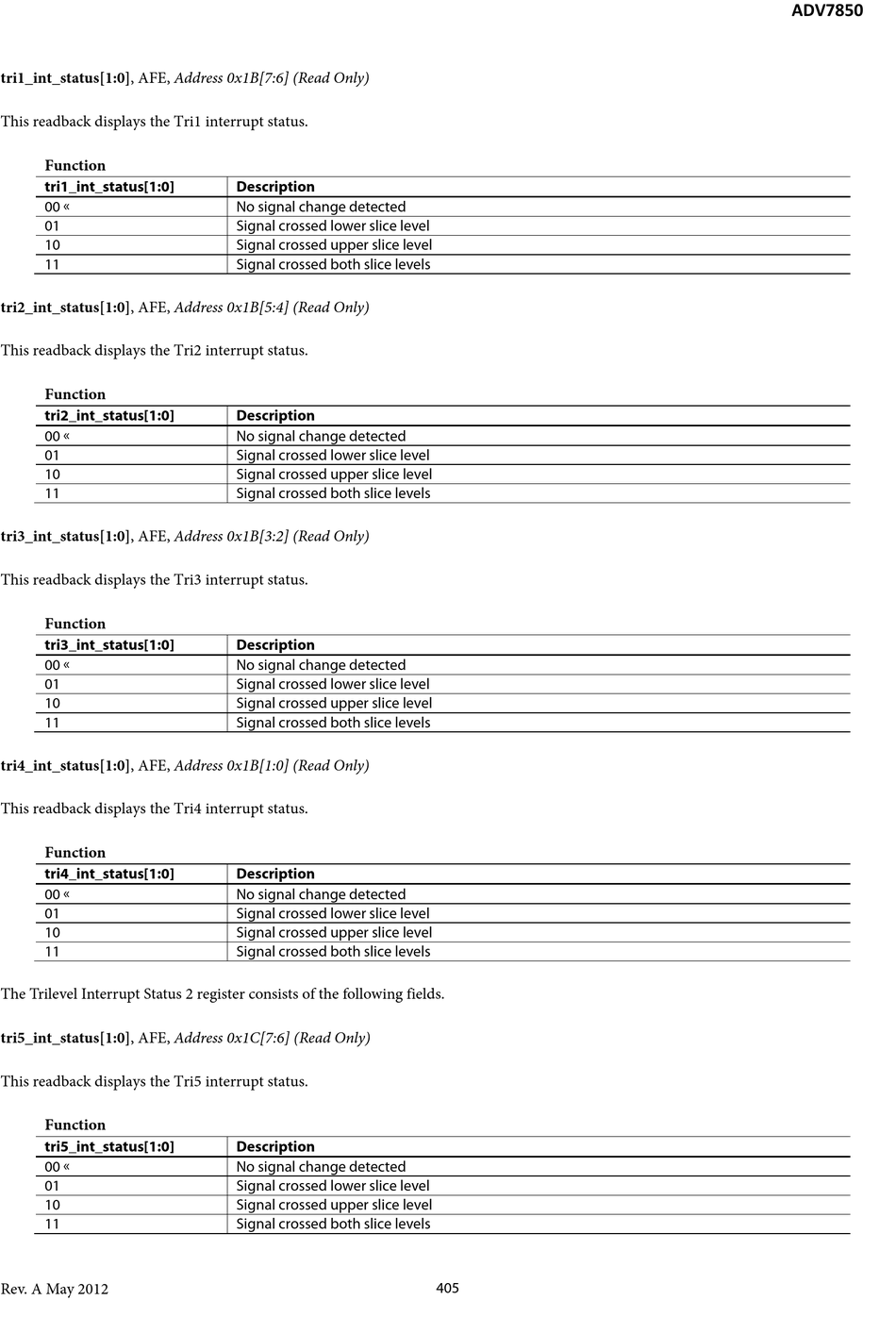

Analog Devices ADV7850 Hardware Manual page 405

tri1_int_status[1:0], AFE, Address 0x1B[7:6] (Read Only)
This readback displays the Tri1 interrupt status.
Function
tri1_int_status[1:0]
00 
01
10
11
tri2_int_status[1:0], AFE, Address 0x1B[5:4] (Read Only)
This readback displays the Tri2 interrupt status.
Function
tri2_int_status[1:0]
00 
01
10
11
tri3_int_status[1:0], AFE, Address 0x1B[3:2] (Read Only)
This readback displays the Tri3 interrupt status.
Function
tri3_int_status[1:0]
00 
01
10
11
tri4_int_status[1:0], AFE, Address 0x1B[1:0] (Read Only)
This readback displays the Tri4 interrupt status.
Function
tri4_int_status[1:0]
00 
01
10
11
The Trilevel Interrupt Status 2 register consists of the following fields.
tri5_int_status[1:0], AFE, Address 0x1C[7:6] (Read Only)
This readback displays the Tri5 interrupt status.
Function
tri5_int_status[1:0]
00 
01
10
11
Rev. A May 2012
Description
No signal change detected
Signal crossed lower slice level
Signal crossed upper slice level
Signal crossed both slice levels
Description
No signal change detected
Signal crossed lower slice level
Signal crossed upper slice level
Signal crossed both slice levels
Description
No signal change detected
Signal crossed lower slice level
Signal crossed upper slice level
Signal crossed both slice levels
Description
No signal change detected
Signal crossed lower slice level
Signal crossed upper slice level
Signal crossed both slice levels
Description
No signal change detected
Signal crossed lower slice level
Signal crossed upper slice level
Signal crossed both slice levels
