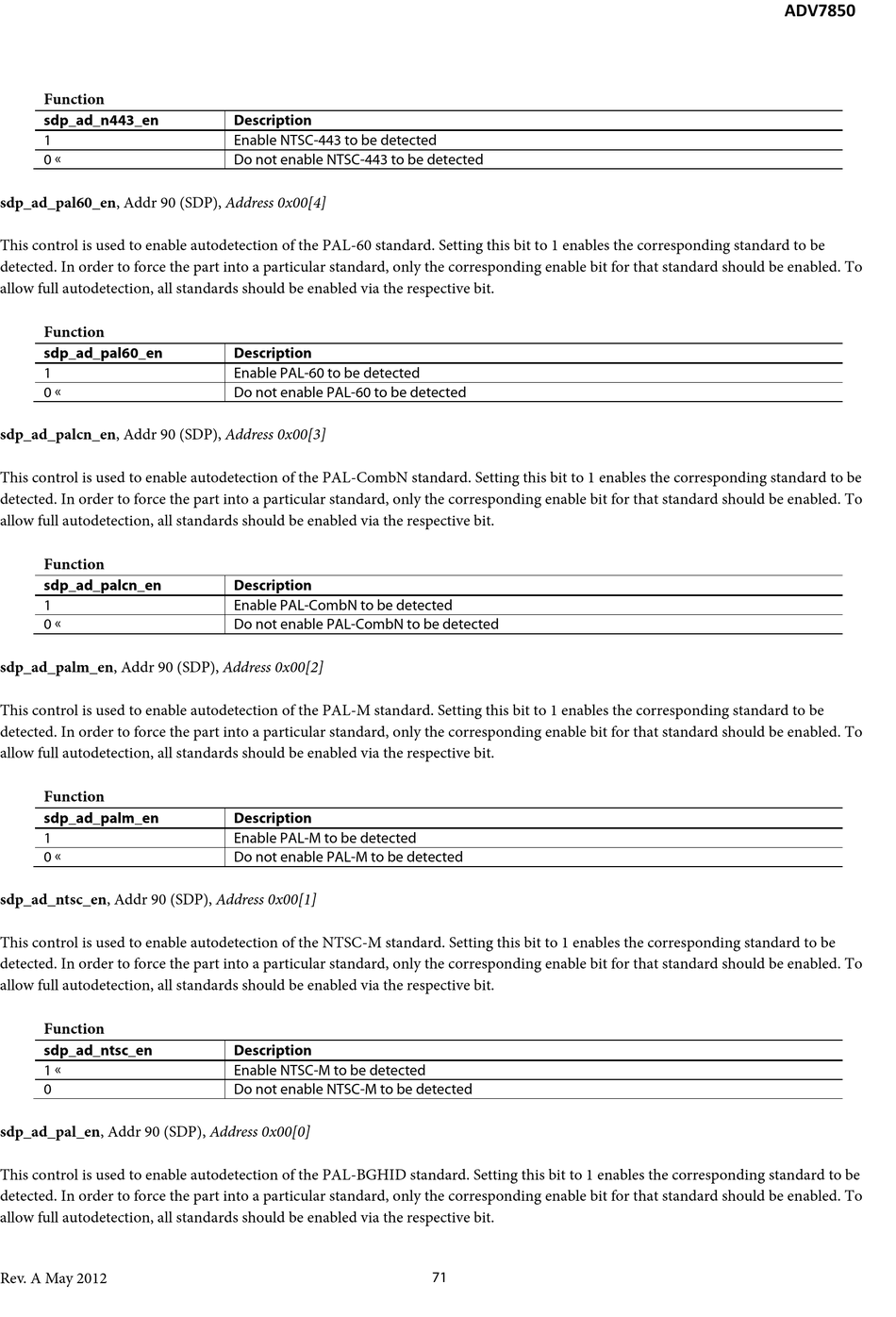

Analog Devices ADV7850 Hardware Manual page 71

Function
sdp_ad_n443_en
1
0 
sdp_ad_pal60_en, Addr 90 (SDP), Address 0x00[4]
This control is used to enable autodetection of the PAL-60 standard. Setting this bit to 1 enables the corresponding standard to be
detected. In order to force the part into a particular standard, only the corresponding enable bit for that standard should be enabled. To
allow full autodetection, all standards should be enabled via the respective bit.
Function
sdp_ad_pal60_en
1
0 
sdp_ad_palcn_en, Addr 90 (SDP), Address 0x00[3]
This control is used to enable autodetection of the PAL-CombN standard. Setting this bit to 1 enables the corresponding standard to be
detected. In order to force the part into a particular standard, only the corresponding enable bit for that standard should be enabled. To
allow full autodetection, all standards should be enabled via the respective bit.
Function
sdp_ad_palcn_en
1
0 
sdp_ad_palm_en, Addr 90 (SDP), Address 0x00[2]
This control is used to enable autodetection of the PAL-M standard. Setting this bit to 1 enables the corresponding standard to be
detected. In order to force the part into a particular standard, only the corresponding enable bit for that standard should be enabled. To
allow full autodetection, all standards should be enabled via the respective bit.
Function
sdp_ad_palm_en
1
0 
sdp_ad_ntsc_en, Addr 90 (SDP), Address 0x00[1]
This control is used to enable autodetection of the NTSC-M standard. Setting this bit to 1 enables the corresponding standard to be
detected. In order to force the part into a particular standard, only the corresponding enable bit for that standard should be enabled. To
allow full autodetection, all standards should be enabled via the respective bit.
Function
sdp_ad_ntsc_en
1 
0
sdp_ad_pal_en, Addr 90 (SDP), Address 0x00[0]
This control is used to enable autodetection of the PAL-BGHID standard. Setting this bit to 1 enables the corresponding standard to be
detected. In order to force the part into a particular standard, only the corresponding enable bit for that standard should be enabled. To
allow full autodetection, all standards should be enabled via the respective bit.
Rev. A May 2012
Description
Enable NTSC-443 to be detected
Do not enable NTSC-443 to be detected
Description
Enable PAL-60 to be detected
Do not enable PAL-60 to be detected
Description
Enable PAL-CombN to be detected
Do not enable PAL-CombN to be detected
Description
Enable PAL-M to be detected
Do not enable PAL-M to be detected
Description
Enable NTSC-M to be detected
Do not enable NTSC-M to be detected
71
