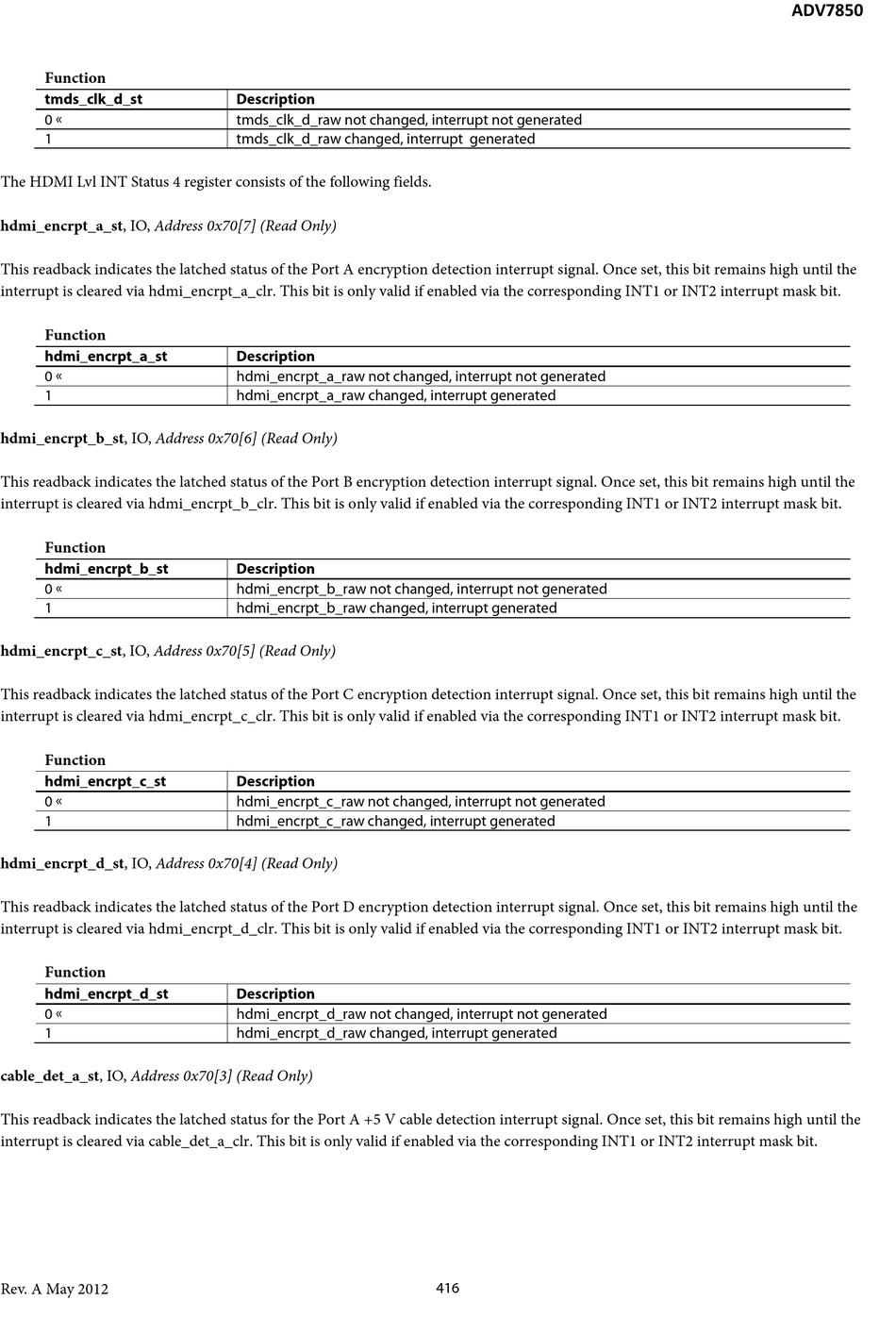

Function
tmds_clk_d_st
0 
1
The HDMI Lvl INT Status 4 register consists of the following fields.
hdmi_encrpt_a_st, IO, Address 0x70[7] (Read Only)
This readback indicates the latched status of the Port A encryption detection interrupt signal. Once set, this bit remains high until the
interrupt is cleared via hdmi_encrpt_a_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
hdmi_encrpt_a_st
0 
1
hdmi_encrpt_b_st, IO, Address 0x70[6] (Read Only)
This readback indicates the latched status of the Port B encryption detection interrupt signal. Once set, this bit remains high until the
interrupt is cleared via hdmi_encrpt_b_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
hdmi_encrpt_b_st
0 
1
hdmi_encrpt_c_st, IO, Address 0x70[5] (Read Only)
This readback indicates the latched status of the Port C encryption detection interrupt signal. Once set, this bit remains high until the
interrupt is cleared via hdmi_encrpt_c_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
hdmi_encrpt_c_st
0 
1
hdmi_encrpt_d_st, IO, Address 0x70[4] (Read Only)
This readback indicates the latched status of the Port D encryption detection interrupt signal. Once set, this bit remains high until the
interrupt is cleared via hdmi_encrpt_d_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
hdmi_encrpt_d_st
0 
1
cable_det_a_st, IO, Address 0x70[3] (Read Only)
This readback indicates the latched status for the Port A +5 V cable detection interrupt signal. Once set, this bit remains high until the
interrupt is cleared via cable_det_a_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Rev. A May 2012
Description
tmds_clk_d_raw not changed, interrupt not generated
tmds_clk_d_raw changed, interrupt generated
Description
hdmi_encrpt_a_raw not changed, interrupt not generated
hdmi_encrpt_a_raw changed, interrupt generated
Description
hdmi_encrpt_b_raw not changed, interrupt not generated
hdmi_encrpt_b_raw changed, interrupt generated
Description
hdmi_encrpt_c_raw not changed, interrupt not generated
hdmi_encrpt_c_raw changed, interrupt generated
Description
hdmi_encrpt_d_raw not changed, interrupt not generated
hdmi_encrpt_d_raw changed, interrupt generated
