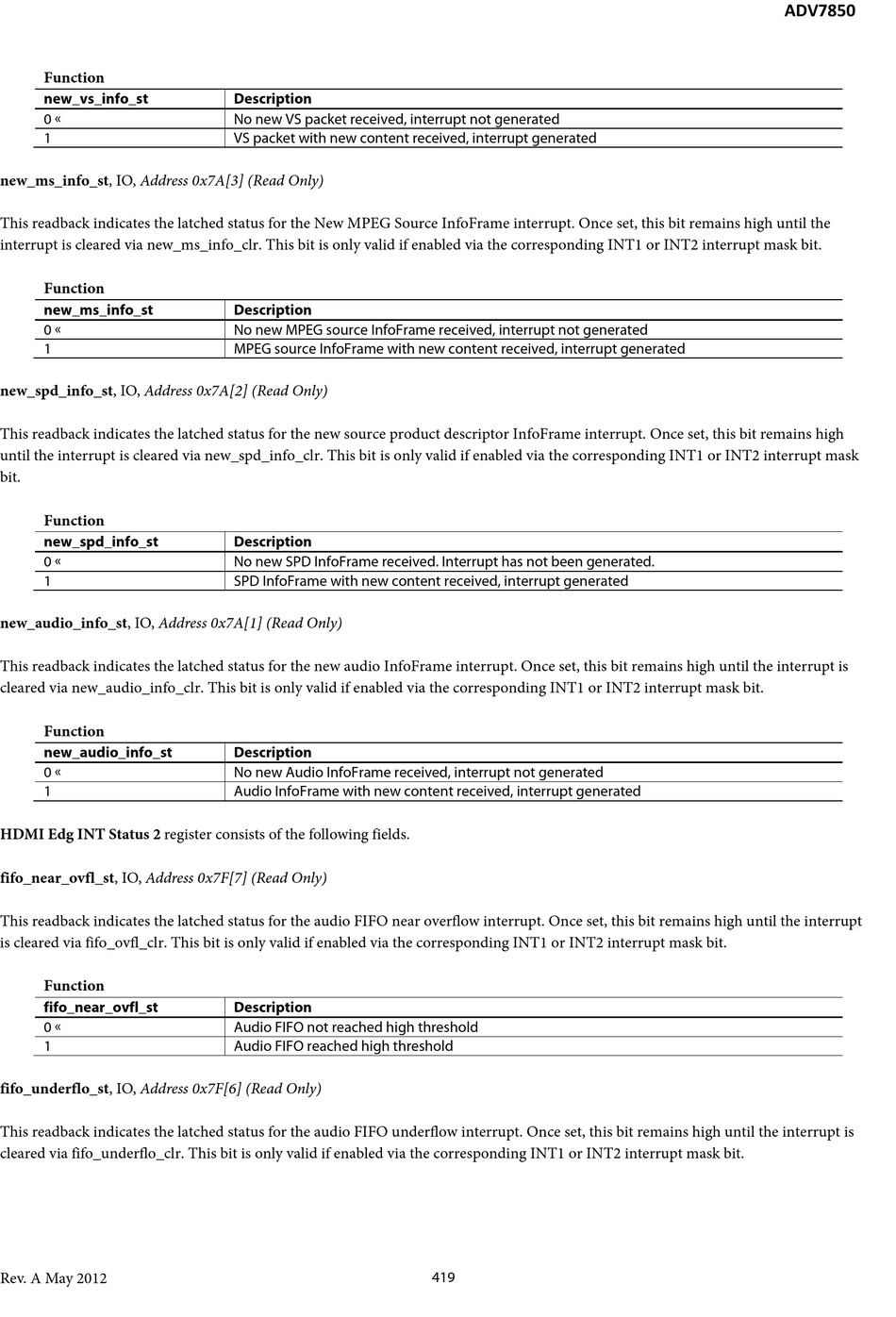

Function
new_vs_info_st
0 
1
new_ms_info_st, IO, Address 0x7A[3] (Read Only)
This readback indicates the latched status for the New MPEG Source InfoFrame interrupt. Once set, this bit remains high until the
interrupt is cleared via new_ms_info_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
new_ms_info_st
0 
1
new_spd_info_st, IO, Address 0x7A[2] (Read Only)
This readback indicates the latched status for the new source product descriptor InfoFrame interrupt. Once set, this bit remains high
until the interrupt is cleared via new_spd_info_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask
bit.
Function
new_spd_info_st
0 
1
new_audio_info_st, IO, Address 0x7A[1] (Read Only)
This readback indicates the latched status for the new audio InfoFrame interrupt. Once set, this bit remains high until the interrupt is
cleared via new_audio_info_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
new_audio_info_st
0 
1
HDMI Edg INT Status 2 register consists of the following fields.
fifo_near_ovfl_st, IO, Address 0x7F[7] (Read Only)
This readback indicates the latched status for the audio FIFO near overflow interrupt. Once set, this bit remains high until the interrupt
is cleared via fifo_ovfl_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
fifo_near_ovfl_st
0 
1
fifo_underflo_st, IO, Address 0x7F[6] (Read Only)
This readback indicates the latched status for the audio FIFO underflow interrupt. Once set, this bit remains high until the interrupt is
cleared via fifo_underflo_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Rev. A May 2012
Description
No new VS packet received, interrupt not generated
VS packet with new content received, interrupt generated
Description
No new MPEG source InfoFrame received, interrupt not generated
MPEG source InfoFrame with new content received, interrupt generated
Description
No new SPD InfoFrame received. Interrupt has not been generated.
SPD InfoFrame with new content received, interrupt generated
Description
No new Audio InfoFrame received, interrupt not generated
Audio InfoFrame with new content received, interrupt generated
Description
Audio FIFO not reached high threshold
Audio FIFO reached high threshold
