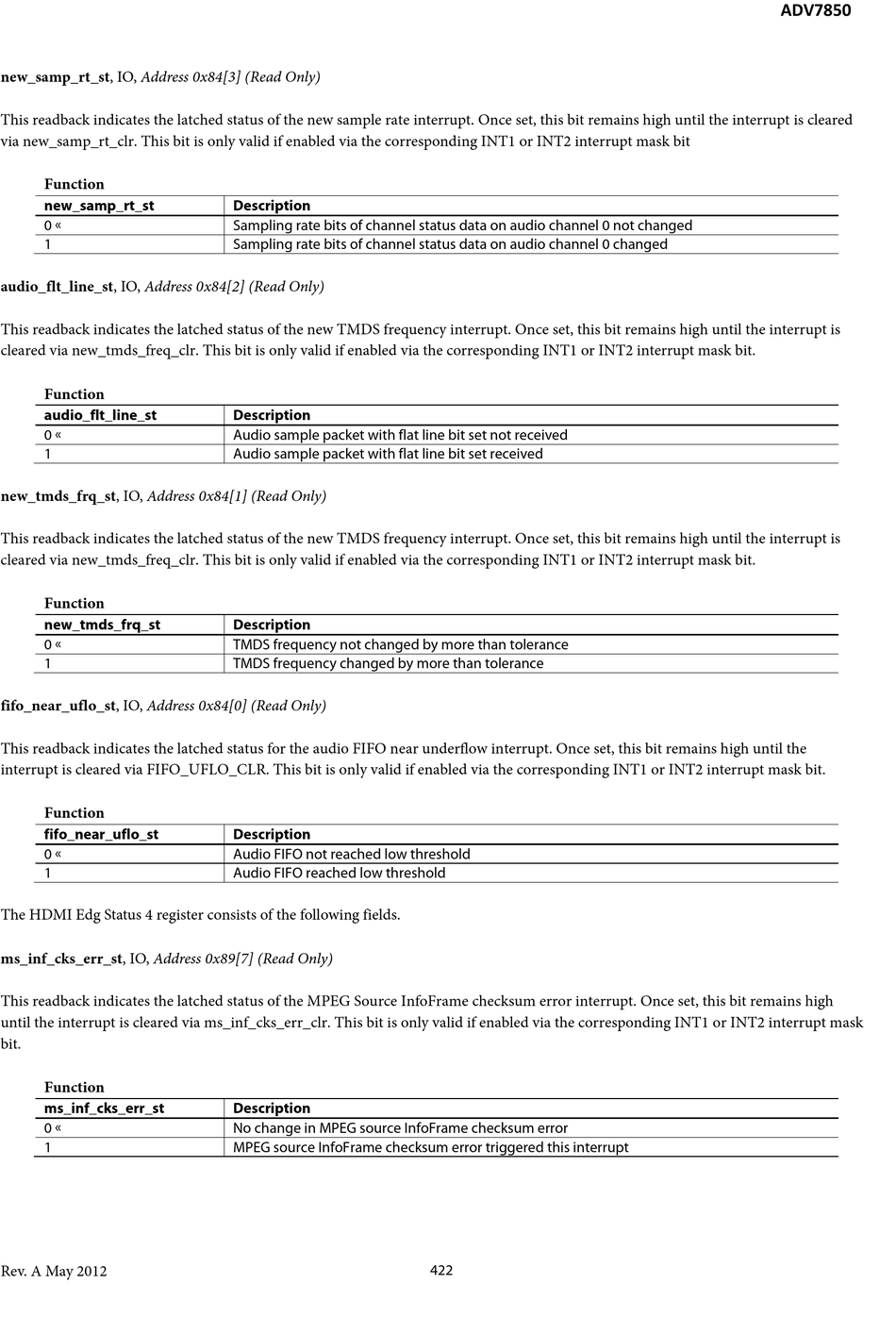

Analog Devices ADV7850 Hardware Manual page 422

new_samp_rt_st, IO, Address 0x84[3] (Read Only)
This readback indicates the latched status of the new sample rate interrupt. Once set, this bit remains high until the interrupt is cleared
via new_samp_rt_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit
Function
new_samp_rt_st
0 
1
audio_flt_line_st, IO, Address 0x84[2] (Read Only)
This readback indicates the latched status of the new TMDS frequency interrupt. Once set, this bit remains high until the interrupt is
cleared via new_tmds_freq_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
audio_flt_line_st
0 
1
new_tmds_frq_st, IO, Address 0x84[1] (Read Only)
This readback indicates the latched status of the new TMDS frequency interrupt. Once set, this bit remains high until the interrupt is
cleared via new_tmds_freq_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
new_tmds_frq_st
0 
1
fifo_near_uflo_st, IO, Address 0x84[0] (Read Only)
This readback indicates the latched status for the audio FIFO near underflow interrupt. Once set, this bit remains high until the
interrupt is cleared via FIFO_UFLO_CLR. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
fifo_near_uflo_st
0 
1
The HDMI Edg Status 4 register consists of the following fields.
ms_inf_cks_err_st, IO, Address 0x89[7] (Read Only)
This readback indicates the latched status of the MPEG Source InfoFrame checksum error interrupt. Once set, this bit remains high
until the interrupt is cleared via ms_inf_cks_err_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask
bit.
Function
ms_inf_cks_err_st
0 
1
Rev. A May 2012
Description
Sampling rate bits of channel status data on audio channel 0 not changed
Sampling rate bits of channel status data on audio channel 0 changed
Description
Audio sample packet with flat line bit set not received
Audio sample packet with flat line bit set received
Description
TMDS frequency not changed by more than tolerance
TMDS frequency changed by more than tolerance
Description
Audio FIFO not reached low threshold
Audio FIFO reached low threshold
Description
No change in MPEG source InfoFrame checksum error
MPEG source InfoFrame checksum error triggered this interrupt
