Color Space Conversion Matrix; Cp Csc Selection; Figure 76: Configuring Cp Csc Block - Analog Devices ADV7850 Hardware Manual

Function
dcm_ch_en2
1
0 <<
dcm_ch_en3, Addr A0 (VFE), Address 0x23[3]
This control is used to power up channel 3.
Function
dcm_ch_en3
1
0 <<

8.3 COLOR SPACE CONVERSION MATRIX

The ADV7850 provides any-to-any color space conversion support. It supports formats such as RGB, YUV, and YCbCr. The Color Space
Converter (CSC) is designed to run at speeds of up to 170 MHz.
The CSC is in the CP block (CP
CP CSC is the main color space converter. The CPP block also has an automatic non programmable CSC. The ADV7850 will
automatically configure the fixed CSC for certain modes, depending on the input and output formats and the use of the color control
feature.
The configuration of the color space conversion using the CP CSC block and a description of the adjustable controls is provided in
76.
Channel A, B & C

CP CSC Selection

8.3.1
man_cp_csc_en, Addr 44 (CP), Address 0x69[4]
This control is used to manually enable the CP CSC. By default, the CP CSC is automatically enabled in the case where either a color
space conversion or video adjustment (hue, saturation, contrast, or brightness) is determined to be required due to other I2C settings. If
man_cp_csc_en is set to 1, the CP CSC is forced into the enabled state.
Rev. A May 2012
Description
Power up channel 2
Power down channel 2
Description
Power up channel 3
Power down channel 3
CSC). The CP also provides color controls for brightness, contrast, saturation and hue adjustments. The
CSC_COEFF_SEL
From DPP
CP Color Space
Conversion Matrix
(CP CSC)

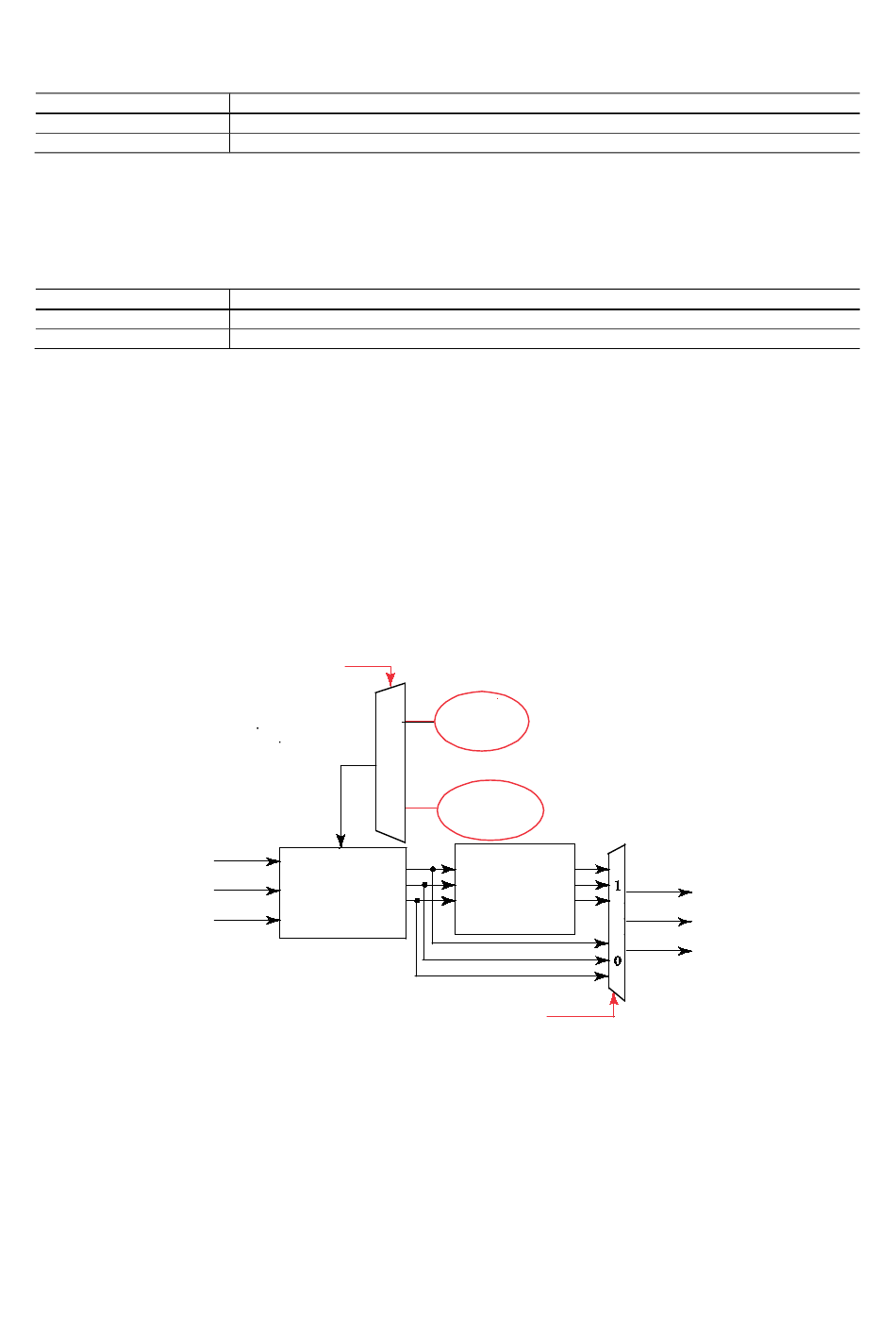

Figure 76: Configuring CP CSC Block

Manual CSC Mode
CSC_SCALE
A1-A4[12:0]
0000
B1-B4[12:0]
C1-C4[12:0]
Automatic CSC Mode
RGB_OUT
1111
INP_COLOR_SPACE
ALT_GAMMA
CP Color Control
CP_BRIGHTNESS
CP_SATURATION
CP_CONTRAST
CP_HUE
VID_ADJ_EN
230
ADV7850
Channel A, B & C
To CP Core
Figure
