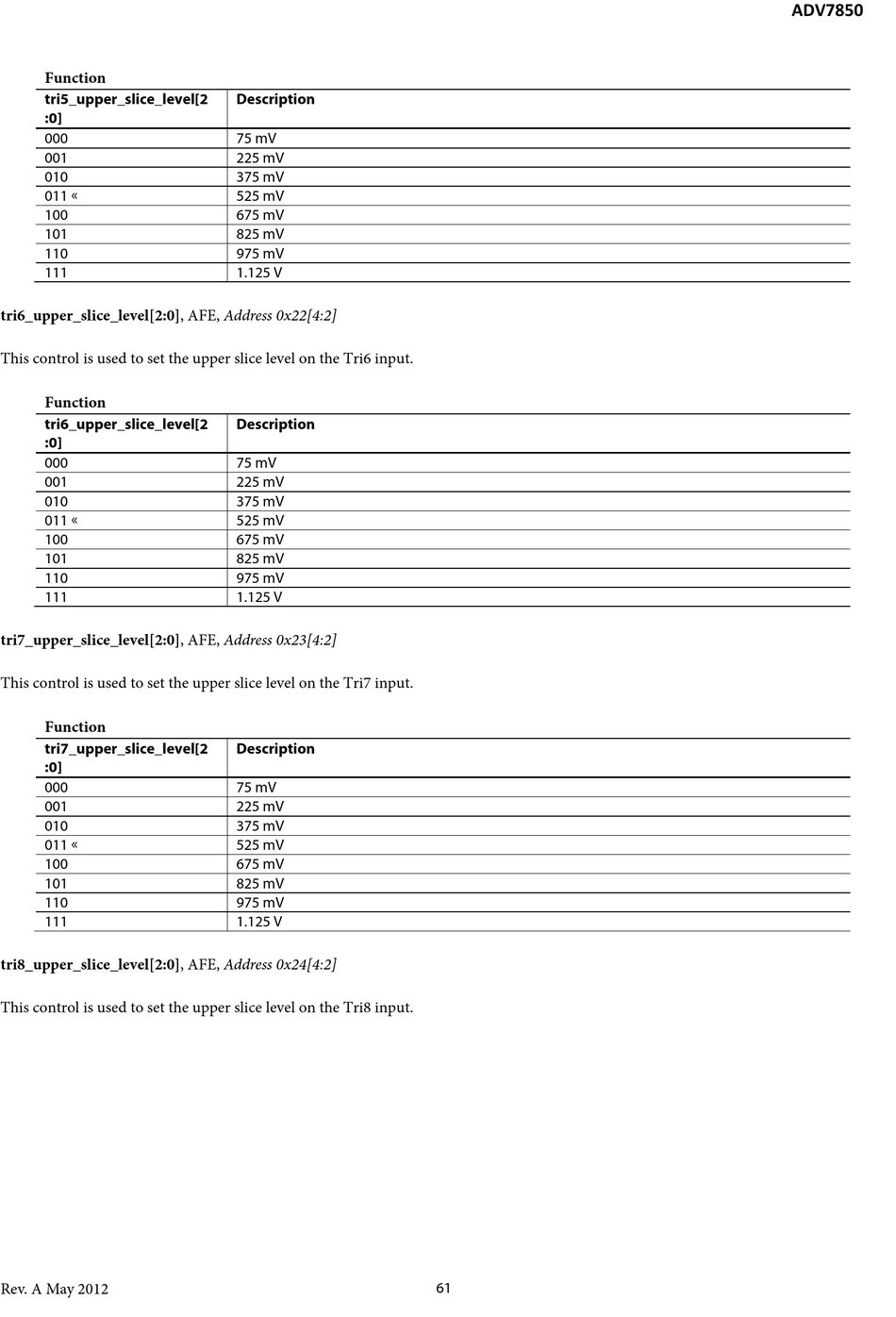

Analog Devices ADV7850 Hardware Manual page 61

Function
tri5_upper_slice_level[2
:0]
000
001
010
011 
100
101
110
111
tri6_upper_slice_level[2:0], AFE, Address 0x22[4:2]
This control is used to set the upper slice level on the Tri6 input.
Function
tri6_upper_slice_level[2
:0]
000
001
010
011 
100
101
110
111
tri7_upper_slice_level[2:0], AFE, Address 0x23[4:2]
This control is used to set the upper slice level on the Tri7 input.
Function
tri7_upper_slice_level[2
:0]
000
001
010
011 
100
101
110
111
tri8_upper_slice_level[2:0], AFE, Address 0x24[4:2]
This control is used to set the upper slice level on the Tri8 input.
Rev. A May 2012
Description
75 mV
225 mV
375 mV
525 mV
675 mV
825 mV
975 mV
1.125 V
Description
75 mV
225 mV
375 mV
525 mV
675 mV
825 mV
975 mV
1.125 V
Description
75 mV
225 mV
375 mV
525 mV
675 mV
825 mV
975 mV
1.125 V
61
ADV7850
