up_conversion_mode, Addr 68 (HDMI), Address 0x1D[5]
This control is used to select linear or interpolated 4:2:2 to 4:4:4 conversion. A 4:2:2 incoming stream is always upconverted to a 4:4:4
stream before being sent to the CP.
Function
up_conversion_mode
0 
1

7.40 COLOR SPACE INFORMATION SENT TO THE CP SECTION

The HDMI section sends information regarding the color space of the video it outputs to the CP sections. This color space information is
derived from the DVI/HDMI status of the input stream the HDMI section processes and from the AVI InfoFrame that the HDMI section
decodes from the input stream. The color space information sent by the HDMI section to the CP section can be read via
hdmi_colorspace[3:0].
hdmi_colorspace[3:0], Addr 68 (HDMI), Address 0x53[3:0] (Read Only)
This readback displays the HDMI input color space decoded from the AVI InfoFrame.
Function
hdmi_colorspace[3:0]
0000 
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010

7.41 STATUS REGISTERS

Many status bit are available throughout the IO Map and the HDMI Map. These status bits are listed in the following tables.
Rev. A May 2012
Y / Cb / Cr
0 0 0
Y
Y
Bit 12-0
0
Cb
Cb Bit 12-0
0
Cr
Cr
Bit 12-0
0

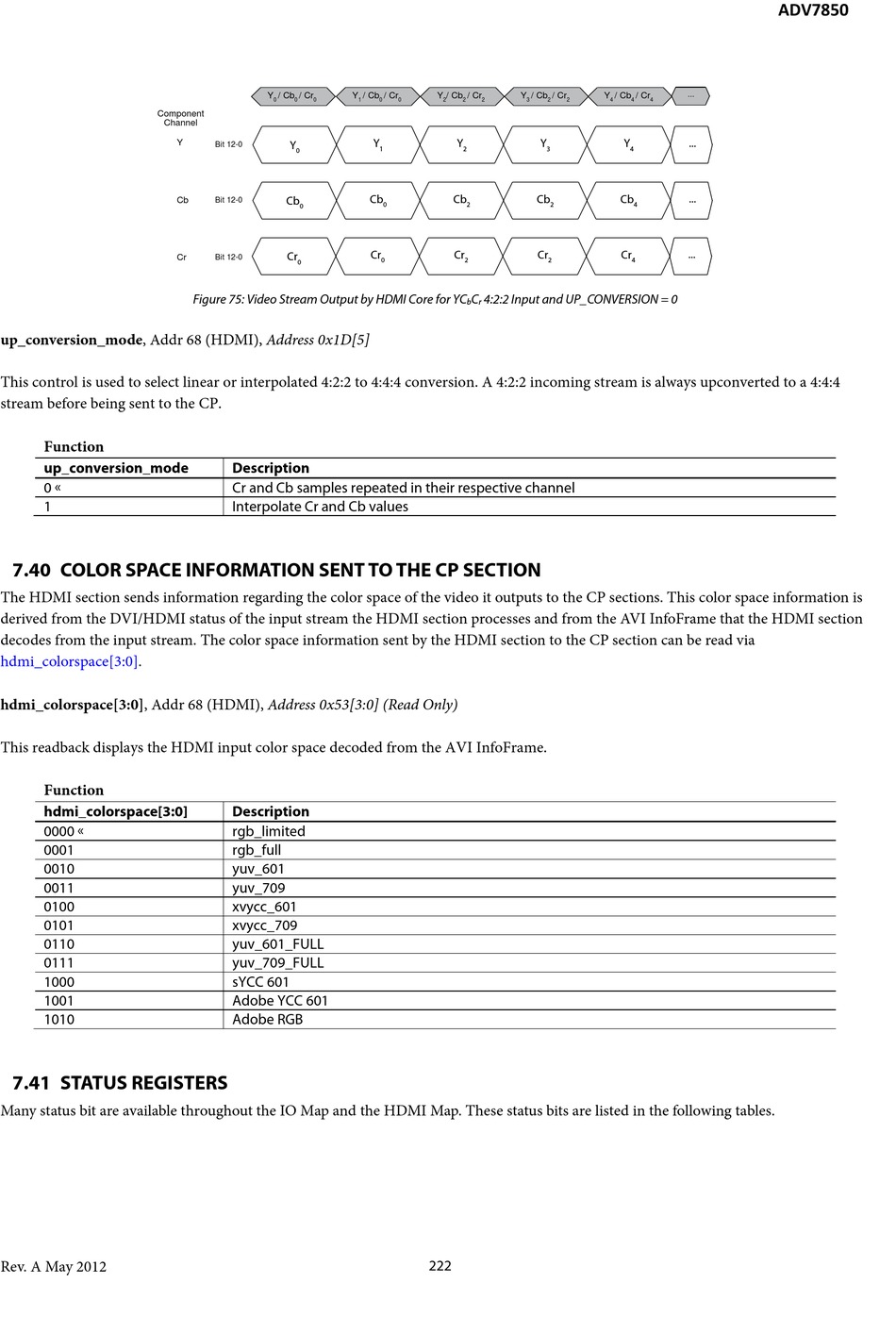

Figure 75: Video Stream Output by HDMI Core for YC
