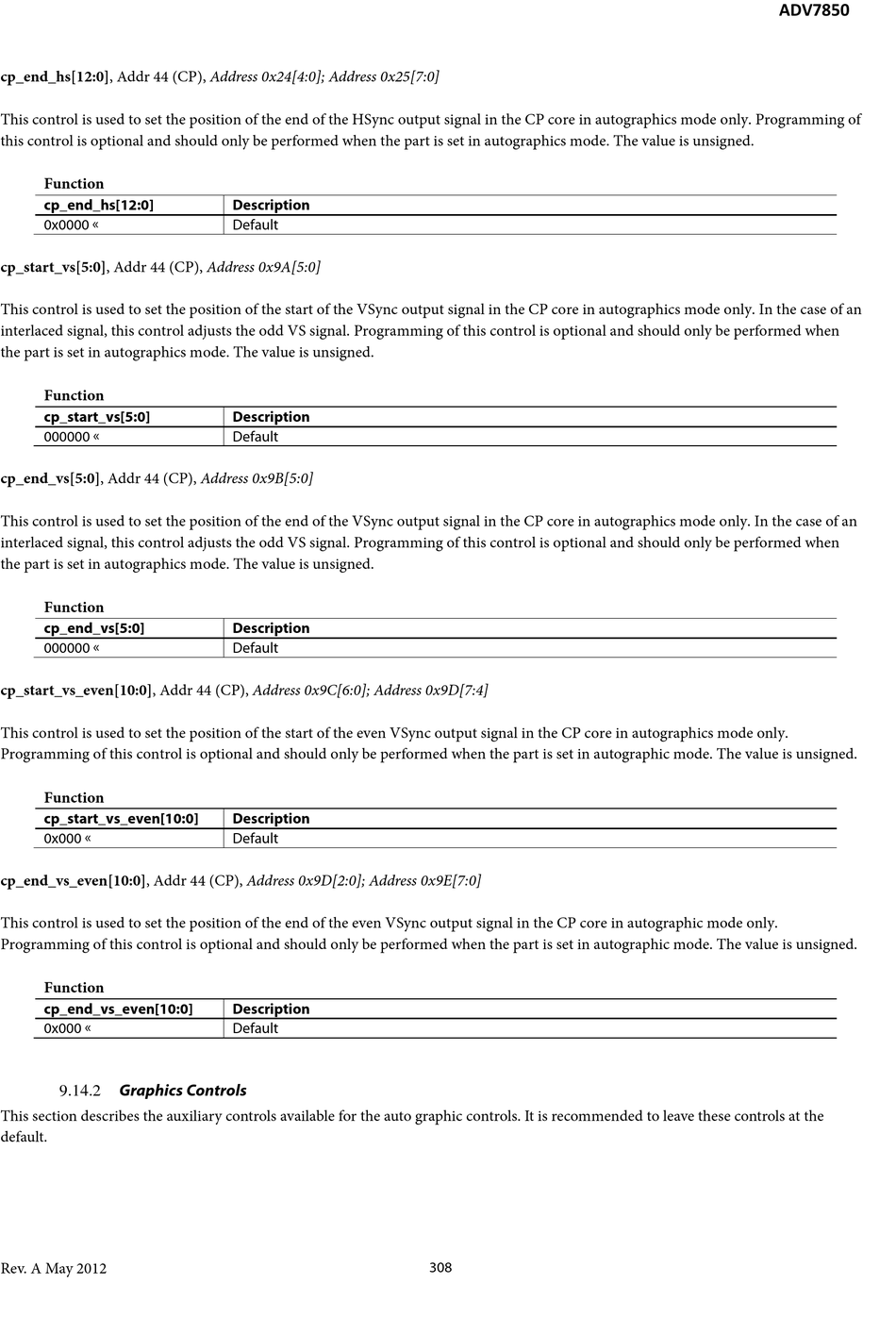

cp_end_hs[12:0], Addr 44 (CP), Address 0x24[4:0]; Address 0x25[7:0]
This control is used to set the position of the end of the HSync output signal in the CP core in autographics mode only. Programming of
this control is optional and should only be performed when the part is set in autographics mode. The value is unsigned.
Function
cp_end_hs[12:0]
0x0000 
cp_start_vs[5:0], Addr 44 (CP), Address 0x9A[5:0]
This control is used to set the position of the start of the VSync output signal in the CP core in autographics mode only. In the case of an
interlaced signal, this control adjusts the odd VS signal. Programming of this control is optional and should only be performed when
the part is set in autographics mode. The value is unsigned.
Function
cp_start_vs[5:0]
000000 
cp_end_vs[5:0], Addr 44 (CP), Address 0x9B[5:0]
This control is used to set the position of the end of the VSync output signal in the CP core in autographics mode only. In the case of an
interlaced signal, this control adjusts the odd VS signal. Programming of this control is optional and should only be performed when
the part is set in autographics mode. The value is unsigned.
Function
cp_end_vs[5:0]
000000 
cp_start_vs_even[10:0], Addr 44 (CP), Address 0x9C[6:0]; Address 0x9D[7:4]
This control is used to set the position of the start of the even VSync output signal in the CP core in autographics mode only.
Programming of this control is optional and should only be performed when the part is set in autographic mode. The value is unsigned.
Function
cp_start_vs_even[10:0]
0x000 
cp_end_vs_even[10:0], Addr 44 (CP), Address 0x9D[2:0]; Address 0x9E[7:0]
This control is used to set the position of the end of the even VSync output signal in the CP core in autographic mode only.
Programming of this control is optional and should only be performed when the part is set in autographic mode. The value is unsigned.
Function
cp_end_vs_even[10:0]
0x000 

Graphics Controls

9.14.2
This section describes the auxiliary controls available for the auto graphic controls. It is recommended to leave these controls at the
default.
Rev. A May 2012
Description
Default
Description
Default
Description
Default
Description
Default
Description
Default
308
ADV7850
