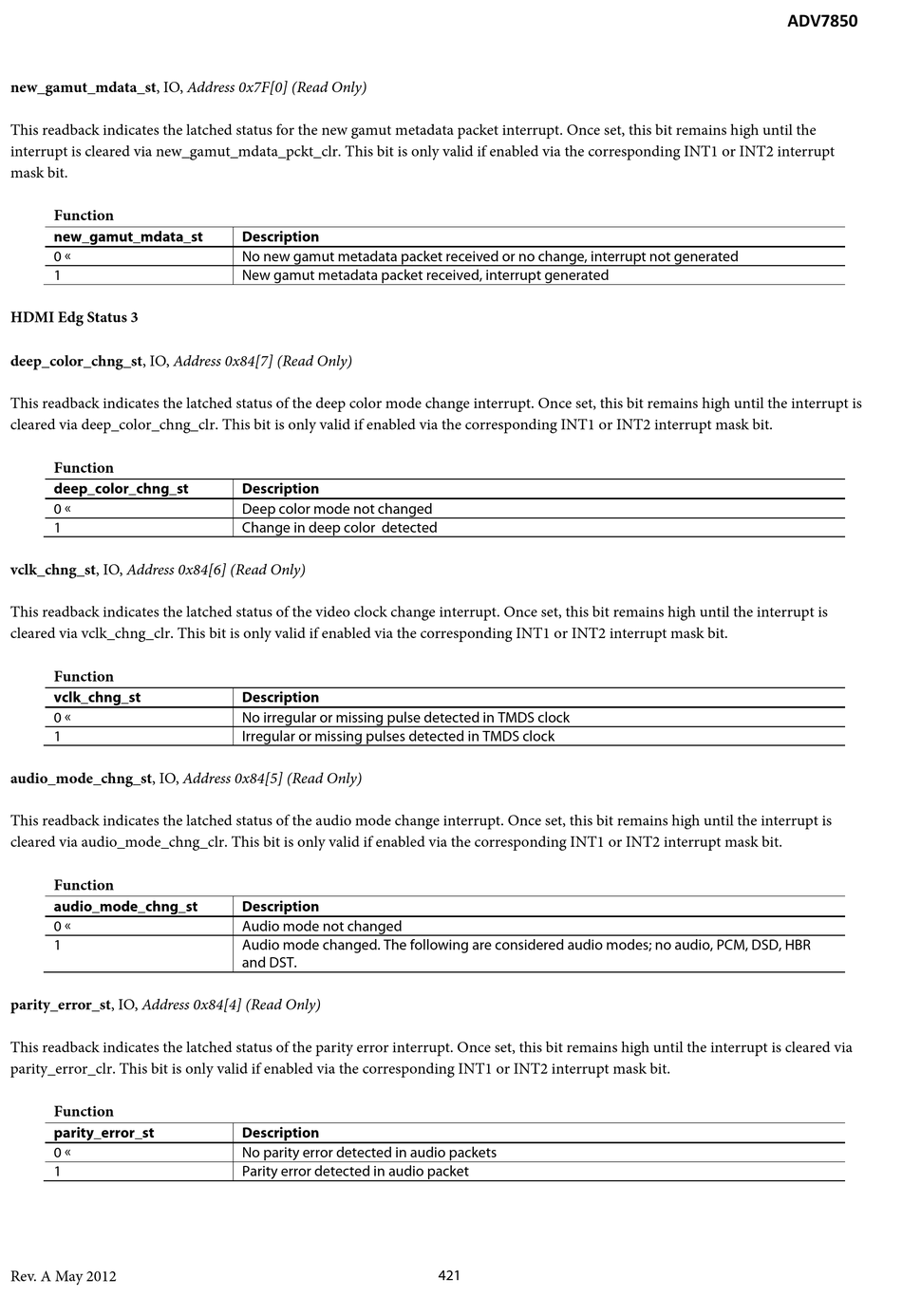

Analog Devices ADV7850 Hardware Manual page 421

new_gamut_mdata_st, IO, Address 0x7F[0] (Read Only)
This readback indicates the latched status for the new gamut metadata packet interrupt. Once set, this bit remains high until the
interrupt is cleared via new_gamut_mdata_pckt_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt
mask bit.
Function
new_gamut_mdata_st
0 
1
HDMI Edg Status 3
deep_color_chng_st, IO, Address 0x84[7] (Read Only)
This readback indicates the latched status of the deep color mode change interrupt. Once set, this bit remains high until the interrupt is
cleared via deep_color_chng_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
deep_color_chng_st
0 
1
vclk_chng_st, IO, Address 0x84[6] (Read Only)
This readback indicates the latched status of the video clock change interrupt. Once set, this bit remains high until the interrupt is
cleared via vclk_chng_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
vclk_chng_st
0 
1
audio_mode_chng_st, IO, Address 0x84[5] (Read Only)
This readback indicates the latched status of the audio mode change interrupt. Once set, this bit remains high until the interrupt is
cleared via audio_mode_chng_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
audio_mode_chng_st
0 
1
parity_error_st, IO, Address 0x84[4] (Read Only)
This readback indicates the latched status of the parity error interrupt. Once set, this bit remains high until the interrupt is cleared via
parity_error_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
parity_error_st
0 
1
Rev. A May 2012
Description
No new gamut metadata packet received or no change, interrupt not generated
New gamut metadata packet received, interrupt generated
Description
Deep color mode not changed
Change in deep color detected
Description
No irregular or missing pulse detected in TMDS clock
Irregular or missing pulses detected in TMDS clock
Description
Audio mode not changed
Audio mode changed. The following are considered audio modes; no audio, PCM, DSD, HBR
and DST.
Description
No parity error detected in audio packets
Parity error detected in audio packet
