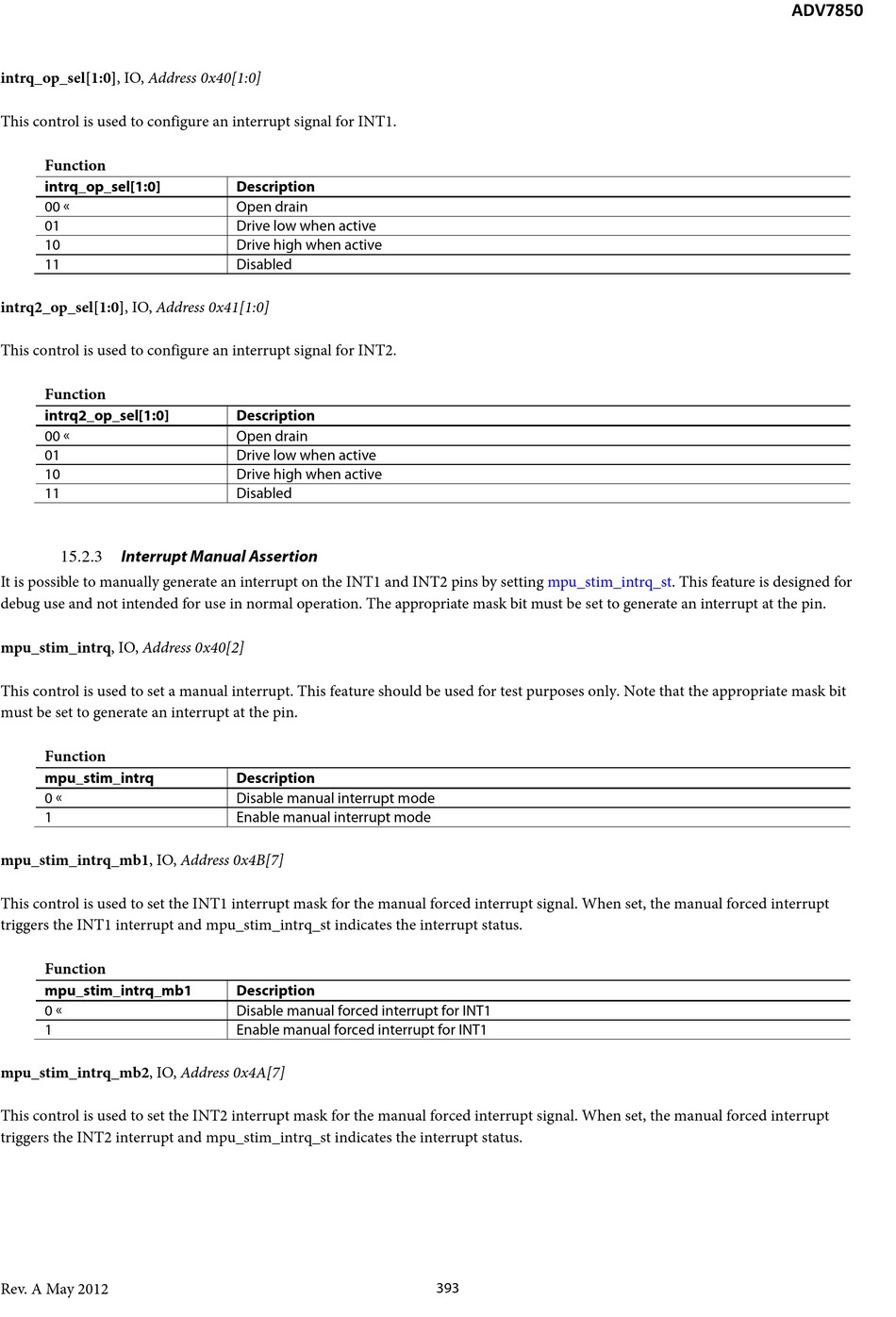

intrq_op_sel[1:0], IO, Address 0x40[1:0]
This control is used to configure an interrupt signal for INT1.
Function
intrq_op_sel[1:0]
00 
01
10
11
intrq2_op_sel[1:0], IO, Address 0x41[1:0]
This control is used to configure an interrupt signal for INT2.
Function
intrq2_op_sel[1:0]
00 
01
10
11

Interrupt Manual Assertion

15.2.3
It is possible to manually generate an interrupt on the INT1 and INT2 pins by setting mpu_stim_intrq_st. This feature is designed for
debug use and not intended for use in normal operation. The appropriate mask bit must be set to generate an interrupt at the pin.
mpu_stim_intrq, IO, Address 0x40[2]
This control is used to set a manual interrupt. This feature should be used for test purposes only. Note that the appropriate mask bit
must be set to generate an interrupt at the pin.
Function
mpu_stim_intrq
0 
1
mpu_stim_intrq_mb1, IO, Address 0x4B[7]
This control is used to set the INT1 interrupt mask for the manual forced interrupt signal. When set, the manual forced interrupt
triggers the INT1 interrupt and mpu_stim_intrq_st indicates the interrupt status.
Function
mpu_stim_intrq_mb1
0 
1
mpu_stim_intrq_mb2, IO, Address 0x4A[7]
This control is used to set the INT2 interrupt mask for the manual forced interrupt signal. When set, the manual forced interrupt
triggers the INT2 interrupt and mpu_stim_intrq_st indicates the interrupt status.
Rev. A May 2012
Description
Open drain
Drive low when active
Drive high when active
Disabled
Description
Open drain
Drive low when active
Drive high when active
Disabled
Description
Disable manual interrupt mode
Enable manual interrupt mode
Description
Disable manual forced interrupt for INT1
Enable manual forced interrupt for INT1
