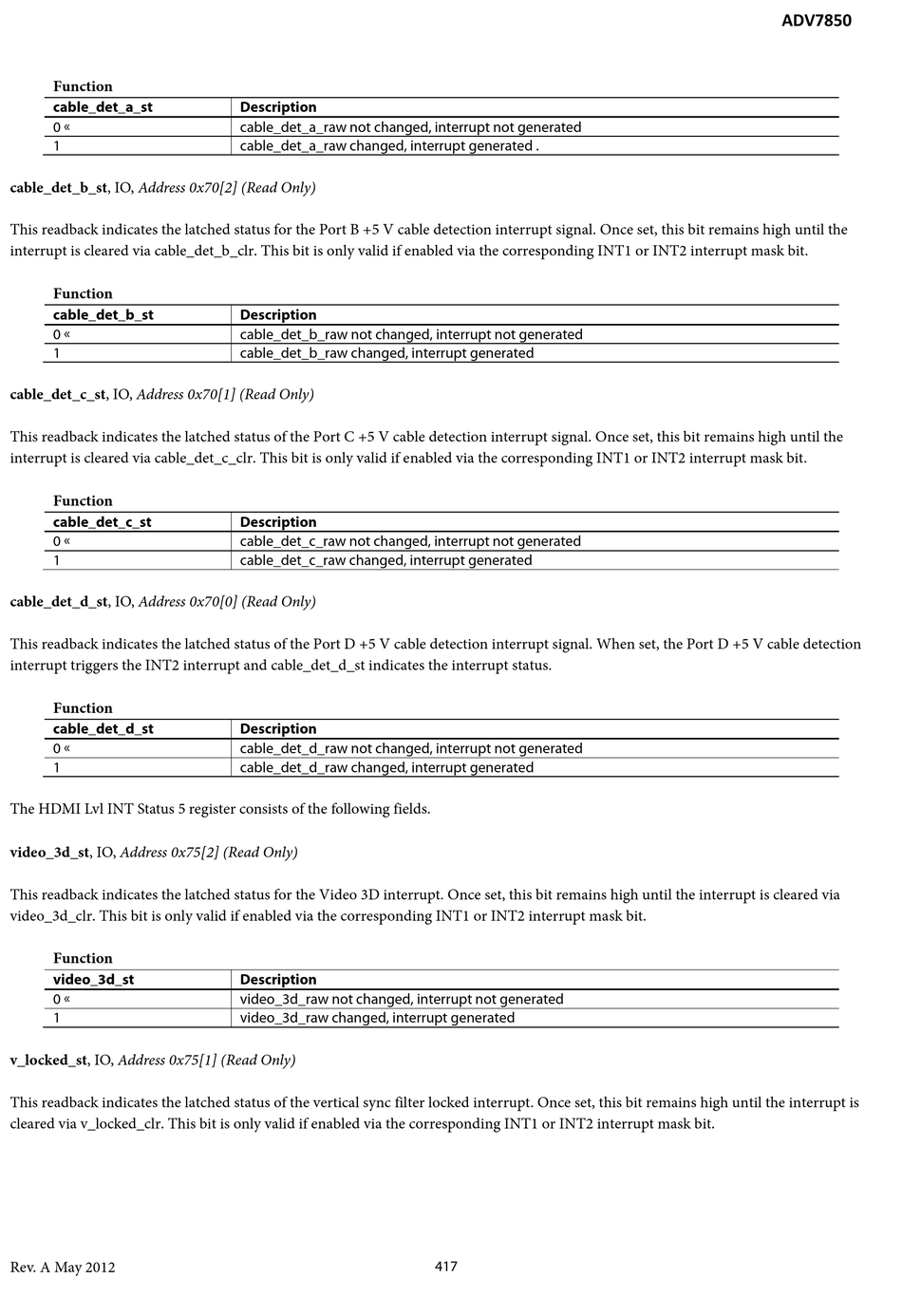

Analog Devices ADV7850 Hardware Manual page 417

Function
cable_det_a_st
0 
1
cable_det_b_st, IO, Address 0x70[2] (Read Only)
This readback indicates the latched status for the Port B +5 V cable detection interrupt signal. Once set, this bit remains high until the
interrupt is cleared via cable_det_b_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
cable_det_b_st
0 
1
cable_det_c_st, IO, Address 0x70[1] (Read Only)
This readback indicates the latched status of the Port C +5 V cable detection interrupt signal. Once set, this bit remains high until the
interrupt is cleared via cable_det_c_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
cable_det_c_st
0 
1
cable_det_d_st, IO, Address 0x70[0] (Read Only)
This readback indicates the latched status of the Port D +5 V cable detection interrupt signal. When set, the Port D +5 V cable detection
interrupt triggers the INT2 interrupt and cable_det_d_st indicates the interrupt status.
Function
cable_det_d_st
0 
1
The HDMI Lvl INT Status 5 register consists of the following fields.
video_3d_st, IO, Address 0x75[2] (Read Only)
This readback indicates the latched status for the Video 3D interrupt. Once set, this bit remains high until the interrupt is cleared via
video_3d_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
video_3d_st
0 
1
v_locked_st, IO, Address 0x75[1] (Read Only)
This readback indicates the latched status of the vertical sync filter locked interrupt. Once set, this bit remains high until the interrupt is
cleared via v_locked_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Rev. A May 2012
Description
cable_det_a_raw not changed, interrupt not generated
cable_det_a_raw changed, interrupt generated .
Description
cable_det_b_raw not changed, interrupt not generated
cable_det_b_raw changed, interrupt generated
Description
cable_det_c_raw not changed, interrupt not generated
cable_det_c_raw changed, interrupt generated
Description
cable_det_d_raw not changed, interrupt not generated
cable_det_d_raw changed, interrupt generated
Description
video_3d_raw not changed, interrupt not generated
video_3d_raw changed, interrupt generated
417
ADV7850
