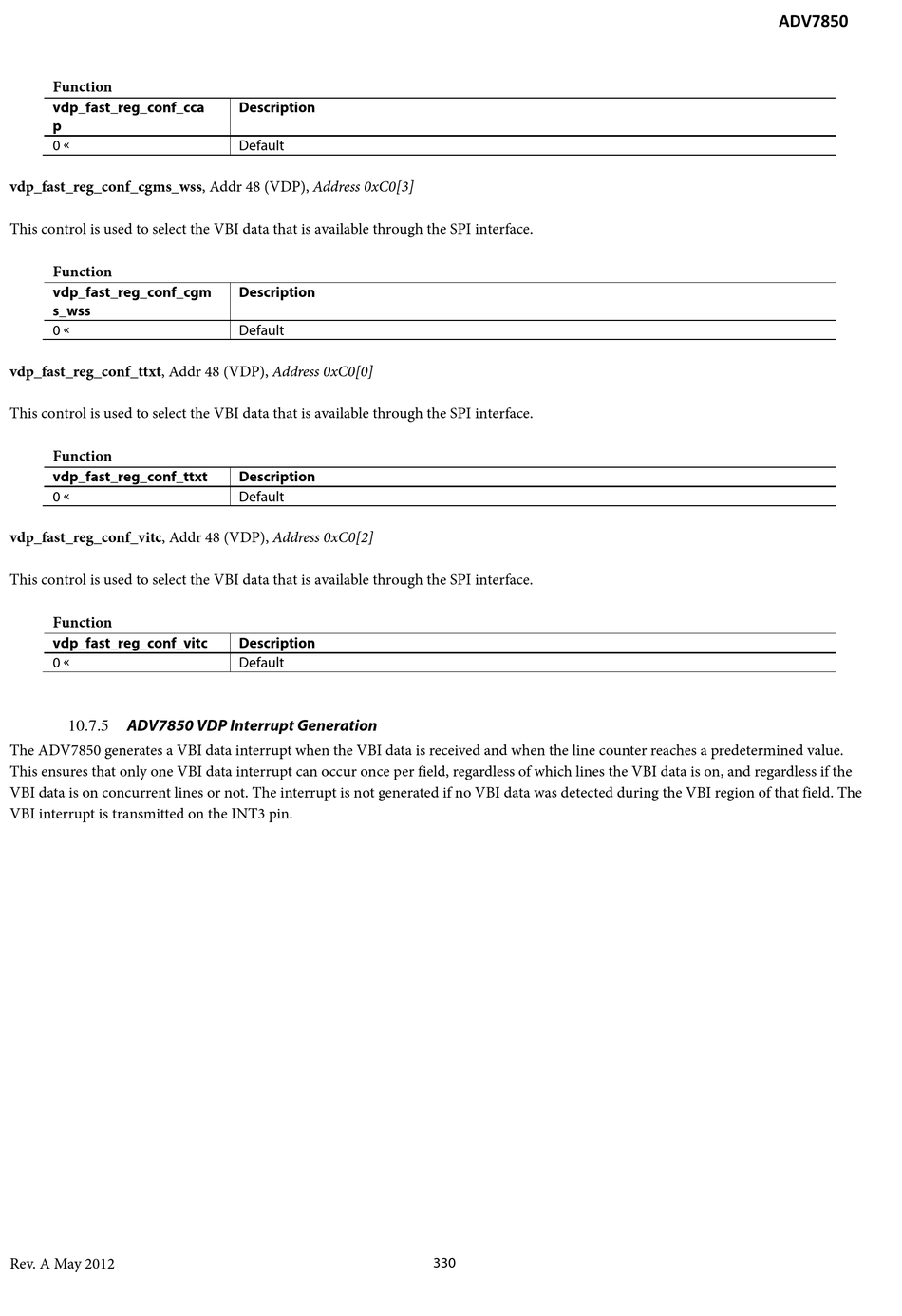

Function
vdp_fast_reg_conf_cca
p
0 
vdp_fast_reg_conf_cgms_wss, Addr 48 (VDP), Address 0xC0[3]
This control is used to select the VBI data that is available through the SPI interface.
Function
vdp_fast_reg_conf_cgm
s_wss
0 
vdp_fast_reg_conf_ttxt, Addr 48 (VDP), Address 0xC0[0]
This control is used to select the VBI data that is available through the SPI interface.
Function
vdp_fast_reg_conf_ttxt
0 
vdp_fast_reg_conf_vitc, Addr 48 (VDP), Address 0xC0[2]
This control is used to select the VBI data that is available through the SPI interface.
Function
vdp_fast_reg_conf_vitc
0 

ADV7850 VDP Interrupt Generation

10.7.5
The ADV7850 generates a VBI data interrupt when the VBI data is received and when the line counter reaches a predetermined value.
This ensures that only one VBI data interrupt can occur once per field, regardless of which lines the VBI data is on, and regardless if the
VBI data is on concurrent lines or not. The interrupt is not generated if no VBI data was detected during the VBI region of that field. The
VBI interrupt is transmitted on the INT3 pin.
Rev. A May 2012
Description
Default
Description
Default
Description
Default
Description
Default
330
