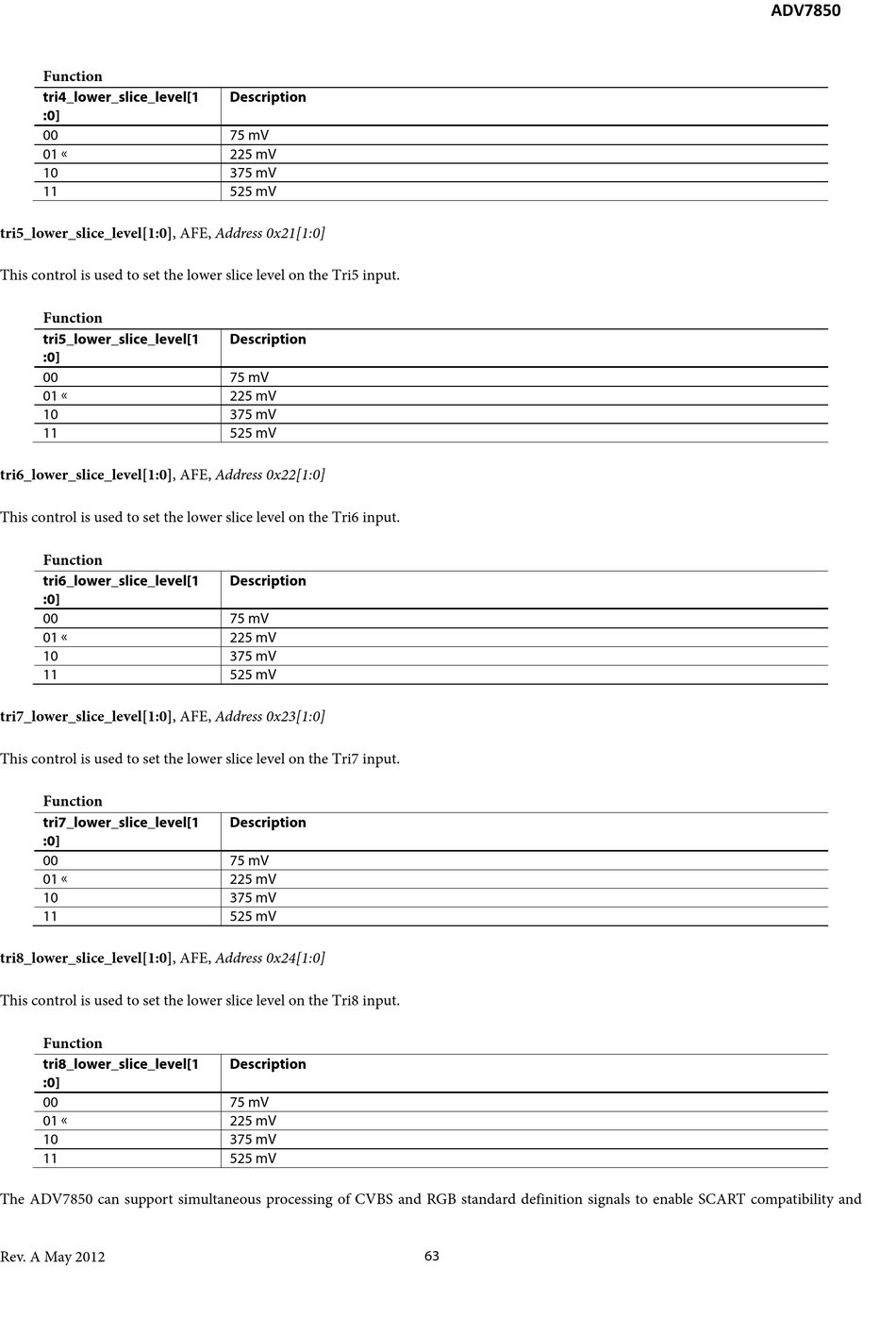

Analog Devices ADV7850 Hardware Manual page 63

Function
tri4_lower_slice_level[1
:0]
00
01 
10
11
tri5_lower_slice_level[1:0], AFE, Address 0x21[1:0]
This control is used to set the lower slice level on the Tri5 input.
Function
tri5_lower_slice_level[1
:0]
00
01 
10
11
tri6_lower_slice_level[1:0], AFE, Address 0x22[1:0]
This control is used to set the lower slice level on the Tri6 input.
Function
tri6_lower_slice_level[1
:0]
00
01 
10
11
tri7_lower_slice_level[1:0], AFE, Address 0x23[1:0]
This control is used to set the lower slice level on the Tri7 input.
Function
tri7_lower_slice_level[1
:0]
00
01 
10
11
tri8_lower_slice_level[1:0], AFE, Address 0x24[1:0]
This control is used to set the lower slice level on the Tri8 input.
Function
tri8_lower_slice_level[1
:0]
00
01 
10
11
The ADV7850 can support simultaneous processing of CVBS and RGB standard definition signals to enable SCART compatibility and
Rev. A May 2012
Description
75 mV
225 mV
375 mV
525 mV
Description
75 mV
225 mV
375 mV
525 mV
Description
75 mV
225 mV
375 mV
525 mV
Description
75 mV
225 mV
375 mV
525 mV
Description
75 mV
225 mV
375 mV
525 mV
