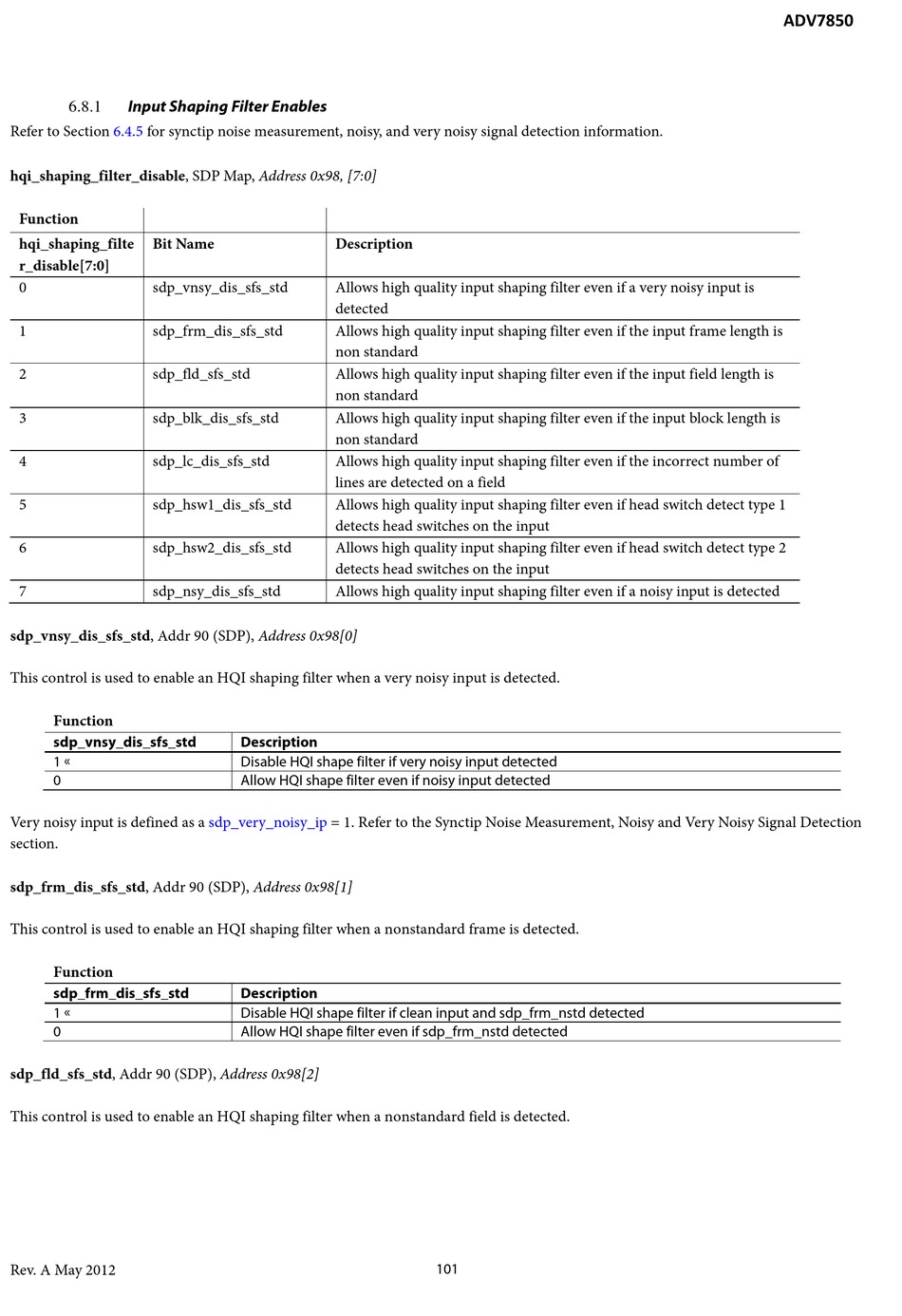

Input Shaping Filter Enables

6.8.1
Refer to Section 6.4.5 for synctip noise measurement, noisy, and very noisy signal detection information.
hqi_shaping_filter_disable, SDP Map, Address 0x98, [7:0]
Function
hqi_shaping_filte Bit Name
r_disable[7:0]
0 sdp_vnsy_dis_sfs_std
1 sdp_frm_dis_sfs_std
2 sdp_fld_sfs_std
3 sdp_blk_dis_sfs_std
4 sdp_lc_dis_sfs_std
5 sdp_hsw1_dis_sfs_std
6 sdp_hsw2_dis_sfs_std
7 sdp_nsy_dis_sfs_std
sdp_vnsy_dis_sfs_std, Addr 90 (SDP), Address 0x98[0]
This control is used to enable an HQI shaping filter when a very noisy input is detected.
Function
sdp_vnsy_dis_sfs_std
1 
0
Very noisy input is defined as a
section.
sdp_frm_dis_sfs_std, Addr 90 (SDP), Address 0x98[1]
This control is used to enable an HQI shaping filter when a nonstandard frame is detected.
Function
sdp_frm_dis_sfs_std
1 
0
sdp_fld_sfs_std, Addr 90 (SDP), Address 0x98[2]
This control is used to enable an HQI shaping filter when a nonstandard field is detected.
Rev. A May 2012
Description
Allows high quality input shaping filter even if a very noisy input is
detected
Allows high quality input shaping filter even if the input frame length is
non standard
Allows high quality input shaping filter even if the input field length is
non standard
Allows high quality input shaping filter even if the input block length is
non standard
Allows high quality input shaping filter even if the incorrect number of
lines are detected on a field
Allows high quality input shaping filter even if head switch detect type 1
detects head switches on the input
Allows high quality input shaping filter even if head switch detect type 2
detects head switches on the input
Allows high quality input shaping filter even if a noisy input is detected
Description
Disable HQI shape filter if very noisy input detected
Allow HQI shape filter even if noisy input detected
sdp_very_noisy_ip = 1. Refer to the Synctip Noise Measurement, Noisy and Very Noisy Signal Detection
Description
Disable HQI shape filter if clean input and sdp_frm_nstd detected
Allow HQI shape filter even if sdp_frm_nstd detected
101
