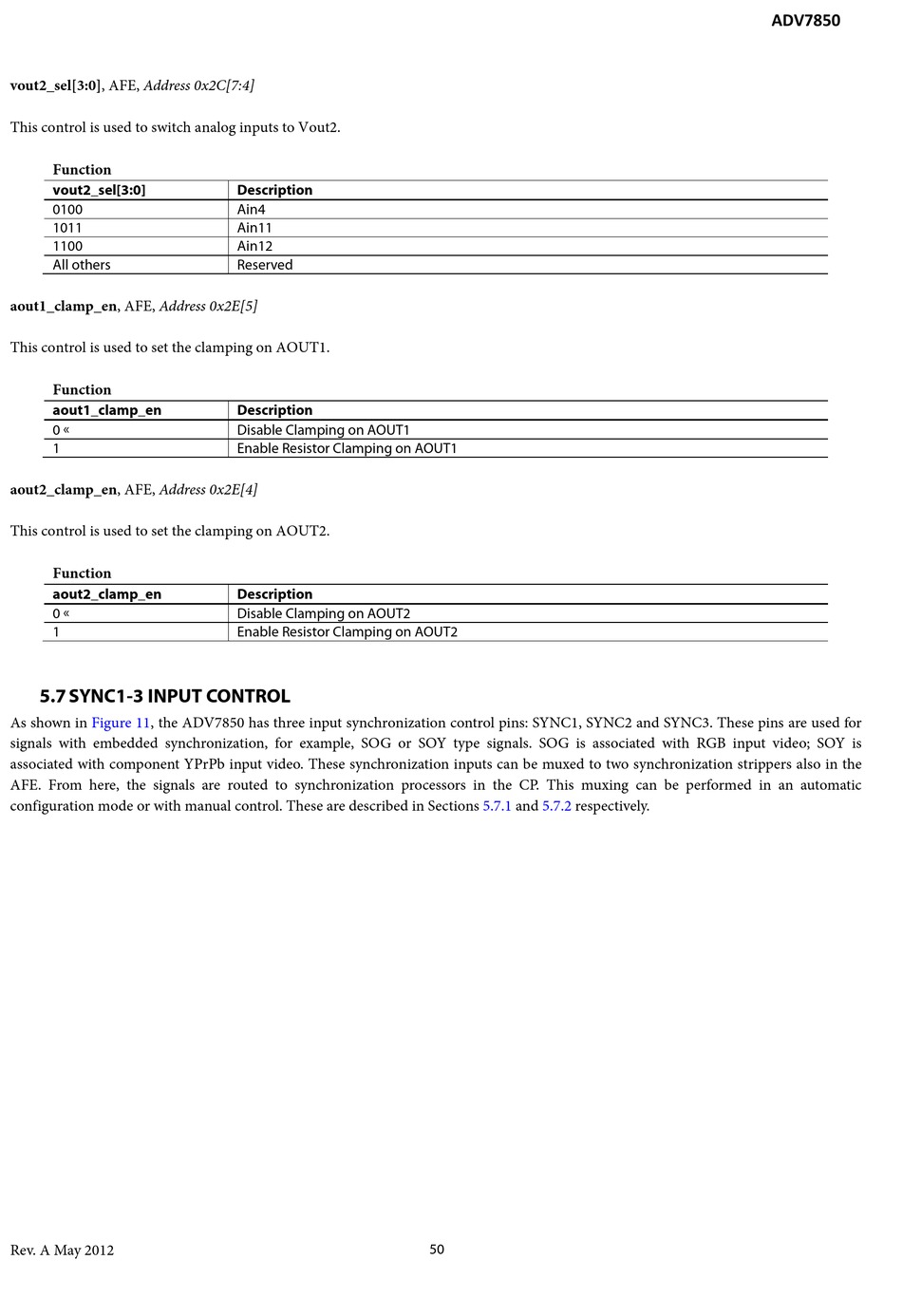

vout2_sel[3:0], AFE, Address 0x2C[7:4]
This control is used to switch analog inputs to Vout2.
Function
vout2_sel[3:0]
0100
1011
1100
All others
aout1_clamp_en, AFE, Address 0x2E[5]
This control is used to set the clamping on AOUT1.
Function
aout1_clamp_en
0 
1
aout2_clamp_en, AFE, Address 0x2E[4]
This control is used to set the clamping on AOUT2.
Function
aout2_clamp_en
0 
1

5.7 SYNC1-3 INPUT CONTROL

As shown in Figure 11, the ADV7850 has three input synchronization control pins: SYNC1, SYNC2 and SYNC3. These pins are used for
signals with embedded synchronization, for example, SOG or SOY type signals. SOG is associated with RGB input video; SOY is
associated with component YPrPb input video. These synchronization inputs can be muxed to two synchronization strippers also in the
AFE. From here, the signals are routed to synchronization processors in the CP. This muxing can be performed in an automatic
configuration mode or with manual control. These are described in Sections
Rev. A May 2012
Description
Ain4
Ain11
Ain12
Reserved
Description
Disable Clamping on AOUT1
Enable Resistor Clamping on AOUT1
Description
Disable Clamping on AOUT2
Enable Resistor Clamping on AOUT2
5.7.1 and 5.7.2 respectively.
