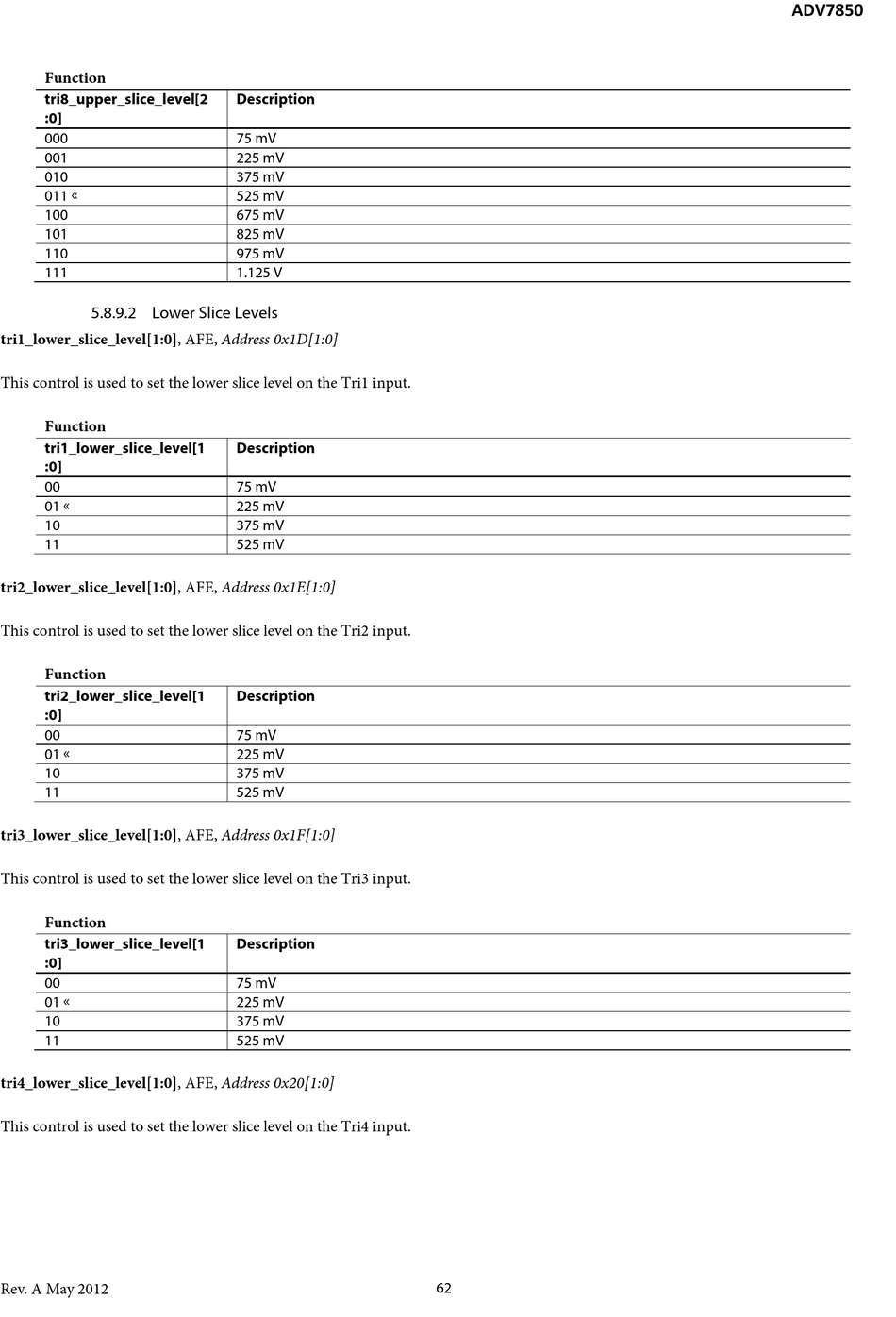

Lower Slice Levels - Analog Devices ADV7850 Hardware Manual

Function
tri8_upper_slice_level[2
:0]
000
001
010
011 
100
101
110
111

5.8.9.2 Lower Slice Levels

tri1_lower_slice_level[1:0], AFE, Address 0x1D[1:0]
This control is used to set the lower slice level on the Tri1 input.
Function
tri1_lower_slice_level[1
:0]
00
01 
10
11
tri2_lower_slice_level[1:0], AFE, Address 0x1E[1:0]
This control is used to set the lower slice level on the Tri2 input.
Function
tri2_lower_slice_level[1
:0]
00
01 
10
11
tri3_lower_slice_level[1:0], AFE, Address 0x1F[1:0]
This control is used to set the lower slice level on the Tri3 input.
Function
tri3_lower_slice_level[1
:0]
00
01 
10
11
tri4_lower_slice_level[1:0], AFE, Address 0x20[1:0]
This control is used to set the lower slice level on the Tri4 input.
Rev. A May 2012
Description
75 mV
225 mV
375 mV
525 mV
675 mV
825 mV
975 mV
1.125 V
Description
75 mV
225 mV
375 mV
525 mV
Description
75 mV
225 mV
375 mV
525 mV
Description
75 mV
225 mV
375 mV
525 mV
62
ADV7850
