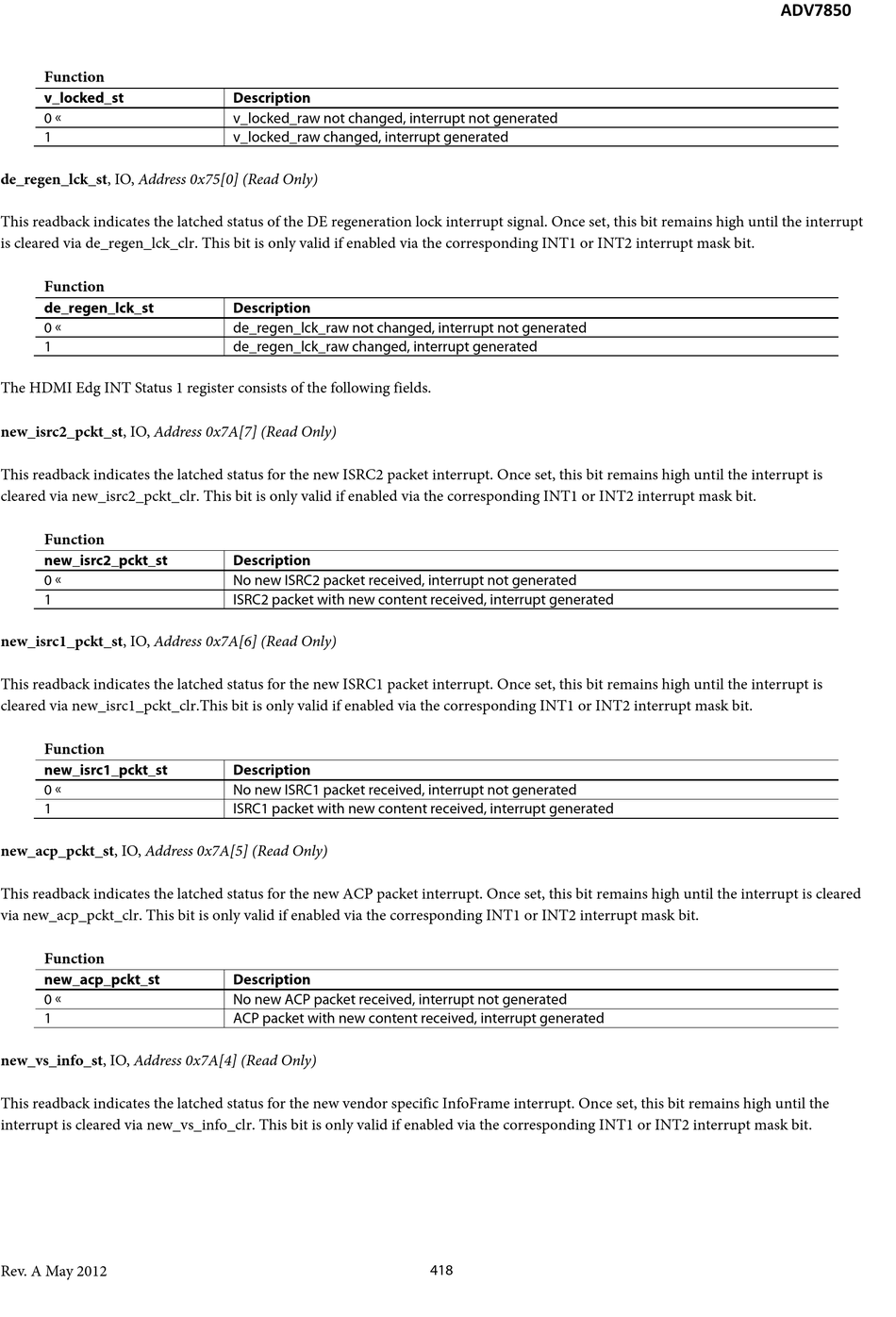

Analog Devices ADV7850 Hardware Manual page 418

Function
v_locked_st
0 
1
de_regen_lck_st, IO, Address 0x75[0] (Read Only)
This readback indicates the latched status of the DE regeneration lock interrupt signal. Once set, this bit remains high until the interrupt
is cleared via de_regen_lck_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
de_regen_lck_st
0 
1
The HDMI Edg INT Status 1 register consists of the following fields.
new_isrc2_pckt_st, IO, Address 0x7A[7] (Read Only)
This readback indicates the latched status for the new ISRC2 packet interrupt. Once set, this bit remains high until the interrupt is
cleared via new_isrc2_pckt_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
new_isrc2_pckt_st
0 
1
new_isrc1_pckt_st, IO, Address 0x7A[6] (Read Only)
This readback indicates the latched status for the new ISRC1 packet interrupt. Once set, this bit remains high until the interrupt is
cleared via new_isrc1_pckt_clr.This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
new_isrc1_pckt_st
0 
1
new_acp_pckt_st, IO, Address 0x7A[5] (Read Only)
This readback indicates the latched status for the new ACP packet interrupt. Once set, this bit remains high until the interrupt is cleared
via new_acp_pckt_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
new_acp_pckt_st
0 
1
new_vs_info_st, IO, Address 0x7A[4] (Read Only)
This readback indicates the latched status for the new vendor specific InfoFrame interrupt. Once set, this bit remains high until the
interrupt is cleared via new_vs_info_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Rev. A May 2012
Description
v_locked_raw not changed, interrupt not generated
v_locked_raw changed, interrupt generated
Description
de_regen_lck_raw not changed, interrupt not generated
de_regen_lck_raw changed, interrupt generated
Description
No new ISRC2 packet received, interrupt not generated
ISRC2 packet with new content received, interrupt generated
Description
No new ISRC1 packet received, interrupt not generated
ISRC1 packet with new content received, interrupt generated
Description
No new ACP packet received, interrupt not generated
ACP packet with new content received, interrupt generated
