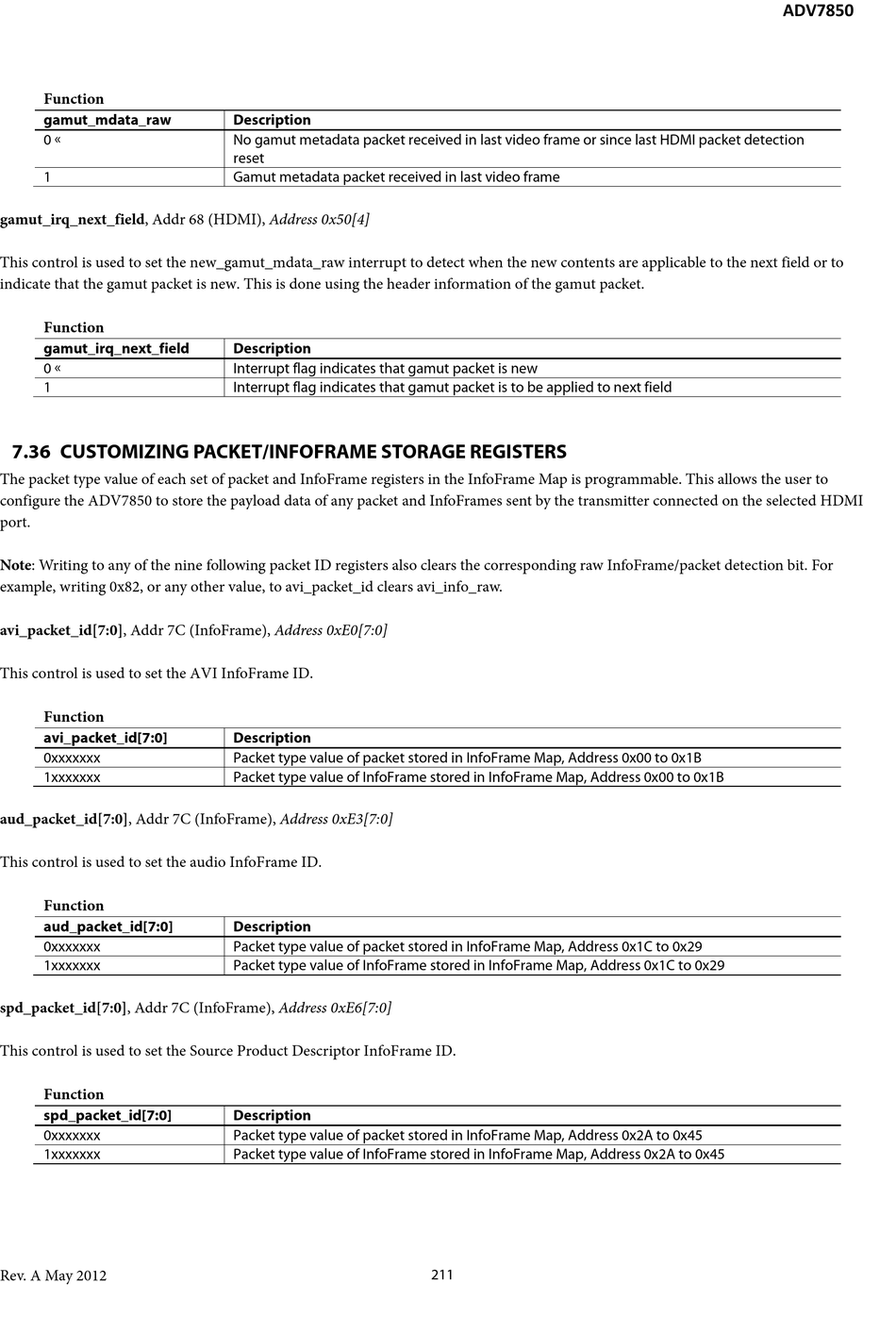

Function
gamut_mdata_raw
0 
1
gamut_irq_next_field, Addr 68 (HDMI), Address 0x50[4]
This control is used to set the new_gamut_mdata_raw interrupt to detect when the new contents are applicable to the next field or to
indicate that the gamut packet is new. This is done using the header information of the gamut packet.
Function
gamut_irq_next_field
0 
1

7.36 CUSTOMIZING PACKET/INFOFRAME STORAGE REGISTERS

The packet type value of each set of packet and InfoFrame registers in the InfoFrame Map is programmable. This allows the user to
configure the ADV7850 to store the payload data of any packet and InfoFrames sent by the transmitter connected on the selected HDMI
port.
Note: Writing to any of the nine following packet ID registers also clears the corresponding raw InfoFrame/packet detection bit. For
example, writing 0x82, or any other value, to avi_packet_id clears avi_info_raw.
avi_packet_id[7:0], Addr 7C (InfoFrame), Address 0xE0[7:0]
This control is used to set the AVI InfoFrame ID.
Function
avi_packet_id[7:0]
0xxxxxxx
1xxxxxxx
aud_packet_id[7:0], Addr 7C (InfoFrame), Address 0xE3[7:0]
This control is used to set the audio InfoFrame ID.
Function
aud_packet_id[7:0]
0xxxxxxx
1xxxxxxx
spd_packet_id[7:0], Addr 7C (InfoFrame), Address 0xE6[7:0]
This control is used to set the Source Product Descriptor InfoFrame ID.
Function
spd_packet_id[7:0]
0xxxxxxx
1xxxxxxx
Rev. A May 2012
Description
No gamut metadata packet received in last video frame or since last HDMI packet detection
reset
Gamut metadata packet received in last video frame
Description
Interrupt flag indicates that gamut packet is new
Interrupt flag indicates that gamut packet is to be applied to next field
Description
Packet type value of packet stored in InfoFrame Map, Address 0x00 to 0x1B
Packet type value of InfoFrame stored in InfoFrame Map, Address 0x00 to 0x1B
Description
Packet type value of packet stored in InfoFrame Map, Address 0x1C to 0x29
Packet type value of InfoFrame stored in InfoFrame Map, Address 0x1C to 0x29
Description
Packet type value of packet stored in InfoFrame Map, Address 0x2A to 0x45
Packet type value of InfoFrame stored in InfoFrame Map, Address 0x2A to 0x45
211
