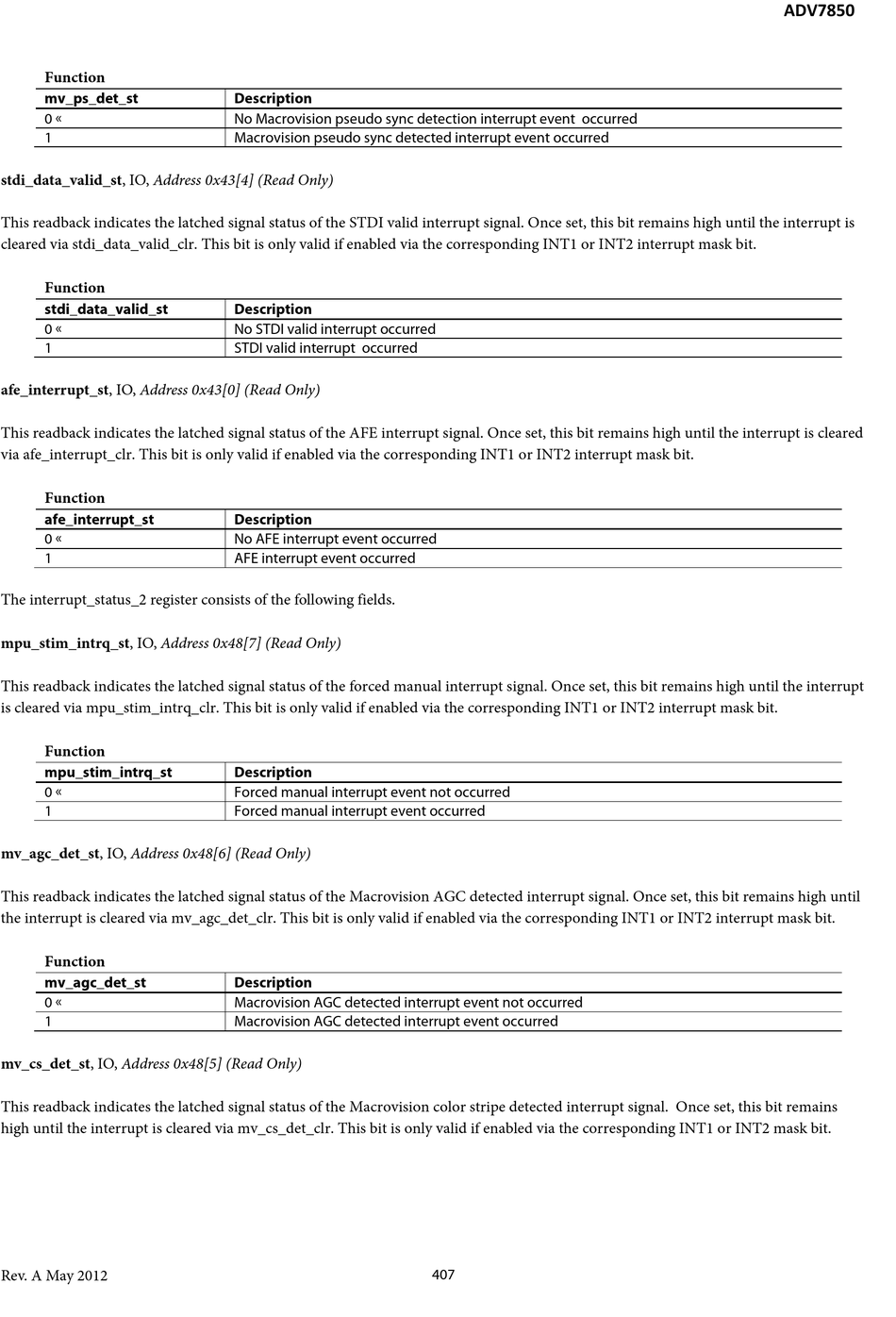

Analog Devices ADV7850 Hardware Manual page 407

Function
mv_ps_det_st
0 
1
stdi_data_valid_st, IO, Address 0x43[4] (Read Only)
This readback indicates the latched signal status of the STDI valid interrupt signal. Once set, this bit remains high until the interrupt is
cleared via stdi_data_valid_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
stdi_data_valid_st
0 
1
afe_interrupt_st, IO, Address 0x43[0] (Read Only)
This readback indicates the latched signal status of the AFE interrupt signal. Once set, this bit remains high until the interrupt is cleared
via afe_interrupt_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
afe_interrupt_st
0 
1
The interrupt_status_2 register consists of the following fields.
mpu_stim_intrq_st, IO, Address 0x48[7] (Read Only)
This readback indicates the latched signal status of the forced manual interrupt signal. Once set, this bit remains high until the interrupt
is cleared via mpu_stim_intrq_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
mpu_stim_intrq_st
0 
1
mv_agc_det_st, IO, Address 0x48[6] (Read Only)
This readback indicates the latched signal status of the Macrovision AGC detected interrupt signal. Once set, this bit remains high until
the interrupt is cleared via mv_agc_det_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 interrupt mask bit.
Function
mv_agc_det_st
0 
1
mv_cs_det_st, IO, Address 0x48[5] (Read Only)
This readback indicates the latched signal status of the Macrovision color stripe detected interrupt signal. Once set, this bit remains
high until the interrupt is cleared via mv_cs_det_clr. This bit is only valid if enabled via the corresponding INT1 or INT2 mask bit.
Rev. A May 2012
Description
No Macrovision pseudo sync detection interrupt event occurred
Macrovision pseudo sync detected interrupt event occurred
Description
No STDI valid interrupt occurred
STDI valid interrupt occurred
Description
No AFE interrupt event occurred
AFE interrupt event occurred
Description
Forced manual interrupt event not occurred
Forced manual interrupt event occurred
Description
Macrovision AGC detected interrupt event not occurred
Macrovision AGC detected interrupt event occurred
407
ADV7850
