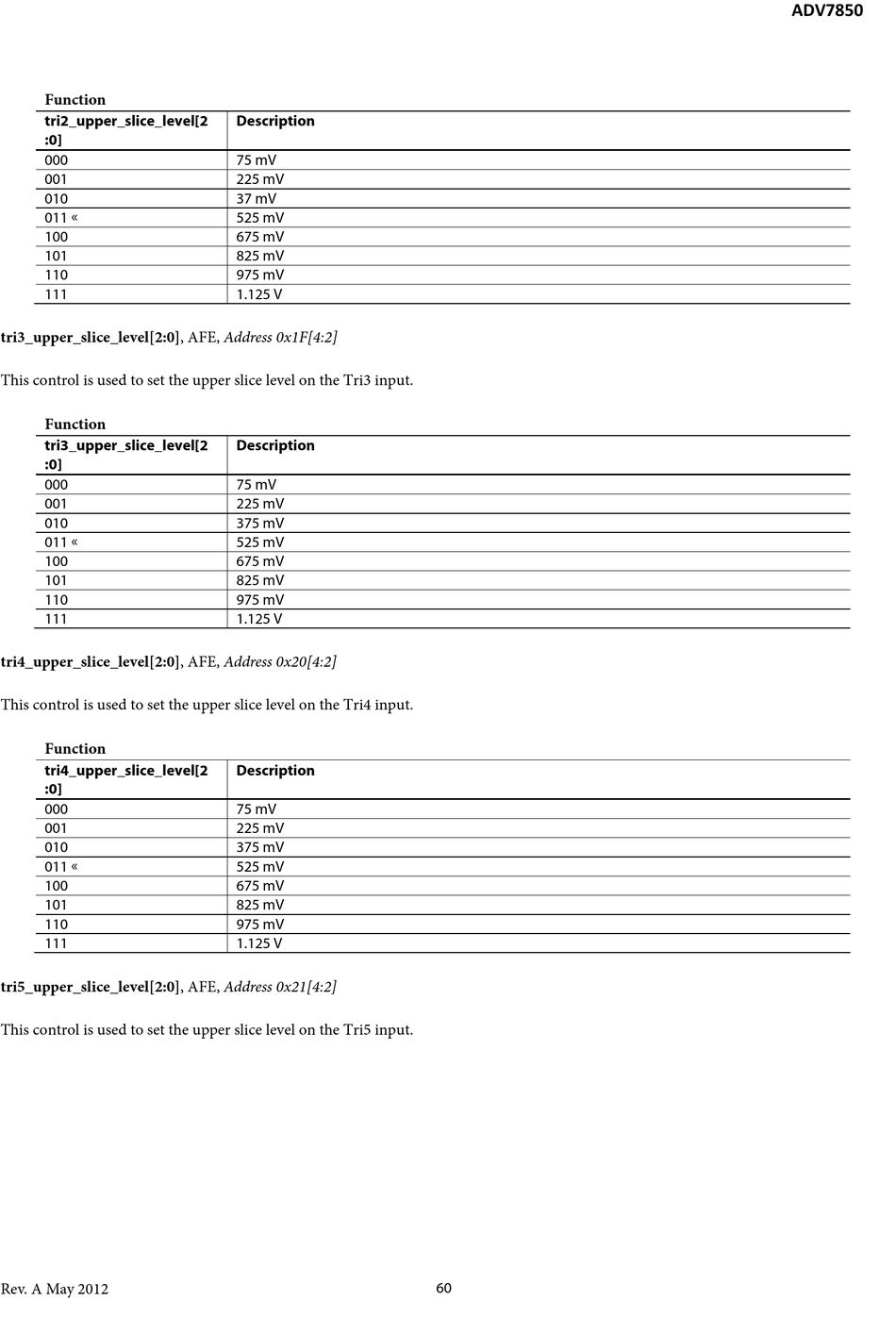

Analog Devices ADV7850 Hardware Manual page 60

Function
tri2_upper_slice_level[2
:0]
000
001
010
011 
100
101
110
111
tri3_upper_slice_level[2:0], AFE, Address 0x1F[4:2]
This control is used to set the upper slice level on the Tri3 input.
Function
tri3_upper_slice_level[2
:0]
000
001
010
011 
100
101
110
111
tri4_upper_slice_level[2:0], AFE, Address 0x20[4:2]
This control is used to set the upper slice level on the Tri4 input.
Function
tri4_upper_slice_level[2
:0]
000
001
010
011 
100
101
110
111
tri5_upper_slice_level[2:0], AFE, Address 0x21[4:2]
This control is used to set the upper slice level on the Tri5 input.
Rev. A May 2012
Description
75 mV
225 mV
37 mV
525 mV
675 mV
825 mV
975 mV
1.125 V
Description
75 mV
225 mV
375 mV
525 mV
675 mV
825 mV
975 mV
1.125 V
Description
75 mV
225 mV
375 mV
525 mV
675 mV
825 mV
975 mV
1.125 V
60
ADV7850
