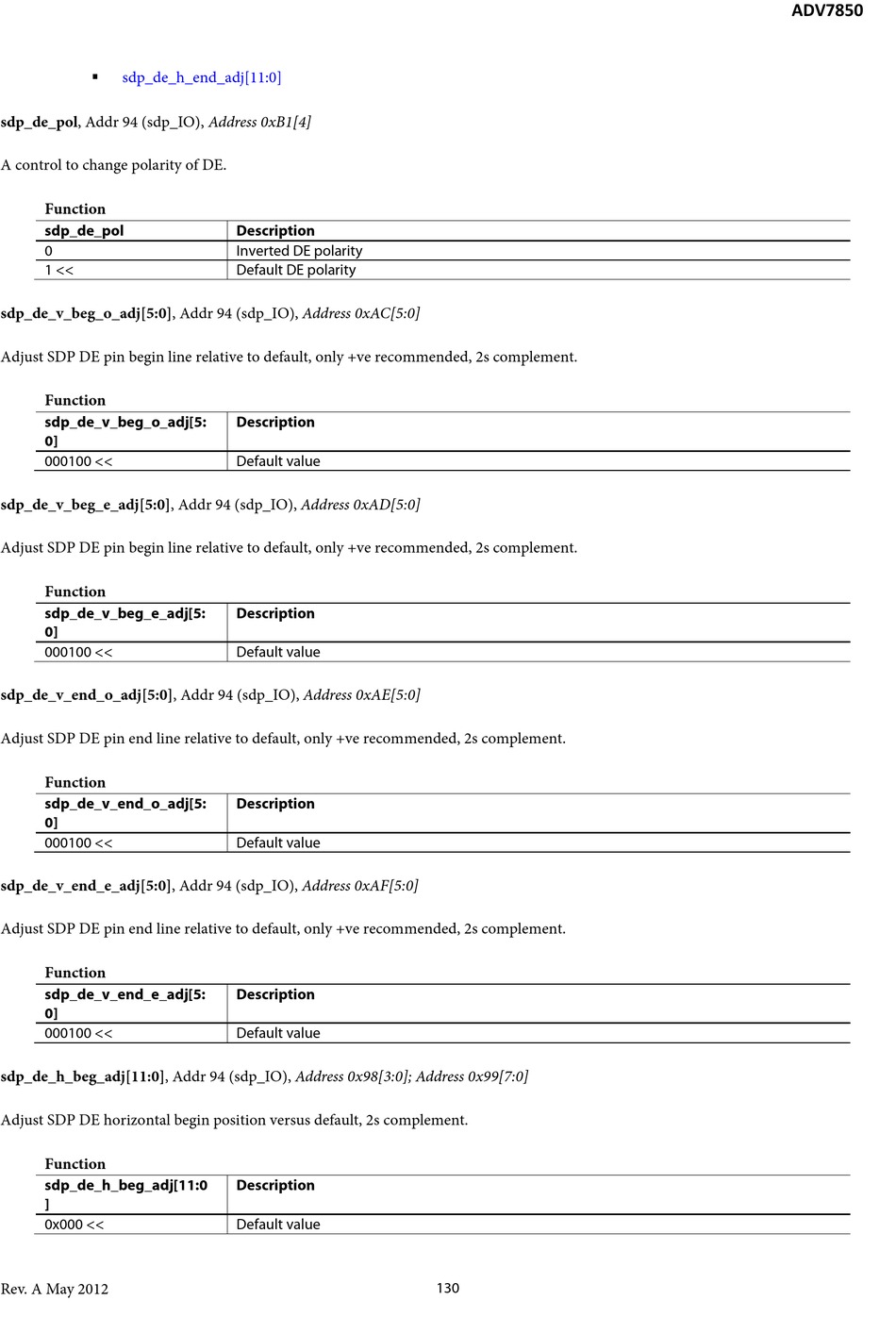

sdp_de_h_end_adj[11:0]

sdp_de_pol, Addr 94 (sdp_IO), Address 0xB1[4]
A control to change polarity of DE.
Function
sdp_de_pol
0
1 <<
sdp_de_v_beg_o_adj[5:0], Addr 94 (sdp_IO), Address 0xAC[5:0]
Adjust SDP DE pin begin line relative to default, only +ve recommended, 2s complement.
Function
sdp_de_v_beg_o_adj[5:
0]
000100 <<
sdp_de_v_beg_e_adj[5:0], Addr 94 (sdp_IO), Address 0xAD[5:0]
Adjust SDP DE pin begin line relative to default, only +ve recommended, 2s complement.
Function
sdp_de_v_beg_e_adj[5:
0]
000100 <<
sdp_de_v_end_o_adj[5:0], Addr 94 (sdp_IO), Address 0xAE[5:0]
Adjust SDP DE pin end line relative to default, only +ve recommended, 2s complement.
Function
sdp_de_v_end_o_adj[5:
0]
000100 <<
sdp_de_v_end_e_adj[5:0], Addr 94 (sdp_IO), Address 0xAF[5:0]
Adjust SDP DE pin end line relative to default, only +ve recommended, 2s complement.
Function
sdp_de_v_end_e_adj[5:
0]
000100 <<
sdp_de_h_beg_adj[11:0], Addr 94 (sdp_IO), Address 0x98[3:0]; Address 0x99[7:0]
Adjust SDP DE horizontal begin position versus default, 2s complement.
Function
sdp_de_h_beg_adj[11:0
]
0x000 <<
Rev. A May 2012
Description
Inverted DE polarity
Default DE polarity
Description
Default value
Description
Default value
Description
Default value
Description
Default value
Description
Default value
