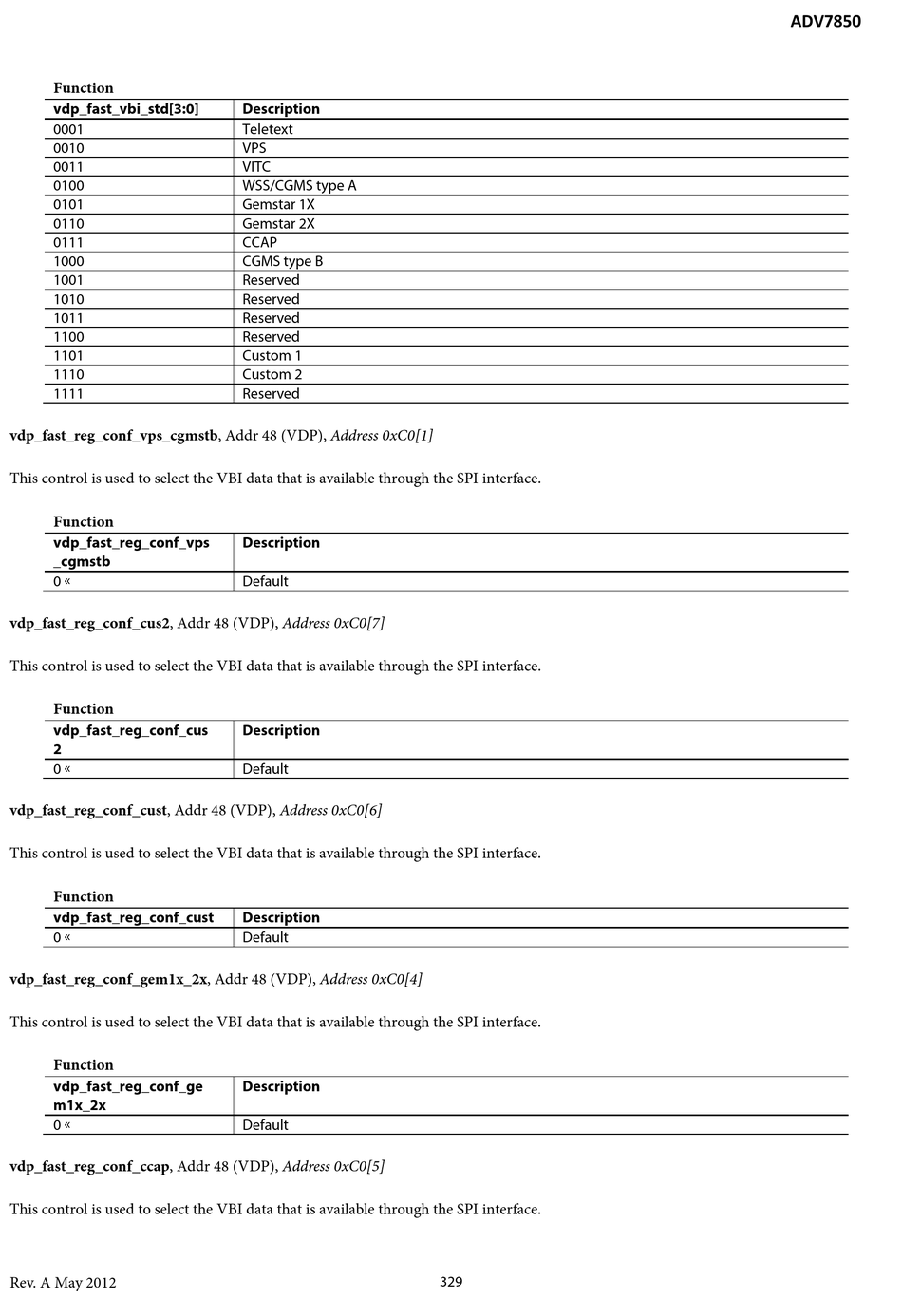

Analog Devices ADV7850 Hardware Manual page 329

Function
vdp_fast_vbi_std[3:0]
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
vdp_fast_reg_conf_vps_cgmstb, Addr 48 (VDP), Address 0xC0[1]
This control is used to select the VBI data that is available through the SPI interface.
Function
vdp_fast_reg_conf_vps
_cgmstb
0 
vdp_fast_reg_conf_cus2, Addr 48 (VDP), Address 0xC0[7]
This control is used to select the VBI data that is available through the SPI interface.
Function
vdp_fast_reg_conf_cus
2
0 
vdp_fast_reg_conf_cust, Addr 48 (VDP), Address 0xC0[6]
This control is used to select the VBI data that is available through the SPI interface.
Function
vdp_fast_reg_conf_cust
0 
vdp_fast_reg_conf_gem1x_2x, Addr 48 (VDP), Address 0xC0[4]
This control is used to select the VBI data that is available through the SPI interface.
Function
vdp_fast_reg_conf_ge
m1x_2x
0 
vdp_fast_reg_conf_ccap, Addr 48 (VDP), Address 0xC0[5]
This control is used to select the VBI data that is available through the SPI interface.
Rev. A May 2012
Description
Teletext
VPS
VITC
WSS/CGMS type A
Gemstar 1X
Gemstar 2X
CCAP
CGMS type B
Reserved
Reserved
Reserved
Reserved
Custom 1
Custom 2
Reserved
Description
Default
Description
Default
Description
Default
Description
Default
329
