Function
sdp_ad_pal_en
1
0 

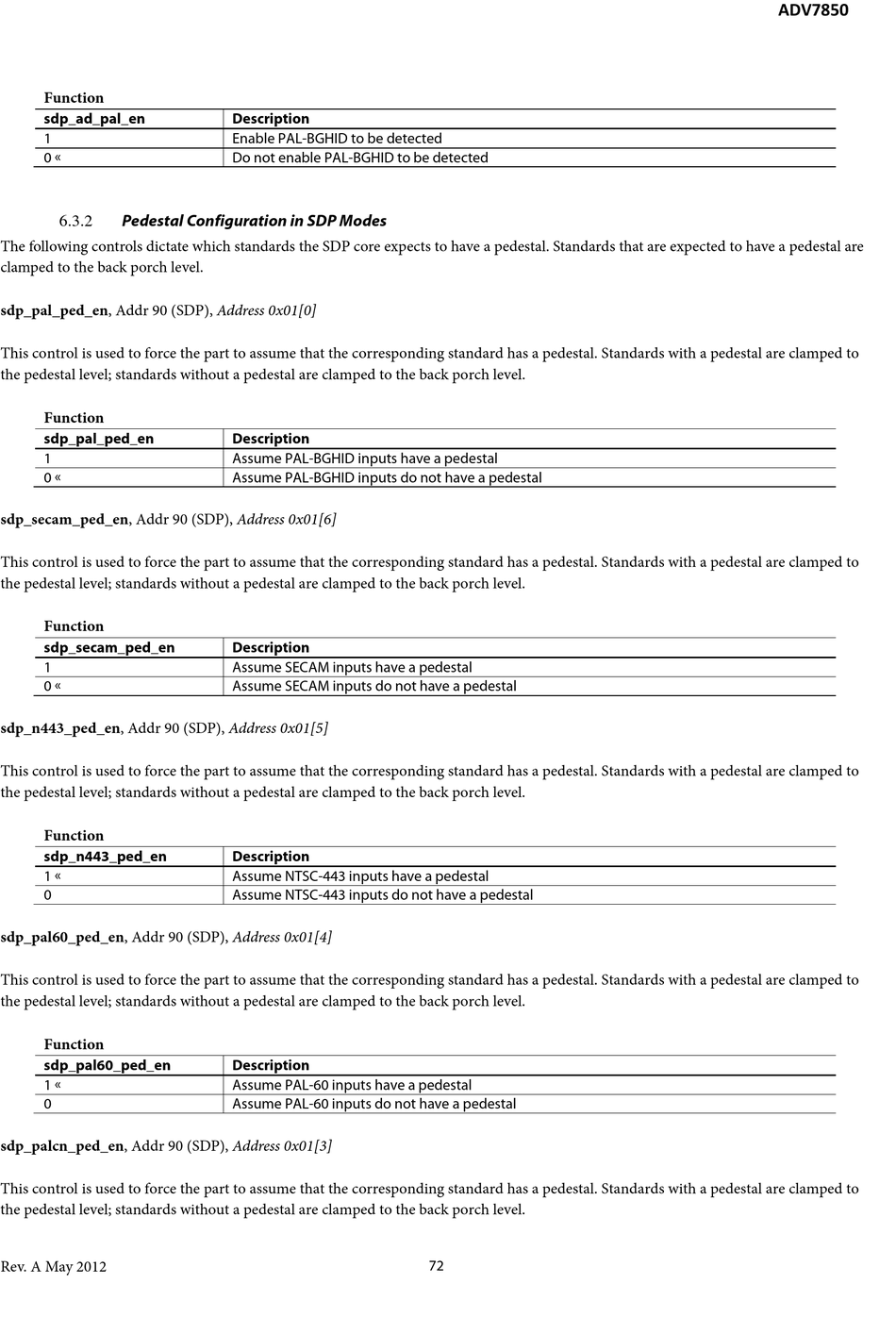

Pedestal Configuration in SDP Modes

6.3.2
The following controls dictate which standards the SDP core expects to have a pedestal. Standards that are expected to have a pedestal are
clamped to the back porch level.
sdp_pal_ped_en, Addr 90 (SDP), Address 0x01[0]
This control is used to force the part to assume that the corresponding standard has a pedestal. Standards with a pedestal are clamped to
the pedestal level; standards without a pedestal are clamped to the back porch level.
Function
sdp_pal_ped_en
1
0 
sdp_secam_ped_en, Addr 90 (SDP), Address 0x01[6]
This control is used to force the part to assume that the corresponding standard has a pedestal. Standards with a pedestal are clamped to
the pedestal level; standards without a pedestal are clamped to the back porch level.
Function
sdp_secam_ped_en
1
0 
sdp_n443_ped_en, Addr 90 (SDP), Address 0x01[5]
This control is used to force the part to assume that the corresponding standard has a pedestal. Standards with a pedestal are clamped to
the pedestal level; standards without a pedestal are clamped to the back porch level.
Function
sdp_n443_ped_en
1 
0
sdp_pal60_ped_en, Addr 90 (SDP), Address 0x01[4]
This control is used to force the part to assume that the corresponding standard has a pedestal. Standards with a pedestal are clamped to
the pedestal level; standards without a pedestal are clamped to the back porch level.
Function
sdp_pal60_ped_en
1 
0
sdp_palcn_ped_en, Addr 90 (SDP), Address 0x01[3]
This control is used to force the part to assume that the corresponding standard has a pedestal. Standards with a pedestal are clamped to
the pedestal level; standards without a pedestal are clamped to the back porch level.
Rev. A May 2012
Description
Enable PAL-BGHID to be detected
Do not enable PAL-BGHID to be detected
Description
Assume PAL-BGHID inputs have a pedestal
Assume PAL-BGHID inputs do not have a pedestal
Description
Assume SECAM inputs have a pedestal
Assume SECAM inputs do not have a pedestal
Description
Assume NTSC-443 inputs have a pedestal
Assume NTSC-443 inputs do not have a pedestal
Description
Assume PAL-60 inputs have a pedestal
Assume PAL-60 inputs do not have a pedestal
72
