Logic modules
11.6

Timer

Description
The timer consists of:
• Two plugs (input and reset)
• One socket.
• One "Actual value" analog socket with the actual value.
The actual value is available as a socket for further internal processing and
can also be transmitted to the automation system.
If an input signal is pending, the timer can issue an output signal according
to the chosen timer type:
• With closing delay
• With closing delay with memory
• With opening delay
• Fleeting closing.
Overall, the following are available:
– Two timers, 1 to 2 for BU1
– Four timers, 1 to 4 for BU2

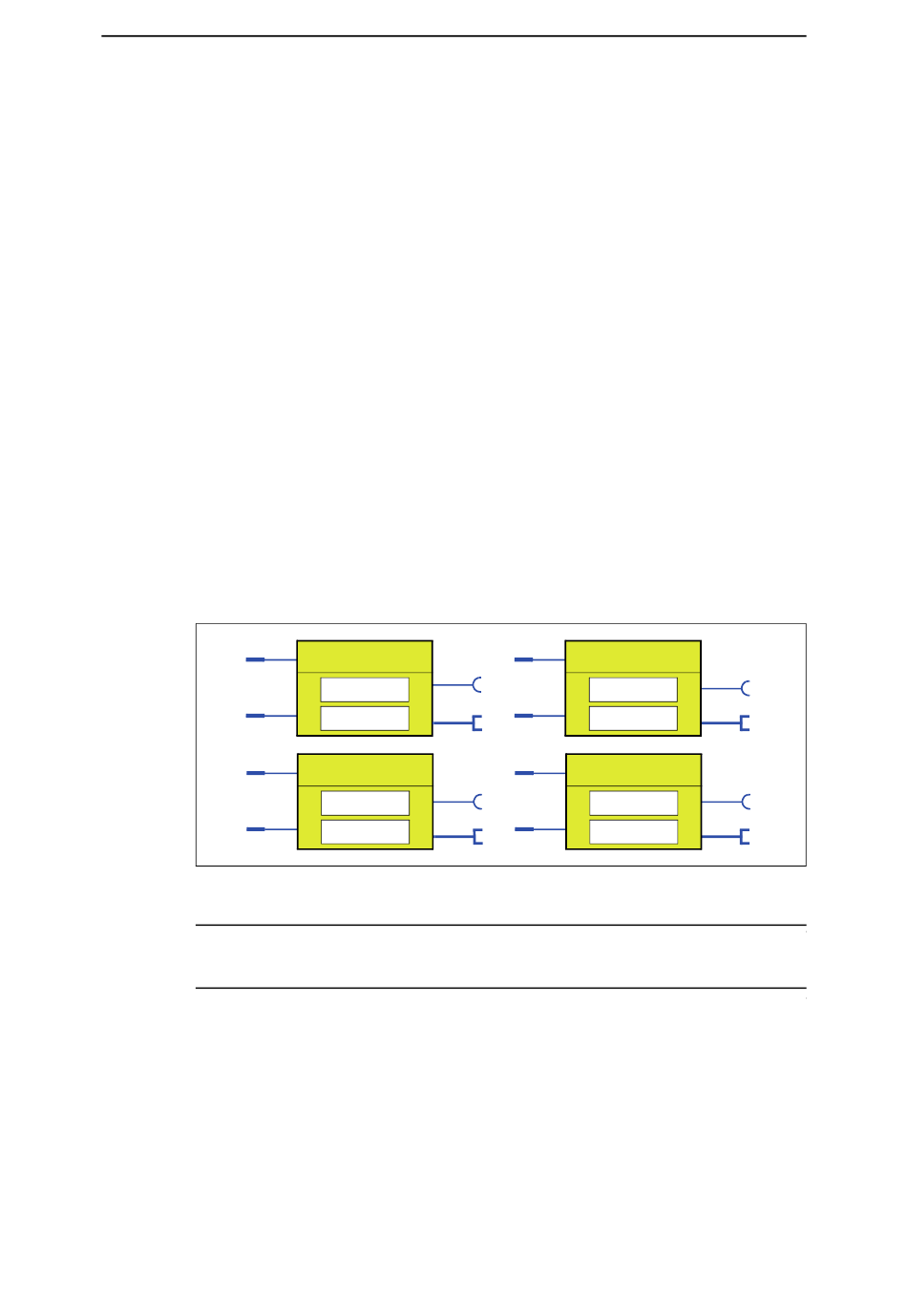

Schematic
The following schematic shows the "Timer" logic modules
Input
Reset
Input
Reset
Fig. 11-9: "Timer" logic modules
Note
The output is always 0 if a reset is pending.
11-10
Input
Timer 1
Output
Type
Reset
Actual value
Value
Input
Timer 3
Output
Type
Reset
Actual value
Value
Timer 2
Output
Type
Actual value
Value
Timer 4
Output
Type
Actual value
Value
